VW T5.1 T6 Pioneer Under Seat Active Subwoofer & Kenwood 6.5" Coaxial Speaker Upgrade Kit
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 4
- Brand: Dynamic Sounds
- Model: TS-WX130EA + KFC-PS1797 + CT25VW16 + CT55-VW02
- EAN: 7426871619968
- Warranty: 2 Years Warranty
Available Options
Description

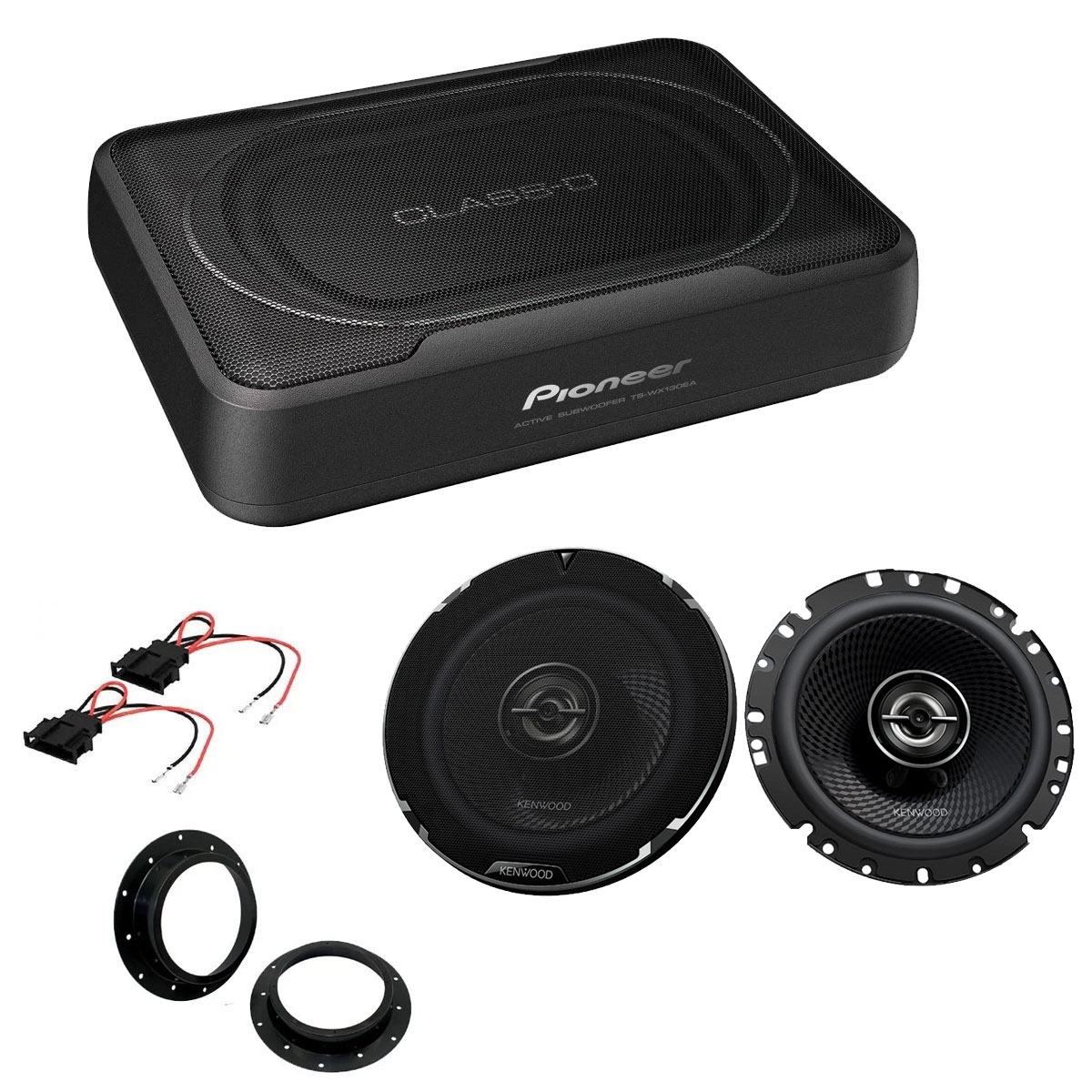

Package Includes
- Pioneer Under Seat Space Saving Active Car Subwoofer
- Kenwood PS Series 6.5" (17cm) 2-Way Coaxial Car Speakers

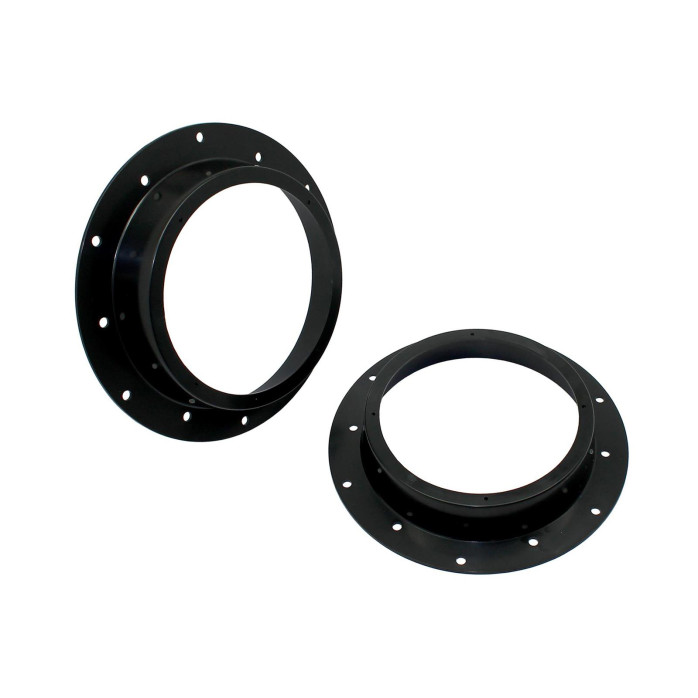

- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
| Volkswagen | Transporter | 2010 - 2015 | T5.1 |
| Volkswagen | Transporter | 2016 - 2019 | T6 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
Pioneer Under Seat Space Saving Active Car Subwoofer
Powerful Bass Without Losing Space.
Pioneer launches yet another product in its generation of Class D amplified subwoofers , which produces 160 watts of strong, rich, deep bass that you can feel without giving up space. With amplifier adjustments directly on the product itself, users can easily control and customize the bass effect. Users can easily mount the TS-WX130EA under the front seats or in the trunk .
Thanks to the use of Class D technology, the Pioneer TS-WX130EA is even easier to install as it can accept both high (speaker line input) and low (RCA wire input) input signals, which means you can connect it to upgraded or original stereo systems, and easily upgrade the audio you have now.
The TS-WX130EA is a small, active subwoofer in a sealed enclosure that delivers 160W maximum power and 50W rated power.
Full Specifications
Main Functions
- Impedance 1 Ω
- Bass Speaker Material Aluminium
- Tales Pole 4-layer round copper wire
- Voice coil, coil type Glass-Imide
- Lowest resonance frequency (Hz) 32 Hz
- magnets Strontium
- Weight 3.2 kg
- Dimensions (W x H x D) 280 x 200 x 70
- Size 20 cm
- Maximum power consumption 160 W
- nominal power input 50 W
- Frequency Response 40 - 200 Hz
- Sensitivity 98 dB

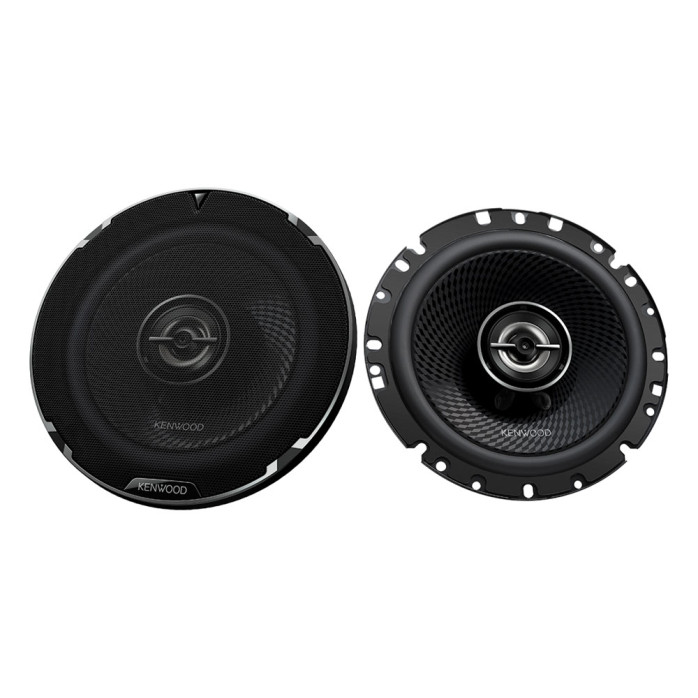

Kenwood KFC-PS1797 Performance Standard Series Speaker System
17cm, 2-Way Performance Standard Speaker System. Features 350W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.
Key Features
- 17cm 2-Way Performance Standard Speaker System
- Woofer cone with Diamond Array Pattern Sound Tune Up Technology
- Black Coloured Elegant Design with Silver Accents
- Acoustic Sound Harmonizer Technology
- Sound Field Enhancer Technology
- 30mm Balanced Dome Tweeter with Neodymium Magnet
- 350W Peak Input Power / 100W RMS Input Power
- Low Tweeter Height Design for Shallow Install Space
- Grille assembly included
Speaker Features
- Speaker System 2-way 2-speaker
- Speaker Type Coaxial
- Diamond Array Pattern Woofer Cone
- Sound Field Enhancer
- Acoustic Sound Harmonizer
- Black-painted Woofer Yoke Plate
- Factory Location Fit
Speaker/woofer Specifications
- Peak Input Power 350W
- Rated Input Power 100W
- Woofer Cone material Black Polypropylene (PP) Cone
- Woofer cone dimensions 170mm Ø
- Speaker Basket Steel (Black painted)
- Magnet type Ferrit (Ø85 x t12)
- Speaker Surround Rubber
- Sensitivity 88dB/W/m
- Frequency Response 73Hz ~ 18000Hz
- Speaker Impedance 4Ω
- Dimensions with Grill (WxHxD) 179 x 179 x 66.2mm
- Dimensions w/o Grill (WxHxD) 165 x 165 x 54mm
- Mouting Hole Diameter Ø 139.6mm
- Mounting Depth 48mm
- Tweeter Height 6mm
Tweeter Specifications
- Cone Size 30mm
- Cone Material Silver Balanced Dome
- Magnet Type Neodymium
Accessories
- Screws (Parker-type) Ø 4 x 25mm, 8 pieces
- Speed nut φ 4, 8 pieces
- Adhesive tape pad 1 piece(s)
- Grille assembly included
- Speaker cable 0.5m
