Package Includes:

• Fascia Pocket Tray
• Wiring Harness Adaptor Lead (NON-AMPLIFIED)

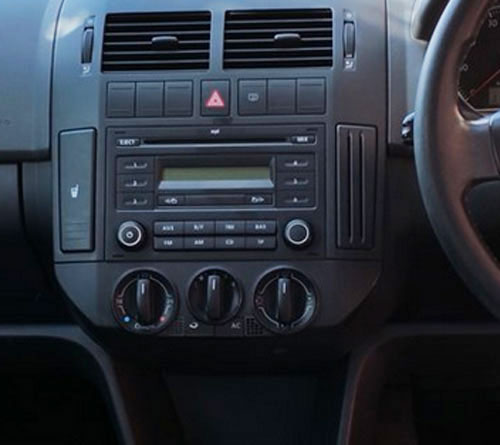

 Your dash needs to look like this.

FASCIA POCKET TRAY:

Pocket Tray with Lip, Universal Pockets to Convert Double Din Fascia to a Single Din Size. Features a lip to lock a single din cage against it. Suitable For Double Din Fascia 113 mm.

WIRING HARNESS:

The wiring harness will allow to install the stereo.

Please Note:

You will need to connect the red wire to the ignition supply in the fuse box. .

Please Note

• Red wire has to be connected to a separate ignition feed in the vehicle to make aftermarket head unit to power up
• Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night.
• Blue wire needs to be connected to the Remote Antenna or ignition supply wire (if rem ant wire not available) on back of car stereo.

Please Note

• When connected your new stereo may not power up, and this is no fault of the wiring harness purchased.
• Audi / VW / Skoda / Fiat and other vehicles tend not to have an ignition switched live feed.
• In these cases it is necessary to manually connect a spurred live feed from fuse box for example to feed switched power so the new stereo turns on and off with the key.
• The wire in particular on the new wiring harness will be the red wire.

AERIAL ADAPTORS:

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

The blue wire is connected to the back of the car stereo where there is a blue wire thats says antenna remote out or ant remote out.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
