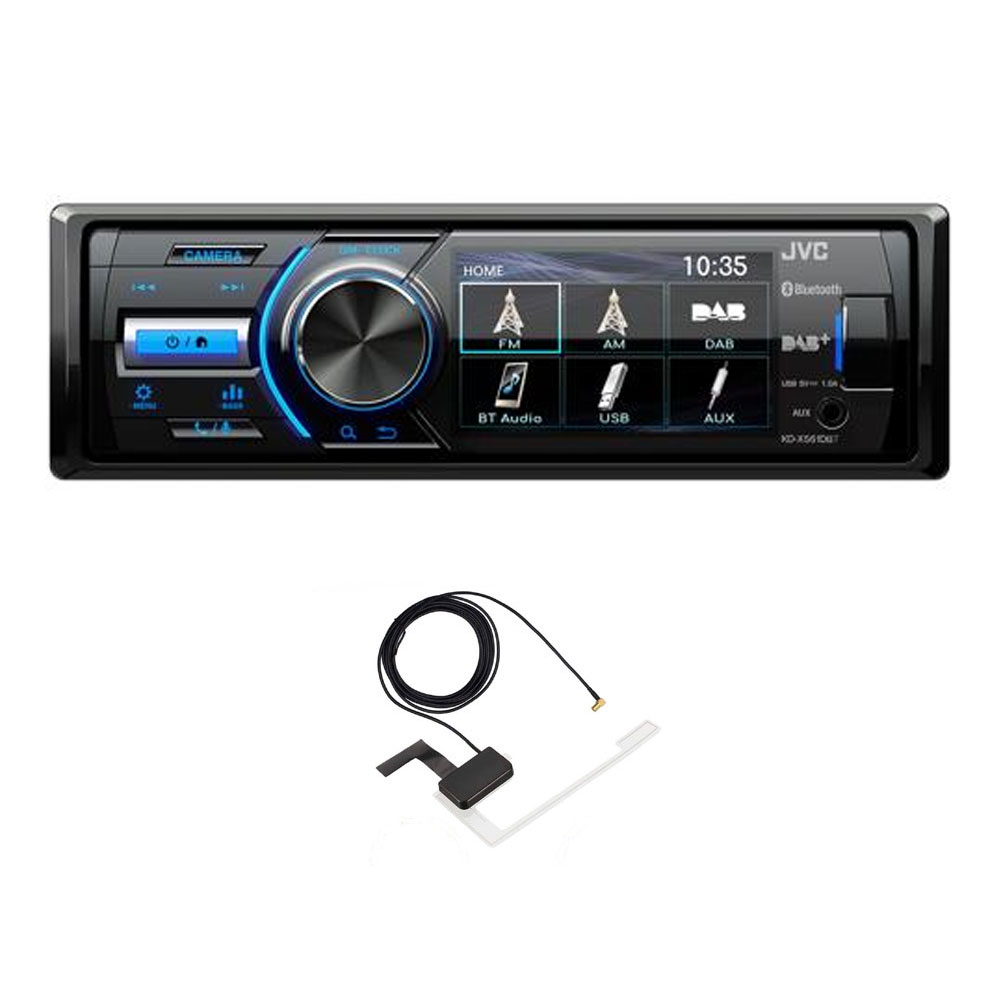

KD-X561DBT

JVCs one DIN size multimedia player includes a bright 3-inch LCD display. This gives easy access to source selection and video display from USB or a rear view camera. Digital Radio (DAB) is included along with Bluetooth hands free and music streaming to form a powerful small package.

DAB AERIAL INCLUDED

DAB+ Tuner

DAB (Digital Audio Broadcasting) delivers crystal clear audio from your favourite FM stations as well as a broad range of digital-only stations ranging from news and talk, to classical and rock. Normally, DAB+ is delayed by a few seconds compared to the FM broadcast.

Enjoy both better quality and richer content with DAB+.

Features

• 3-inch QVGA Monitor
• DAB+ Tuner built-in
• Bluetooth(R) Wireless Technology (Built-in)
• Bluetooth Audiostreaming A2DP and AVRCP 1.5
• Rear View Camera Input
• Made for iPod / iPhone
• Short Body
• Video Playback Formats: MPEG1/2/4, H264 and MKV
• Media Playback: MP3 / WMA / m4a, AAC / WAV / FLAC / Ogg / JPEG, PNG, BMP
• Front USB
• AUX Input (Front / Mini jack)
• 3 Pre-Output Terminal
• 13-Preset EQ
• Sound DSP with DTA
• Dimmer Control
• Steering Wheel Remote Ready

The KV-CM30 rear view camera is an additional option.

Bluetooth

Bluetooth Hands-Free Profile
HPF Wideband Speech is supported, so you can now enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.

Bluetooth AVRCP for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose songs you want to hear from the folder name and song name lists.

3" LCD Display

Navigate your source and files with ease, compared to a more key featured system. Also, allowing more comprehensive information such as station and track details.

Rear View Camera Option

When reverse gear is selected the rear camera view is displayed. This view can be selected at anytime using the deadicated camera button.

DAB / DAB+ Radio

The built-in DAB/DAB+ tuner lets you enjoy digital radio broadcasts. Plus, when you are in an area where the DAB signal is weak, the DAB tuner equipment in the receiver can seamlessly switch between DAB/DAB+ and FM without an audible interruption.

Bluetooth Hands-free

Make and receive calls via the KD-X561DBT. Easily stream music from your smartphone directly to the receiver. Wireless music browsing lets you search and select songs from your smartphone music collection, through a Blueooth connection

USB - iPhone/iPod Music Playback & Charging

Plug in your iPhone/iPod or USB device and listen to your music library and even charge the device while on the move.

Video & Audio File Playback via USB

Video & Audio files compatibility such as: MP4 / H.264 / FLAC / WAV

What is Mechless Short Body?

Removing the CD mechanism reduces the depth of the chassis and facilitates easier installation plus weight reduction. Short body is 111mm compared to approximately 160mm of a standard radio.

Technical Specifications

Monitor

• Screen Size 3 inches (diagonal) wide
• Touch Panel Type QVGA
• Key Illumination Colour Blue
• Multilanguage Display

Radio Tuner

• DAB+ Tuner
  • Digital Radio Certification Mark
  • DAB+ Frequency Band III 174928MHz to 239200MHz
• FM Tuner
  • Radio Data System (RDS)
  • FM Frequency Range 87.5 ~108.0 MHz (50kHz Step)
  • FM Usable Sensitivity 12.2 dBf / 1.1 µV/75 Ω / S:N: 26dB
  • FM Quieting Sensitivity (46dB) 15.2dBf (2.5 µV /75 Ω)
  • FM Stereo Separation 40dB
• LW Tuner
  • LW Frequency Range 153 ~ 279 kHz (9 kHz step)
  • LW Sensitivity 20uV
• MW Tuner
  • MW Frequency Range 531 kHZ ~ 1611 kHz (9kHz step)
  • MW Sensitivity 28.5uV
• Preset Stations 30 (FM:15, AM:15)
• Automatic Preset / SSM
• Digital Processing Tuner

Media Playback

• MP3 Compatible with Tag
• WMA Compatible with Tag
• WAV Compatible with Tag ( Up to 96kHz/24bit )
• AAC Compatible with Tag
• FLAC Compatible with Tag (Up to 96kHz/16bit)
• MPEG-1 / MPEG-2 Compatible
• MPEG-4 Compatible
• H.264 Compatible
• AVI/MKV Compatible
• JPEG File Playback
• BMP File Playback
• PNG File Playback

USB

• USB Port x 1
  • USB Standard    2.0 Full Speed (High Speed)
• Location Front
  • 1.5A Max. Power Supply Current

Bluetooth

• Built-In Bluetooth [1] (Version 3.0, Wired-Mic included)
• Hands Free Call (HFP) (HFP1.6)
• Advanced Audio Distribution Profile (A2DP)
• Phone Book Access Profile (PBAP)

Android Control

• Android Music Playback (via Bluetooth(R)

iPod/iPhone Control

• iPod/iPhone Music Playback (via USB or Bluetooth(R)

Audio

• Maximum Power Output (Front & Rear) 45W x 4
• Full Bandwidth Power (at less than 1%THD) 16W x 4
• EQUALIZER
  • 13-Band Graphic EQ
• High-Pass Filter/Low-Pass Filter
• Bass Boost (Hyper Bass System)

Inputs and Outputs

• Auxiliary (AUX) Input Front
• Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
• Pre-Output Level 2.0V / 10k ohms
• Rear view camera Input

General

• Wireless Remote Control Ready (RM-RK258 required)
• Wired Steering Remote Control Ready
• ISO Connector Cable
• Short Chassis
• Installation Size (W x H x D) 182 x 52 x 117 mm
• Weight 0.75 kg
• Unit weight in individual package 1.2kg

[1] Available functions depend on mobile phone.
[2] AUTO MODE para Android (Versión 4.1 y superior) requiere la aplicación JVC Music Play.
