CW-DRA8 8" (20-cm) Compact Powered Subwoofer

As cars become increasingly smaller, it's getting harder and harder to find a place to install a subwoofer. JVC's CW-DRA8 powered sub gives you deep, full bass from a low-profile enclosure that easily fits under your car's seat or in a corner of your trunk. Its built-in amplifier delivers 150 watts RMS to the 8" sub, and its Class D design ensures that it'll run cool in some very tight places.

• Woofer Size 20cm (8")
• Class D Amplifier
• Max Power 250W
• RMS Power 125W
• Frequency Response 35Hz - 150Hz
• Wired Remote Controller
• Volume, Frequency, Phase Control

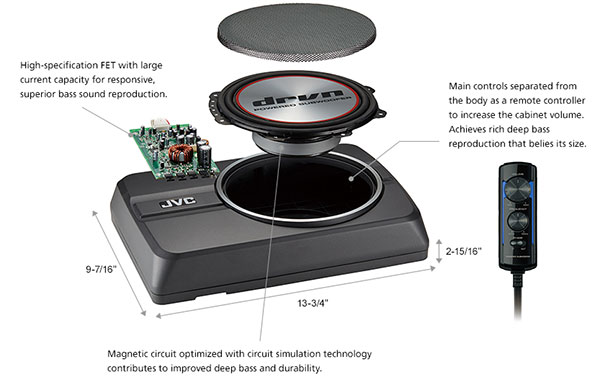

Wired Remote Control

If you're a tweaker, the package includes a wired remote control that allows you to make adjustments to the volume, frequency roll-off, and phase settings, especially good news if you listen to many different types of music. Even better, the wired remote eliminates the need for controls inside the enclosure, increasing air space for better bass. The enclosure includes line- and speaker-level inputs for flexibility in installation.

Deep Bass without Giving up Space

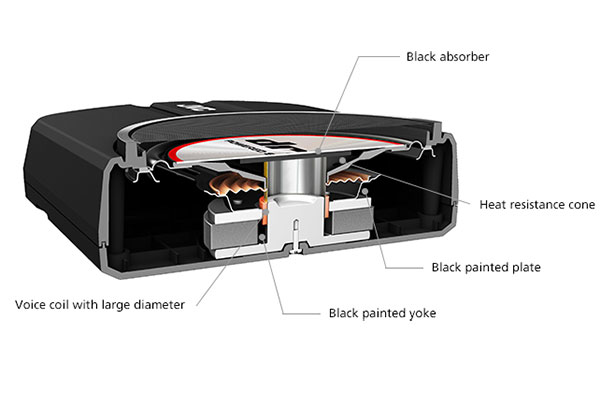

Rugged Design

Heat Resistant Parts Each part used is heat resistant to realize high durability.

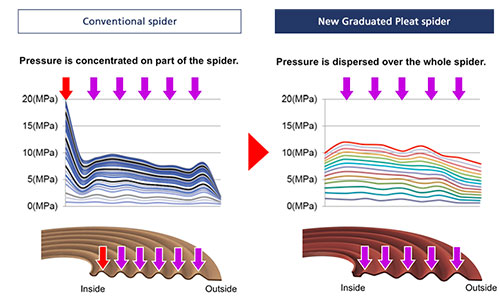

Newly Designed Damper

The new Graduated Pleat Damper helps prevent stress from affecting specific parts of the damper. This minimizes mechanical damage and dramatically improves the damper’s durability.

Compact Size for Installation in Various Places

Full Specifications

Subwoofer

• Cone Size 20cm (8")
• Frequency Response 35 - 150Hz
• Power Handling Capacity (Peak power) 250W
• Power Handling Capacity (RMS power) 125W
• Sound Pressure Level 81dB
• Dimensions (W x H x D) 350mm (13-3/4") x 75mm (2-15/16") x 240mm (9-7/16")

What's in the box:

• Powered subwoofer
• Power/signal wiring harness with 28" input cable (stereo RCA) / 16.25' power wire (14 AWG) / 5' ground wire (dual 18 AWG) / 16.25' turn-on lead (18 AWG)
• 10A ATO fuse in fuse holder (installed on power wire)
• Remote control with 16.25' cable (RJ-45 plug)
• 14' Speaker input wires (male/female bullet connectors on one end and RCA plugs on other end)
• 2 Mounting brackets
• Cable clamp
• 4 Self-tapping screws (M5 x 16mm)
• 4 Machine screws (M4 x 16mm)
• 2 Self-tapping screws (M3 x 10mm)
• Adhesive backed hook-and-loop pad
• Instruction Manual
