Shark Fin Antenna For DAB, FM and GPS

• GPS/ DAB+/ FM/ AM car audio Shark Fin aerial antenna
• Top quality OEM German made Shark Fin antenna designed for GPS, DAB Digital Radio and AM/FM in various vehicles and car models.

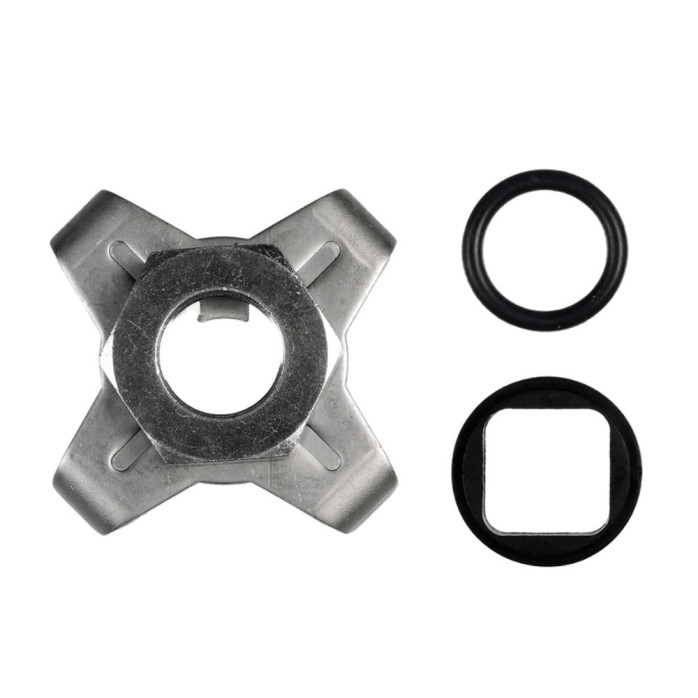

• Can be mounted in new Mercedes and Audi vehicle using adapter seals (Sold separately)

For Mercedes - 70-917MB24
For Audi - 70-917VW25

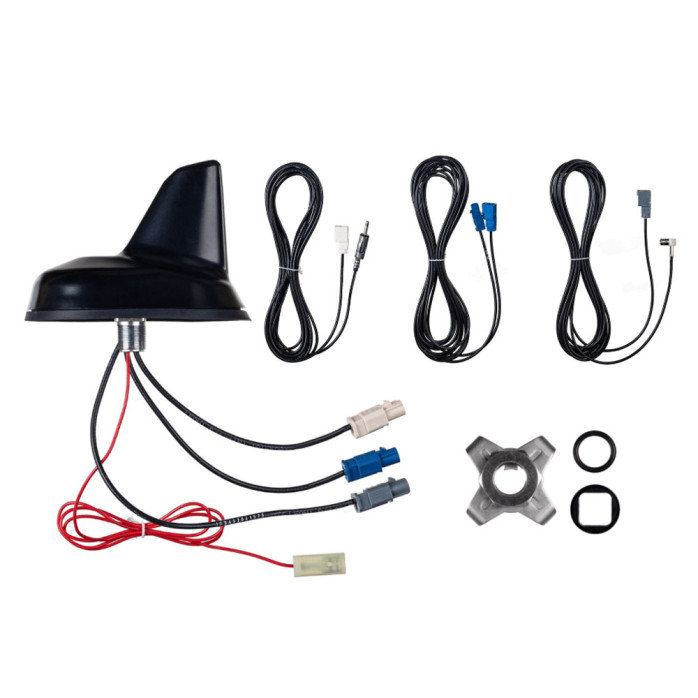

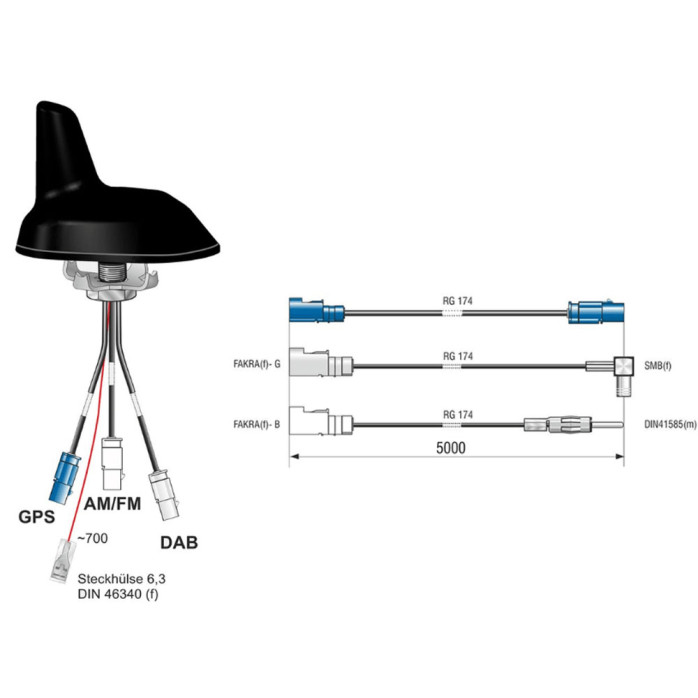

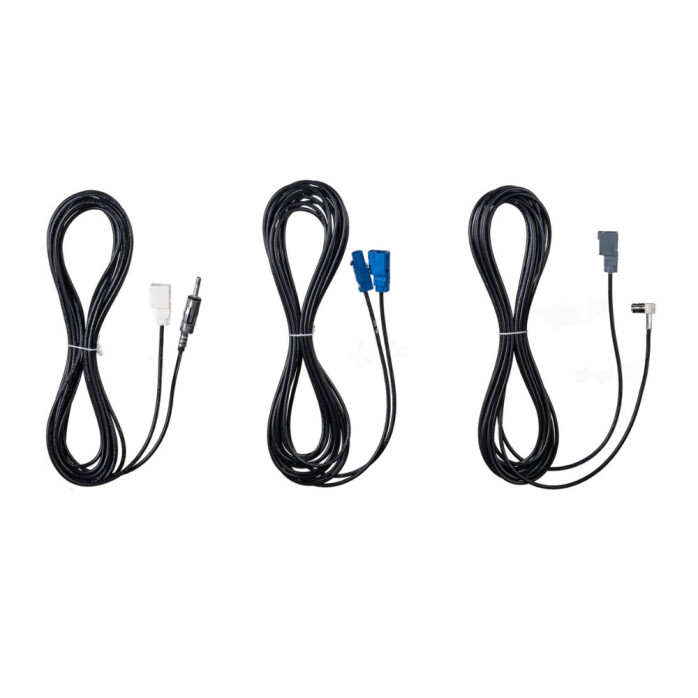

20dB DAB and FM amplification. Includes 3 x 5m extension cables for FM, DAB and GPS.

If fitting aftermarket navigation units like Pioneer/Alpine you will need to use the original GPS connector supplied with the unit , CUT the the cable and solder it to the cable supplied with the 70-918. WE DO NOT HAVE ADAPTERS.

Covers Several Frequency Bands

• AM (0.15 - 16 MHz)
• FM (87.5 - 108 MHz)
• DAB+ (BIII: 174 - 240 MHz)

Special Features and Properties

• Active and low-noise radio reception (AM, FM)
• Active and low-noise DAB reception in areas B III
• Active GNSS antenna (phantom power supply)
• Active shark fin antenna with separate signal routing
• 12V power supply either via DIN socket or via the inner conductor of the cable connections (phantom power)
• Low-noise antenna rod
• Low installation depth (16.5 mm)
• Low installation effort (only one mounting hole for 4 functions)

Product dimensions and weight

• Width: 65mm
• Height: 70mm
• Length: 104mm
• Weight: 0.3kg

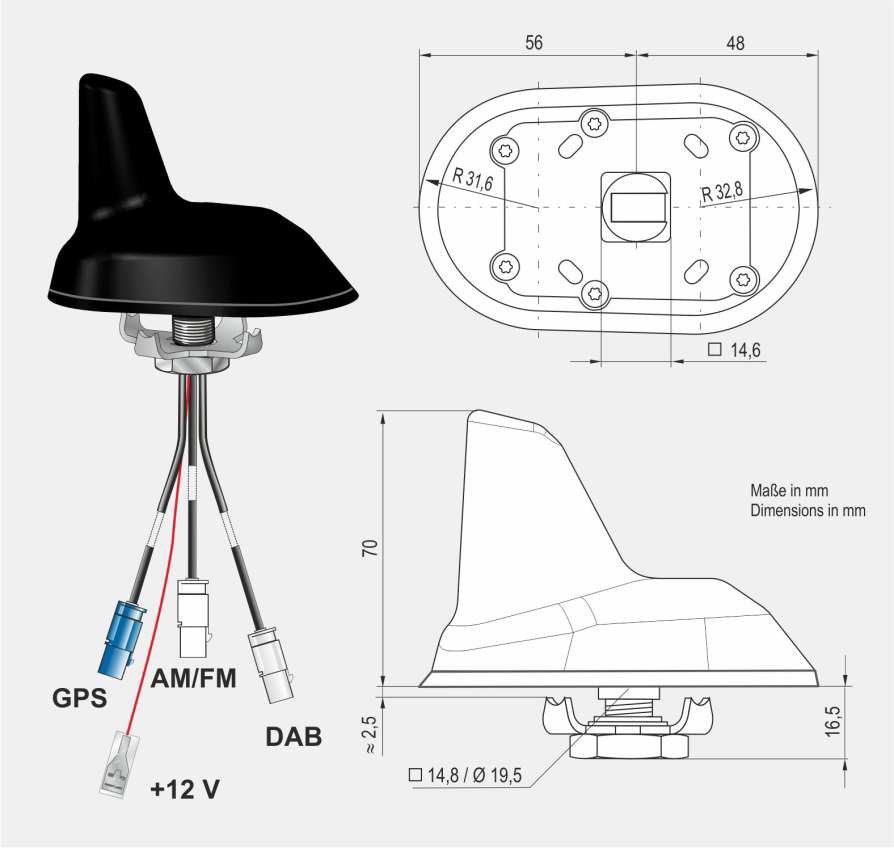

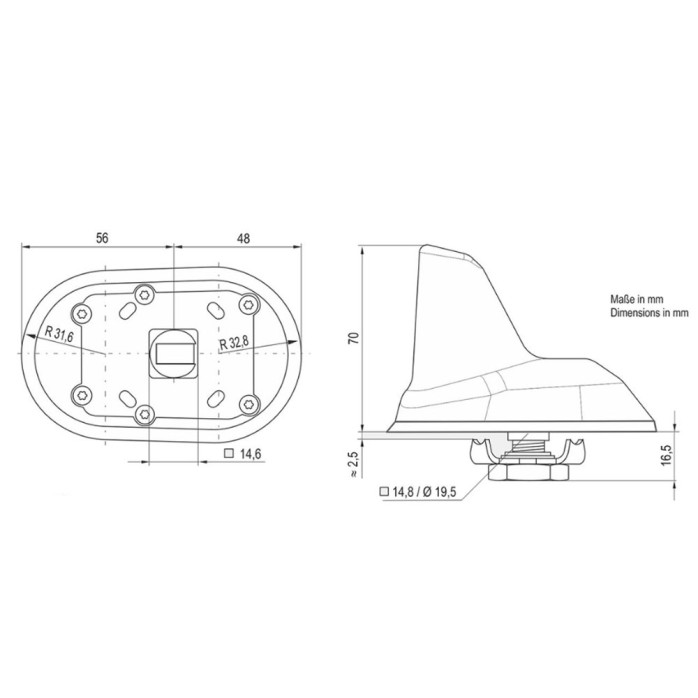

Technical Drawing With Dimensions
