Product Compatibility Chart
|Volkswagen||Transporter||2016 - 2019||T6 (7 H/E/J)|
Only compatible for VW T5 / T6 with original radio and rounded corners, as well as vehicles with white MFA. Not for vehicles with E-Call system and not for T6.1.

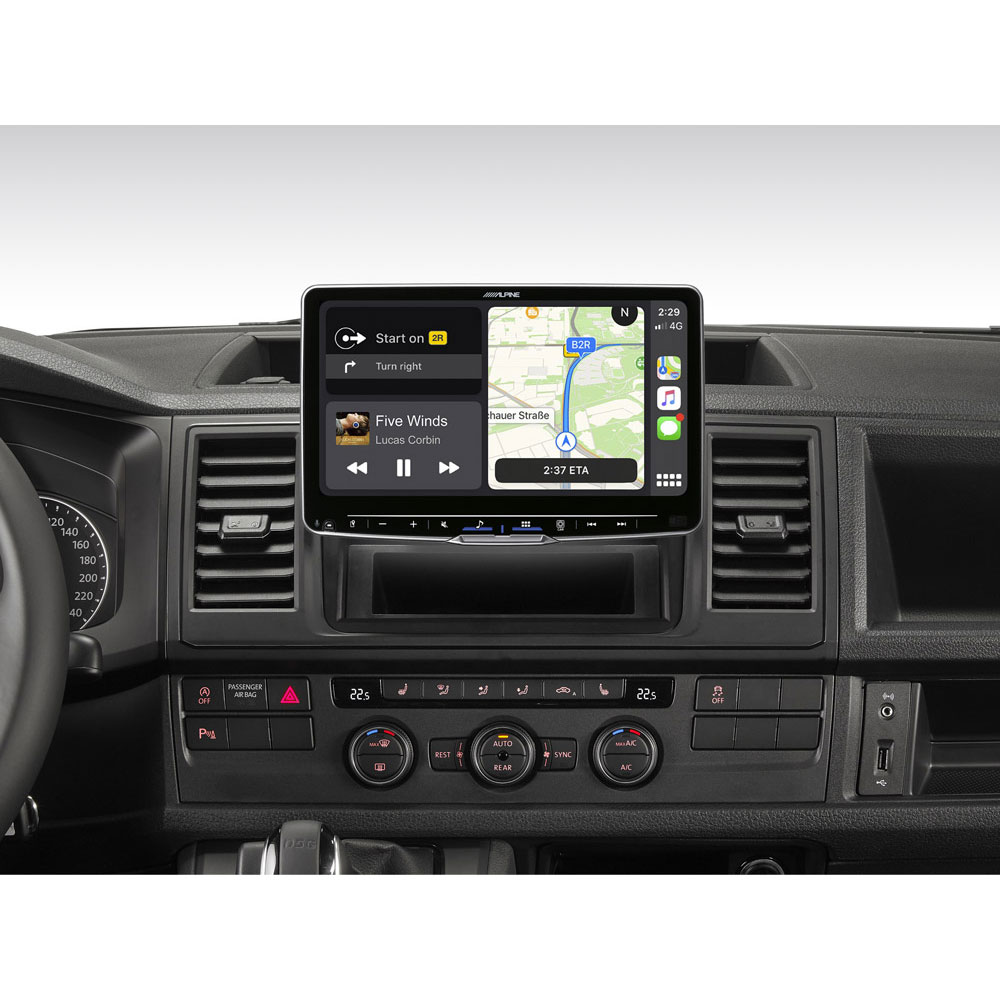

The iLX-F905T6 Alpine Halo11 for the Volkswagen T5 (7H/E/J) model year 09/2009 – 06/2015 and T6 (7H/E/J) model year 07/2016 – 09/2019 and more is a cutting-edge Head Unit, featuring a gigantic 9-inch high-resolution WXGA touch-screen. The iLX-F905T6 comes with all required installation parts (such as a plug-and-play wiring harness, CAN interface, frame, etc.) for the Volkswagen T6. The super-slim display appears to simply hover over your dashboard and can be adjusted in various ways for the best position.
Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.

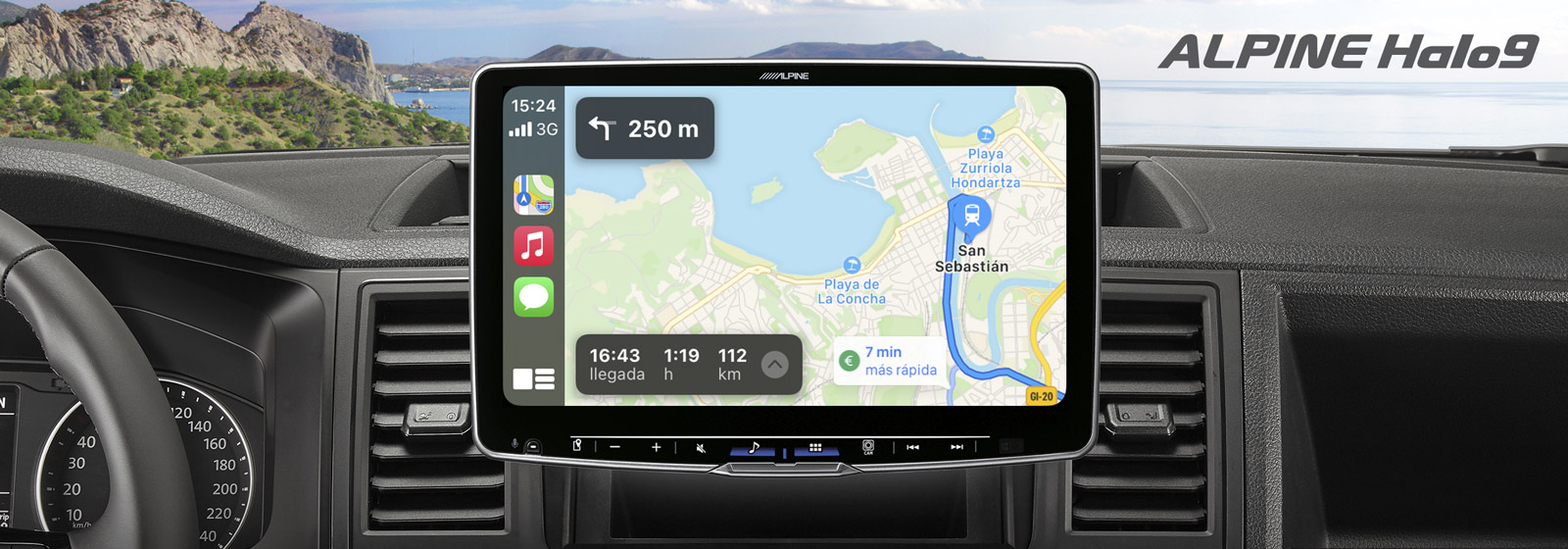

You can chose from a wide selection of online navigation apps such as Google maps and use them on your Alpine screen through Apple CarPlay and Android Auto.
Bring exceptionally good sound quality into your vehicle: the Alpine Halo9 is the world’s first Head Unit featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as 2-way X-overs, a Parametric EQ, 6 Volt PreOuts, digital time correction and much more.

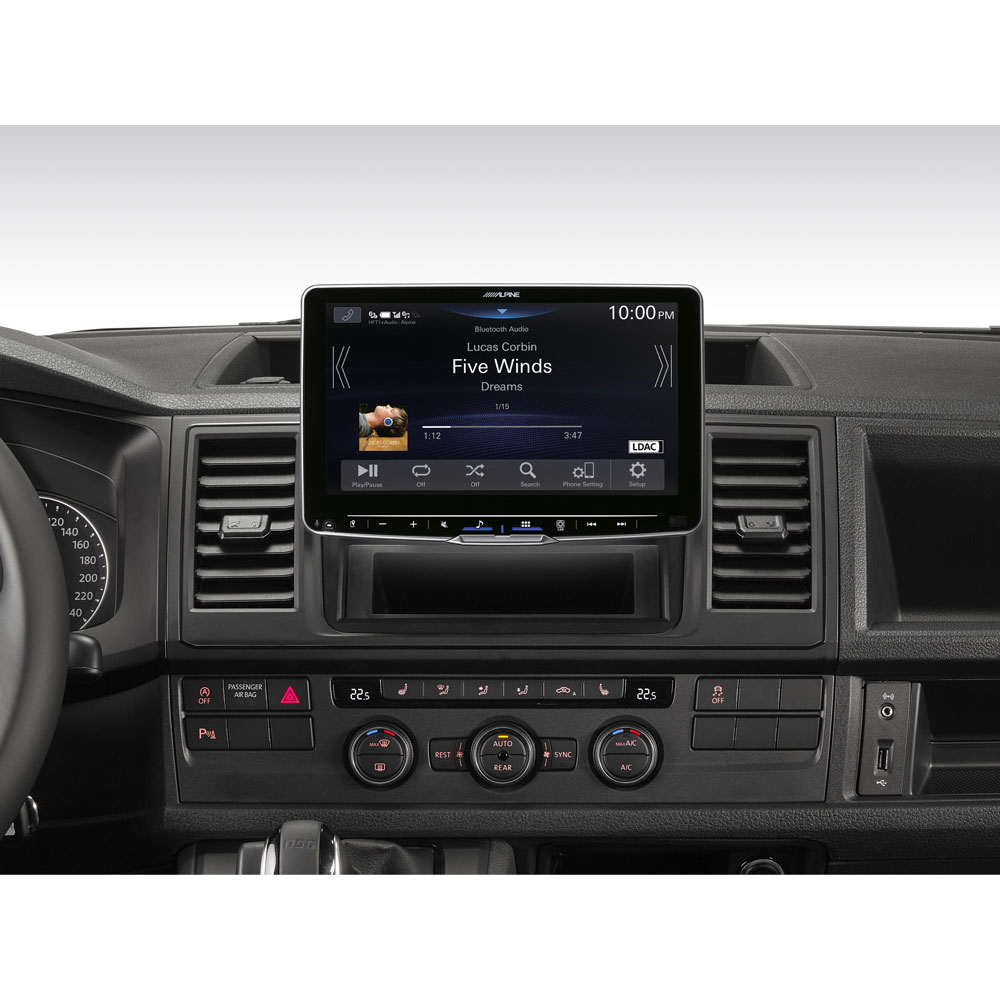

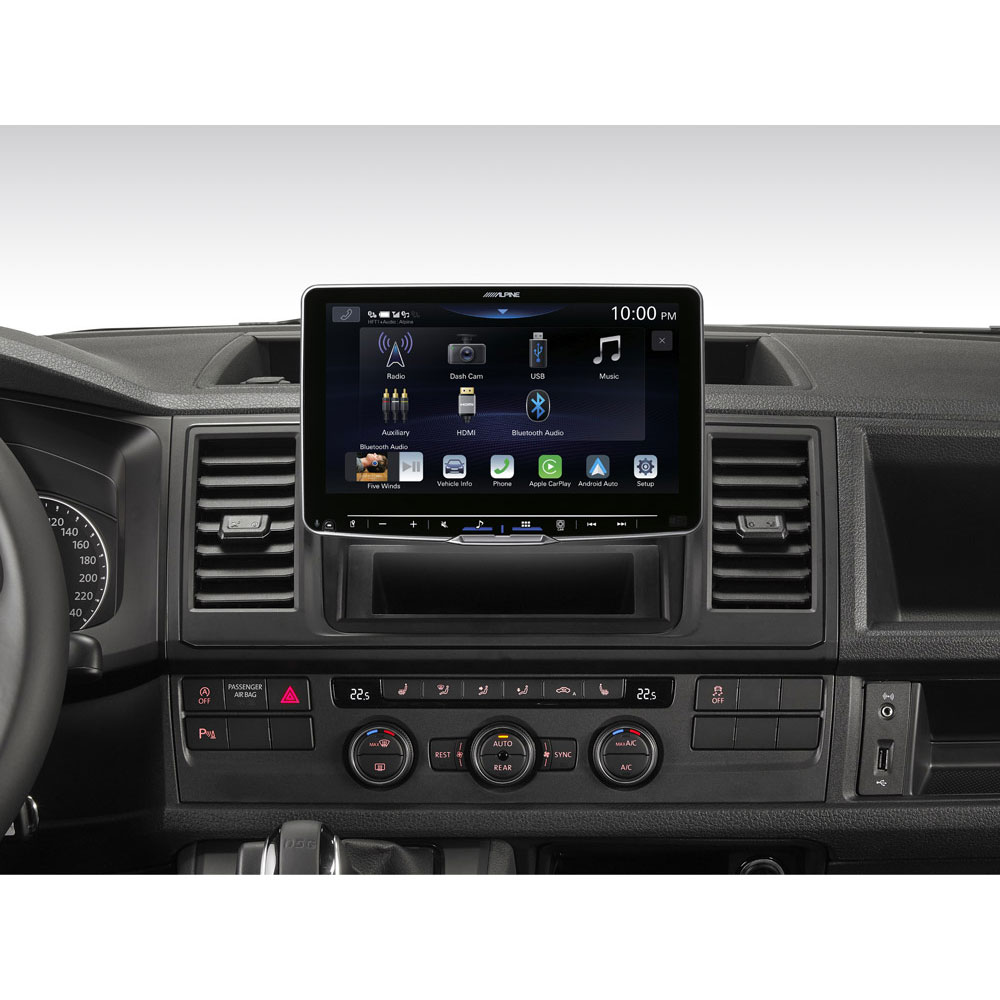

iLX-F905T6: Made for Volkswagen T6
The Alpine Halo series has become one of the world’s most popular Head Unit lines and won many industry awards for its outstanding concept and design. We continued to improve upon this successful product and make it even better. The 2nd generation Alpine Halo9 features a XXL 9-inch high-res display, DAB+ digtial radio, Wireless Apple CarPlay, two USB ports, further improved sound quality and tuning options and many more innovations and improvements and is now available as a complete set for the Volkswagen T6. The iLX-F905T6 includes all necessary installation parts and interfaces to fully integrate in the vehicle’s system.
9-inch WXGA HD Display
The super-large, 9-inch WXGA touch-screen display features a resolution of 1280 x 720p and includes over 2.7 million pixel elements - making icons, menus and visual content extremely crisp and vibrant in your dash. The screen is attached to an adjustable mount connected to the vehicle’s radio dock and leaves a free 1DIN pocket below for storing smaller items such as cigarettes, etc.

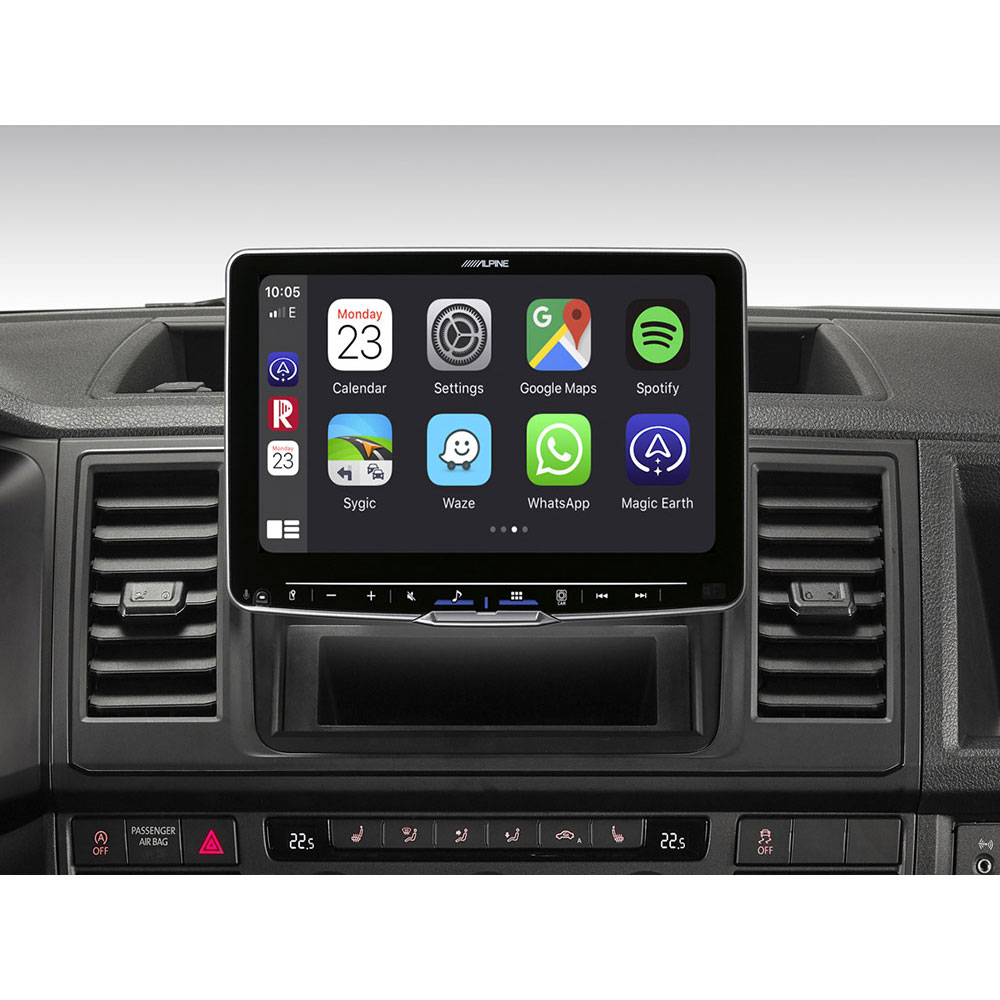

Wireless Apple CarPlay
The iLX-F905T6 “Works with Apple CarPlay” wirelessly and lets iPhone users make and receive calls, access and write text messages, play music, and get direction in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control. Due to the WiFi connection, you can keep your iPhone in your pocket and do not need to plug it in all the time (except for charging).

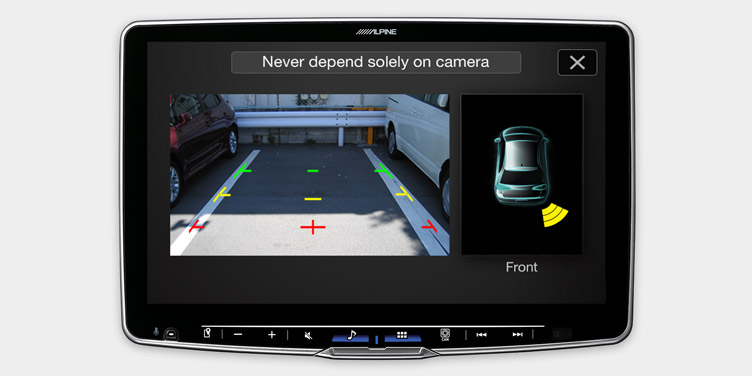

A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse and distance guides that can be adjusted to match your car size will appear on the screen to help you safely park your car. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles. You can even view the camera screen and parking sensor screen simultaneously, if your car supports it.
Wide Entertainment & Online Navigation Options

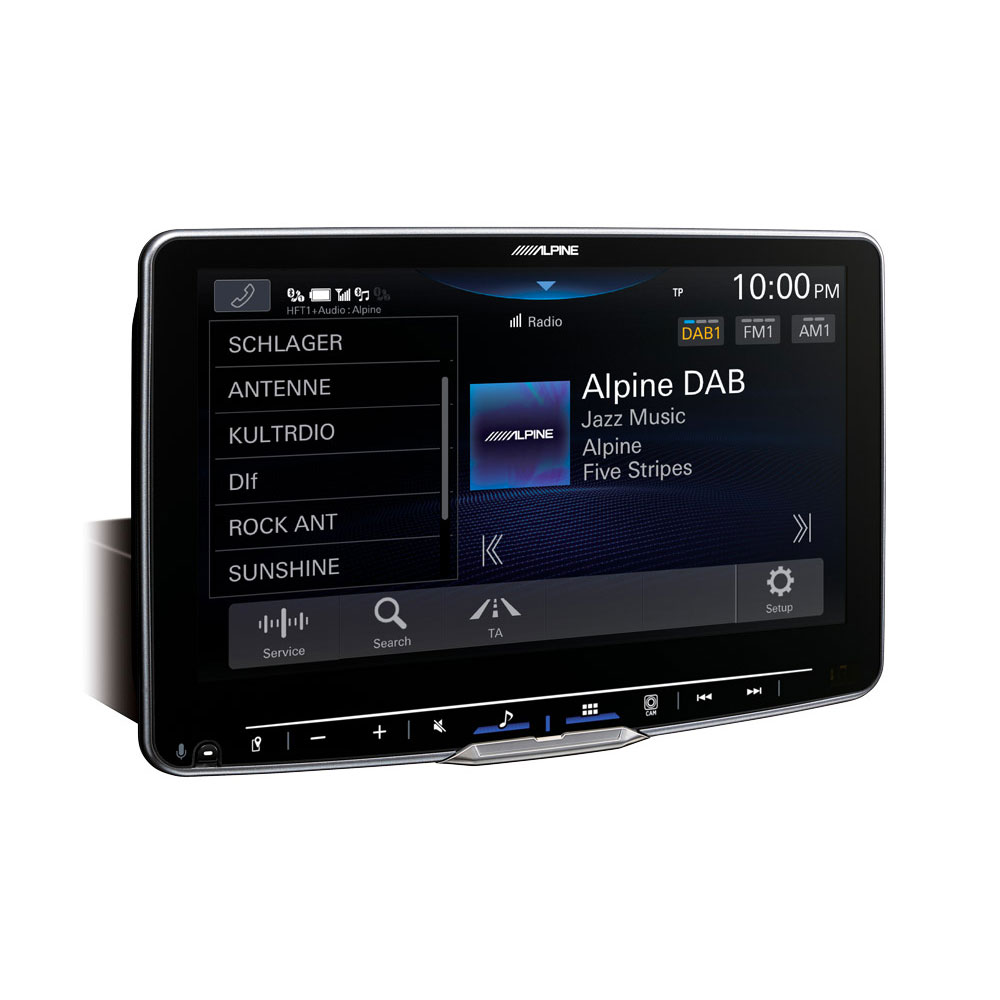

The all new DAB+/ radio tuner allows DAB – FM switching and lets you enjoy seamless radio reception without interruptions. Next the increased USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo9 features many additional entertainment options: the built-in Bluetooth module allows audio streaming from your phone and the HDMI input enables the connection of an external video playback device. You can of course use Android Auto with any compatible smartphone running Android (wired connection).
World’s First Head Unit With Built-in Class-D Amplifier
The iLX-F905T6 is the world’s first aftermarket Head Unit featuring a built-in 4x 50 Watts Class-D amplifier – allowing excellent, high-end sound reproduction with highly reduced noise or phase shift. The key benefit of Class-D amplification technology is its high efficiency of about 90%, compared to 50 - 70% of Class AB amplifiers. New high-speed fans with internal heat sinks keep your Alpine Halo9 cool - and the music playing.
Enjoy Excellent Sound Quality

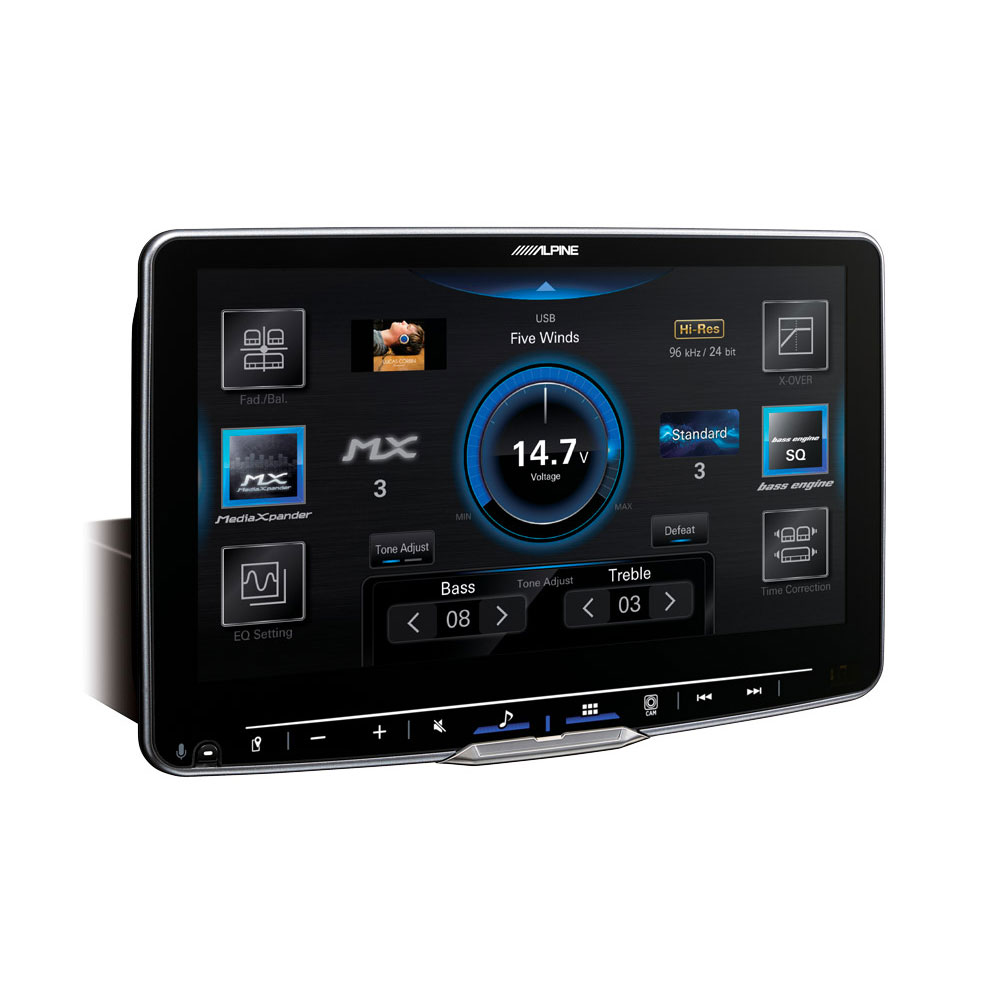

Featuring a 56-band Parametric EQ in the advanced mode, a 2-way digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools at your disposal to tune your Alpine Halo9 and the attached amp / speaker system to perfection. But we didn’t stop there: The Alpine Halo9 is Hi-Res Audio certified and can decode and playback Hi-Res Audio files up to 96kHz / 1.536 kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.
Freely Adjustable Display Angle
You can adjust the iLX-F905T6’s display angle from +45 degrees to -20 degrees to match a wide range of dashboard angle. You can freely adjust the display angle at any time, to achieve best visibility and to avoid sunlight glare.
Adjustable Display Height and Distance
The display height can be adjusted +/- 3cm from the center position. This allows fully standing or hanging display configurations as well as everything in between. You can also adjust the distance of the display to your dash in a 20mm range. After the display height and distance to the dash are selected, everything gets locked into place to be very solid.
Installation Kit for Volkswagen T6 included

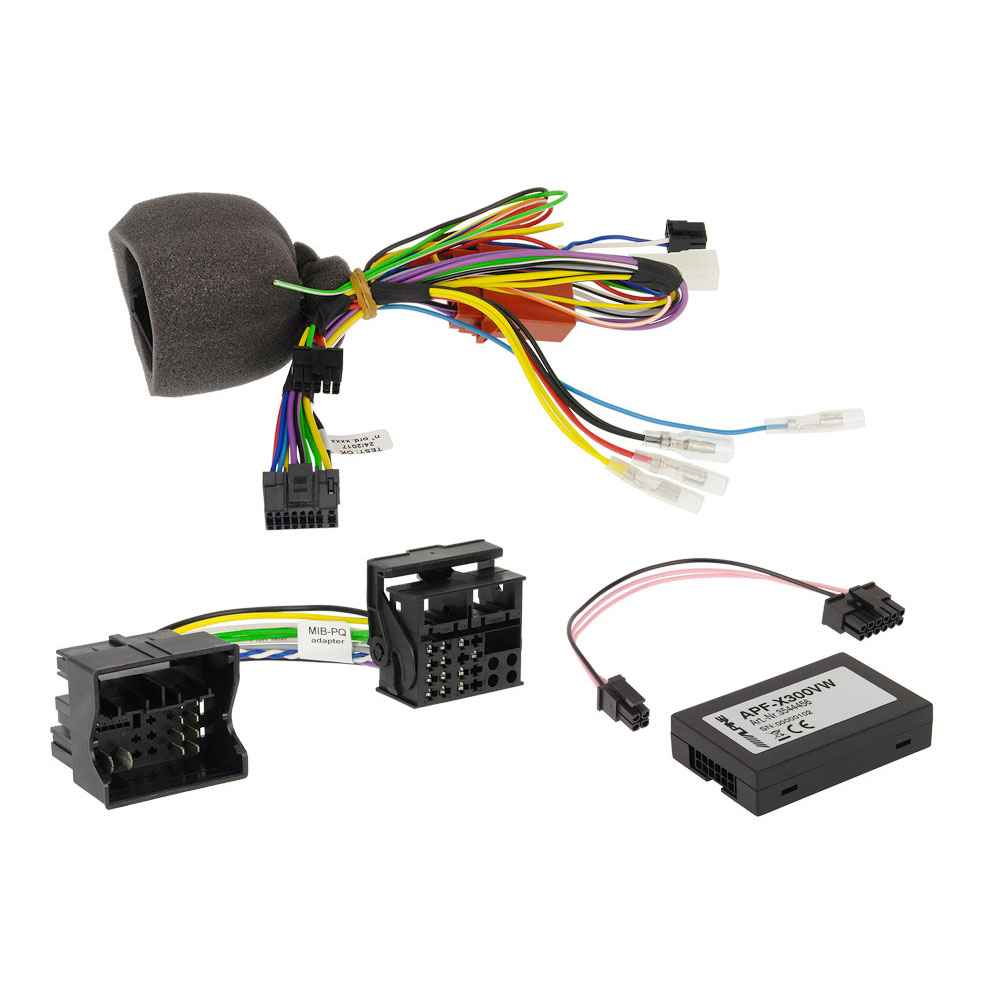

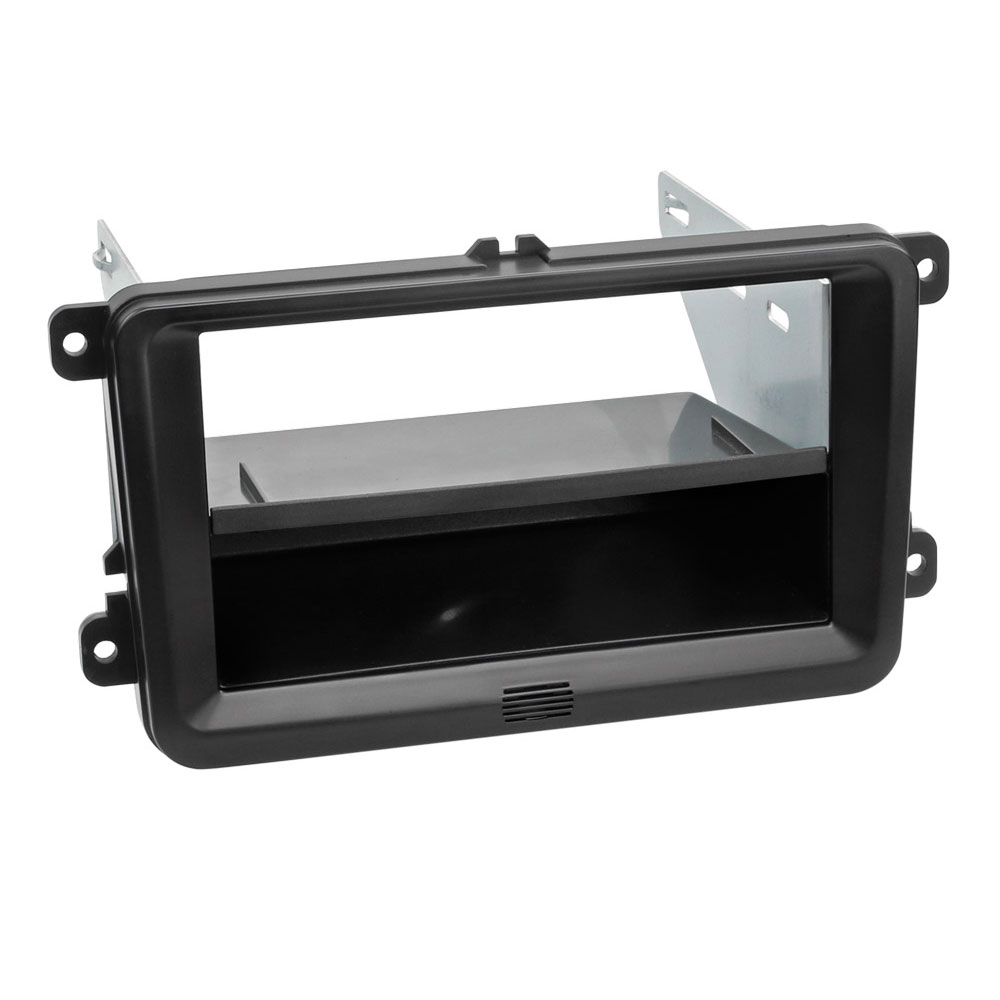

The iLX-F905T6 includes a custom-fit 1DIN frame, wiring harness with CAN interface and an antenna adapter. The CAN interface allows usage of the steering wheel remote control buttons with Halo9.

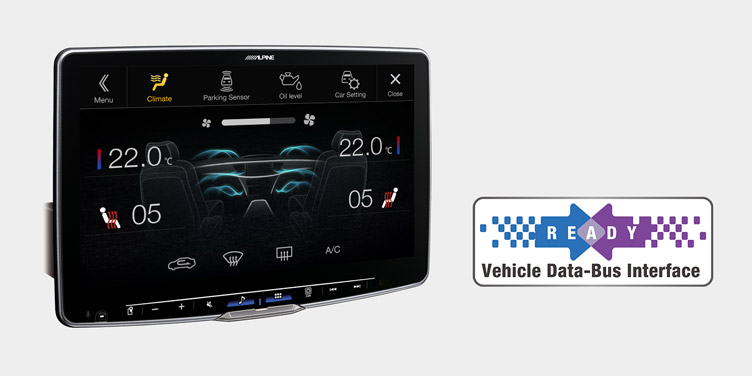

Retains visual representation of Air Condition Display and Parking Sensors
The headunit gives you visual feedback for the selected temperature of driver and co-driver, AC status, seat heating level, selected air vents and more. This screen will automatically appear for a few seconds when any of the named settings is changed to give the driver feedback. If your car is equipped with original parking sensors, you can continue to use this convenient feature when upgrading to Alpine. The parking sensor system is connected to your Alpine screen, showing a convenient distance display.
Supports basic functions of original Steering Wheel Control Buttons
The Alpine system is connected to your steering wheel control buttons. This means you do not lose this convenient feature when upgrading to Alpine and you will have control over volume, phone (hook on/off), audio track forward/backward and many other commands. You can even activate Siri voice control if you have an iPhone connected to the system – right from your steering wheel.
Retains Driver Information Display
The small display in the instrument cluster is also connected to the Alpine system and can display radio station names, song titles and artist information, caller names and much more.
TIDAL Hi-Res Audio App
With the integrated TIDAL app you can access the High-Res Audio streaming experience with TIDAL, enjoying its catalog of over 90 million songs and 450,000 videos. TIDAL HiFi and HiFi Plus members get lossless audio and high-fidelity music options for superior sound quality that elevates the music experience. TIDAL Masters, delivered in partnership with Master Quality Authenticated (MQA), allows HiFi Plus Members to listen to music exactly as the artist intended the track to sound. With thousands of expertly curated playlists customers will be able to listen to all genres and discover new artists via TIDAL Rising.
Radio / DAB Tuner
- Preset Stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)
- Memory: Auto Memory
- Seek Mode: Local, DX, Pre-Set, Service
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
- Built-in BLUETOOTH® Module V4.2
- HFP (Hands-Free Profile) Compatible
- A2DP (Advanced Audio Distribution Profile) Compatible
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Phone Book Synchronization
- Speed Dial: 4 Preset Memory (per phone)
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: (Outgoing and Incoming)
- 24 Menu Languages
- Microphone Included
Works with iPhone®
- Compatible with iPhones featuring a lightning connector
- Various search functions and Album Artwork Display
- Battery Charging
- Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)

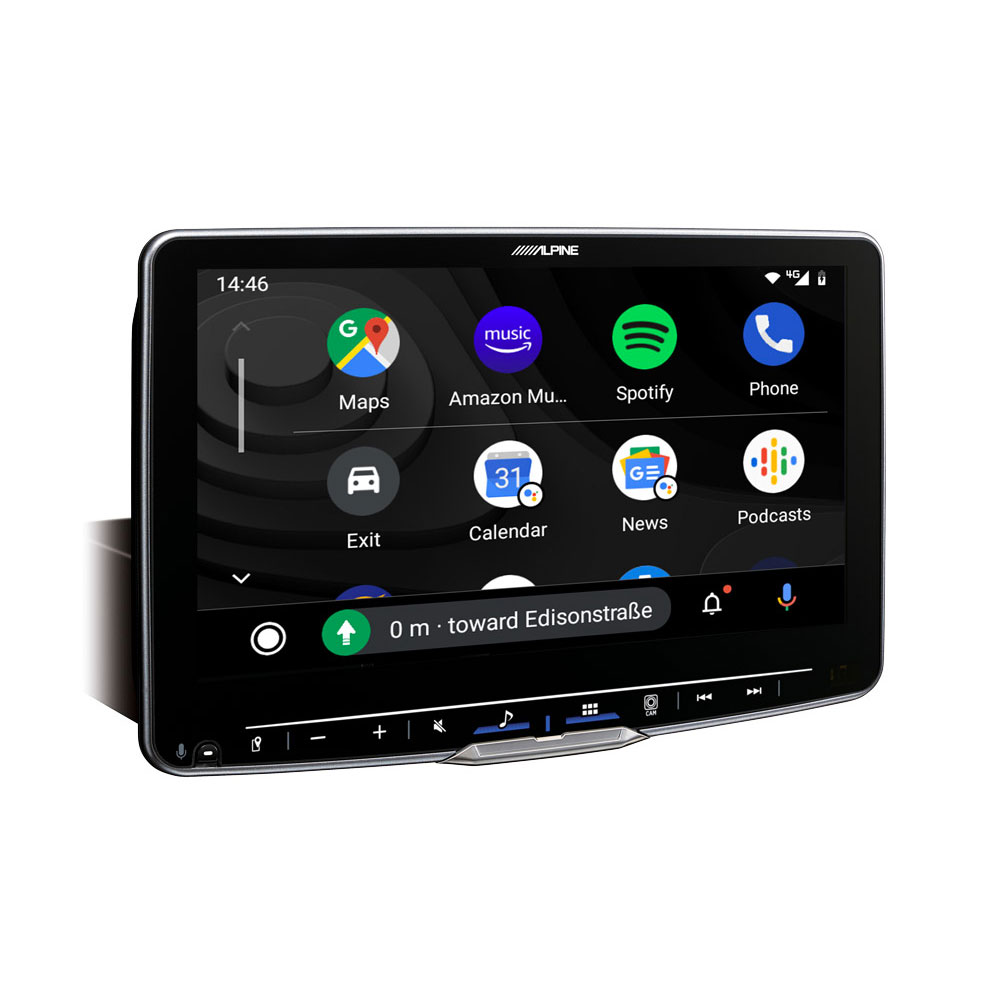

- Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
- Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam
- Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
- Includes GPS enabled navigation antenna

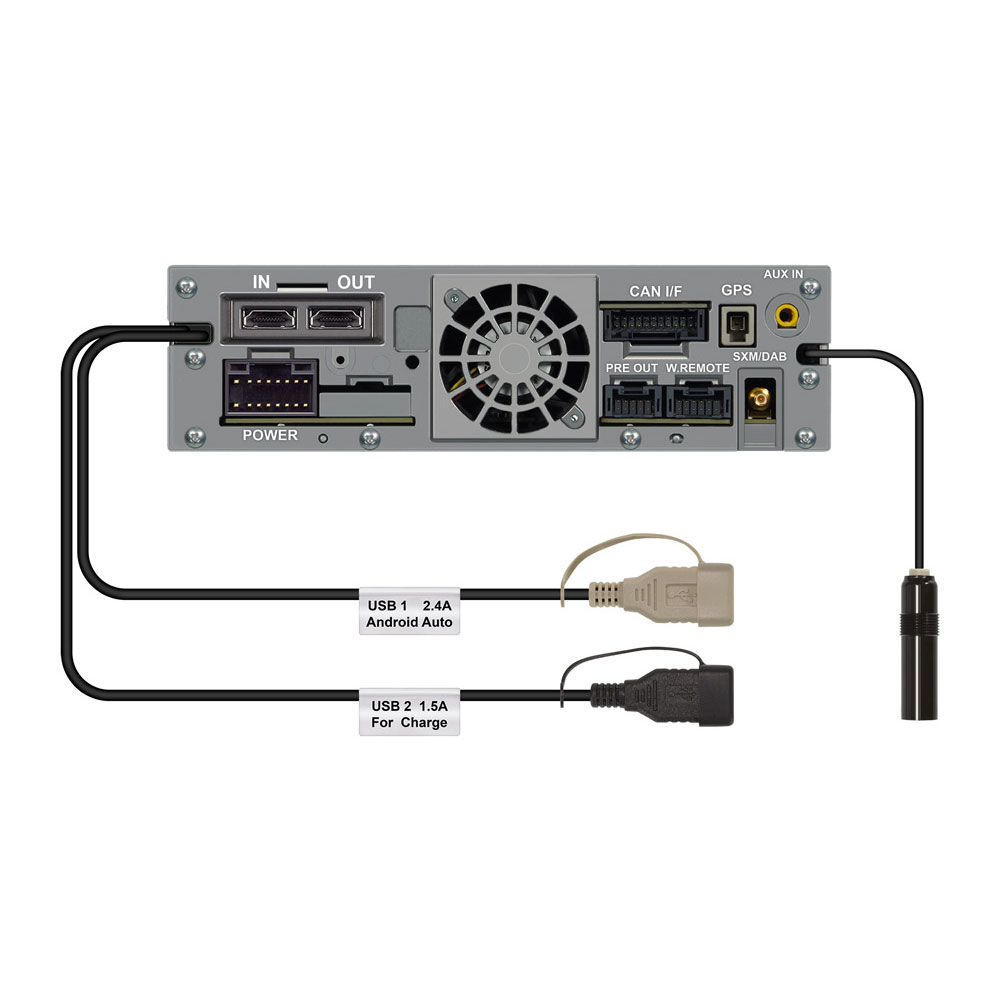

USB Media Connection
- 2x USB cable included
- USB port 1: data port / USB port 2: charging port
- Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
- Various search functions included
- Bass Engine SQ and Bass Engine PRO sound tuning
- Subwoofer Level Adjustment
- 6 V PreOut
- 10 Equalizer PreSets
- 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
- 6-Channel Digital Time Correction
- 2-way Digital Crossover
- Independent Source Volume Level Setting
- For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section
- 4x 50 Watts Class-D High Power Amplifier
- 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
- Display angle adjustable after installation
- 3 PreOuts (6 V, Front / Rear / Subwoofer)
- 1 A/V AUX Input (3.5 mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB Ports (1x USB data port / 1x USB charging)
- Steering Wheel Remote Control Ready
- Vehicle Display Interface Ready (UART connection)
- Remote Control Ready
- 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
- Camera Distance Guides (adjustable)
- Live Contrast Adjustment
- Menu Language: 24 Languages
- Auto Dimmer
- Anti-theft security code
- Engine Start-Stop unaffected
- Includes installation brackets, Antenna adapter with phantom feed, wiring harness and SWRC interface with CAN to analogue conversion for ACC, parking brake, speed pulse, reverse signal, addition of HVAC (Heating, Ventilation and Air Conditioning) and OPS (Optical Parking Sensor) screens and SIRI support for complete installation.
- Screen Size: 9-inch Capacitive WXGA
- Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4x 50 W
Radio / DAB Tuner
- FM Tuning Range: 87.5 - 108.0 MHz
- AM Tuning Range: 531 - 1,602 kHz
- DAB band III: 174 – 240 MHz
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB / 90 dB
- DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC
- Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
- Channels: 1 – 13 ch (2.4 GHz)
- Security Protocols: WPA3/WPA2-PSK (TKIP, AES)
- USB Requirements: USB 2.0
- USB 1: data port / 2,400 mA (Mass Storage Class)
- USB 2: charging port / 1,500 mA (CDP support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT16 / FAT32 / exFAT
- FLAC, MP3, WMA, AAC, WAV, APE Decoding
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 - 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1 kHz): 0.005%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 95 dB
- GPS compatible navigation antenna included
- GPS frequency: 1575.42 +/- 1.023 MHz
- Reception sensitivity (search): - 136 dB max
- BLUETOOTH® Version: Bluetooth V4.2
- Output Power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Supports LDAC Audio Codec
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5 Modes, Level 0 to +6
- For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section
- Input Format 720p / 480p / VGA
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 6 V / 10k ohms
- Weight: 2.3 kg
- Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
- Display Size (W x H x D) mm: 232 x 151 x 55 mm
|Android Auto||Works With Android Auto|
|Apple CarPlay||Works With Apple CarPlay|
|Max. Power Output||4 x 50W|
|Radio Data System||Yes|
|Display Illumination||9-inch Capacitive WVGA|
|Works with iPhone||Yes|
|Pre Out||3 PreOuts|
