DAB & AM/FM & GPS Combiflex

Replacement Roof mount  beesting combiflex antenna to change an existing GPS antenna to include DAB/ AM/FM & GPS
This antenna is needs a separate switched 12v feed. Active DAB, GPS and FM.
10db gain for DAB.
75 degree angle. 230mm rod length.

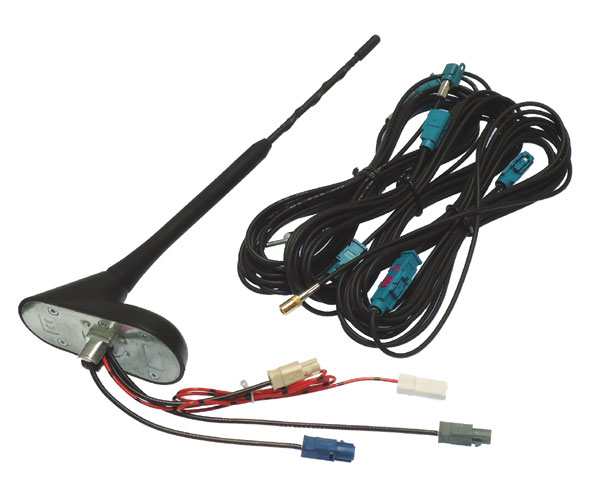

Includes 2 x 5m extension leads, Fakra to SMB DAB connector and Fakra to DIN  FM

This antenna has three fakra connectors. White for FM, Blue for GPS and Grey for DAB. If you are replacing an existing GPS/FM antenna you will need to connect the White and Blue at the base of the antenna to the old car connectors.  If fitting new GPS you will need an extra extension cable and adapter depending on the GPS system fitted.

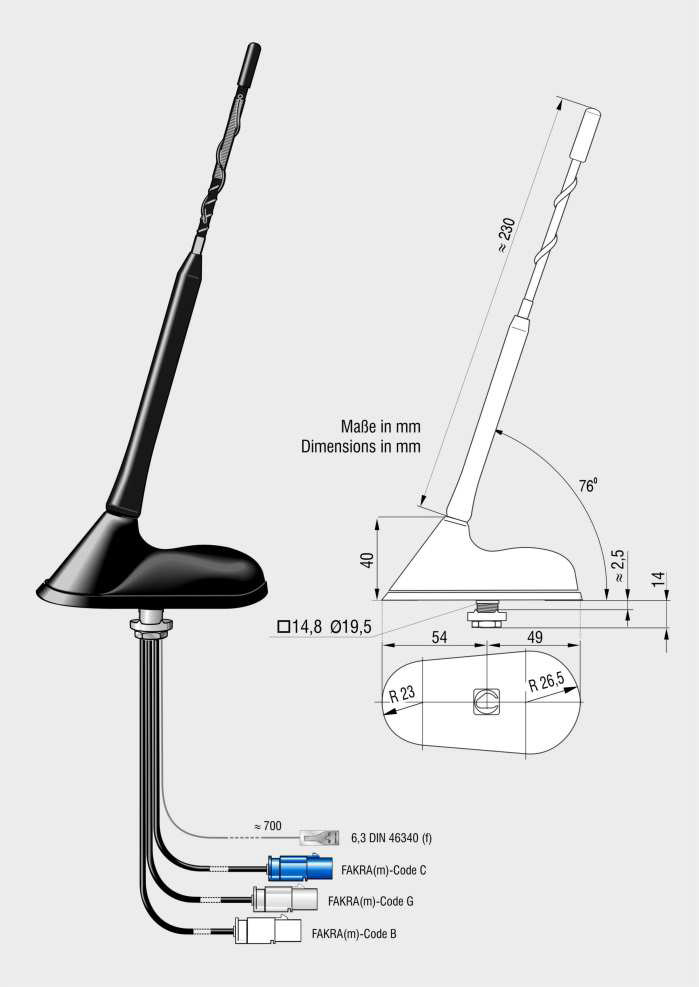

Technical Drawing With Dimensions
