Ford Transit Custom 2012-2021 JBL 6.5" 2 Way Coaxial Car Front Door Speaker Under Seat Subwoofer Upgrade Pack
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 5
- Brand: Dynamic Sounds
- Model: Stage1 62 + CT25FD14 + CT55-FD02 + BASSLINK MINI
- EAN: 7427307033112
- Warranty: 2 Years Warranty
Available Options
Description

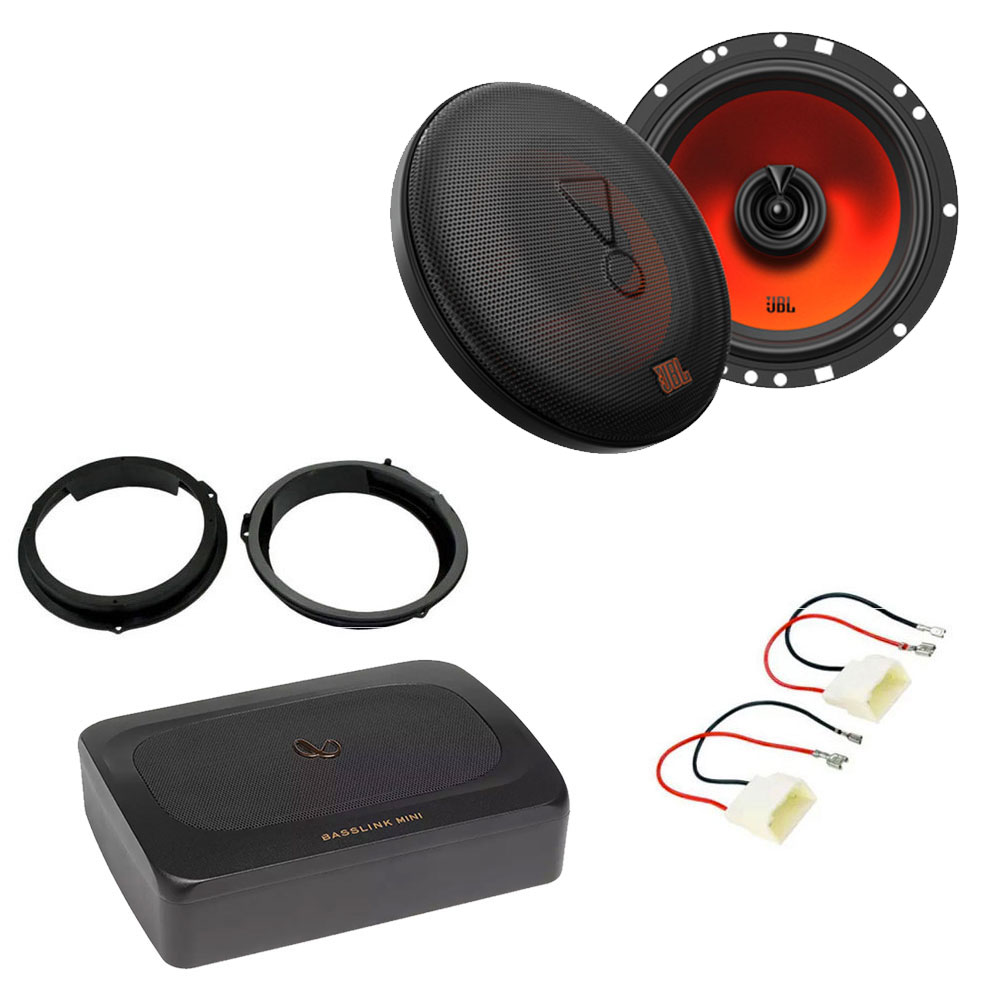

Package Includes
- JBL Stage1 62 (6.5") 2-Way Coaxial Car Speakers 400 Watt
- Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
| Ford | Transit Custom | 2012 - 2021 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
Stage1 62
Take your audio experience to the next level with the JBL Stage1 62 coaxial car speakers. These car speakers deliver powerful performance with a maximum power of 400 Watts Peak and 50 Watts RMS. Thanks to the high sensitivity of 89 dB, you can enjoy crystal clear sound, even at high volumes.
The JBL Stage1 62 is designed with a 6.5" Plus One™ woofer that delivers deep, powerful bass and impressive audio reproduction. With a frequency response of 55Hz to 20,000Hz, you can hear every detail in your music.
These 2-way coaxial speakers are supplied including grille. This allows you to enjoy a neat and protected finish in your car and a clear, spacious sound image. Due to the compact dimensions and ease of installation, these JBL speakers are suitable for almost any car.
Features and Specifications
- Set of 2 speakers
- Total power: 400 Watt Peak / 50 Watt RMS
- Sensitivity: 89 dB
- Frequency response: 55Hz – 20kHz
- Impedance: 4 Ohm
- Plus One™ woofer for extra deep bass
- Coaxial speakers for clear high tones
- Easy installation including grille
- Suitable for all types of music styles
- Dimensions: 16.62 cm diameter, installation depth only 6.8 cm
- Package weight: 1.474 kg
Package Contents
- 2x JBL Stage1 62 Speakers
- 2x Grilles8x Screws
- 8x Spade Clips
- User Manual
- 2x Foam rubber seals
Note: This item/pack is sold as a pair and contains 2 speakers.
BASSLINK MINI Compact Under Seat Powered Subwoofer System
Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.
Features
Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.
Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.
Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.
General Specifications
- Driver Complement 6"x8"(152mmx203mm) Subwoofer
- Amplifier Power 100Wrms; 200W Max
- Frequency Response 30Hz – 150Hz
- Fuse 15A
- Maximum Current Draw 13 A
- Quiescent Current Draw <600 mA
- Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
- Crossover Frequency 50 Hz – 150 Hz
- Crossover Slope 12 dB/octave
- Bass Boost 0dB to + 12dB @ 50Hz
- Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
- Weight 8.22 lbs (3.73kg)
In The Box
- 1 x Under seat subwoofer
- 4 x Screws
- 4 x Small metal plate
- 1 x Wiring harness
- 1 x Bass volume remote control (with cable)
- 1 x 15A Fuse
