Fiat Ducato 2021 Onwards Black Single / Double Din Car Stereo Fascia Fitting Kit for ILX-F115D, ILX-705D, ILX-F905D
- Stock Status: Out Of Stock
- Item Condition : New
- Available QTY : 0
- Brand: Dynamic Sounds
- Model: FKIT-FIAT-51
- EAN: 7427307000497
- Warranty: 2 Years Warranty
Description

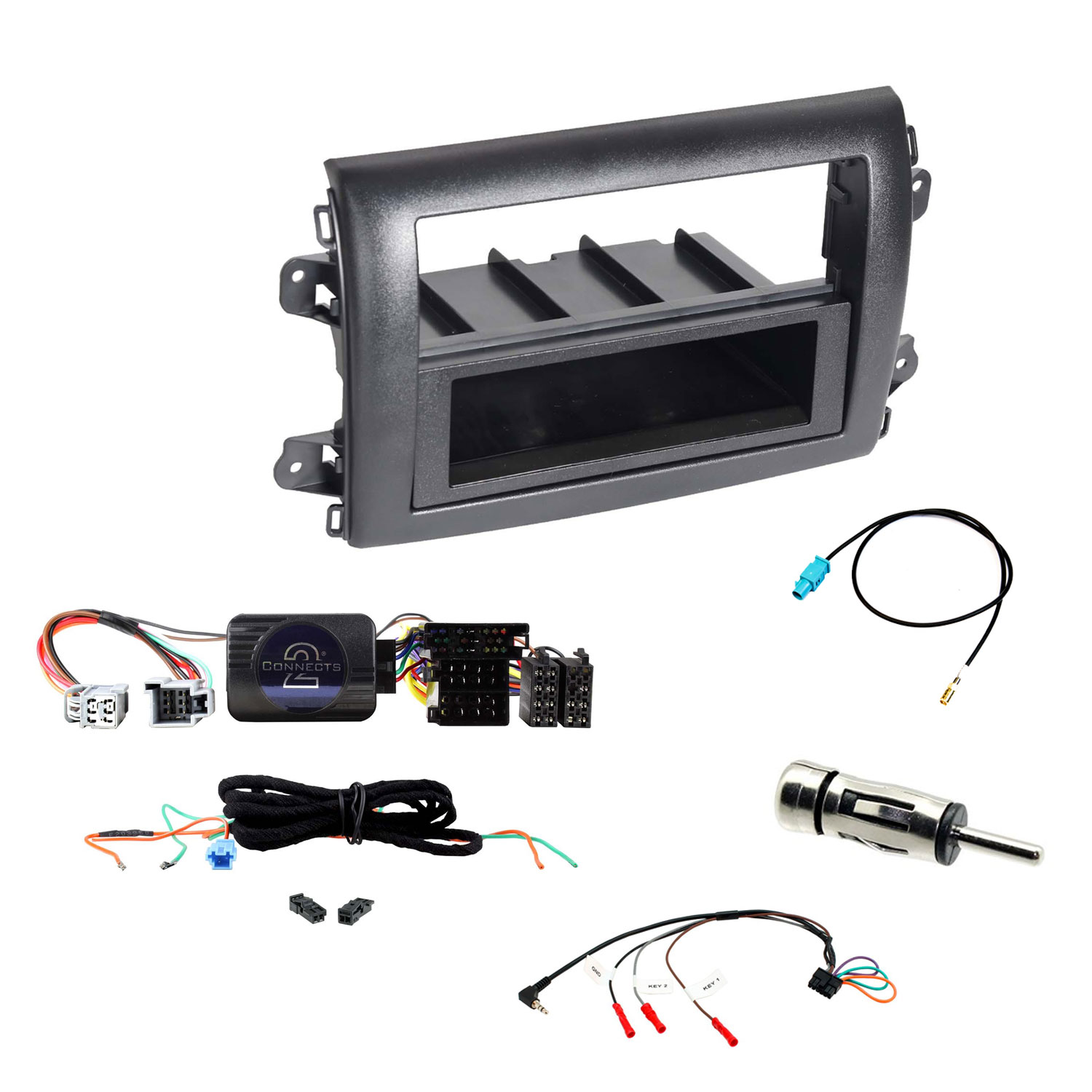

Car Audio Stereo Installation kit for installing a new after market Single / Double Din headunit into your Fiat. This is complete kit including Fascia Adaptor, Analogue Steering Control Interface, Aerial Antenna Adapter, Fakra SMB Connector,
Package Includes
- Single/Double Din Fascia Adaptor (Black)
- Analogue Steering Control Stalk Interface
- Aerial Adaptor
- Fakra SMB Connector
- Stereo Patch Lead (Free CTMULTILEAD.2 Included)
Product Compatibility Chart
Make | Model | Years | Notes |
Fiat | Ducato | 2021 onward | 8 Series |
For open dash vehicles only. Connection: Mini ISO

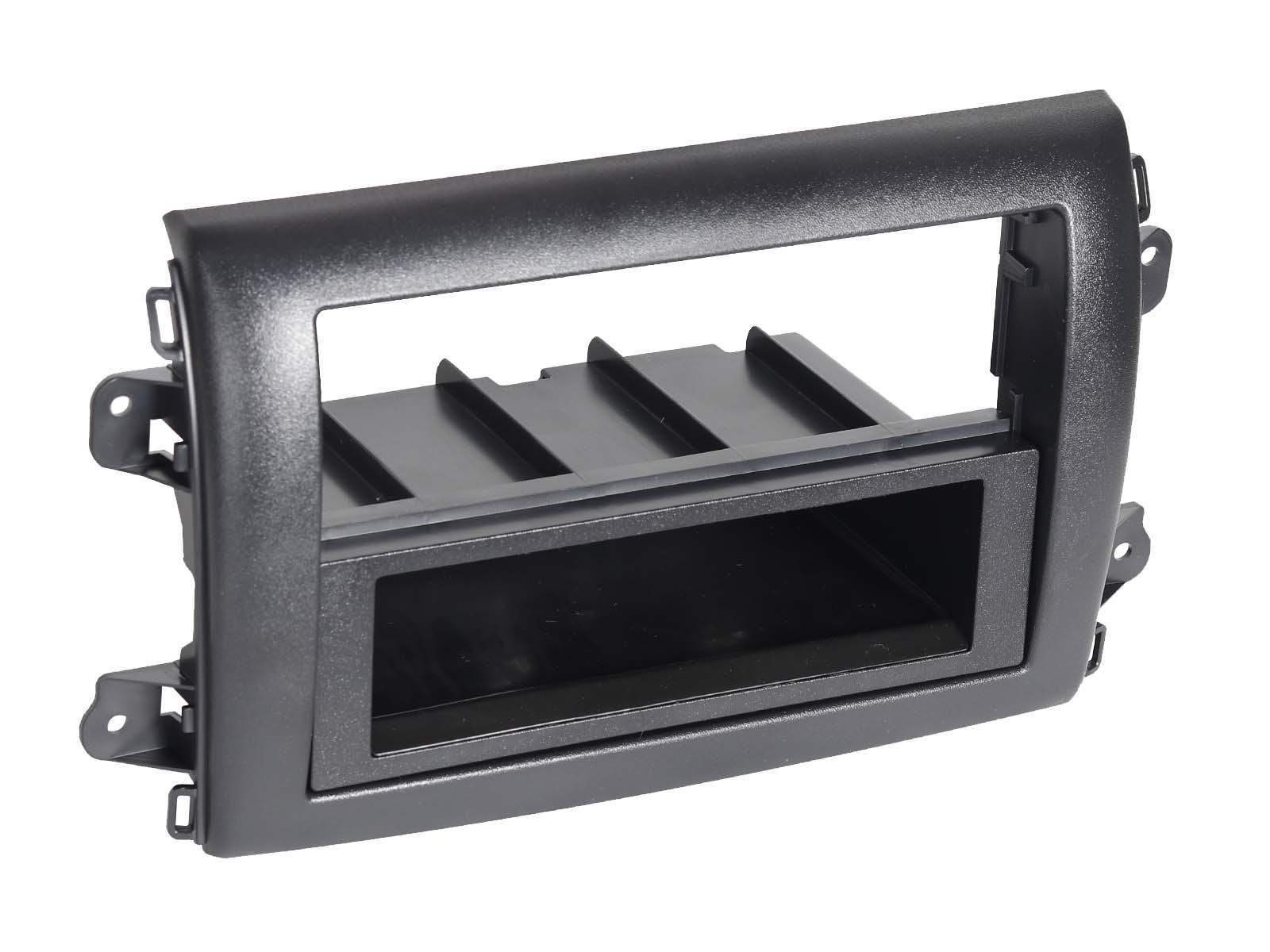

Fascia Adaptor
Fascia panel specially designed for the 2021+ Fiat Ducato. The fascia panel is finished in black and features a double din aperture, allowing you to upgrade your interior while retaining the original vehicle aesthetics. This fascia also includes a single din pocket for use when installing a single din or halo style radio.

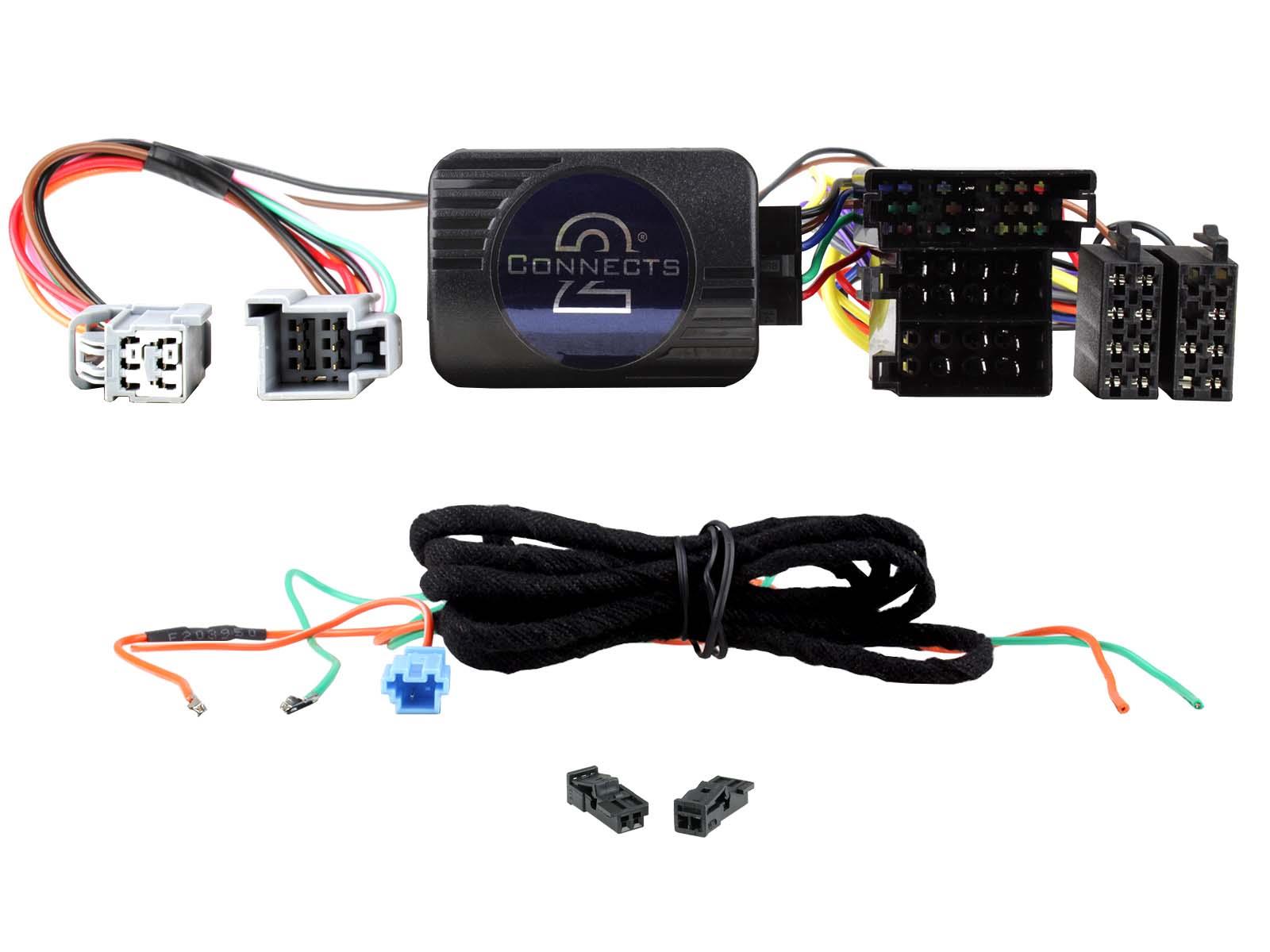

Steering Wheel Interface
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
This is Analogue Steering wheel control interface for Fiat Ducato (8 Series) motorhome vehicles which come without factory stereos. This interface helps to retain the steering wheel controls and phone button functionality when upgrading to an aftermarket stereo as well as offering an output source for both Speed Pulse and Reverse Gear. Please note: this stalk is for open dash vehicles only.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
CTMULTILEAD.2 Universal Patch Lead
Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Compatible aftermarket headunits:
- Alpine (3.5mm jack)
- Beat (single wire connection)
- Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
- Clarion (3.5mm jack)
- JVC (3.5mm or single wire)
- Kenwood (single wire)
- LG (3.5mm jack)
- Nakamichi (single wire connection)
- Panasonic (single wire but NOT AV units)
- Philips (single wire connection)
- Pioneer (3.5mm jack)
- Sony (3.5mm jack)
- Zenec (single wire)
- EONON
- JOYING
- XTRONS
- PUMPKIN
- Other Chinese SWC learning head units
Important Patch lead:
- You can simply cut the loops / wires to select which brand you are fitting.
- Supplied with instruction sheet
- China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.
Important Fascia Notes
- China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
- We do not take any responsibility for China units not fitting as they are not industry standard size.
- If the cage supplied with the stereo does not fit the fascia then you must purchase a universal cage which is slightly smaller.
- Click here for CT23UN01 UNIVERSAL Mounting Cage
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification" may be necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
