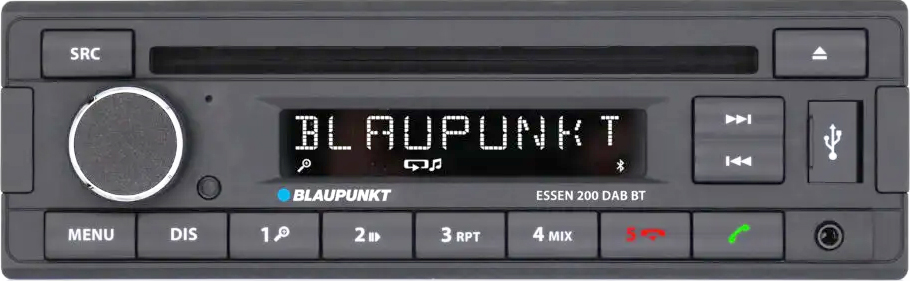

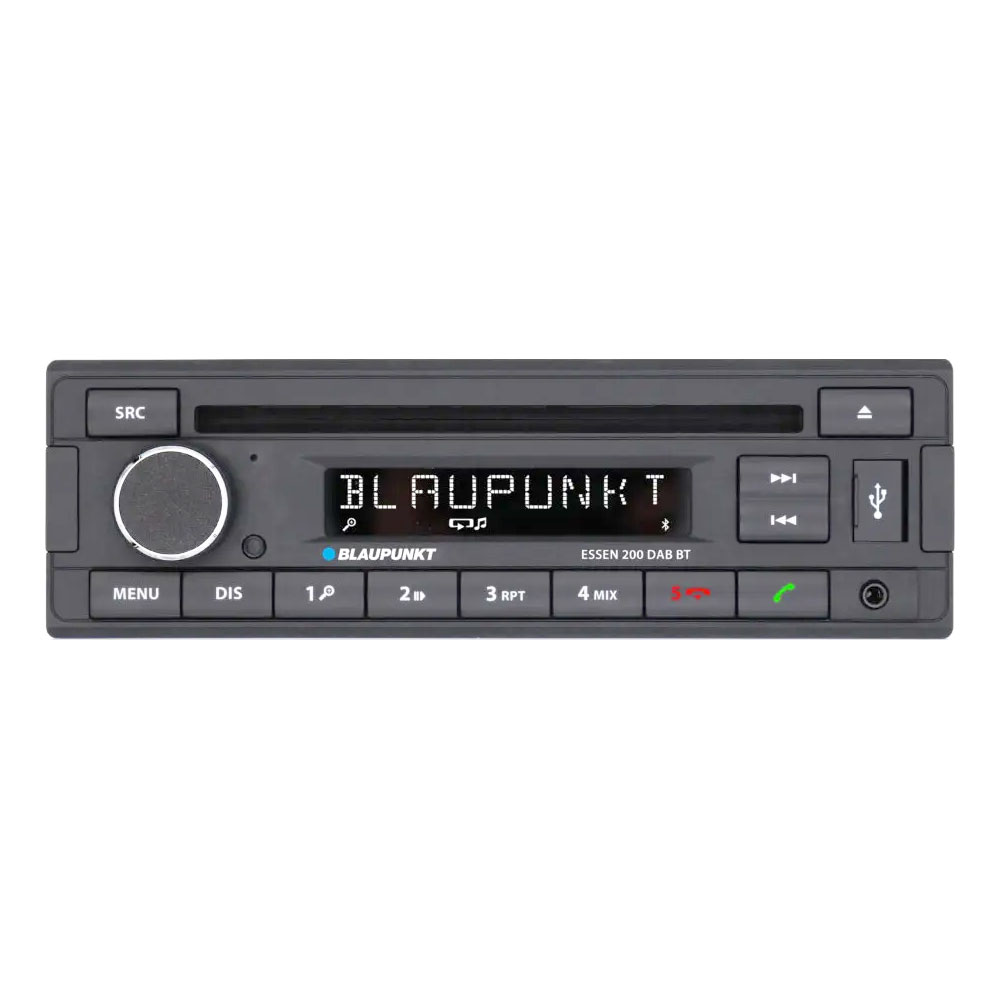

BLAUPUNKT ESSEN 200DAB BT

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

• RDS tuner, DAB+ tuner, FM (RDS), AM
• Bluetooth hands-free function with built-in microphone
• Playback formats: MP3, WMA
• Front USB, front Aux-In, CD drive
• Fast USB reading
• Selectable display modes (file, folder, title, artist, album and time)
• 4 x 40 Watt max. Performance, 2-channel preamp
• X-Bass, sound presets (flat, rock, pop, classic)

Specifications

Highlights

• RDS high grade tuner
• DAB + tuner
• FM (RDS), AM
• 9-digit display
• Integrated Bluetooth (HFP, A2DP)
• Integrated microphone
• Playback format: MP3, WMA
• Selectable display modes (file, folder, title, artist, album & time)
• Convenient choice of files
• Front USB
• Front aux-in
• Sound presets (flat, rock, pop, classical)
• X-bass
• 4 × 50 watts max.
• 2-channel preamplifier
• Key illumination white

Technical Specifications

Analog Radio

• Tuner Type: High Grade RDS Tuner
• Frequency bands: 3 x FM / 2 x AM
• Radio Data System (RDS): Alternative Frequency (AF),
• Clock Time (CT), Program Service Name (PS), Regional Program (REG),
• Traffic Announcement (TA), Traffic Program (TP)
• Travelstore: yes (FMT)
• Band scan / preset scan: yes / no
• Station memory: 15 FM / 15 AM
• Sensitivity: lo / dx
• Interference suppression: yes
• Frequency response (Hz) -3 dB: 20 ​​- 18,000

DAB Features

• DAB / DAB +: yes / yes
• Service update: no
• Service Scan: yes
• Station memory: yes
• Ensemble / program browsing: no / yes
• Program scan: no
• Service link DAB-DAB: no
• Service link DAB-FM: no
• Service link DAB-DAB-FM: no
• Radio text: no
• PTY programs: no
• Frequency response (Hz) +/- 3 dB: 20 ​​- 18,000 Hz

Bluetooth

• Supported profiles: HFP, A2DP
• Audio streaming: yes
• Pairing (number of devices): 1
• Hands-free calling: yes
• Microphone: integrated
• Core functions: accepting, ending, rejecting calls, redialing
• Access to mobile phone directory: yes (up to 100 contacts per mobile phone)

MEDIA Player

• Playback formats: MP3, WMA
• Title display: ID tag, folder / file
• Folder & file selection: no
• Display modes: yes (file, folder, title, artist, album, playing time)
• Mix (Random Play) / Repeat / Scan: yes / yes / yes
• Bit rate (kBit / s): 32 - 320

Audio / Equalizer

• Bass / Treble: yes / yes (+/- 7 steps)
• Balance / fader: yes / yes (+/- 9 steps)
• X-Bass: yes
• Sound presets: flat, rock, pop, classical

Amplifier

• Number of channels: 4
• Max. Power: 4 x 50 watts
• Sinus power at 14.4 V: 4 x 25 watts

Display

• Type / digits: 1-line / 9
• Color: negative, black and white
• Clock display: 24/12 hours

Entrances

• Antenna (number): 2 (FM ISO / DAB SMB 12V Phantom)
• USB (number / type): 1 (front)
• Aux-In (number / type): 1 front (3.5 mm jack)

Outputs

• Speakers (number): 4
• Preamplifier (channels): 2-channels (RCA)
• Preamplifier (voltage): 1.5 V (rms)

Generally

• Software update: via USB
• Confirmation beep: yes
• Menu language: English
• Control unit type: Fix Panel
• Key illumination: white
• Permanent storage after power loss: yes
• Ignition logic: yes
• Weight (kg): approx. 1.4
• Dimensions (mm): 188 x 58 x 110
• ISO Connector Lead Not Included
• Instructions for use: yes
• Jewelry packaging: yes
