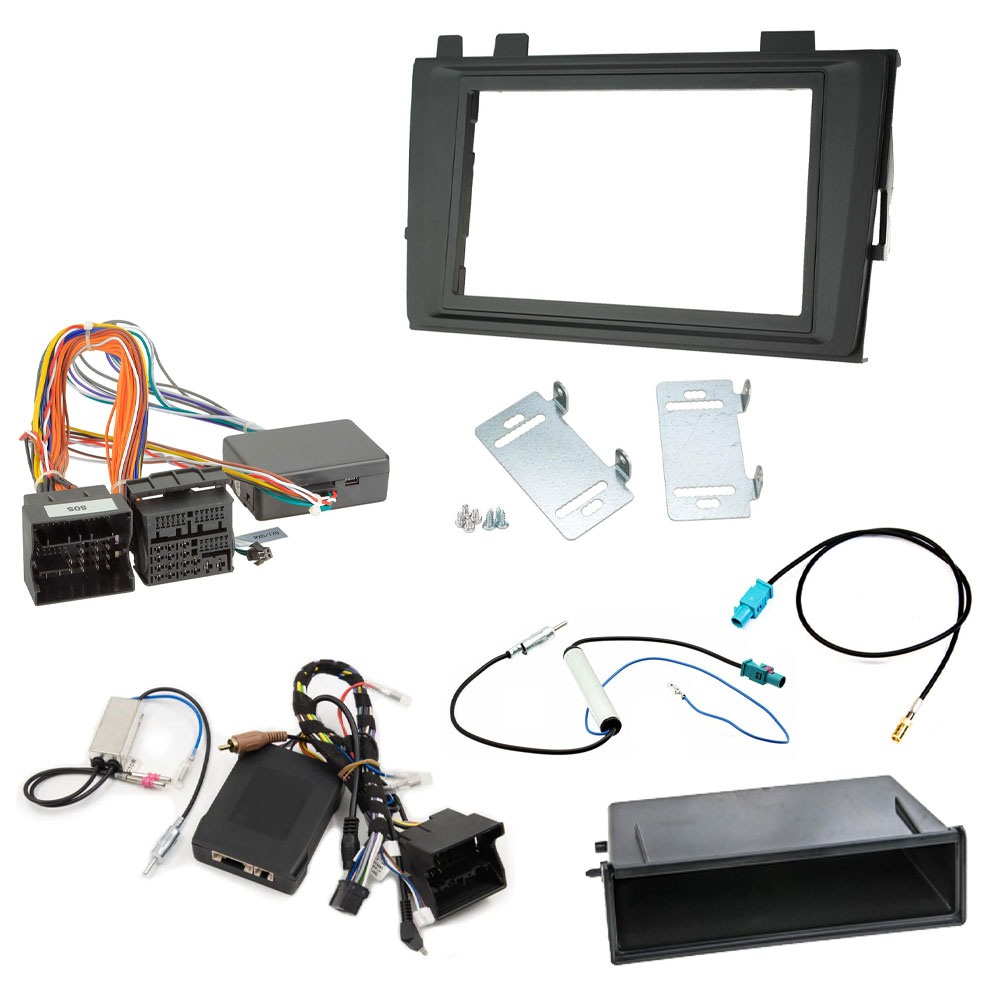

Package Includes

• Double Din Fascia Adaptor (Black)
• Pioneer Integration Module CAN Bus Adaptor
• Active System Adaptor Lead
• Fakra to DIN Aerial Antenna Adaptor
• Fakra DAB Male to DAB SMB Female Antenna Adaptor
• Fascia Pocket for Double Din Fascia to Single Din
• Stereo Patch Lead

Suitable for Pioneer

• SPH-DA77DAB
• SPH-DA97DAB
• SPH-EVO98DAB
• SPH-EVO107DAB

Fascia Adaptor

These adaptors will convert the non din-sized aperture left after removing the factory stereo to a Double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Pioneer CD-SVW-UAR.006AE Integration Module for VAG cars

Interface to the Pioneer station with a UART connector allowing you to obtain control from the steering wheel and transfer some information from the car to a non-factory radio (air conditioning, parking sensors). It also allows you to connect an aftermarket reversing camera (RCA connector). Interface for VAG group cars.

The interface is intended for some Pioneer multimedia stations and VAG group cars. The module allows you to control the new radio from the steering wheel, allows you to visualize the factory parking sensors and visualize the air conditioning settings. If you also connect a non-factory reversing camera (with an RCA connector) to the new radio, you can also use this module to connect.

Please Note

The interface applies to Pioneer units with a UART (4 pin) connector. The module does not support Dynaudio or Think Blue systems. Trainer, additional heating, tire pressure, blind spot monitor, personalization options, seat positions, open-close options, hybrid options, etc. If you care about any parameter, ask us (info@sklephadron.pl), because the module software changes and the manufacturer sometimes adds supported functions. Installation and connection of the Pioneer CD-SVW-UAR.006AE moduleThe set includes everything you need to basicly connect a Pioneer radio to your VAG. On one side you connect to the car's installation, on the other to the radio (main connector, UART connector, jack for steering wheel control). The set also includes an antenna separator with adapters (fakra/double fakra). As is usually the case in VAG cars, you will also need a positive switch (ACC), for which the red wire next to the module is used.

• for car installation
• plus to connect the separator (blue wire to blue wire)
• jack (angle plug) for steering wheel control (to the connector on the radio)
• to the UART
• connector. to radio (main connector)
• input for aftermarket reversing camera (RCA)
• jack (4 poles) - AUX (if present)
• GND (ground)
• ACC (post-ignition)

Supported Features with CD-SVW-UAR.006AE

Steering Wheel Controls

• Previous Music
• Next Music
• Volume control
• Voice Command
• Assist system button
• Phone button
• Back button
• Scroll switch

HVAC Settings

• The HVAC settings are shown and also controllable via the Head unit.
• Front windshield heating
• Climate controls (Temperature/ Fan speed/ Airco/ Seat heating/ Auto/ Sync/ Air recirc./ Windscreen defroster/ Steering wheel heating/ Off)
• Profile
• Rear controls
• Pop up of the climate screen (on/off)
• Air care climatron
• Automatic air recirculation
• Automatic auxiliary heater
• Automatic windscreen heating
• Automatic supplementary heater

Doors Status (Open/Close)

• The status of the doors are visually shown on the Head unit
• Front left & right
• Rear left & right
• RHD/LHD

ESC

• Activated/ ESC off/ ESC sport

Tyres

• TPMS reset
• Speed warning
• Winter tyres mode
• Warning at

TPMS

• Advanced (Active) TPMS with sensors on each tire

Driver Assistance Settings

• Lane assist (adaptive lane guidance/ steering wheel vibration)
• Front assist (advance warning/ display distance warning)
• ACC ( Adaptive cruise control)
• ACC distance selected
• Driver alert system
• Dynamic Road Sign Display
• Proactive occupant protection (Active protection)
• Manoeuvre braking
• Side assist
• Side assist brightness
• Speed warning exceed
• Warning at over

Parking

• Activate automatically (Auto activate)
• Front/ Rear Volume
• Front/ Rear tone setting
• Entertainment fading
• Front/ Rear/ Left/ Right sensors

Light Settings

• Activation
• Headlight range
• Dynamic light assistance
• Switch on time
• Auto headlights
• Automatic headlight control in rain
• Daytime running lights
• Convenience turn signal
• Travel mode/ Travel mode reversed
• Instrument/switch lightning
• Door background lightning
• Roof background lightning
• Front background lightning
• Background lightning
• Footwell lightning
• Coming Home/ Leaving Home Function
• Dynamic cornering light

Mirrors and Wipers

• Synchronous adjustment
• Lower in reverse
• Fold in when locking
• Automatic wiping in rain
• Rear window wiping in reverse

Opening and Closing

• Convenience opening ( all windows/ driver/ off)
• Door unlocking ( all doors/ single door/ vehicle side)
• Automatic locking
• Easy open
• Interior monitoring

Instrument Cluster

• Current consumption
• Average consumption
• Convenience consumers
• Eco tips
• Travelling time
• Distance travelled
• Average speed
• Digital speed display
• Speed warning
• Oil temperature
• Reset "Since start" driving data
• Reset "Long-term" driving data

Time & Date

• Clock time Source
• Time
• Automatic Summertime
• Time zone
• Time format
• Date
• Date Format

Active System Adaptor Lead

This adapter allows an aftermarket head unit to be installed, whilst bypassing the factory fitted amplified system. This adapter is designed to match the correct impedance of the vehicles speaker system.

The CT51-VW01 is a CAN Bus interface specifically designed to help retain the E-Call functions of the 'emergency call system'

The CT51-VW01 is an ideal accessory to include between the wiring setup of any installation when upgrading to an aftermarket head unit. Designed to work with a range of Connects2 installation kits the CT51-VW01 is the perfect solution for retaining the vehicle's E-Call function.

this product is for vehicles with MIB PQ systems only.

When connected your new stereo may not power up, and this is no fault of the wiring harness purchased.
Audi / VW / Skoda / Fiat and other vehicles tend not to have an ignition switched live feed.
In these cases it is necessary to manually connect a spurred live feed from fuse box for example to feed switched power so the new stereo turns on and off with the key.
The wire in particular on the new wiring harness will be the red wire.

Fakra to DIN Aerial Antenna Adaptor

Fakra to Din Antenna Adaptor with Phantom Power Supply. This adapter converts car specific antenna connecter to a DIN aftermarket connector.

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit. Antenna Adaptors are available in both ISO and DIN versions. Antenna Aerial Adaptor, converts car specific antenna connector to a universal aftermarket connector.

Blue wire requires connection to stereo remote control wire normally Blue or Blue with White stripe as shown in the image above.

Fakra DAB Male to DAB SMB Female Antenna Adaptor

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Stereo Fascia Pocket for Double Din Fascia to Single Din

Pocket Tray with Lip, Pockets to Convert Double Din Fascia to a Single Din Size. Features a lip to lock a single din cage against it.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
