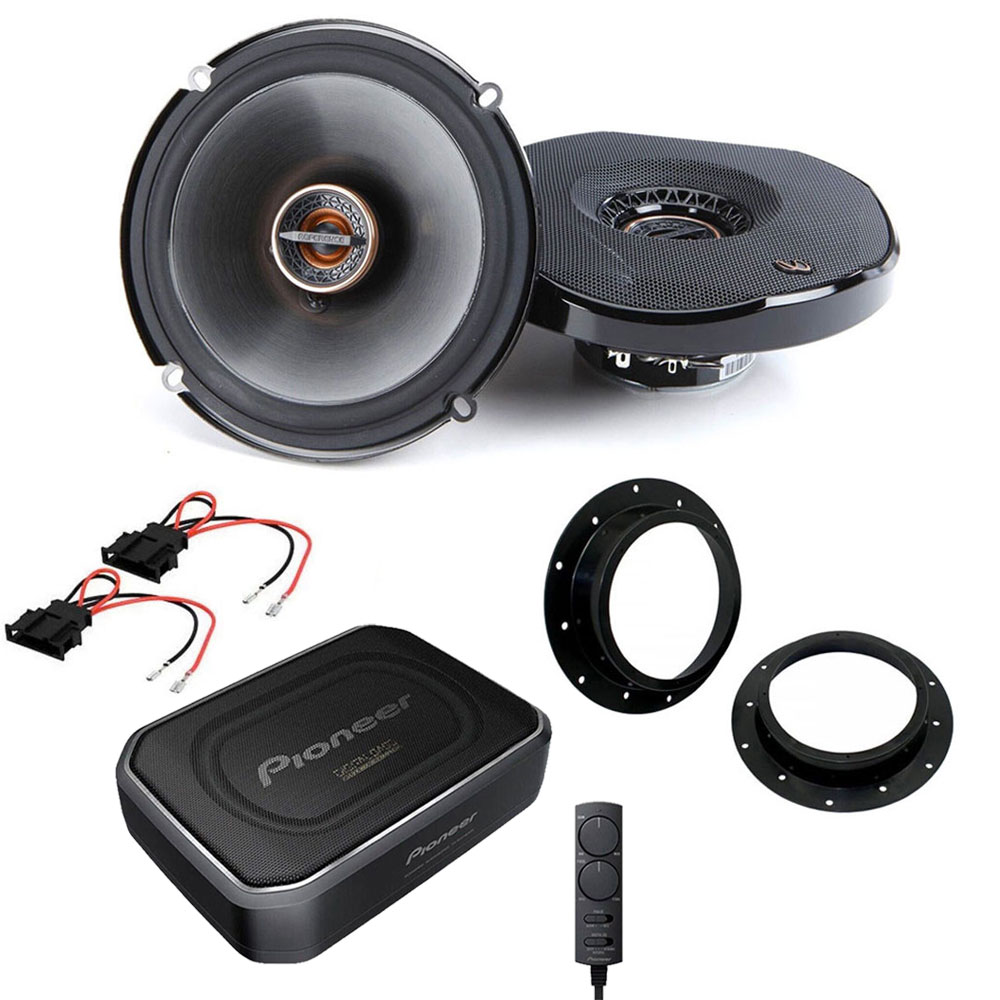

Package Includes

• Infinity REF-6532EX Reference 165 Watt 6.5" 2 Way Shallow Fit Coaxial Car Speakers
• Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W
• 165mm Front Door Speaker Adaptor
• Speaker Adaptor Plugs

Accurate, High Performance Sound

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles.They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener’s preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes – 3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component – they’re the perfect upgrade from factory speakers

Features

• Edge-driven, textile tweeters
• Adjustable tweeter output level
• Plus One™ woofer cone architecture
• Optimized Frame Size
• Competitive pricing

Features and Benefits

Edge-Driven, Textile Tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.

Adjustable Tweeter Output Level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener’s preference.

Plus One™ Woofer Cone Architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class – the result is higher sensitivity, increased low-frequency output and accurate music reproduction.

Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Competitive Pricing
Reference speakers provide step-up Infinity sound at mainstream prices.

Specifications

• Description: 6-1/2" (160mm) shallow-mount coaxial car speaker
• Power Handling: 55W RMS, 165W peak
• Sensitivity (@ 2.83V): 93dB
• Frequency Response: 57Hz – 21kHz
• Impedance: 3.0 ohms

What's In The Speaker Box

• 1 pair of shallow-mount coaxial speakers
• 1 pair of speaker grilles
• 8 large mounting screws
• 8 speed clips
• 8 small mounting screws
• 1 pair of adapter rings
• Foam mounting tape
• Owner’s manual

Note: This item/pack is sold as a pair and contains 2 speakers.

Powerful Bass, without losing space.

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.

Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

EV Optimized

This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.

Car Sound Fit App Car

sound simulator application for an improved in-car sound experience

Digital Bass Control

Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.

Main Features

• EV Optimized
• CarSoundFit App
• DIGITAL BASS CONTROL
• Size 20 cm
• Maximum power 170 W
• Continuous power output 50 W
• Frequency Response
  • DEEP Bass Mode: 20 - 200 Hz
  • NATURAL Bass Mode: 40 - 200 Hz
  • DYNAMIC Bass Mode: 40 - 160 Hz
• Sensitivity
  • DEEP Bass Mode: 95 dB
  • NATURAL Bass Mode: 98 dB
  • DYNAMIC Bass Mode: 100 dB
• Woofer material Aluminium
• Surround Urethane
• Voice Coil type Copper Round Wire 4-Layer
• Voice Coil bobbin type Glass Imide
• Magnets Strontium
• Weight 3,1 kg
• Dimensions (W x H x D) 280 x 200 x 70
