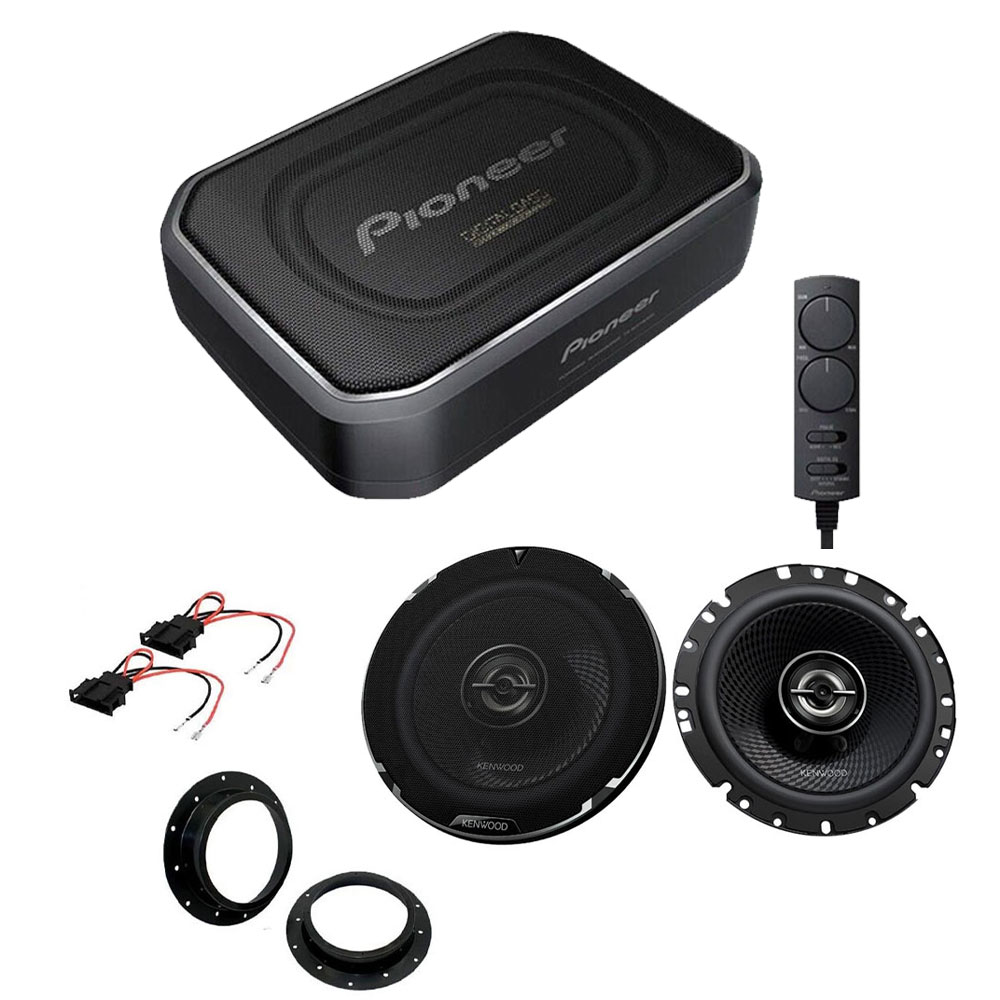

Package Includes

• Kenwood KFC-PS1797 PS Series 6.5" (17cm) 2-Way Coaxial Car Speakers
• Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W
• 165mm Front Door Speaker Adaptor
• Speaker Adaptor Plugs

Kenwood KFC-PS1797 Performance Standard Series Speaker System

17cm, 2-Way Performance Standard Speaker System. Features 350W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.

Key Features

• 17cm 2-Way Performance Standard Speaker System
• Woofer cone with Diamond Array Pattern Sound Tune Up Technology
• Black Coloured Elegant Design with Silver Accents
• Acoustic Sound Harmonizer Technology
• Sound Field Enhancer Technology
• 30mm Balanced Dome Tweeter with Neodymium Magnet
• 350W Peak Input Power / 100W RMS Input Power
• Low Tweeter Height Design for Shallow Install Space
• Grille assembly included

Speaker Features

• Speaker System 2-way 2-speaker
• Speaker Type Coaxial
• Diamond Array Pattern Woofer Cone
• Sound Field Enhancer
• Acoustic Sound Harmonizer
• Black-painted Woofer Yoke Plate
• Factory Location Fit

Speaker/woofer Specifications

• Peak Input Power 350W
• Rated Input Power 100W
• Woofer Cone material Black Polypropylene (PP) Cone
• Woofer cone dimensions 170mm Ø
• Speaker Basket Steel (Black painted)
• Magnet type Ferrit (Ø85 x t12)
• Speaker Surround Rubber
• Sensitivity 88dB/W/m
• Frequency Response 73Hz ~ 18000Hz
• Speaker Impedance  4Ω
• Dimensions with Grill (WxHxD) 179 x 179 x 66.2mm
• Dimensions w/o Grill (WxHxD) 165 x 165 x 54mm
• Mouting Hole Diameter Ø 139.6mm
• Mounting Depth 48mm
• Tweeter Height 6mm

Tweeter Specifications

• Cone Size 30mm
• Cone Material Silver Balanced Dome
• Magnet Type Neodymium

Accessories

• Screws (Parker-type) Ø 4 x 25mm, 8 pieces
• Speed nut φ 4, 8 pieces
• Adhesive tape pad 1 piece(s)
• Grille assembly included
• Speaker cable 0.5m

Note: This item/pack is sold as a pair and contains 2 speakers.

Powerful Bass, without losing space.

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.

Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

EV Optimized

This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.

Car Sound Fit App Car

sound simulator application for an improved in-car sound experience

Digital Bass Control

Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.

Main Features

• EV Optimized
• CarSoundFit App
• DIGITAL BASS CONTROL
• Size 20 cm
• Maximum power 170 W
• Continuous power output 50 W
• Frequency Response
  • DEEP Bass Mode: 20 - 200 Hz
  • NATURAL Bass Mode: 40 - 200 Hz
  • DYNAMIC Bass Mode: 40 - 160 Hz
• Sensitivity
  • DEEP Bass Mode: 95 dB
  • NATURAL Bass Mode: 98 dB
  • DYNAMIC Bass Mode: 100 dB
• Woofer material Aluminium
• Surround Urethane
• Voice Coil type Copper Round Wire 4-Layer
• Voice Coil bobbin type Glass Imide
• Magnets Strontium
• Weight 3,1 kg
• Dimensions (W x H x D) 280 x 200 x 70
