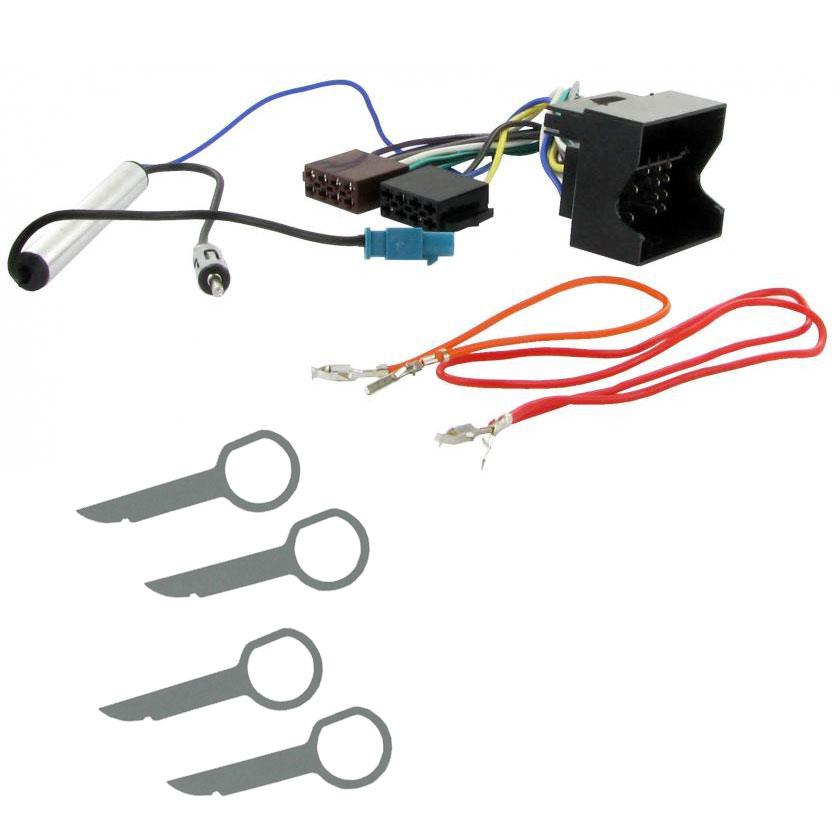

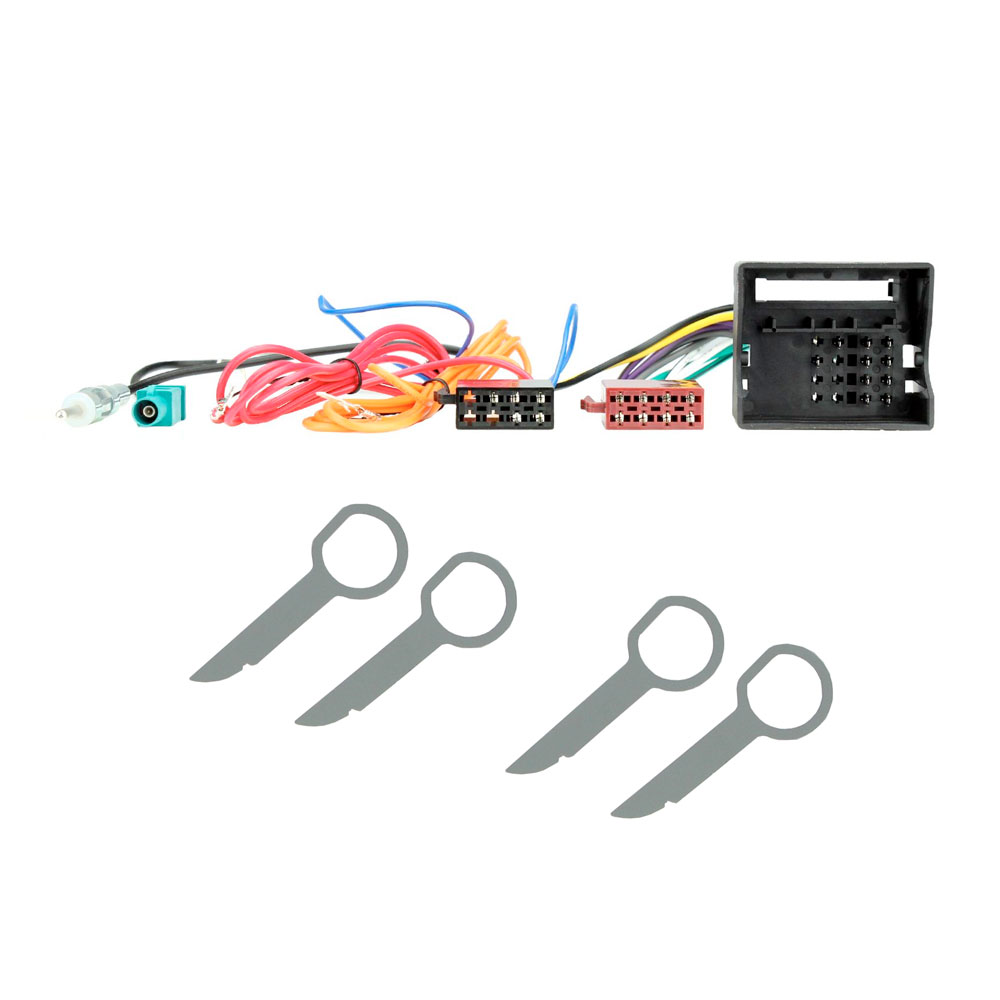

Kit Includes:

• Wiring Harness Adaptor with DIN Aerial
• Stereo Remoal Keys

Please Note:

Will suit vehicles with following dash style / factory stereo Only for installation of replacement branded stereo. Your new stereo should be supplied with a mounting cage to fit straight into this dash aperture. If not you will need additional CT23UN02 cage and tim kit.

Wiring Harness: Connect the head unit to the original radio connector without the need to cut any of the existing wiring. PC2-xx-4 are for conventional speaker systems

Wiring Harness

Connect the head unit to the original radio connector. This adapter is required when replacing your factory fitted radio with an aftermarket radio. It will convert the original vehicle power & speaker wiring connectors to a standard ISO connector. Simply plug one end of the adapter into your cars wiring harness and the other into your new radio. *For Aftermarket Radio With DIN Antenna Connector*

Please Note

• Red wire has to be connected to a separate ignition feed in the vehicle to make aftermarket head unit to power up
• Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night.
• Blue wire needs to be connected to the Remote Antenna or ignition supply wire (if rem ant wire not available) on back of car stereo.

Please Note

• When connected your new stereo may not power up, and this is no fault of the wiring harness purchased.
• Audi / VW / Skoda / Fiat and other vehicles tend not to have an ignition switched live feed.
• In these cases it is necessary to manually connect a spurred live feed from fuse box for example to feed switched power so the new stereo turns on and off with the key.
• The wire in particular on the new wiring harness will be the red wire.

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

There is an Aerial Adaptor also included with the Wiring Adaptor.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
