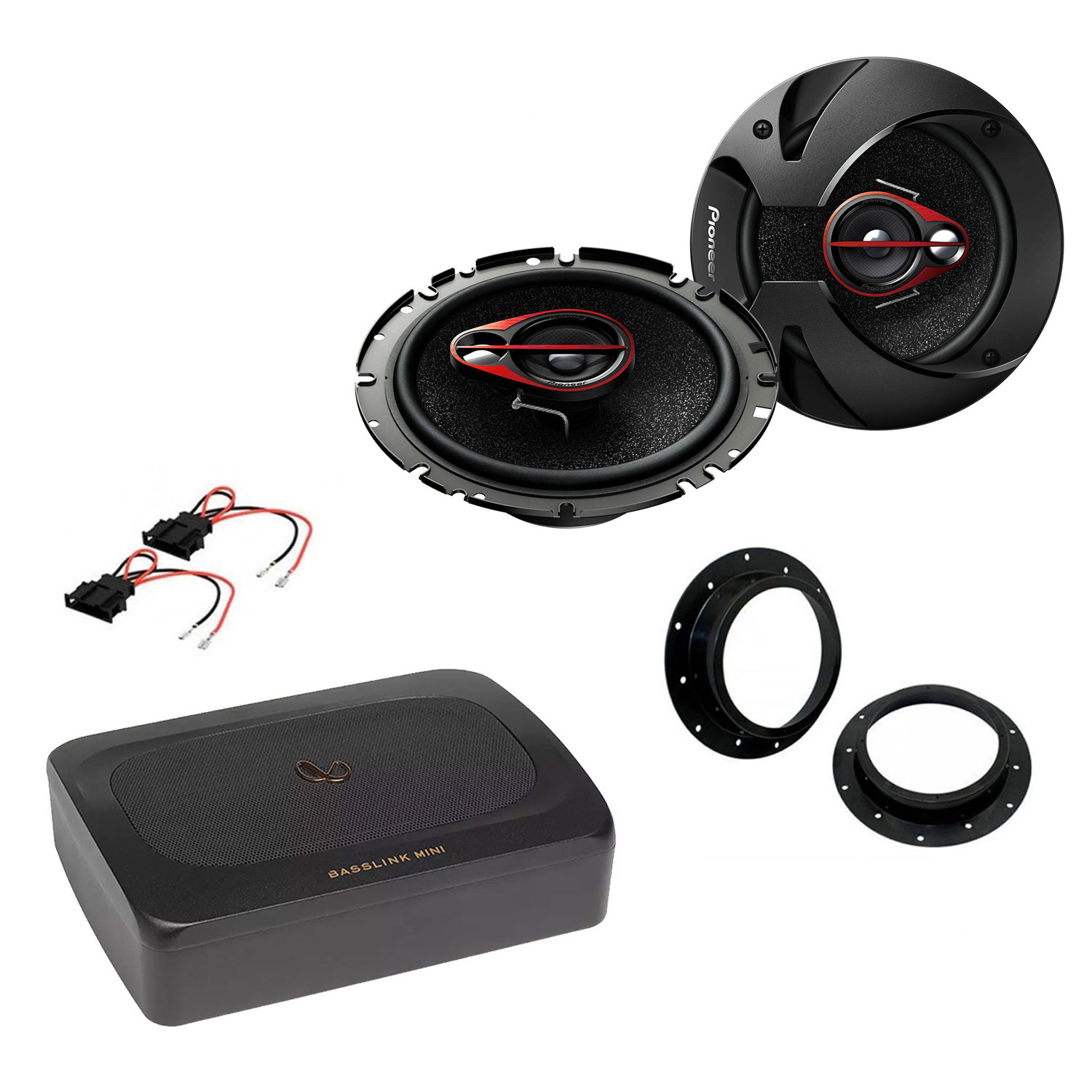

Package Includes

• Pioneer 6.5" 17cm 3 Way Coaxial Car Speakers
• 165mm Front Door Speaker Adaptor
• Speaker Adaptor Plugs
• Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System

Strong, Solid Performance

Our sporty looking TS-R speakers tap the full potential of your in-car audio setup. Aimed at providing loud and clear output for any type of music, their sound quality results from a multilayer mica matrix woofer cone which ensures punching bass and improved midrange frequency response. You’ll enjoy a sound that is more accurate, with full-bodied bass.

MMM Cone

Enjoy a wider dispersion of sound with deeper bass through the Multi-layer Mica matrix cone

Main Features

• Tweeter material Piezoelectric
• Midrange size 42 mm
• Voice Coil type    Aluminium Bobbin & Copper Wire
• Dimensions 165 x 64 mm
• Weight 1.40 kg
• Cut-out Hole 137 mm
• Mounting Depth 47 mm
• Coaxial Speakers
• 3 way
• Maximum power 250 / Total Power Both Speakers 500 Watts
• Nominal input power 40 W
• Impedance 4 Ω
• Frequency response 36 – 31,000
• Woofer Size 17 cm
• Woofer material    Multilayer Mica Matrix Cone
• Tweeter size 15 mm

BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Features

Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
• Weight 8.22 lbs (3.73kg)
