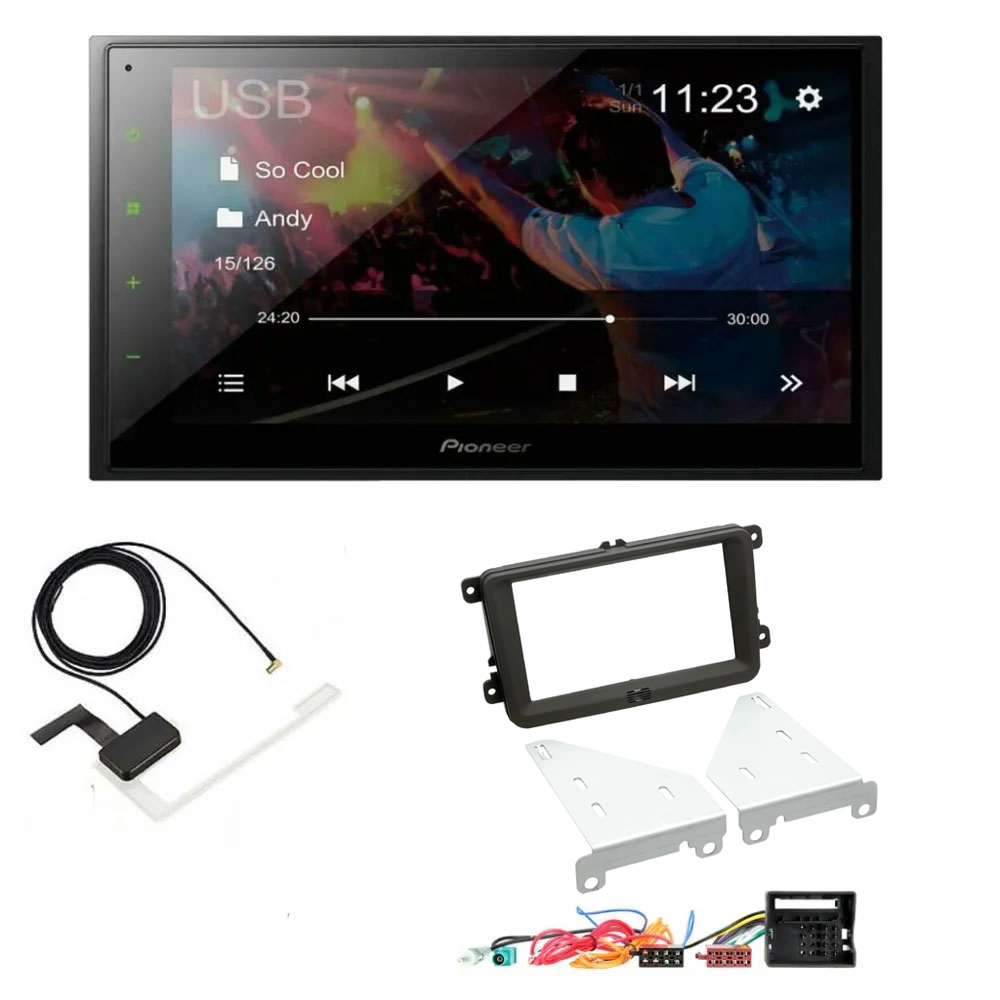

Package Includes

• Pioneer DMH-A340DAB 6.8" Double Din Bluetooth WebLink USB DAB Radio Car Stereo
• DAB Antenna Aerial
• Double Din Fascia Panel
• Wiring Harness With Aerial Adaptor

There is an Aerial Adaptor also included with the Wiring Adaptor

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Wiring Harness

The wiring harness will allow to install the stereo.
Note: You will need to connect the red wire to the ignition supply in the fuse box.

Powerful Entertainment For Your Car.

The "Short Chassis" 2-Din DMH-A340DAB lets you connect to a compatible iPhone or Android phone using a single USB cable, which allows you to mirror & control your smarthphone from your dashboard in a convenient way. It plays DAB/ DAB+ Digital Radio and audio/video content from USB devices.

Additionally, this car AV player features Bluetooth, allowing you to stream your music or call hands-free over a wireless connection.

Upgrade your music with high-grade audio functions: The 13-band graphic EQ allows you to customise the sound settings to your own preferences.

	WebLink - The new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone and the cloud.
	DAB+ enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality
	Digital Radio Tick Mark Approved product In order to be granted use of the tick mark, manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth - Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
	6.8" Clear Type Resistive Touchscreen Pioneer Clear Type Resistive display panels are designed for beautiful crisp and detailed reproduction with enhanced visibility.
	Mechafree This product is designed for modern digital music formats.
	Short Chassis The shallow depth of this product provides easy and flexible installation.
	Made for iPod / iPhone - Directly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
	Compatible with Android Connect and listen to music stored on your device without the need for an app
	USB Input - Connect any device with an USB interface cable to charge your device or listen to clean, clear sound.
	FLAC - Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ adjust your audio output in detail for a music experience tailored to your preferences
	Siri Eyes Free make use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle
	Display Illumination Match the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.

Main Features

• WebLink
• DAB+
• Digital Radio Tick Mark Approved product
• Bluetooth®
• Mechafree
• Short Chassis
• USB Input
• Multi colour illumination
• Waze Via Weblink
• Spotify Via Weblink
• FM Radio
• Camera Input
• Screen 6.8" Capacitive Touchscreen
• Plays
  • Your iPod, iPhone, Android Smartphone
  • Bluetooth audio
• Via USB:
  • MP3, WMA, AAC, WAV and FLAC audio files
  • H.264, MKV, FLV, MPEG4, MPEG2 (PS),WMV/MOV/DivX/XviD and TS video files in Full HD
  • JPEG and BMP image files
• Customisable Key and Display Illumination
• Installation Type    2-DIN
• Accessories Included:
  • 1 USB extension cables
  • 1 Microphone for hands-free calling
• Optional:
  • CA-IU.52C (USB to Lightning cable)
  • ND-BC8 (Reverse camera)
• USB Input    USB (1 Amp)

Screen Features

• 6.8" Clear Type Resistive Touchscreen

Apple Compatibility

• Made for iPod / iPhone
• Siri Eyes Free
• Works with iPhone

Android Compatibility

• Compatible with Android

Audio

• FLAC
• 13-band Graphical EQ
• MOSFET 50 W x 4 Amplifier
• Graphic Equaliser 13-band
• High Pass Filter
• Low Pass Filter
• Subwoofer Control
• RCA Pre-Outs 3. (Front, rear and subwoofer)
• DAB+ Digital

Tuner Features

• RDS FM Radio

Bluetooth

• Hands Free Calling (Hands Free Profile)
• Music Streaming
• Additional Bluetooth Features
  • Audio streaming
• Compatibility HFP/A2DP/SPP
• Pioneer Bluetooth

Connections

• Aux-in 1 rear AV Aux-In
• RCA AV Input    Yes
• RCA AV Rear Output
• Hard Wired Remote Ready
• ISO connector

INSTALLATION TIPS

Please Note

• Red wire has to be connected to a separate ignition feed in the vehicle to make aftermarket head unit to power up
• Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night.
• Blue wire needs to be connected to the Remote Antenna or ignition supply wire (if rem ant wire not available) on back of car stereo.

Please Note

• When connected your new stereo may not power up, and this is no fault of the wiring harness purchased.
• Audi / VW / Skoda / Fiat and other vehicles tend not to have an ignition switched live feed.
• In these cases it is necessary to manually connect a spurred live feed from fuse box for example to feed switched power so the new stereo turns on and off with the key.
• The wire in particular on the new wiring harness will be the red wire.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
