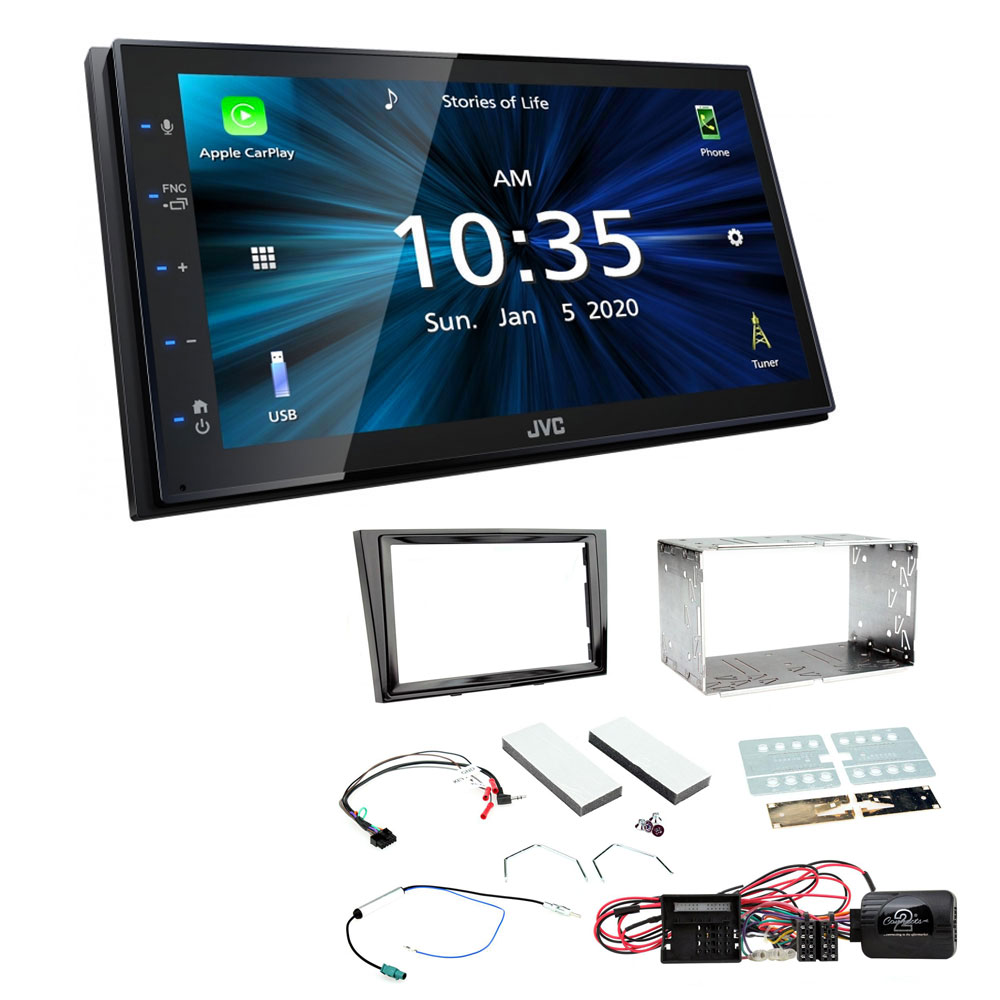

Package Includes

• JVC KW-M560BT 6.8" Bluetooth Digital Media Car Play / Android Auto
• Double Din Fascia Adaptor (Piano Black)
• CAN-Bus Steering wheel Control Adaptor
• FAKRA Antenna Adaptor
• Stereo Removal Keys
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

IT IS VERY IMPORTANT THAT THE 2 LOOSE WIRES AS SHOWN IN THE PHOTO AND ON THE HARNESS ARE CONNECTED AS THE ADAPTER WILL FAIL EARLY ON IF THIS IS NOT CARRIED OUT. THE POWER WILL DROP TO THE NEW UNIT AFTER A PERIOD OF TIME IF THESE ARE NOT CONNECTED. RED CONNECTS TO AN IGNITION 12 VOLT SUPPLY / BLACK CONNECTS TO A GROUND POINT. BEST PLACE FOR THESE CONNECTIONS CAN BE TAKEN FROM THE LIGHTER SOCKET WIRING BELOW THE STEREO IN THE DASH.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

KW-M560BT 2-DIN AV Receiver

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto / USB Mirroring for Android Phones / Bluetooth® / 13-Band EQ / Shallow Chassis

Smartphone Integration

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

Apple CarPlay™ – Connect via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

Android Auto™ – Connect via USB

Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.

Some Features, applications, and services are not available in all areas.

Mirroring for Android Phone Connect via USB

By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Android™ Bluetooth Automatic Pairing

Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

Capacitive Touchscreen

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.

Shallow Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately). Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Monitor

• Screen Size 6.8"W VGA Screen
• Touch Panel Capacitive
• Monitor Touch Control
• Customizable GUI
• Key Illumination Color Blue
• Dimmer
• Multilingual Display [4]

Media Playback

• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• AAC Compatible with Tag USB
• FLAC Compatible with Tag USB
• H.264 Compatible USB
• WMV Compatible USB
• MPEG 1/2 Compatible USB
• MPEG 4 Compatible USB
• AVI/MKV Compatible USB

Bluetooth Control

• Built-in Bluetooth[1] (Wired-Mic included)
• Hands Free Call (HFP1.6 Wideband Speech)
• Audio Streaming & Control (A2DP, AVRCP)
• Supported Audio Formats  AAC / SBC
• Voice Dialing (voice recognition compatible mobile phone required)
• Phone Book Access Profile (PBAP)
• Alphabetical Search for Phone Book
• Auto Pairing for iPhone/Android (Android only)

Android Control

• Android Auto[2] (via USB)
• Mirroring for Android (via USB) *Need mirroring App
• Android Music Playback (via Bluetooth(R))

iPod/iPhone Control

• CarPlay[3] (via USB)

USB

• USB Port x 1 (High Speed)
• Position Rear
• USB Power Supply  (1.5A High Current Charging)

Radio Tuner

• SiriusXM Ready
• Radio Broadcast Data System (RBDS)
• Preset Stations 20(FM:15ch, AM:5ch)
• Automatic Presetting (Strong Station Sequential Memory)
• FM
  • Frequency Range 87.9 - 107.9MHz
• AM
  • Frequency Range 530-1,700kHz

Audio

• Maximum Power Output (Front & Rear) 50Wx4
• Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
• EQ  (13-Band Graphic EQ)
• Preset EQ (7Preset + 3user)
• Bass Boost
• High-Pass Filter/Low-Pass Filter
• Time Alignment

Inputs and Outputs

• AV Input mini jack (AV-IN or Camera switchable)
• Video Out RCA
• Rear view camera Input
• Line Output Terminals  2Preouts (Terminal) + Sub WF (Cable)
• Pre-output Level/Impedance 2.0V / 10k ohms
• Subwoofer Output with Level/Frequency Control

General

• Back Up Memory
• Wireless Remote Control Ready (RM-RK258 required)
• Steering Remote Control Ready
• ISO Connector
• Dimensions (W x H x D)
  • Installation Size 7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)
  • Weight  2.8 lbs. (1.3kg) Including Sleeve and Trim plate
  • Unit weight in individual package    1.8kg

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
