Vauxhall Corsa D 2 Door or 4 Door 2006-2014 Front and Rear Speaker Upgrade Kit Wiring
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 10+ in stock
- Brand: Pioneer
- Model: TS-G1020F + TS-G1720F + CT25VX05 + CT25VX06 + CT55-VX01 x 2
- EAN: 7426871614550
- Warranty: 2 Years Warranty
Description
Product Compatibility Chart
| Make | Model | Years | Notes |
| Vauxhall | Corsa | 2006 - 2014 | D, 2 Door or 4 Door |
Front Door 165mm. Rear Side Panel 100mm, Front and Rear Speaker Kit.
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors
Package Includes
- Pioneer 17cm 2-Way Coaxial Car Speakers
- Pioneer 10cm 2-Way Coaxial Car Speakers

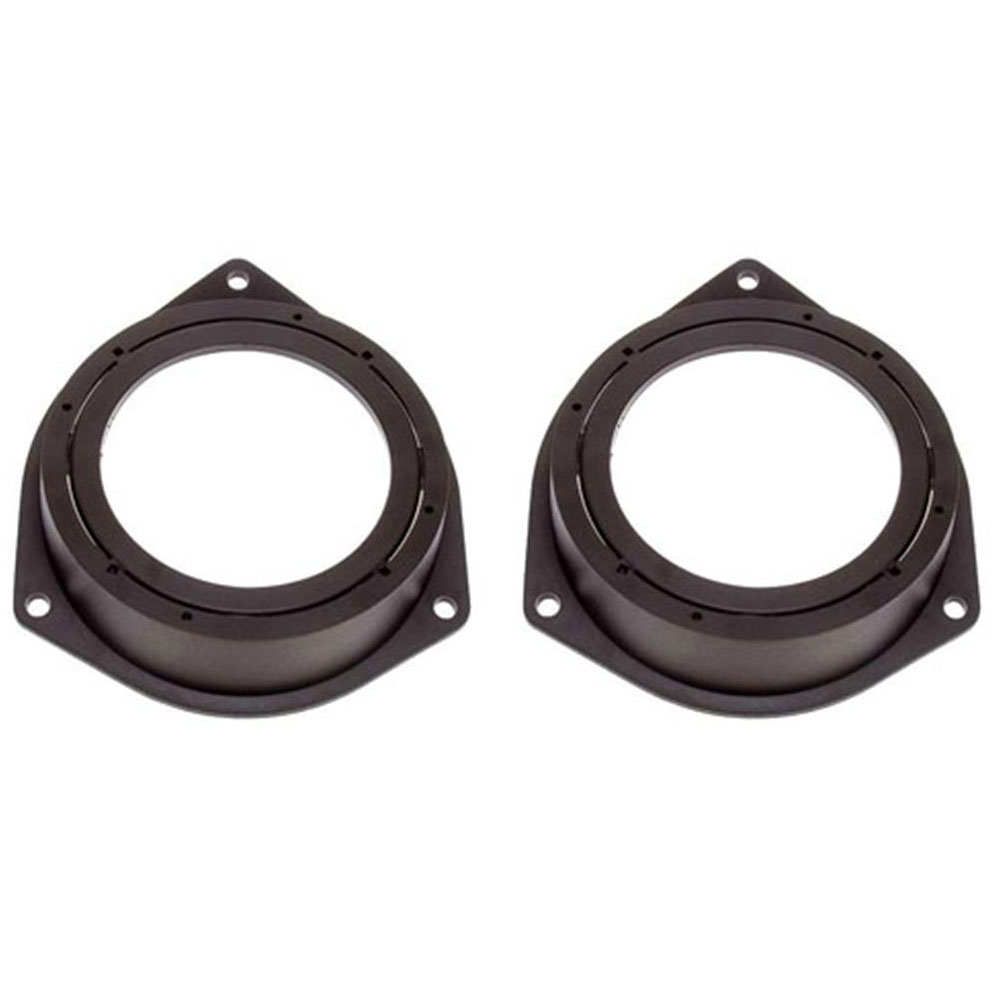

- 100mm-120mm Speaker Adaptor
- 165mm Front Door Speaker Adaptor
- 2 Sets x Speaker Adaptor Harness

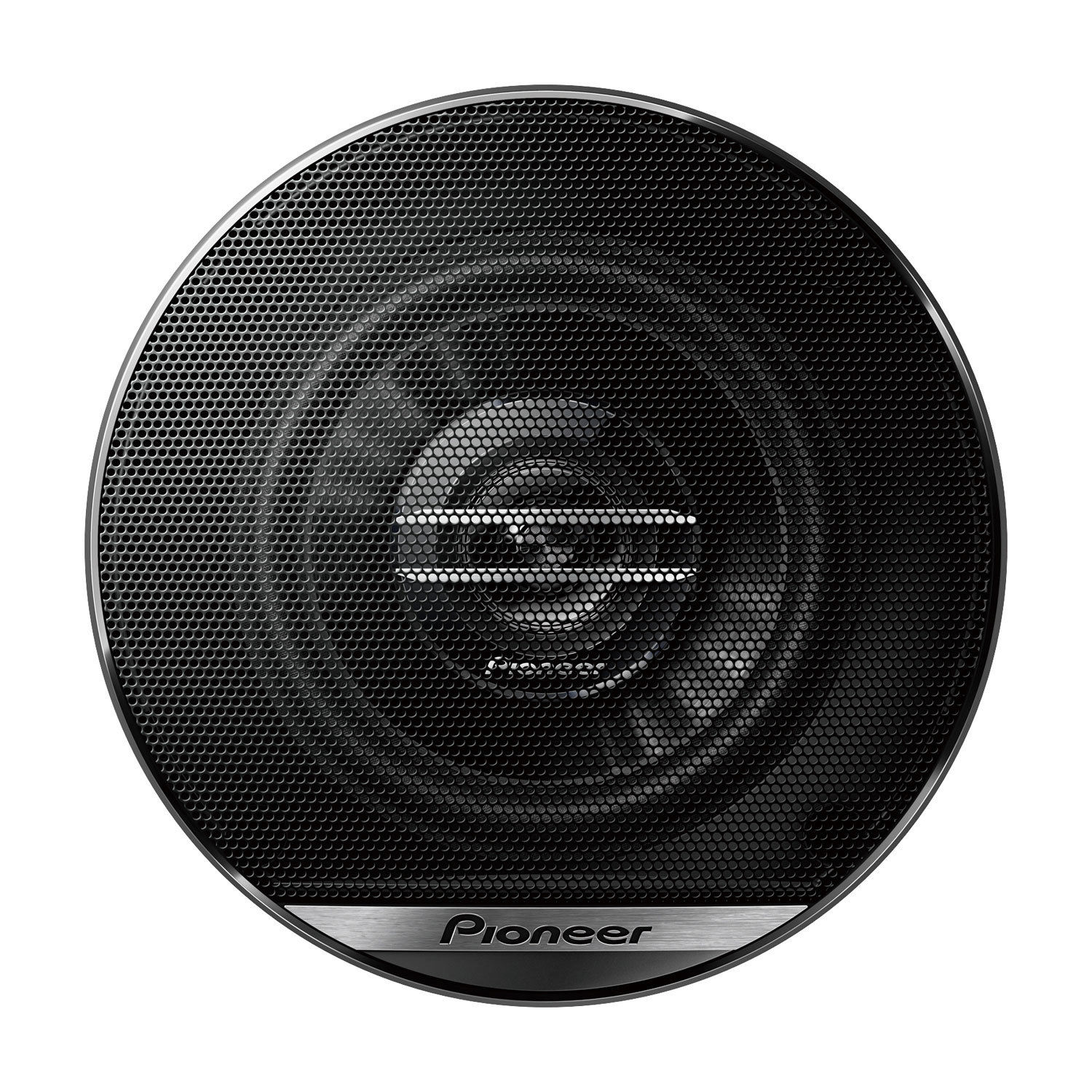

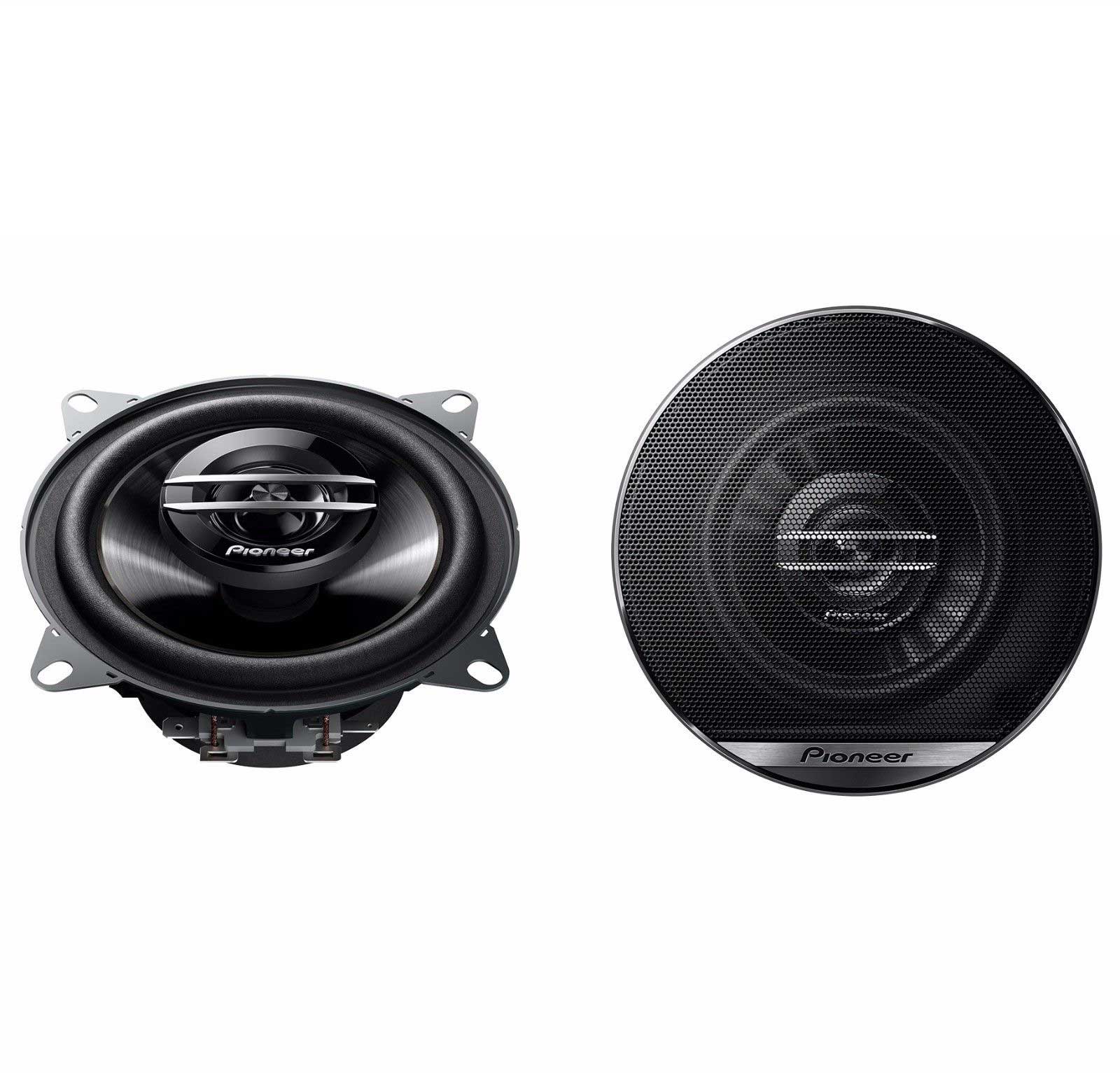

TS-G1020F 10cm Speakers
Upgrade your in-car sound in a smart and affordable way with the TS-G1020F. This 10cm 2-way coaxial speaker delivers up to 30 Watts of nominal power and has a maximum power output of 210 Watts. It also features:
IMPP Cone
Enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Main Features
- Sensitivity 87 dB
- Lowest resonance frequency 113 Hz
- 2 Way
- Maximum power input 210 W
- Nominal input power 30 W
- Woofer material IMPP Composite Cone
- Tweeter size 30 mm
- Tweeter material PET
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Magnets Y35
- Coaxial Speakers
- Size 10 cm
- Weight 0.35 kg
- Impedance 4 Ω
- Cut-out Hole 106 mm
- Frequency response 35 - 27,000 Hz
- Mounting Depth 43 mm
TS-G1720F 17cm Speakers
Upgrade your in-car sound in a smart and affordable way with the TS-G1720F. This 17cm 2-way coaxial speaker delivers up to 40 Watts of nominal power and has a maximum power output of 300 Watts. It also features:
IMPP Cone
Enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Main Features
- Weight 0.59 kg
- Coaxial Speakers
- Cut-out Hole 144 mm
- Size 17 cm
- Mounting Depth 49.7 mm
- Impedance 4 Ω
- Frequency response 36 - 18 000 Hz
- 2 Way
- Sensitivity 90 dB
- Lowest resonance frequency 81 Hz
- Maximum power input 300 W
- Nominal input power 40 W
- Woofer material IMPP Composite Cone
- Midrange size 30 mm
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Magnets Y35
Sold as Pair x 2
