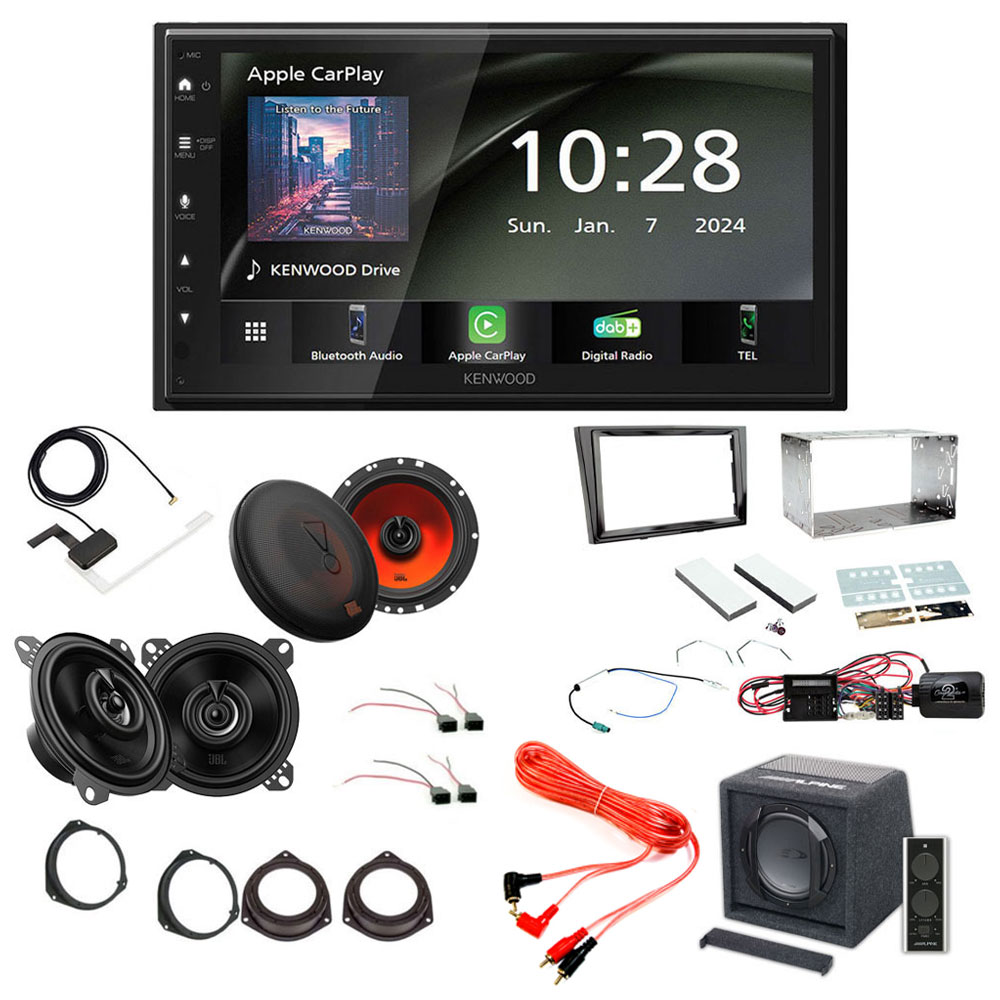

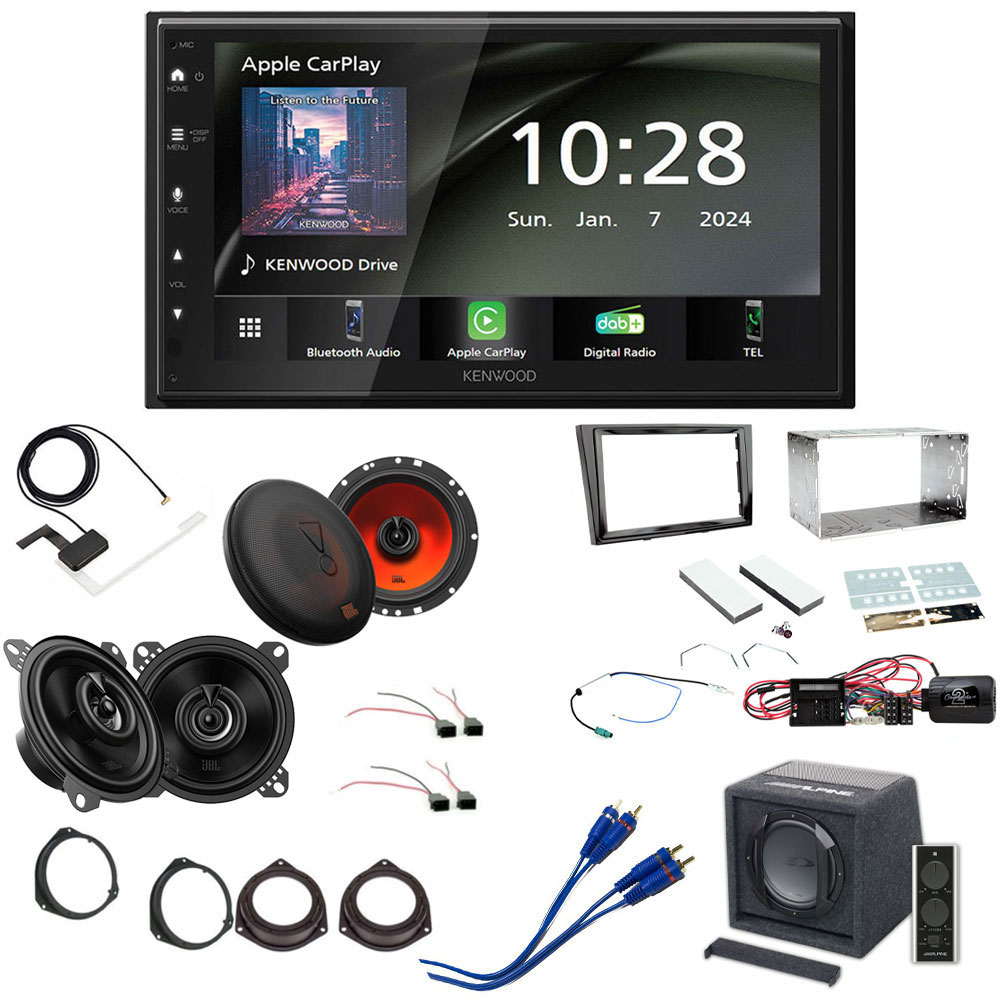

Package Includes

• Kenwood DMX6523DABS 6.8" WSVGA Screen Wireless CarPlay / Android Auto, Mirroring, DAB+ Bluetooth Stereo
• Alpine SWE-815 8" 20cm Amplified Subwoofer Bass Box with Wired Remote Controller
• DAB Aerial
• Double Din Fascia Adaptor (Piano Black)
• CAN-Bus Steering wheel Control Adaptor
• FAKRA Antenna Adaptor
• Stereo Removal Keys
• Stereo Patch Lead
• JBL Stage1 62 (6.5") 2-Way Coaxial Car Speakers 400 Watt
• JBL Stage2 45F 4" 10cm 2-Way Coaxial Car Speakers 320 Watts
• 100mm-120mm Speaker Adaptor
• 165mm Front Door Speaker Adaptor
• 2 Sets x Speaker Adaptor Plugs

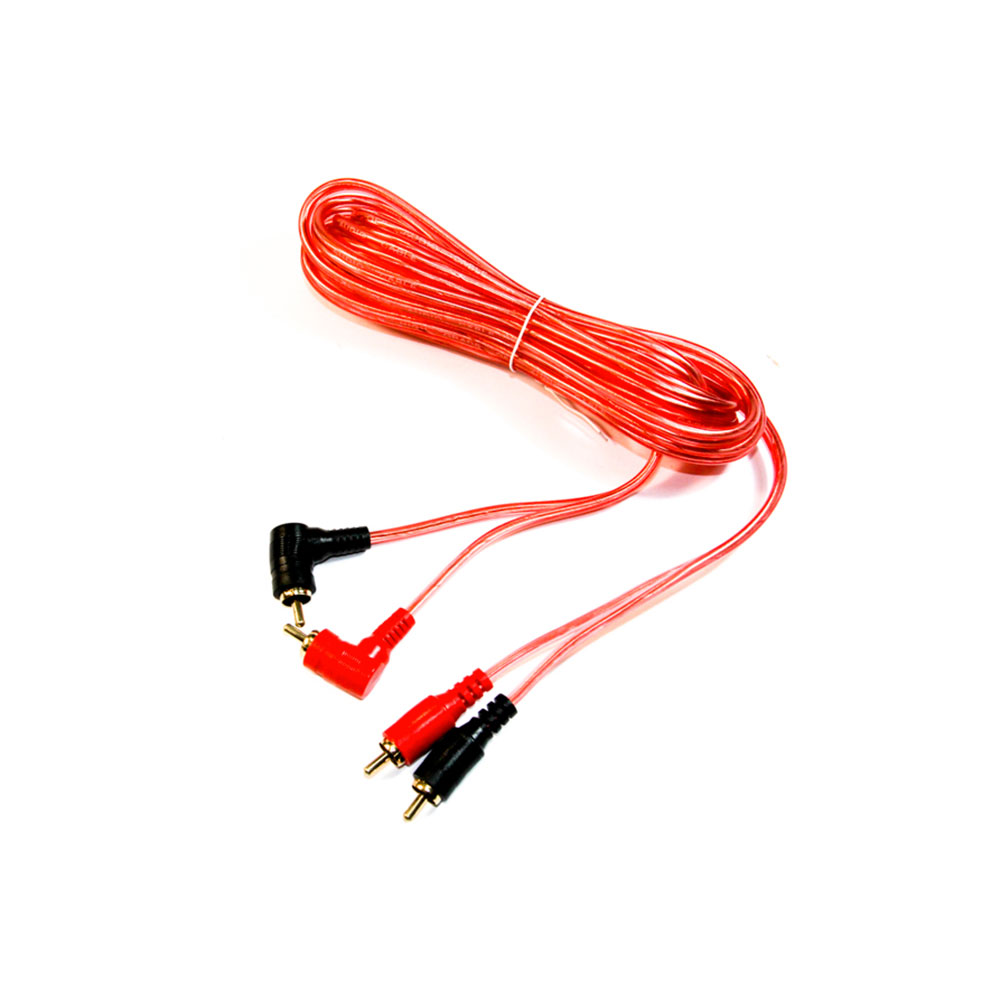

• Stinger 5 Meter Coaxial RCA Interconnect Phono Cable

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

IT IS VERY IMPORTANT THAT THE 2 LOOSE WIRES AS SHOWN IN THE PHOTO AND ON THE HARNESS ARE CONNECTED AS THE ADAPTER WILL FAIL EARLY ON IF THIS IS NOT CARRIED OUT. THE POWER WILL DROP TO THE NEW UNIT AFTER A PERIOD OF TIME IF THESE ARE NOT CONNECTED. RED CONNECTS TO AN IGNITION 12 VOLT SUPPLY / BLACK CONNECTS TO A GROUND POINT. BEST PLACE FOR THESE CONNECTIONS CAN BE TAKEN FROM THE LIGHTER SOCKET WIRING BELOW THE STEREO IN THE DASH.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

DMX6523DABS

Digital AV Receiver • 6.8" WSVGA Display • Wireless Apple CarPlay®/Android Auto™ & iPhone & Android Mirroring • DAB+ Tuner

Key Features

• 6.8" WSVGA Display with Capacitive Touch Panel.
• Wired & Wireless CarPlay® & Android Auto™
• True Wireless Mirroring, 2-Way Touch Control for iPhone & Android
• Built-in DAB+ Digital radio Tuner
• Built-in Bluetooth® technology for Handsfree calling & Audio Streaming.
• High Current 2.1A Charging USB port.
• Front & Rear + Subwoofer (Mono) Preouts - 2.5V
• 13 Band EQ & Digital Time Alignment
• Rear View Camera Input with Parking Guidelines
• Single DIN Short Chassis Design for easy installation

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone required.

Wireless Mirroring for smartphone

By installing the “MirroringAPP+”, your iPhone & Android phone* screen is seamlessly displayed on the receiver's large screen wirelessly. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

*Selected smartphones only

Built-in DAB+ Digital Radio Tuner

DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality crystal clear sound and doesn't suffer from the same types of interference or static issues than with analogue AM/FM radio. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

Easy Installation With a Compact Rear Chassis

Despite its double-DIN display, the L-shaped chassis is only half sized than conventional double-DIN units.
The reduced depth and the L-shape of the chassis contributes to a weight reduction and facilitates easier installation.

High Resolution WSVGA (1024 x 600px) LCD Display

The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Sound Adjustment Features

For optimal sound tuning enhancements.

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination White color
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller, (KNA-RCDV331)
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Made for iPhone
• Apple CarPlay – Connect Wirelessly or via USB
• Android Auto™ – Connect Wirelessly or via USB
• Wireless Mirroring for iPhone/Android
• Firmware upgreadable

Monitor Features

• Screen Type 6.8" Wide SVGA
• Display Type Glare
• Display Panel Capacitive
• Display film Anti Fingerprint
• High Resolution WSVGA Screen 1024 x 600 pixel
• LCD backlight White LED
• Display Mode 3 Mode (Normal(default) / 16:9 / 4:3)
• Screen Adjustments Brightness / Tint / Color / Contrast
• Dimmer function Manual/Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode Mirorring / CarPlay / Android Auto.
• Mechanism type Fixed
• NTSC/PAL judge  (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Menu text 14 languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Portuguese
  • Arabic
  • Hebrew
  • Greek
  • Polish
  • Czech
  • Hungarian
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type standard
• Wallpaper customizable 6 x presets + 2 x user set
• R-CAM interrupt
• R-CAM Parking Guide Lines, Built-in, customizable

Network & Wifi Features

• WiFi built-in
• Frequency Range 5 GHz (5,745– 5,825 GHz)
• Output Power 5GHz / SISO: 13.78 dBm
• Wireless connection for Apple CarPlay
• Wireless connection for Android Auto
• Wireless connection for iPhone & Android Mirroring With MirrorApp+ application

Tuner Features

• FM Reception
• AM (MW/LW) Reception
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Tuner Presets (FM/AM) 36 Presets (24FM / 12AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Service list by alphabet order
• Alphabet Search
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blendings
• DLS (Dynamic Label)
• PTY (Programme Type) search
• Announcement Switching (ASW) Select
• Slide Show
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands Free Profile (HPF) Ver. 1.8
• Audio Streaming (A2DP), (SBC/AAC)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• PBAP call history Up to 20 entries of dialed, received and missed calls
• Audio/Video Remote Control Profile (AVRCP), V1.6
• iPhone & Android automatic pairing via USB
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone built-in
• Bluetooth firmware upgradeable, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• USB terminal, rear side / 1m cable / fix
• USB Type 2.0 High speed
• Drive Change
• File System FAT16 / FAT32 / exFAT / NTFS
• Tag Information Display
• Album Art Display
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Last Position Memory / Resume
• Time code display
• USB ports maximum output current 2.1A

iPhone Features

• Connection via: USB / Bluetooth
• Plug & Play
• Made for iPhone
• Tag Information Display
• Time Code Display
• List Access
• Album art support
• Random Play
• Repeat Play
• Skip
• iAP over Bluetooth
• Works with Apple CarPlay Wired & Wireless

Android Phone Control

• Connection via USB / Bluetooth
• Works with Android Auto Wired & Wireless
• Android Open Accessory Protocol (For Android Auto)

Audio Features

• Max. Output Power 4 x 50W
• Primary Power Output 4 x 22W
• Pre-out 2 RCA : FRONT/REAR + SUB(mono)
• Pre-out Output Level 2.5V
• Volume Offset
• Volume Type DSP
• Built-in Amplifier Off
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• Position Preset 4 Presets
• Position Preset
• Graphic Equalizer 13 bands
• G-EQ manual setting
• G-EQ adjustable level, +9db / -9dB
• Time Alignment 0 ~ 610cm
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• X'over
• Speaker Size Control
• Channel Level Control
• Loudness
• Tweeter volume
• Bass Boost
• Source Volulme Offset source independent

Connectivity

• DC-Cord 22pin (New Type) to ISO
• Reverse sensor wire
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 2 x RCA (Front/rear) + Sub (mono)
• Video Out RCA x1 (Source: USB)
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input GPS antenna included
• FM Antenna Input  JASO connector
• DAB Aerial input SMB
• External microphone input 3,5mm mini-jack
• OEM Wired Remote Control ready, Optional interface needed
• Learning Steering Remote Function

DMX6523DAB vs DMX7722DAB

Smaller 6.8" Screen / 7" Screen

2 Pre Outs / 3 Pre Outs

Built in Microphone / Wired Microphone

Single Din Chassis / Double din Chassis

Higher Resolution / Slightly Lower Resolution

Stage1 62

Take your audio experience to the next level with the JBL Stage1 62 coaxial car speakers. These car speakers deliver powerful performance with a maximum power of 400 Watts Peak and 50 Watts RMS. Thanks to the high sensitivity of 89 dB, you can enjoy crystal clear sound, even at high volumes.

The JBL Stage1 62 is designed with a 6.5" Plus One™ woofer that delivers deep, powerful bass and impressive audio reproduction. With a frequency response of 55Hz to 20,000Hz, you can hear every detail in your music.

These 2-way coaxial speakers are supplied including grille. This allows you to enjoy a neat and protected finish in your car and a clear, spacious sound image. Due to the compact dimensions and ease of installation, these JBL speakers are suitable for almost any car.

Features and Specifications

• Set of 2 speakers
• Total power: 400 Watt Peak / 50 Watt RMS
• Sensitivity: 89 dB
• Frequency response: 55Hz – 20kHz
• Impedance: 4 Ohm
• Plus One™ woofer for extra deep bass
• Coaxial speakers for clear high tones
• Easy installation including grille
• Suitable for all types of music styles
• Dimensions: 16.62 cm diameter, installation depth only 6.8 cm
• Package weight: 1.474 kg

Package Contents

• 2x JBL Stage1 62 Speakers
• 2x Grilles8x Screws
• 8x Spade Clips
• User Manual
• 2x Foam rubber seals

Stage2 45F

Easily improve the sound quality in your car with the powerful JBL Stage2 45F car speakers. These 4-inch coaxial speakers offer impressive performance with 320 Watts peak power and 40 Watts RMS continuous power, so you can enjoy clear, powerful sound.

With a high sensitivity of 88 dB, these speakers guarantee excellent audio quality, even at high volumes. The unique Plus One™ woofer delivers powerful, deep bass, and the wide frequency range of 80Hz – 20kHz ensures that you won't miss any detail of your favorite music.

The JBL Stage2 45F speakers have an impedance of 4 Ohms and are supplied without a grille, making them particularly suitable for places with limited space and easy to install in almost any car.

Features and Specifications

• Type: 2-way coaxial car speakers
• Set: 2 pieces
• Power: 320 Watt Peak / 40 Watt RMS
• Sensitivity: 88 dB
• Frequency response: 80Hz – 20kHz
• Impedance: 4 OhmsSize: 4 inch (10.15 cm diameter)
• Installation depth: 5.29 cm
• Mounting: Without grille, suitable for compact installation
• Package contents:2x JBL Stage2 45F speakers
• 8x Screws
• 8x Spade Clips
• 2x Foam seals
• 1x User manual

Package Contents

• 2x JBL Stage2 45F speakers
• 8x Screws
• 8x Spade Clips
• 2x Foam seals
• 1x User manual

Upgrade your car speakers to JBL Stage2 45F today and enjoy clear, authentic JBL sound on the road.

Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.

Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors

Alpine SWE-815 8" 20cm Amplified Subwoofer Bass Box with Wired Remote Controller

This product gives you plenty of bass power taking the fewest possible space.

• Featuring 8” (20cm) SWE subwoofer, Built-in 150W amplifier.
• Included wired remote control for level, phase and low-pass frequency (50-125Hz @-12dB/oct.)
• Included port plug for sealed or vented operation

Features
Featuring 8” (20cm) Customized SWE-843E Subwoofer

• 300W Peak Power Handling (100W rms)
• Heavy Duty Subwoofer Grill
• Frequency Response: 34Hz - 1.5kHz
• Impedance: 2x 2Ω
• Sensitivity: 91.0dB/W(1m)

Built-in MXE-M150CKD Amplifier

• 150W Max Power
• Wired Remote Controller for Vol., Freq., Phase Setting
• RCA & Speaker Inputs

High Quality Bass Reflex Box

• Optimum Wedge Shaped Design
• Removable Port Plug for Sealed and Vented Operation
• High Output Slot Vented Design
• Dimensions: 288mm (W) x 291mm (H) x 253mm / 363mm (D)

Stinger SSIB17 Value Series 5 Meter Coaxial RCA Interconnect Phono Cable

Stinger Select Coaxial interconnects offer quality on a budget. Reliable CoAxial construction with corrosion resistant gold plated ends. Multiple lengths and Y-connectors available.

• Gold Plated Ends
• Coaxial Cable Design
• 17FT
• Blue
