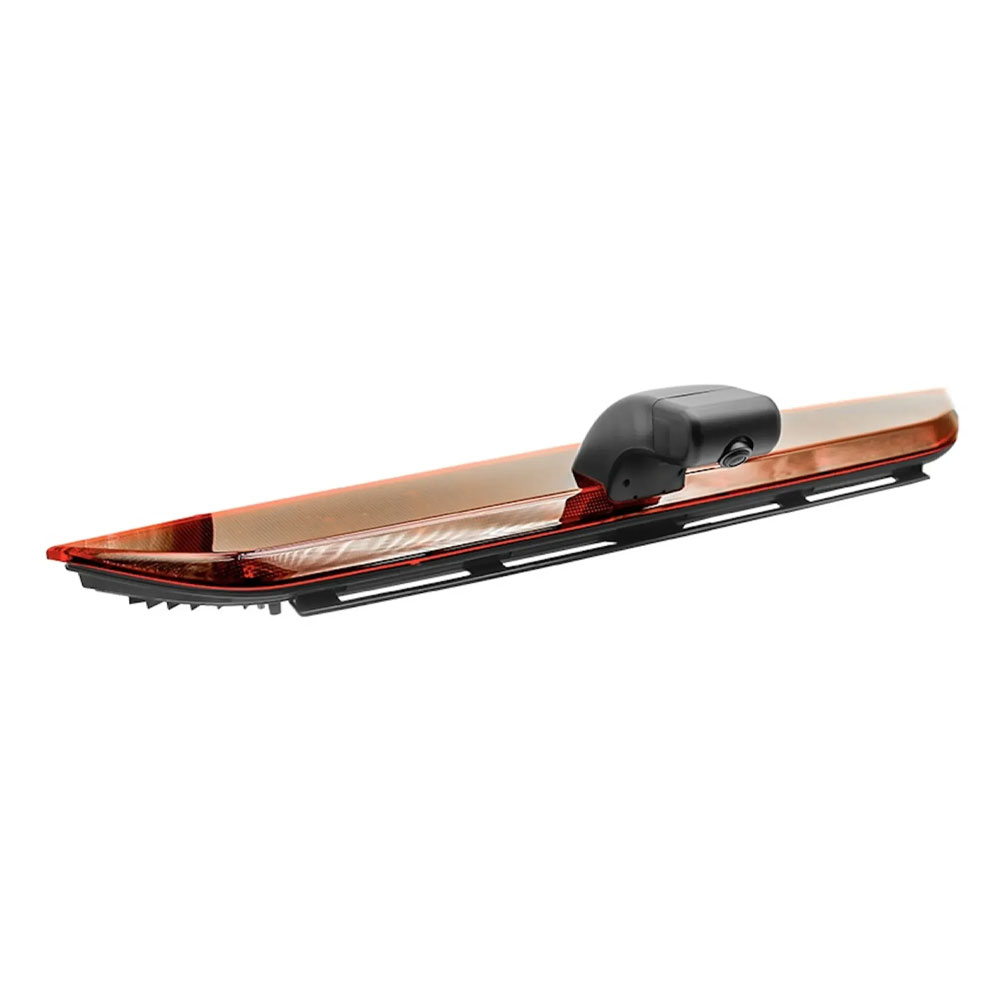

UP-CAM-VW6

Upgrade your van or camper with an OEM-fit reversing brake light camera. Designed to replace the original high-level brake light housing, it provides a clear rear view while maintaining the vehicle's factory appearance.

Ideal for improving visibility when reversing and manoeuvring, these cameras help reduce blind spots, making parking safer and easier. Built with durable, weather-resistant construction, they're designed for reliable performance in all conditions and are compatible with a wide range of OEM and aftermarket display systems (model dependent).

Key Features

• OEM-style brake light replacement design
• Maintains the vehicle's original appearance
• Wide-angle rear view for improved visibility
• Ideal for vans, campervans, and commercial vehicles
• Weatherproof IP68 construction for all-weather reliability
• Compatible with selected OEM and aftermarket monitors
• Easy, vehicle-specific installation (model dependent)
• Perfect for safer reversing and parking

Camera Features

• 1/2.7" high-performance image sensor
• Supports CVBS, AHD 720P, and AHD 1080P video output
• High-resolution output up to 1920 × 1080
• Selectable mirror/non-mirror image mode
• Switchable parking guidelines
• Selectable image flip function
• 0 Lux operation with integrated high-brightness IR LEDs
• Night vision range of up to 30 ft (9 m)
• IP68-rated waterproof construction
• Wide 6V–18V operating voltage range
• Rugged flame-retardant PC housing designed for demanding automotive environments

Technical Specifications

• Image Sensor 1/2.7" HD CMOS Image Sensor
• Effective Pixels
  • CVBS: 1920 × 530
  • AHD 1080P: 1920 × 1080
  • AHD 720P: 1280 × 720
• Resolution 1000–2000 TVL
• TV System NTSC / PAL
• Video Output CVBS / AHD
• Viewing Angle Customisable
• Image Modes Mirror / Non-Mirror
• Guide Lines On / Off Selectable
• Image Flip Flip / No Flip Selectable
• Minimum Illumination 0 Lux (LED On)
• Infrared LEDs High-Brightness IR LEDs
• Night Vision Range Up to 30 ft (approx. 9 m)
• Waterproof Rating IP68
• Current Consumption 150 mA
• Power Supply 12V Standard (Compatible with 6V–18V DC)
• Connector 4-Pin Aviation Female (Optional AV + DC or BMW Connector)
• Operating Temperature -30°C to +75°C (Max. 95% RH)
• Storage Temperature -40°C to +85°C (Max. 95% RH)
• Housing Material High-performance PC plastic with high and low temperature resistance and flame-retardant properties
