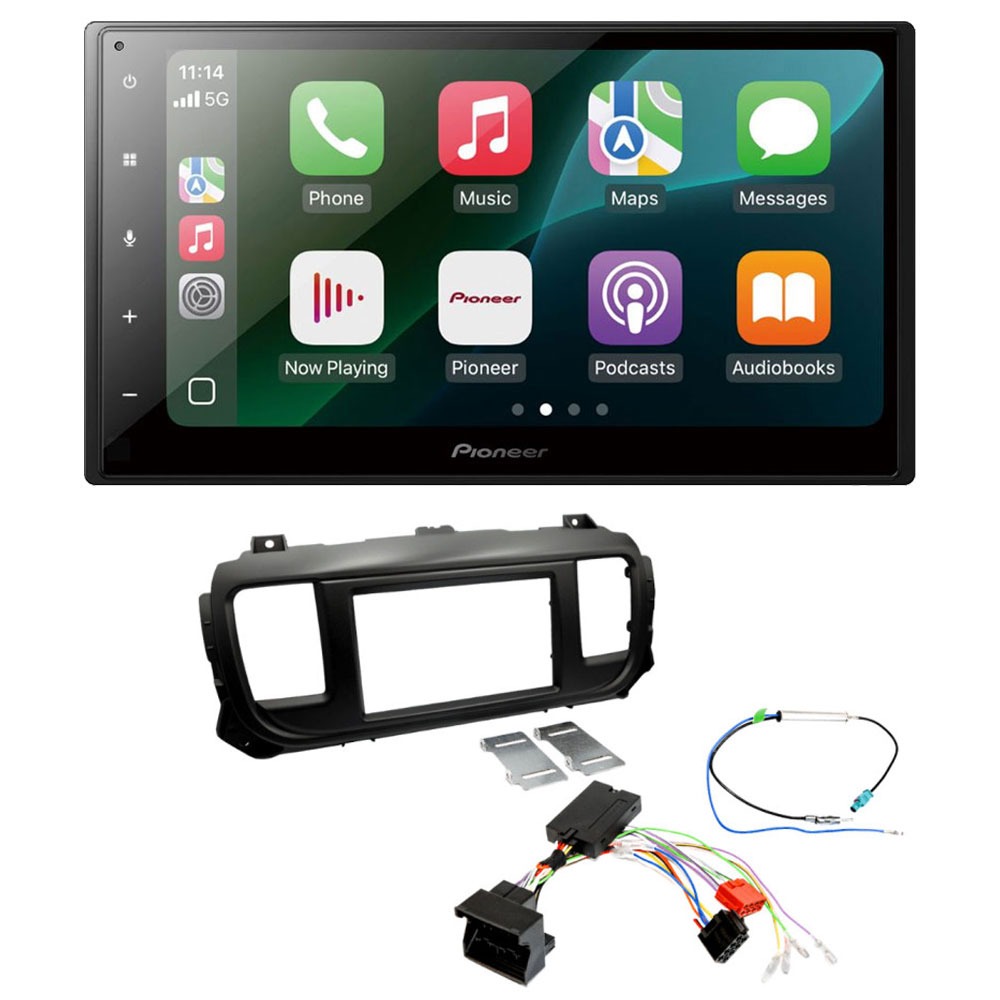

Package Includes

• Pioneer SPH-DA150BT Mechafree 6.8" Capacitive Touchscreen Apple CarPlay / Android Auto Bluetooth Stereo
• Double Din Fascia Adaptor Panel (Matt Black)
• Steering Wheel Control Interface
• Fakra to DIN Antenna Adaptor
• Stereo Patch Lead

Fascia Adaptor

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

COLOUR: MATT BLACK

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

This CANbus interface will allow you to retain the audio steering wheel controls when installing an after market head unit.

This interface will also allow the steering wheel controls to access the display screen menu.

The CANbus interface will also give out CAN ignition, speed pulse, reverse gear and hand brake signals.

This interface needs to be used along with a 49- series patch lead to suit the make of radio being fitted.

For vehicles with original fit parking sensors, add item 25-514 or use a different interface 39-PGA-PDC.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car.

A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

SPH-DA150BT

Mechafree 6.8" Capacitive touchscreen multimedia player, with easy smartphone connectivity via a simple USB cable supporting compatible applications including Apple CarPlay®, Android Auto™ and USB Mirroring for Android®, Bluetooth®, 13-Band GEQ, advanced audio features and premium audio quality.

	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Aux-in - Plug your compatible device for easy and convenient playback.
	Capacitive Touchscreen - Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.

Key Features

• Installation Type: 2-DIN
• Navigation: Via Android Auto , Via Apple CarPlay
• Screen Size: 6.8 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wired
• Android Auto™ Connection: Wired
• DAB Antenna Lorem Ipsum
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination:

Audio Features

• Graphic Equaliser: 13-Band
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• RDS FM Radio

Connections

• Camera Input: 1
• RCA AV Input: 1
• RCA Rear AV Output:
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Hand Held Remote Control: Optional CD-R33 (Sold separately)
• Steering Wheel Control: Supported
• Mechafree
• Short Chassis

PLEASE NOTE : This stereo does not have DAB radio. If you would like DAB radio then you will need to look at the following stereo Pioneer SPH-DA160DAB

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
