Car Audio Stereo Installation kit for installing a new after market double din headunit into your Seat. This is complete kit including Fascia Trim Panel, Wiring Harness and Aerial Adaptor

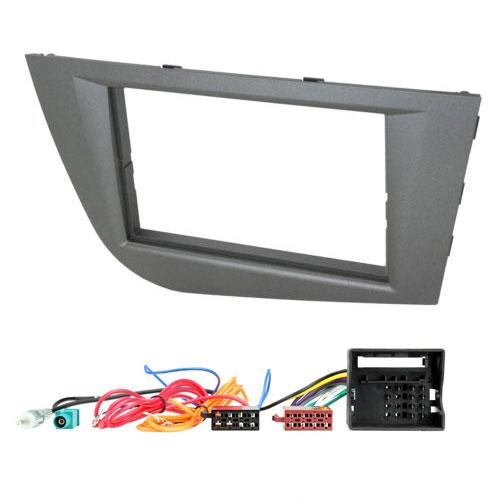

Package Includes

• Double Din Fascia Adaptor (Dark Grey) Frame Only
• Wiring Harness Adaptor
• Aerial Adaptor

There is an Aerial Adaptor also included with the Wiring Adaptor.

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

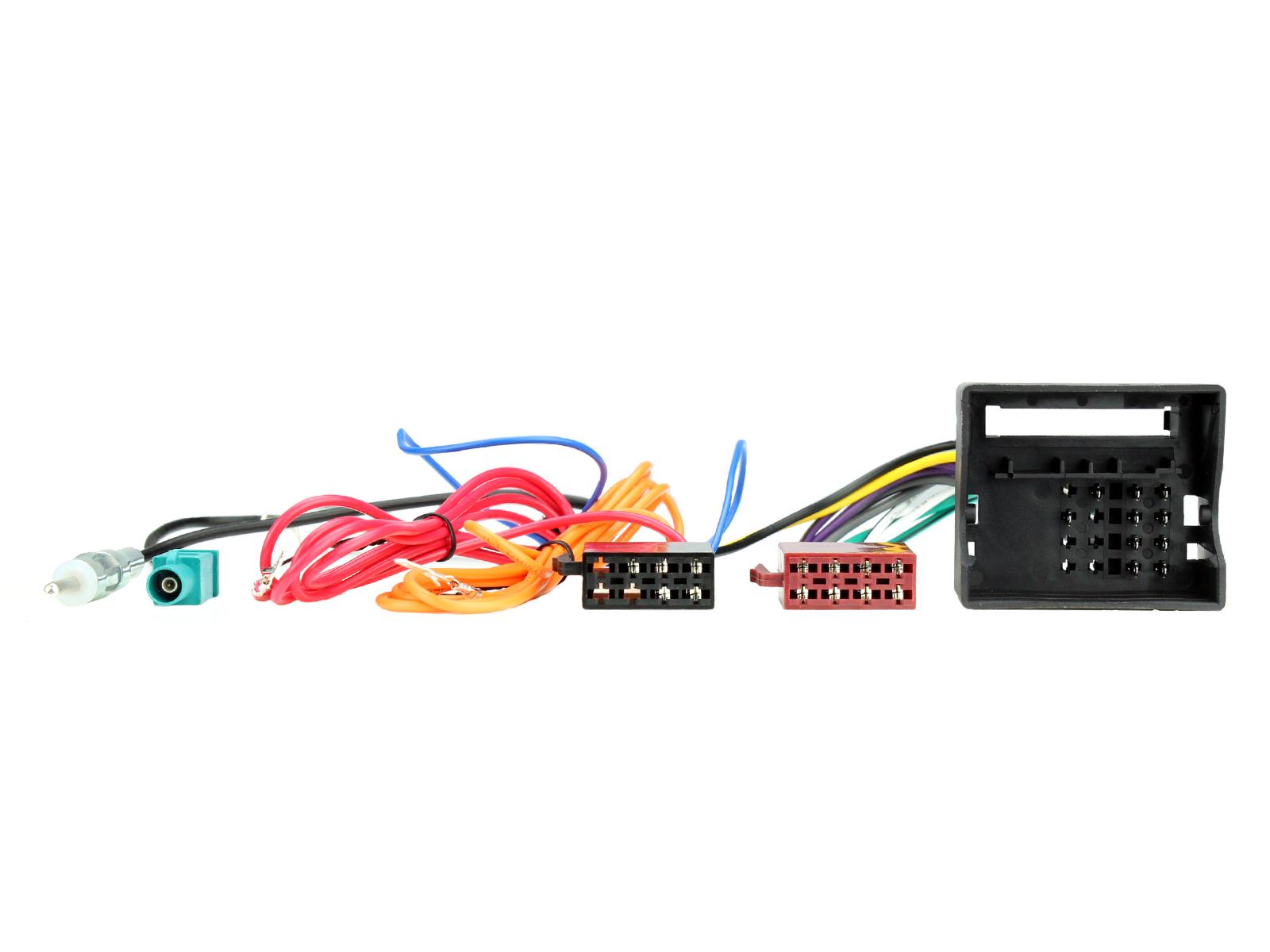

Wiring Harness

The wiring harness will allow to install the stereo. This adapter is required when replacing your factory fitted radio with an aftermarket radio. It will convert the original vehicle power & speaker wiring connectors to a standard ISO connector. Simply plug one end of the adapter into your cars wiring harness and the other into your new radio. *For Aftermarket Radio With DIN Antenna Connector*

Please Note

• Red wire has to be connected to a separate ignition feed in the vehicle to make aftermarket head unit to power up
• Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night.
• Blue wire needs to be connected to the Remote Antenna or ignition supply wire (if rem ant wire not available) on back of car stereo.

Please Note

• When connected your new stereo may not power up, and this is no fault of the wiring harness purchased.
• Audi / VW / Skoda / Fiat and other vehicles tend not to have an ignition switched live feed.
• In these cases it is necessary to manually connect a spurred live feed from fuse box for example to feed switched power so the new stereo turns on and off with the key.
• The wire in particular on the new wiring harness will be the red wire.

Important Fascia Notes

• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.
• If the cage supplied with the stereo does not fit the fascia then you must purchase a universal cage which is slightly smaller.
• Click here for CT23UN01 UNIVERSAL Mounting Cage

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
