Car Audio Stereo Installation kit for installing a new after market double din headunit into your Renault. This is complete kit including Single Din Fascia Adaptor, Steering Control Interfacel, Aerial Adaptors & USB Retention.

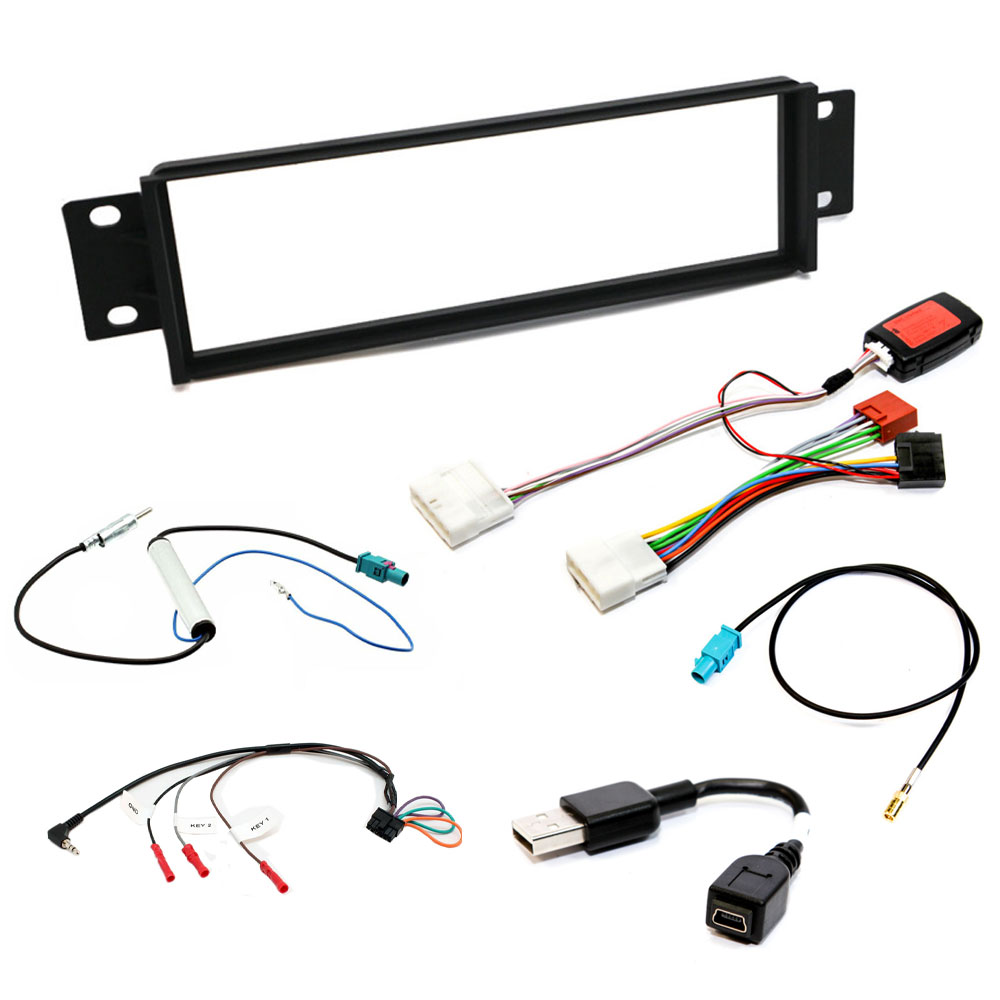

Package Includes

• Single Din Fascia Adaptor Panel (MATT BLACK)
• Steering Wheel Control Interface Stalk
• Fakra to DIN Aerial Antenna Adaptor
• Fakra DAB Male to DAB SMB Female Antenna Adaptor Cable (50cm)
• Mini USB Female To Male USB Adaptor
• Stereo Patch Lead (Free CTMULTILEAD.2 Included)

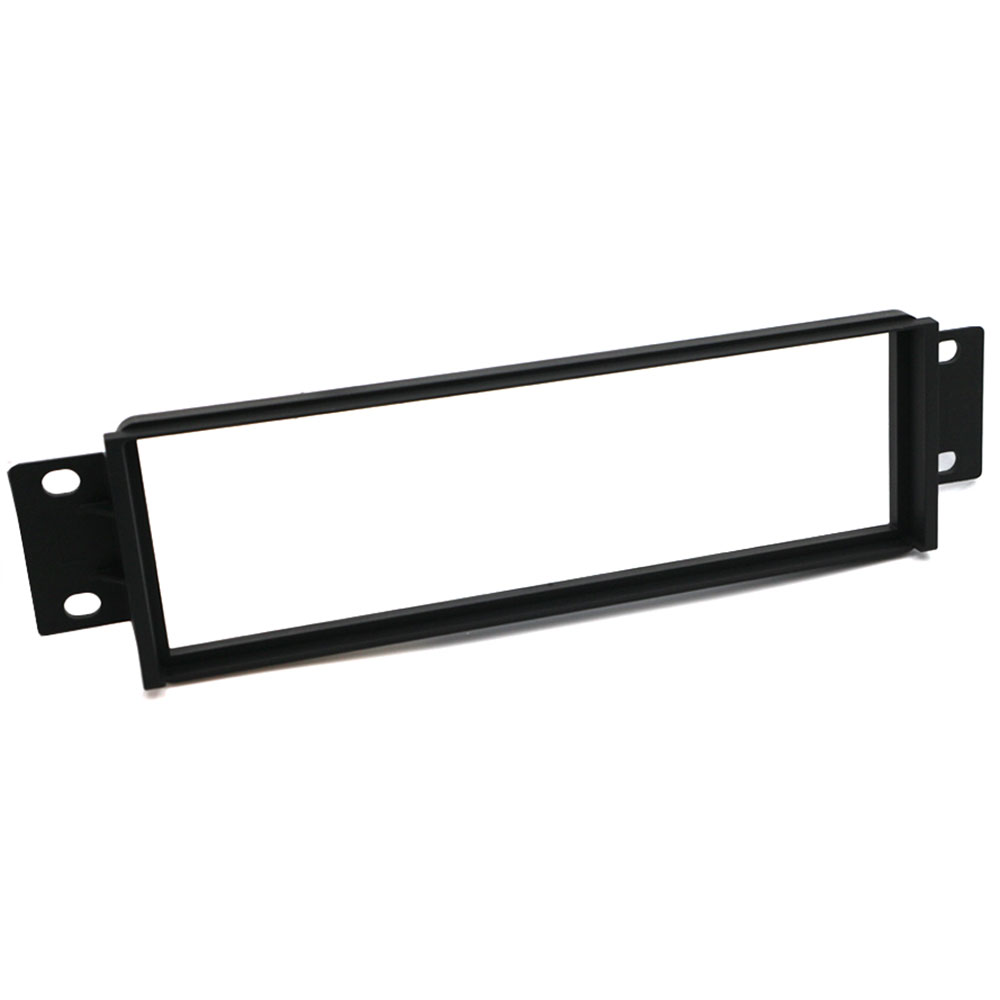

Fascia Adaptor

Replacement car audio fascia to enable you to change the original radio in the car to a Single DIN aftermarket version. The fascia is cage fit and uses the radio cage supplied with the after market radio to slide in to place.

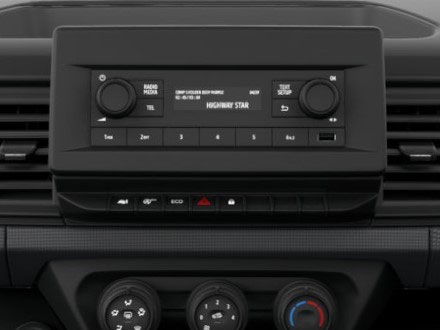

Fits in start specification with original single DIN radio. Not suitable for models with the Easy-Link screen/navigation system.

Steering Wheel Interface

Steering wheel control interface with standard original radios. This interface also adapts from the white connector in the vehicle to standard after market ISO connectors. This interface will give volume, seek/track, source and telephone commands to compatible after market head units. Must be used with patch lead to suit make of head unit being fitted.

Fakra to DIN Aerial Antenna Adaptor

Fakra to Din Antenna Adaptor with Phantom Power Supply. This adapter converts car specific antenna connecter to a DIN aftermarket connector.

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit. Antenna Adaptors are available in both ISO and DIN versions. Antenna Aerial Adaptor, converts car specific antenna connector to a universal aftermarket connector.

Blue wire requires connection to stereo remote control wire normally Blue or Blue with White stripe as shown in the image above.

Fakra DAB Male to DAB SMB Female Antenna Adaptor Cable (50cm)

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Mini USB Female To Male USB Adaptor

Commonly used to retain original USB when fitting an aftermarket head unit.

Some original head units have mini SUB connection, using this adapter the original USB dashboard connection can be used with an aftermarket head unit.

CTMULTILEAD.2 Universal Patch Lead

Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

Compatible aftermarket headunits:

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• EONON
• JOYING
• XTRONS
• PUMPKIN
• Other Chinese SWC learning head units

Important Patch lead:

• You can simply cut the loops / wires to select which brand you are fitting.
• Supplied with instruction sheet
• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
