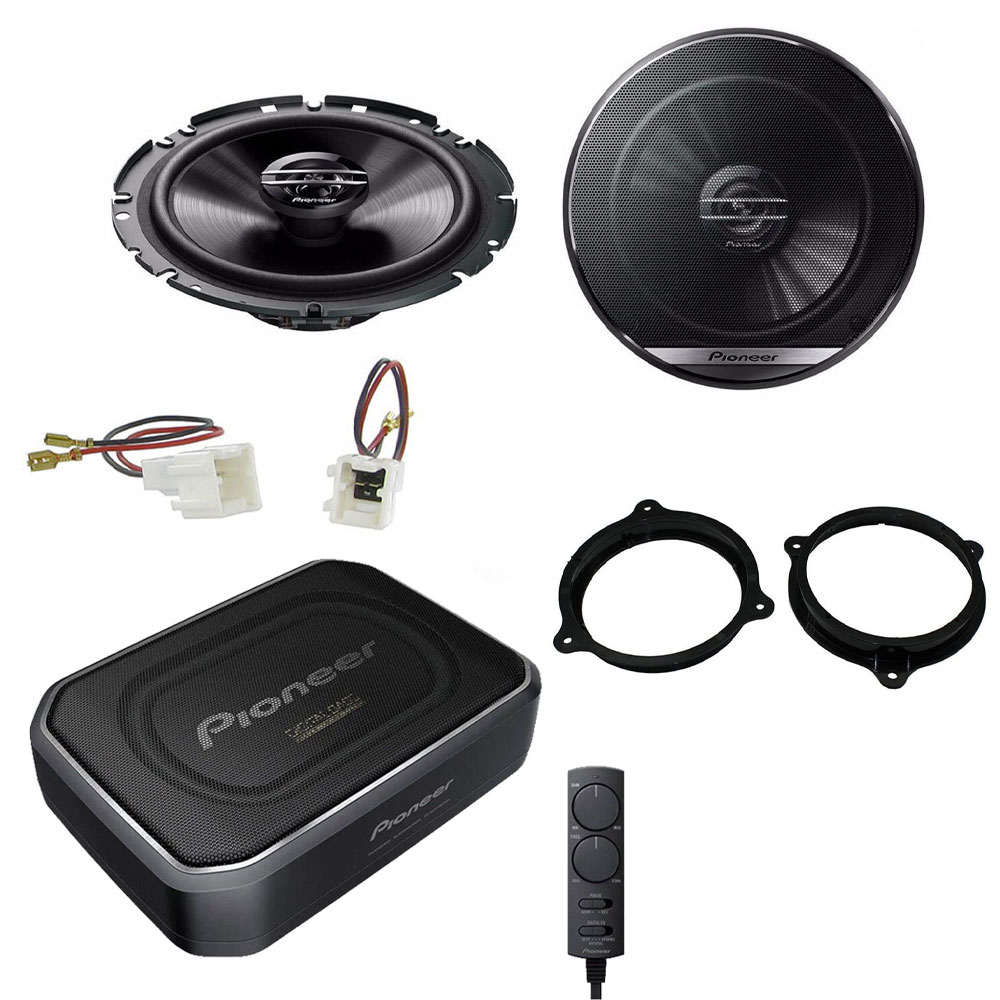

Package Includes

• Pioneer G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers
• Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W
• 165mm Front Door Speaker Adaptor
• Speaker Adaptor Plugs

NOT SUITABLE FOR MODELS WITH BOSE SPEAKERS

Pioneer G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers

For better-sounding drives.
Discover the renewed G-series

The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.

TS-G1720F

Upgrade your in-car sound in a smart and affordable way with the TS-G1720F. This 17cm 2-way coaxial speaker delivers up to 40 Watts of nominal power and has a maximum power output of 300 Watts. It also features:

IMPP Cone

enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.

Main Features

• Weight 0.59 kg
• Coaxial Speakers
• Cut-out Hole 144 mm
• Size 17 cm
• Mounting Depth 49.7 mm
• Impedance 4 Ω
• Frequency response 36 - 18 000 Hz
• 2 Way
• Sensitivity 90 dB
• Lowest resonance frequency 81 Hz
• Maximum power input 300 W
• Nominal input power 40 W
• Woofer material IMPP Composite Cone
• Midrange size 30 mm
• Voice Coil type Copper
• Voice Coil bobbin type KAPTON
• Magnets Y35

Note: This item/pack is sold as a pair and contains 2 speakers.

Powerful Bass, without losing space.

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.

Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

EV Optimized

This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.

Car Sound Fit App Car

sound simulator application for an improved in-car sound experience

Digital Bass Control

Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.

Main Features

• EV Optimized
• CarSoundFit App
• DIGITAL BASS CONTROL
• Size 20 cm
• Maximum power 170 W
• Continuous power output 50 W
• Frequency Response
  • DEEP Bass Mode: 20 - 200 Hz
  • NATURAL Bass Mode: 40 - 200 Hz
  • DYNAMIC Bass Mode: 40 - 160 Hz
• Sensitivity
  • DEEP Bass Mode: 95 dB
  • NATURAL Bass Mode: 98 dB
  • DYNAMIC Bass Mode: 100 dB
• Woofer material Aluminium
• Surround Urethane
• Voice Coil type Copper Round Wire 4-Layer
• Voice Coil bobbin type Glass Imide
• Magnets Strontium
• Weight 3,1 kg
• Dimensions (W x H x D) 280 x 200 x 70
