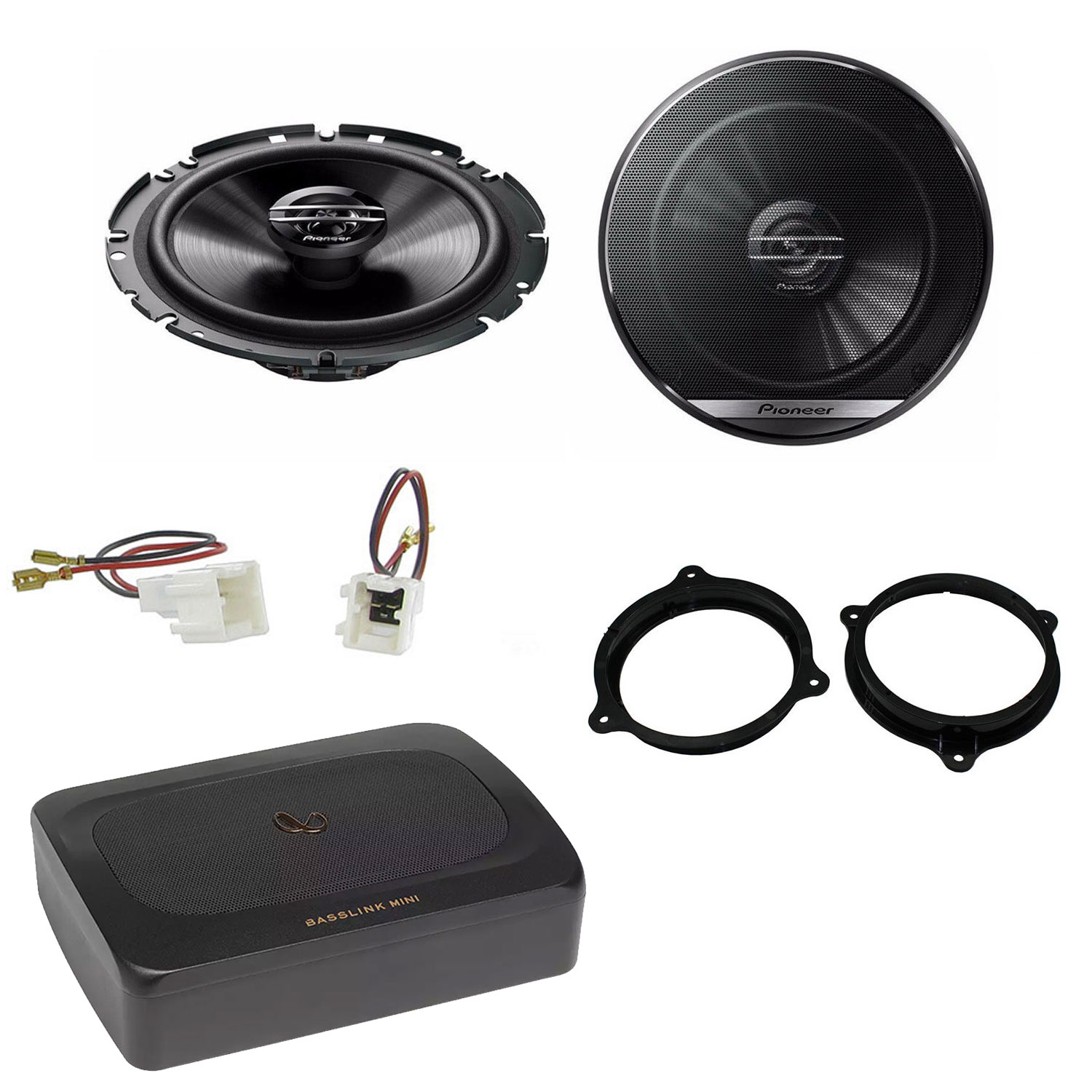

Package Includes

• Pioneer G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers
• Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System

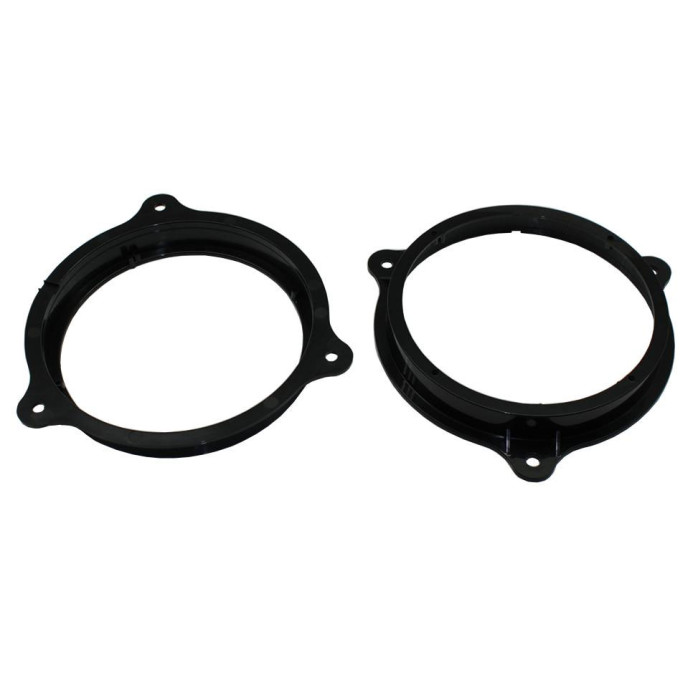

• 165mm Front Door Speaker Adaptor

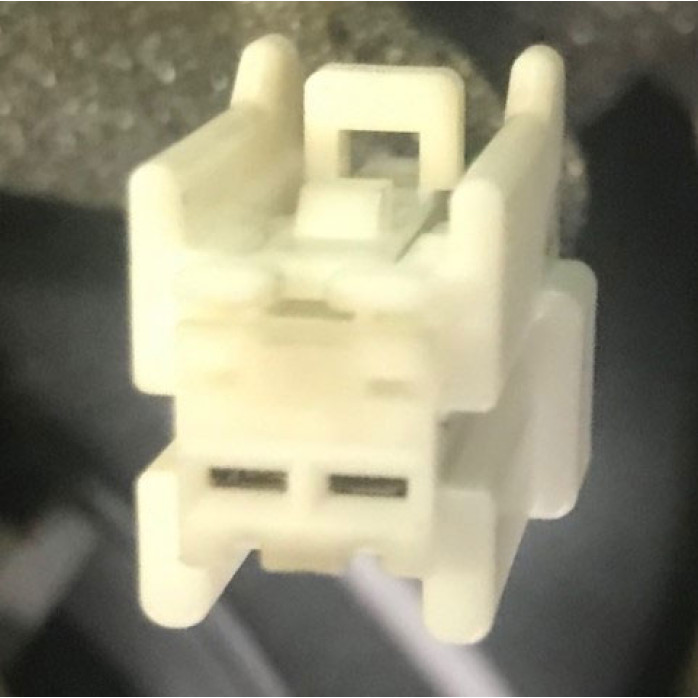

• Speaker Adaptor Plugs

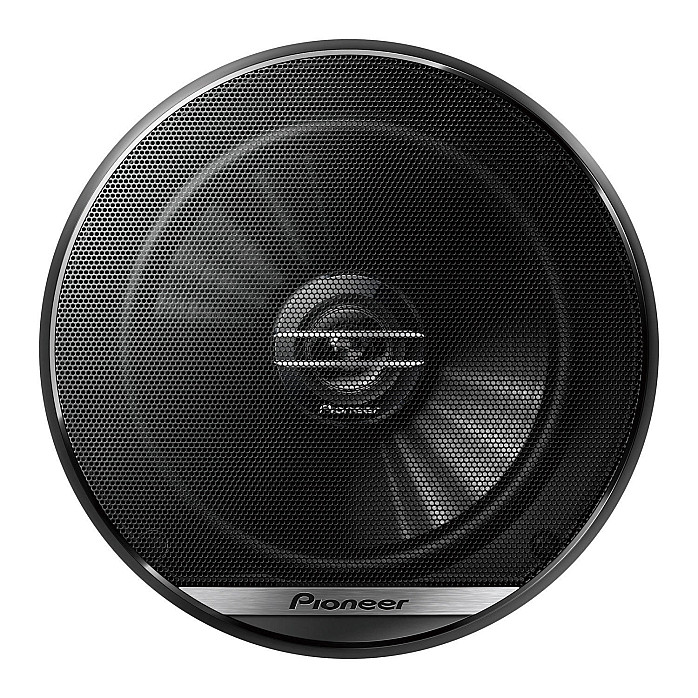

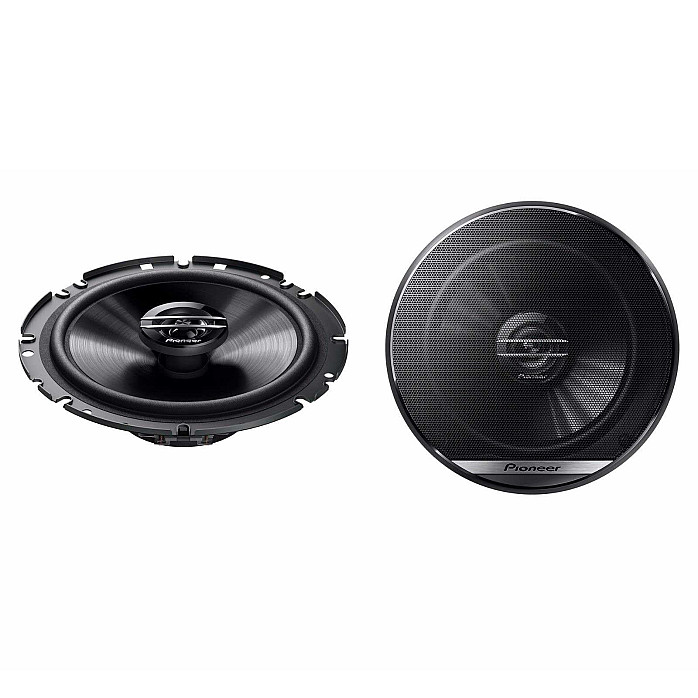

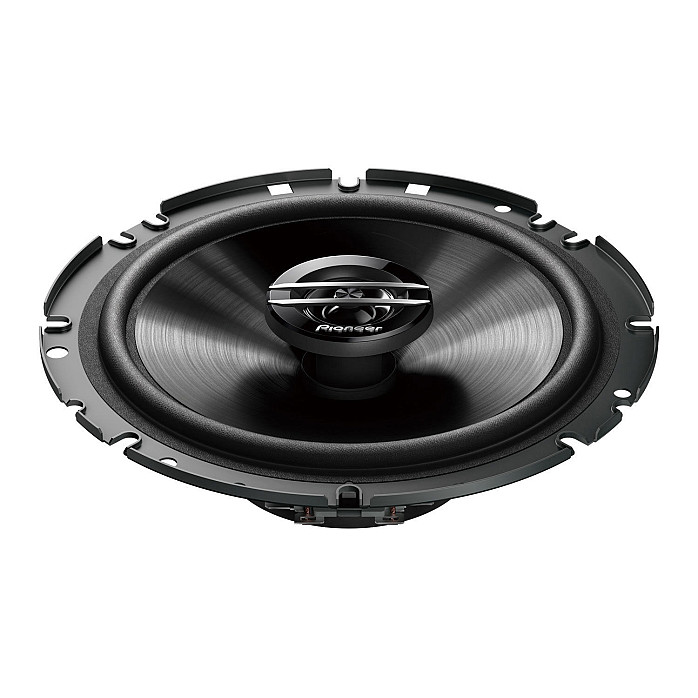

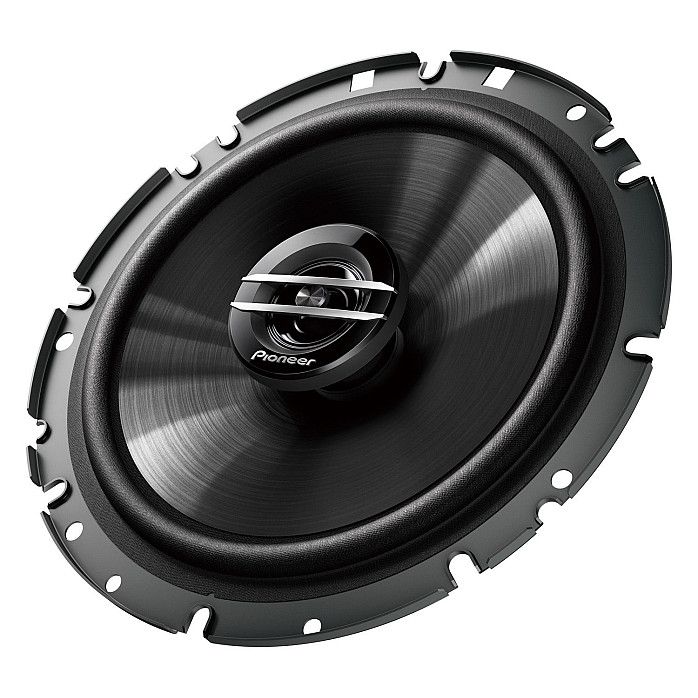

Pioneer G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers

For better-sounding drives.
Discover the renewed G-series

The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.

TS-G1720F

Upgrade your in-car sound in a smart and affordable way with the TS-G1720F. This 17cm 2-way coaxial speaker delivers up to 40 Watts of nominal power and has a maximum power output of 300 Watts. It also features:

IMPP Cone

enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.

Main Features

• Weight 0.59 kg
• Coaxial Speakers
• Cut-out Hole 144 mm
• Size 17 cm
• Mounting Depth 49.7 mm
• Impedance 4 Ω
• Frequency response 36 - 18 000 Hz
• 2 Way
• Sensitivity 90 dB
• Lowest resonance frequency 81 Hz
• Maximum power input 300 W
• Nominal input power 40 W
• Woofer material IMPP Composite Cone
• Midrange size 30 mm
• Voice Coil type Copper
• Voice Coil bobbin type KAPTON
• Magnets Y35

BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Features

Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
• Weight 8.22 lbs (3.73kg)

In The Box

• 1 x Under seat subwoofer
• 4 x Screws
• 4 x Small metal plate
• 1 x Wiring harness
• 1 x Bass volume remote control (with cable)
• 1 x 15A Fuse
