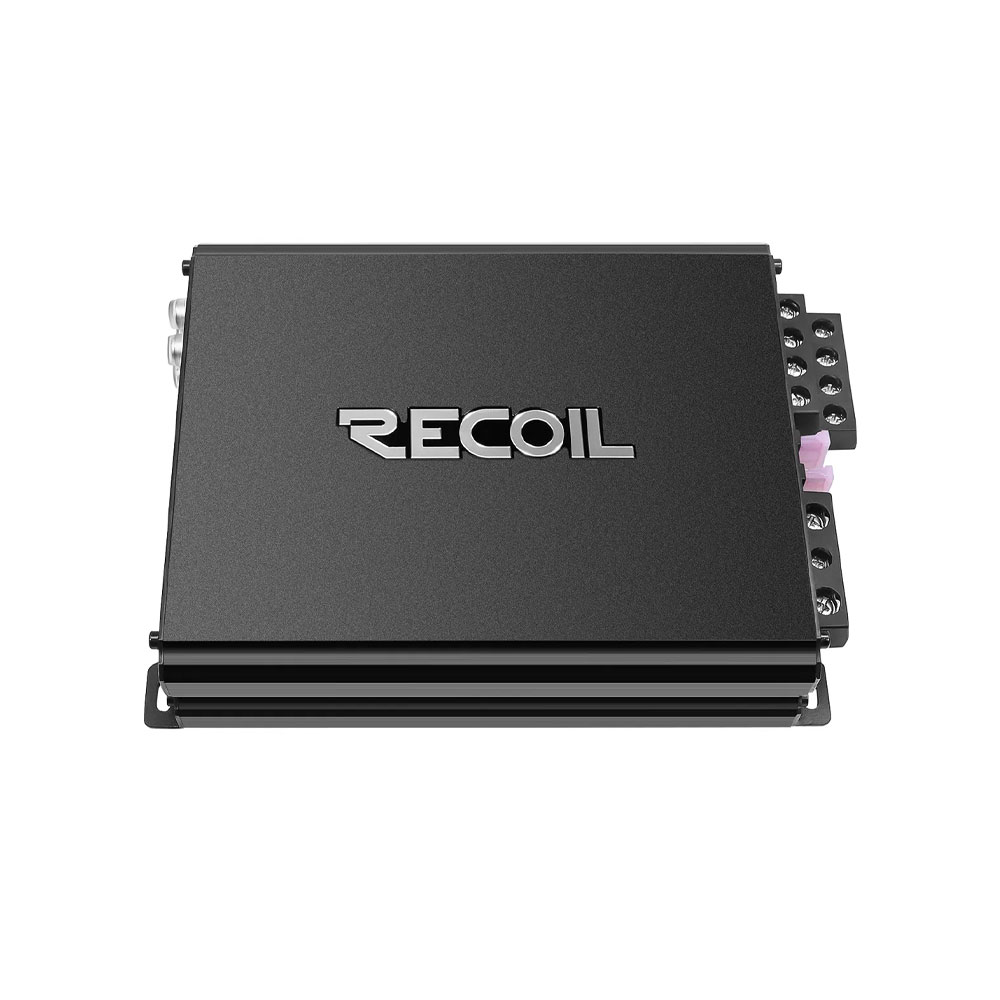

Recoil DI1200.4 - 4 Channel Amplifier

High-Power Performance in a Compact Design

The Recoil DI1200.4 is a powerful, efficient, and highly reliable 4-channel Class-D full-range car amplifier, designed to deliver serious power to an upgraded vehicle audio system.

With up to 2,400 watts of maximum power, the DI1200.4 can drive a wide range of aftermarket speakers and is also capable of being bridged for higher-power applications. Its compact design makes it an ideal choice when space is limited, without compromising on performance.

A high-speed MOSFET power supply, premium-grade internal components, and advanced 4-way protection circuitry ensure reliable operation, even when the amplifier is pushed to higher performance levels.

Flexible Audio Control

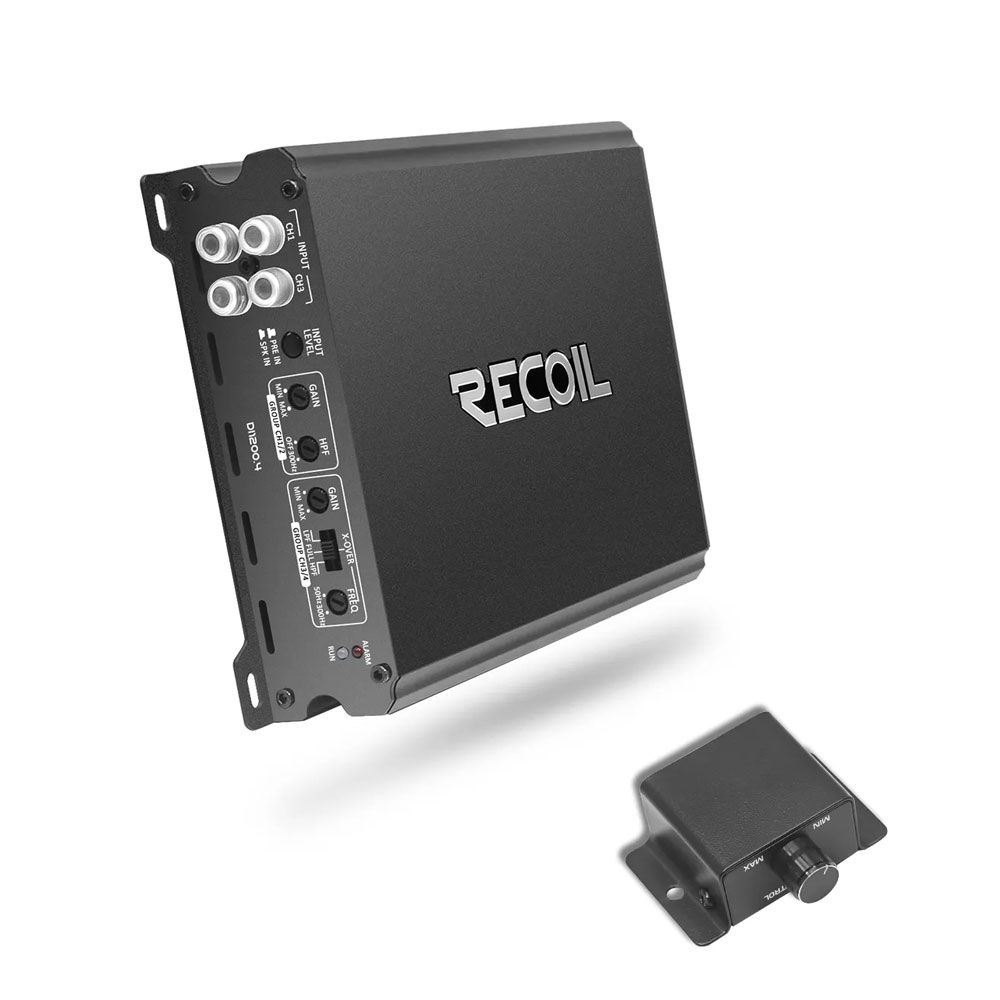

The DI1200.4 provides a comprehensive range of adjustable controls, allowing you to fine-tune the amplifier to suit your system and listening preferences. Adjustable gain, high-pass and low-pass filters, crossover settings, and bass EQ provide the flexibility needed for a wide range of installation configurations.

Efficient Cooling

A highly efficient heatsink design helps dissipate heat and maintain reliable performance during extended use. The amplifier's compact chassis and modern styling also make it easy to integrate into a wide range of vehicle installations.

Key Features

• 4-channel Class-D full-range amplifier
• 2,400W maximum power output

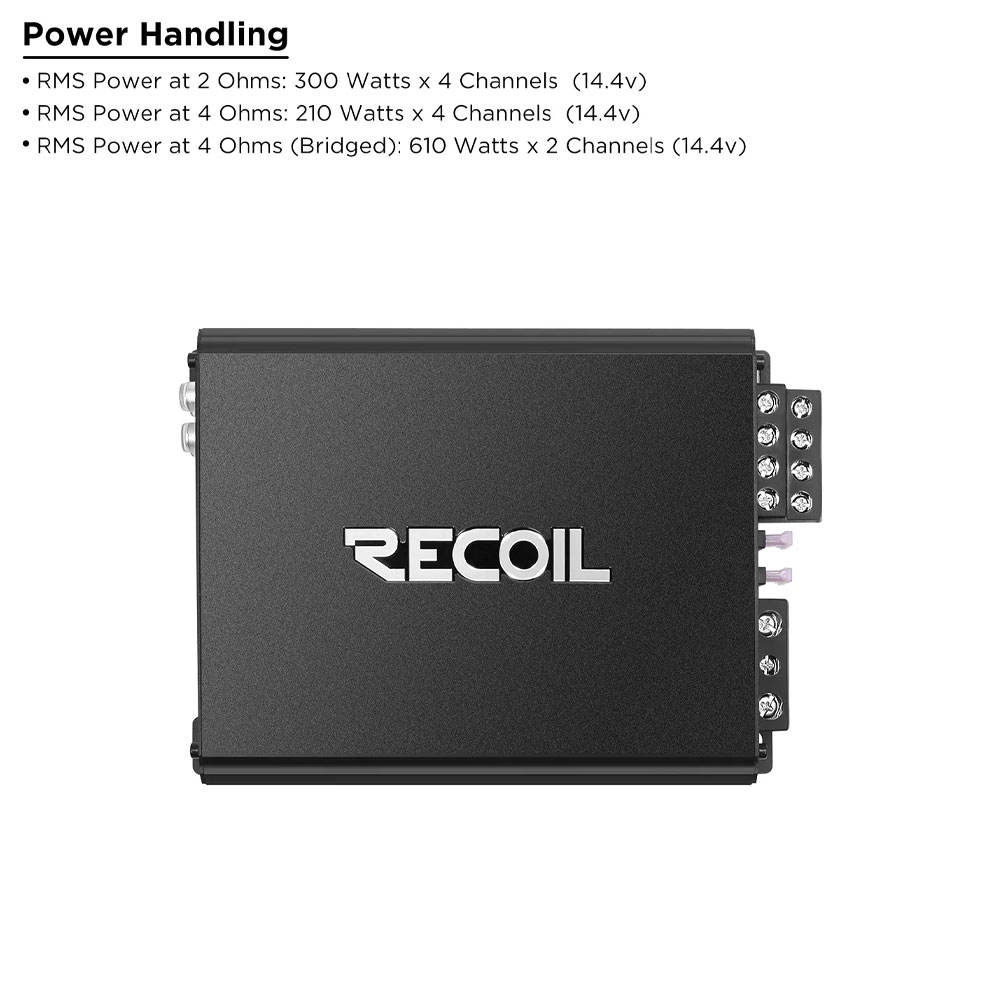

• 300W RMS × 4 @ 2Ω
• 210W RMS × 4 @ 4Ω
• 610W RMS × 2 bridged @ 4Ω
• 600W peak × 4 @ 2Ω
• High-speed MOSFET power supply
• Premium-grade internal components
• 4-way protection circuitry

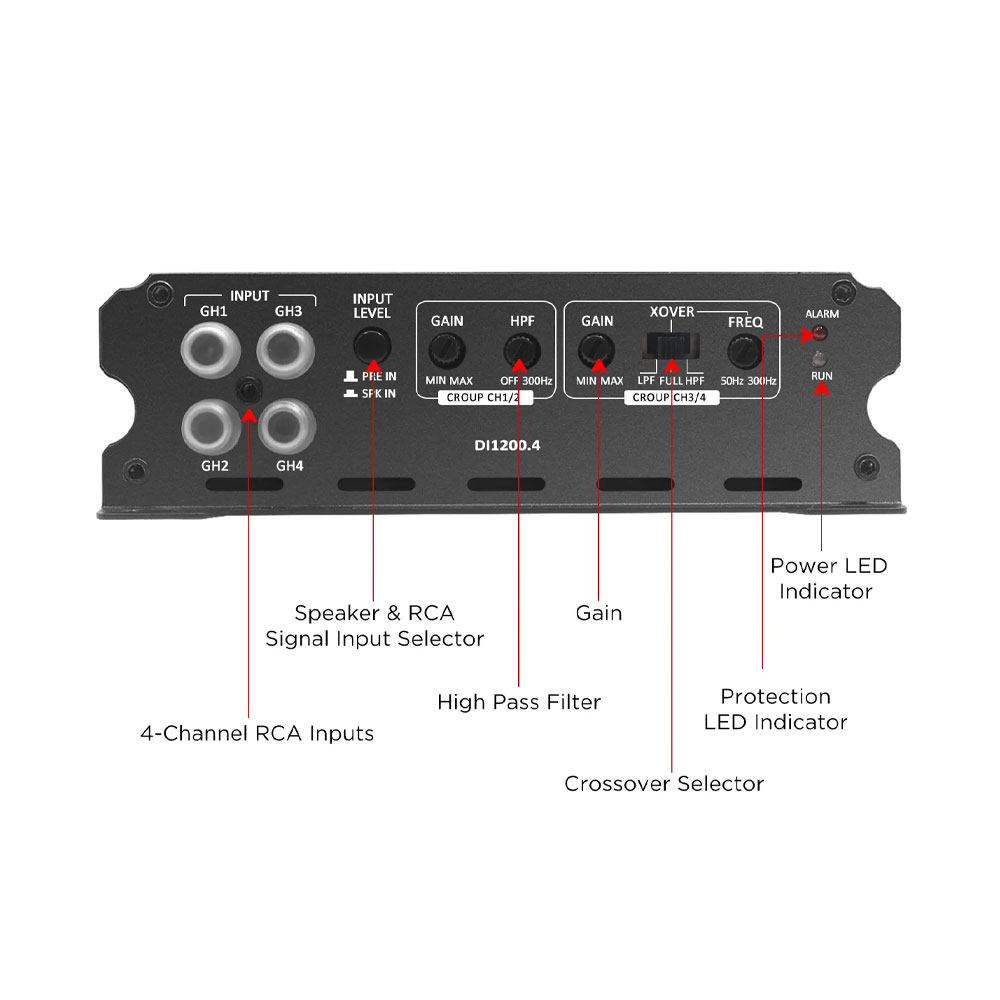

• Adjustable gain, HPF, LPF, and crossover controls
• Adjustable bass EQ
• High-efficiency heatsink for improved thermal performance
• Compact design for flexible installation

Specifications

• Amplifier Type Class-D
• Channels 4
• Maximum Power 2,400W
• RMS Power @ 2Ω 300W × 4
• RMS Power @ 4Ω 210W × 4
• Bridged RMS @ 4Ω 610W × 2
• Peak Power @ 2Ω 600W × 4
• Dimensions 227 × 155 × 46mm
• Dimensions (inches) 8.9 × 6.1 × 1.8"

Built to Perform

Whether you're upgrading the entire speaker system or adding powerful amplification to an existing setup, the Recoil DI1200.4 combines high output, efficient Class-D technology, and versatile controls in a compact package.
