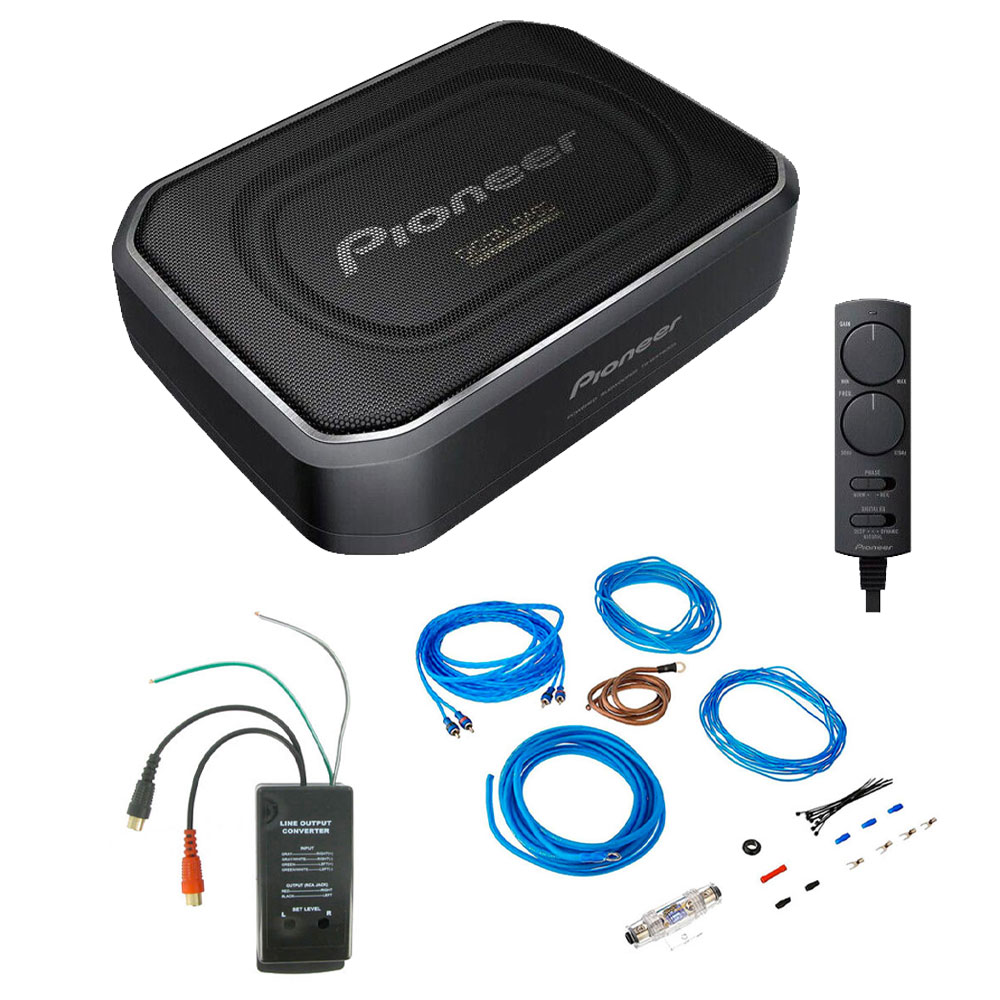

Package Includes

• Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W
• Stinger SSK8 8GA 600W Amplifier Wiring Kit
• Connects2 CTLOCA25H PC1 - 610 High to Low level converter Two channel RCA Output

Powerful Bass, without losing space.

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.

Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

EV Optimized

This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.

Car Sound Fit App Car

sound simulator application for an improved in-car sound experience

Digital Bass Control

Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.

Main Features

• EV Optimized
• CarSoundFit App
• DIGITAL BASS CONTROL
• Size 20 cm
• Maximum power 170 W
• Continuous power output 50 W
• Frequency Response
  • DEEP Bass Mode: 20 - 200 Hz
  • NATURAL Bass Mode: 40 - 200 Hz
  • DYNAMIC Bass Mode: 40 - 160 Hz
• Sensitivity
  • DEEP Bass Mode: 95 dB
  • NATURAL Bass Mode: 98 dB
  • DYNAMIC Bass Mode: 100 dB
• Woofer material Aluminium
• Surround Urethane
• Voice Coil type Copper Round Wire 4-Layer
• Voice Coil bobbin type Glass Imide
• Magnets Strontium
• Weight 3,1 kg
• Dimensions (W x H x D) 280 x 200 x 70

Stinger SSK8 8GA 600W Amplifier Wiring Kit

Featuring Ultra Flexible CCA cable construction for excellent current transfer to power hungry amplifiers on a budget. Quality twisted pair interconnects for noise free signal transfer. Also includes ultra flexible speaker wire, remote turn-on, MIDI high current fuse holder and ring terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.

Includes

• 17FT Matte Blue Ultra Flexible Power Wire (CCA)
• 3FT Matte Gray Ultra Flexible Ground Wire (CCA)
• 17FT Twisted Pair RCA Interconnects (OFC)
• 17FT Blue Remote Turn-on Wire (CCA)
• 20FT Matte Blue Ultra Flexible Speaker Wire (CCA)
• 1pc. High Current Water-resistant MIDI Fuseholder with 60A Fuse

Connects2 CTLOCA25H PC1 - 610 High to Low level converter Two channel RCA Output

Line Output Converter - High to Low level converter. Level adjustable. Two channel speaker input, two channel RCA Output

NOT SUITABLE FOR VEHICLES WITH A FACTORY FITTED AMPLIFIER
