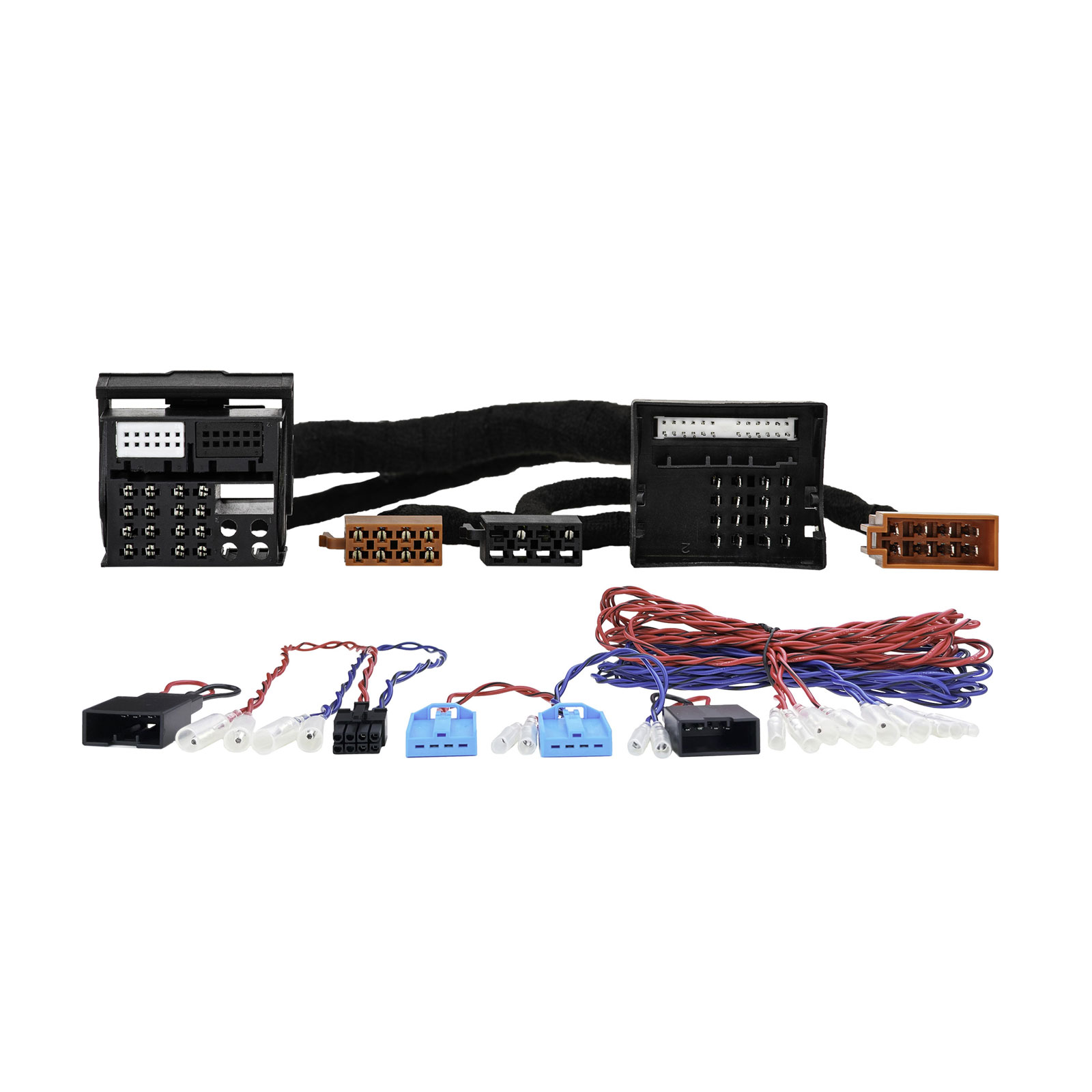

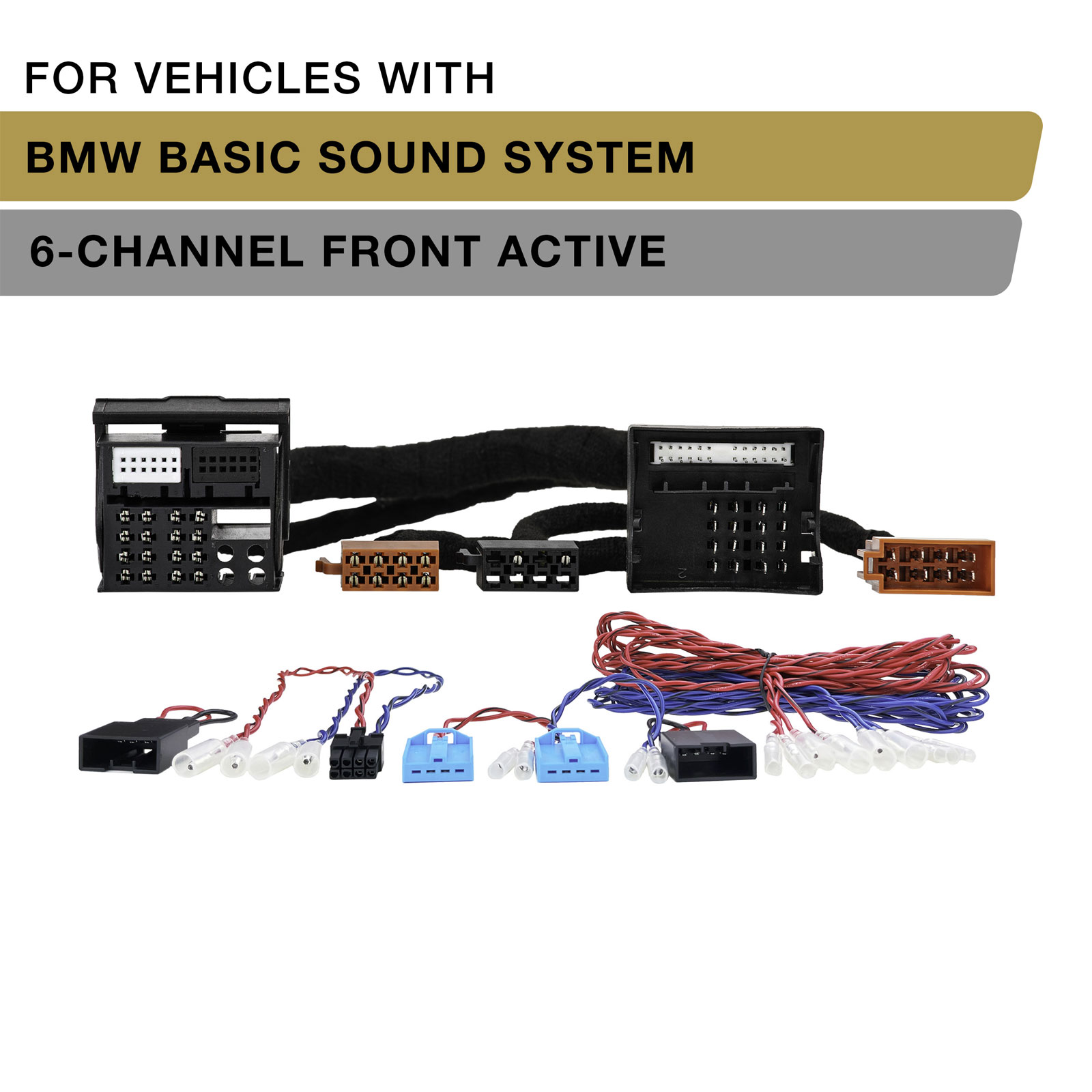

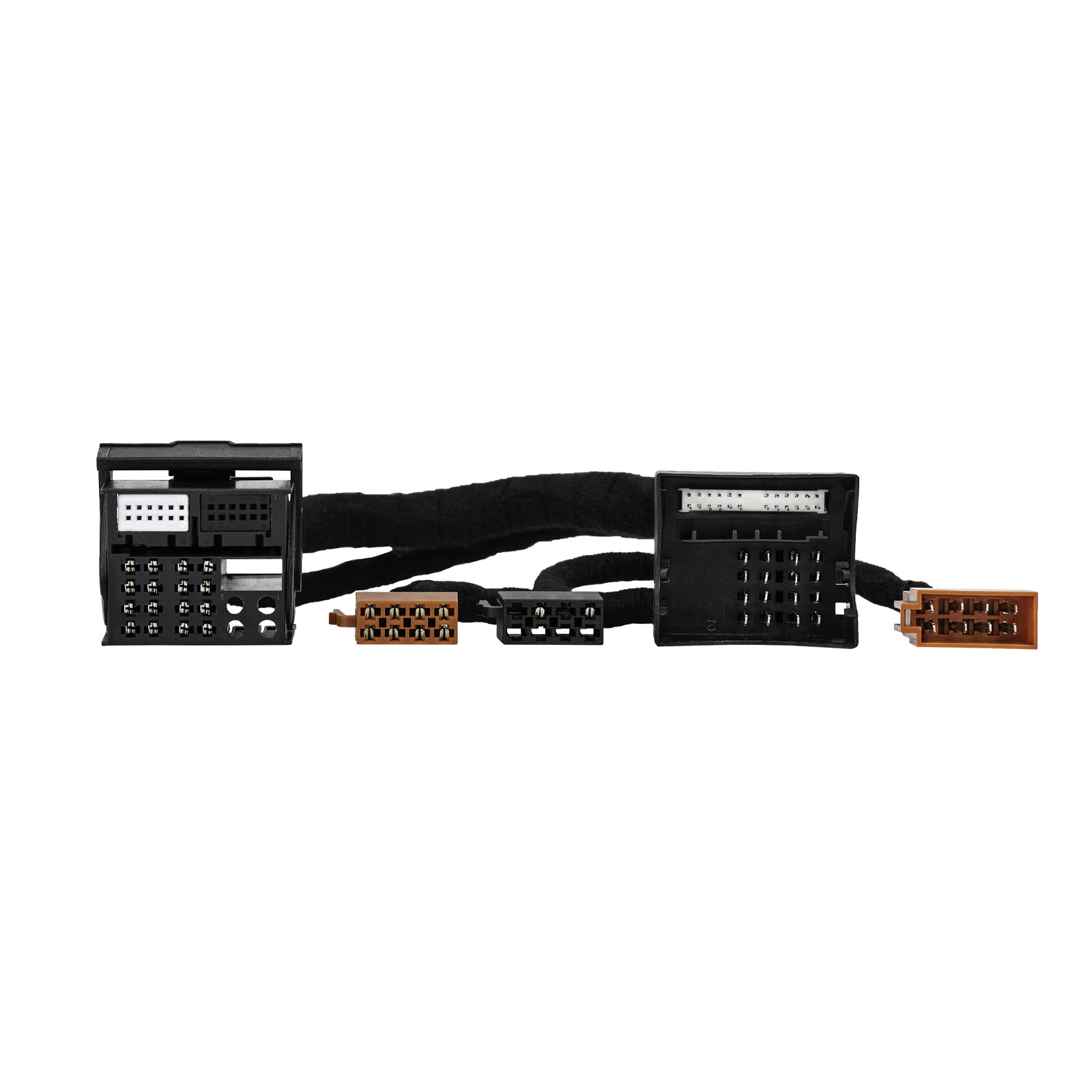

Phoenix Gold ZDT-BMW2 Active Cable

Upgrade your vehicle’s audio with our 6CH Active cable Basic Sound System . Our plug-and-play solution makes it easy to upgrade your audio by integrating seamlessly with our amplifiers. Built for a hassle-free installation, with everything you need included, no cutting or splicing required.

Transform your audio experience with the Phoenix Gold ZDT-BMW2 T-Harness, specifically designed with the Basic Sound System. This innovative harness addresses a common issue found in these systems: the front door speakers and under seat woofers are connected together, compromising sound quality and performance.

In the stock configuration, the small 4” door speakers are forced to handle lower bass frequencies, leading to distortion. Simultaneously, the under seat woofers are required to reproduce midrange and treble frequencies they were not designed to handle, further degrading the audio clarity. The result? A muddled and distorted sound profile that falls far short of your vehicle’s potential.

The ZDT-BMW2 T-Harness resolves this by separating the signal paths of the front door speakers, under seat woofers, and rear speakers, enabling a fully active configuration. When paired with a Phoenix Gold ZDA6.8 DSP amplifier, this advanced setup allows precise tuning of frequency filters across the entire audio system. Each speaker can be finely calibrated to deliver optimal performance, dramatically reducing distortion, enhancing overall sound clarity, and unlocking the full potential of your vehicle’s sound system. The result is an immersive, balanced, and professional-grade audio experience like never before

The Phoenix Gold ZDT-BMW2 harness simplifies audio integration when paired with our ZDC-ISO harnesses. Designed for seamless compatibility, it allows you to match the ZDT- cable to your specific vehicle and combine it with our ZDA6.8 amplifier for a complete Plug & Play solution.

Installation Made Simple

• Disconnect the OEM harness from your head unit.
• Connect the ZDT- cable to the OEM harness, then plug the other end into your head unit.
• Integrate the ZDT- cable with one of our ZDC-ISO harnesses to establish power, signal, and speaker connections.
• Disconnect the speaker connectors from the under seat woofers located beneath each front seat.
• Route the 4-pin connectors to the appropriate front seat and connect them to the under seat woofers.
• Attach the black 4-pin loop connector to the OEM harness that was previously disconnected from the under seat woofers.
• Link the setup to your Plug & Play amplifier, and the installation is complete!The Phoenix Gold ZDT-BMW2 is crafted for audio integration and is designed with superior features to ensure the best performance and easiest installation.

Why choose the ZDT- Harness?

• Maximum power and ground capacity: Designed with the largest possible power and ground wires to deliver consistent, reliable performance for your amplifier.
• Enhanced signal transfer and noise reduction: Twisted high-level cables and larger speaker output cables ensure the best signal transfer while minimizing noise, giving you clear and precise audio quality.
• Easier installation: Extended high-level cables prevent clutter behind the OEM head unit, making the installation process more straightforward.
• Protected and streamlined design: All wires are wrapped in tape for added protection and easier handling, with no loose or unnecessary wires or connectors to complicate the setup.

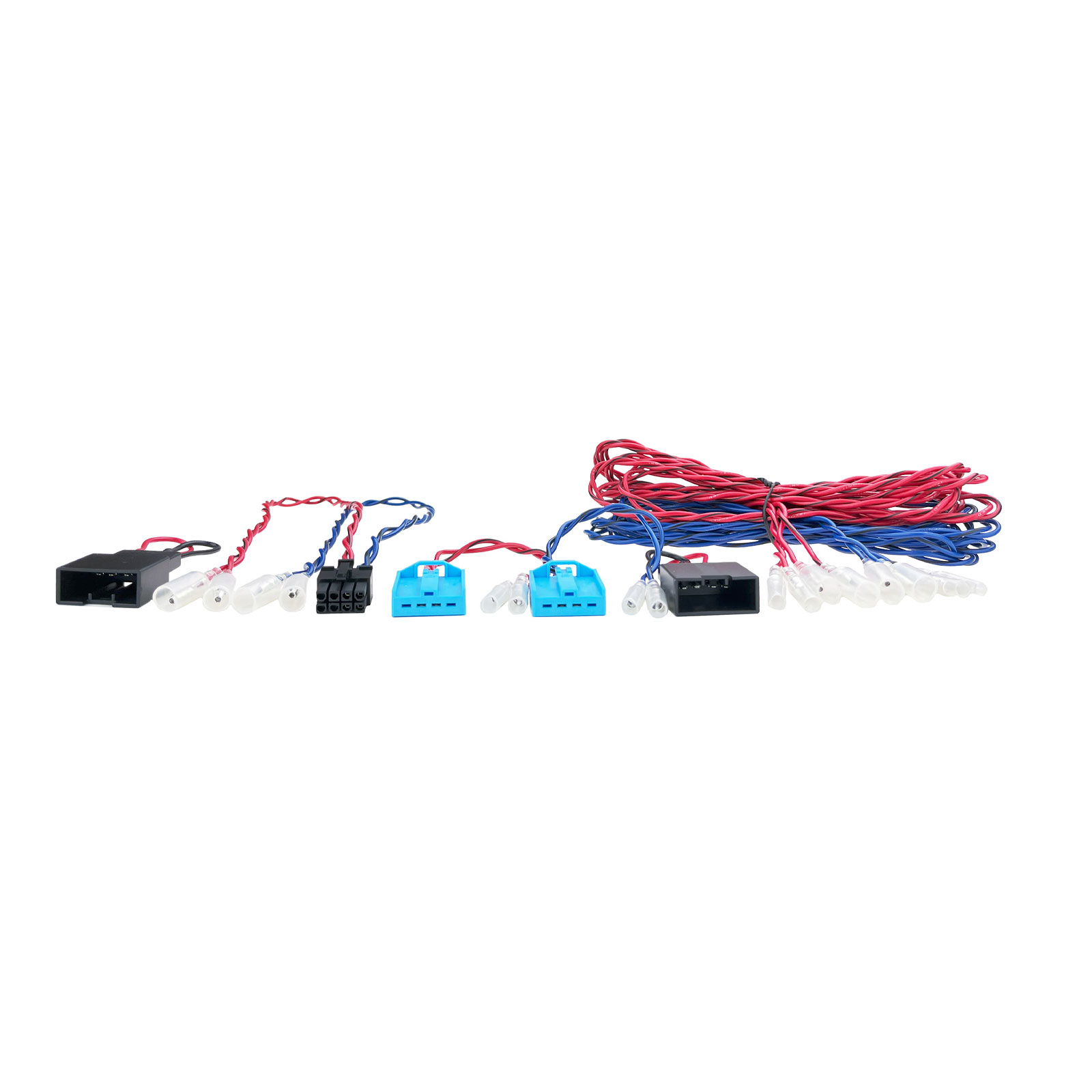

 Connectors

• 1x 40-Pin Female Quadlock Connector
• 1x 40-Pin Male Quadlock Connector
• 2x 4-Pin Female Connectors
• 2x 4-Pin Male Connectors
• 1x ISO Female Connector (Black)
• 1x ISO Female Connector (Brown)
• 1x Dual ISO Male Connector (Black)
