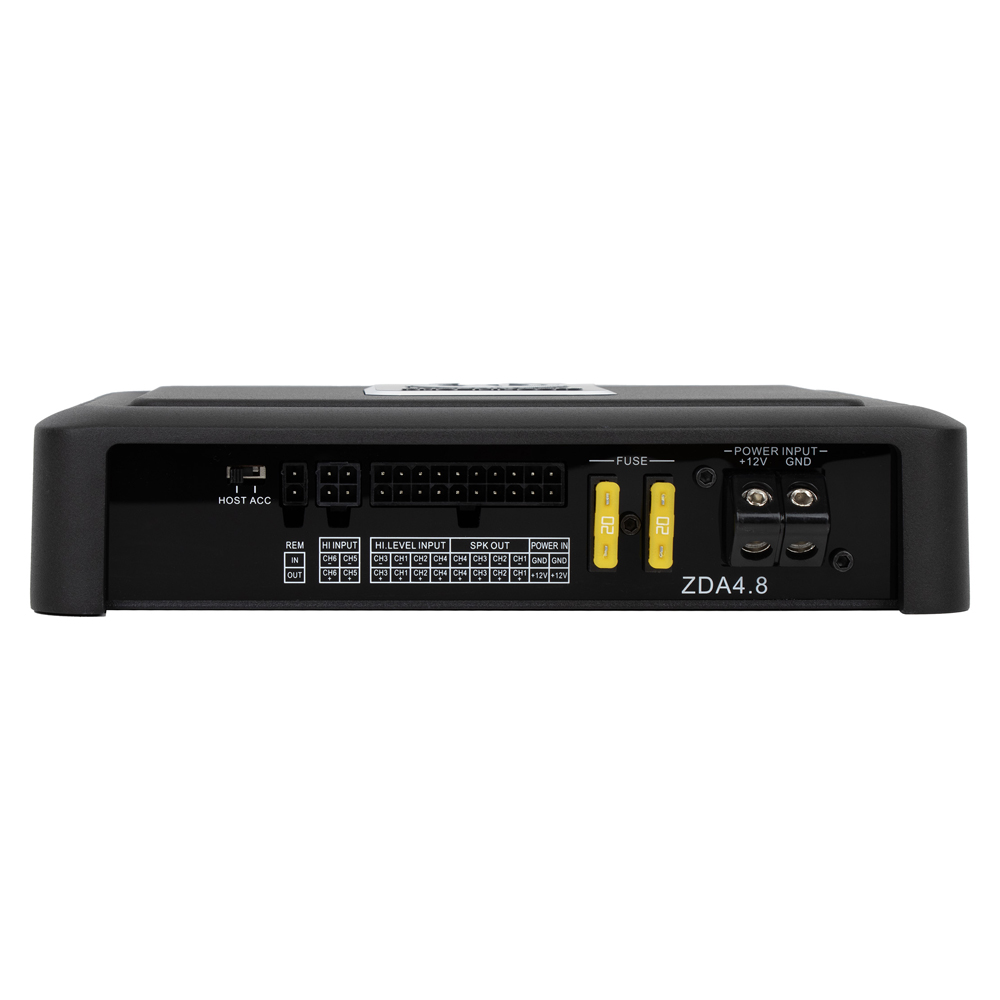

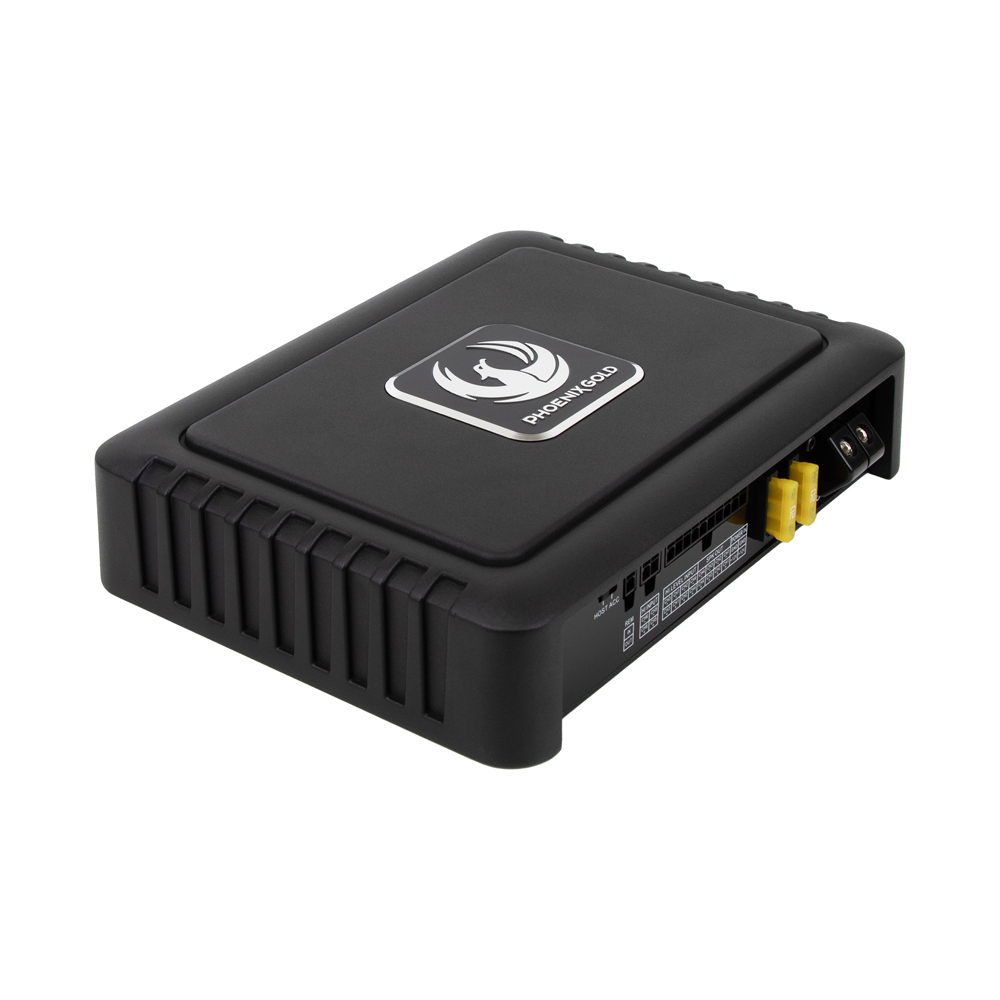

Phoenix Gold ZDA4.8-UNI6 4-Channel DSP Amplifier

The Phoenix Gold ZDA4.8-UNI6 DSP Power Up Kit is the ultimate universal solution for transforming your vehicle’s audio experience. Combining a powerful 4x70W RMS Class A/B DSP Amplifier with the versatile ZDC-UNI6 6-meter universal installation cable, this kit offers exceptional flexibility for custom audio system integration in any vehicle.
With bare wire ends, the ZDC-UNI6 harness allows for precise and tailored installation to meet the specific requirements of your vehicle’s setup.

The ZDA4.8 DSP Amplifier redefines in-car sound quality at this price point, outshining the standard factory-installed amplifiers. Unlike the typical Class D technology found in similar products , the ZDA4.8 employs Class A/B technology, delivering a warmer, more natural sound that brings your music to life. Even without DSP adjustments, the sound quality is significantly enhanced. However, the built-in DSP takes it further, allowing you to fine-tune your vehicle’s audio system to suite your preferences, no matter your music taste.

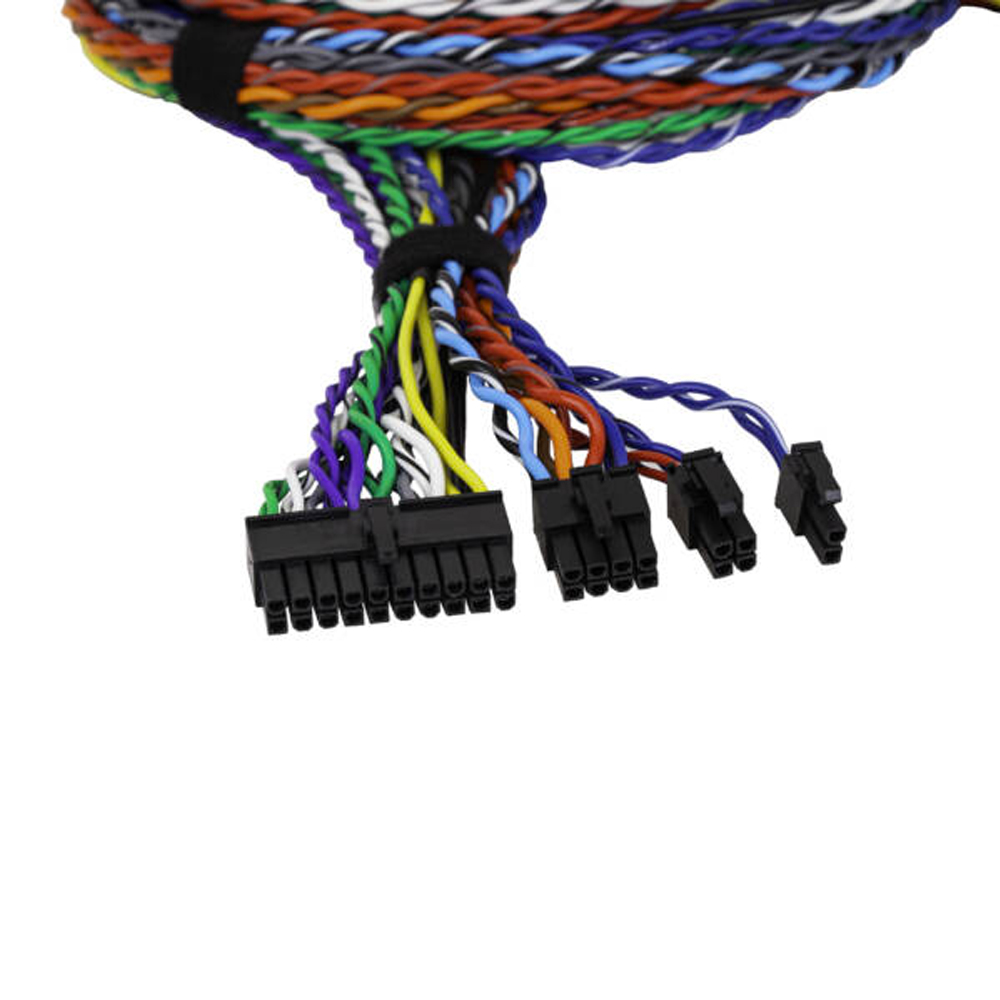

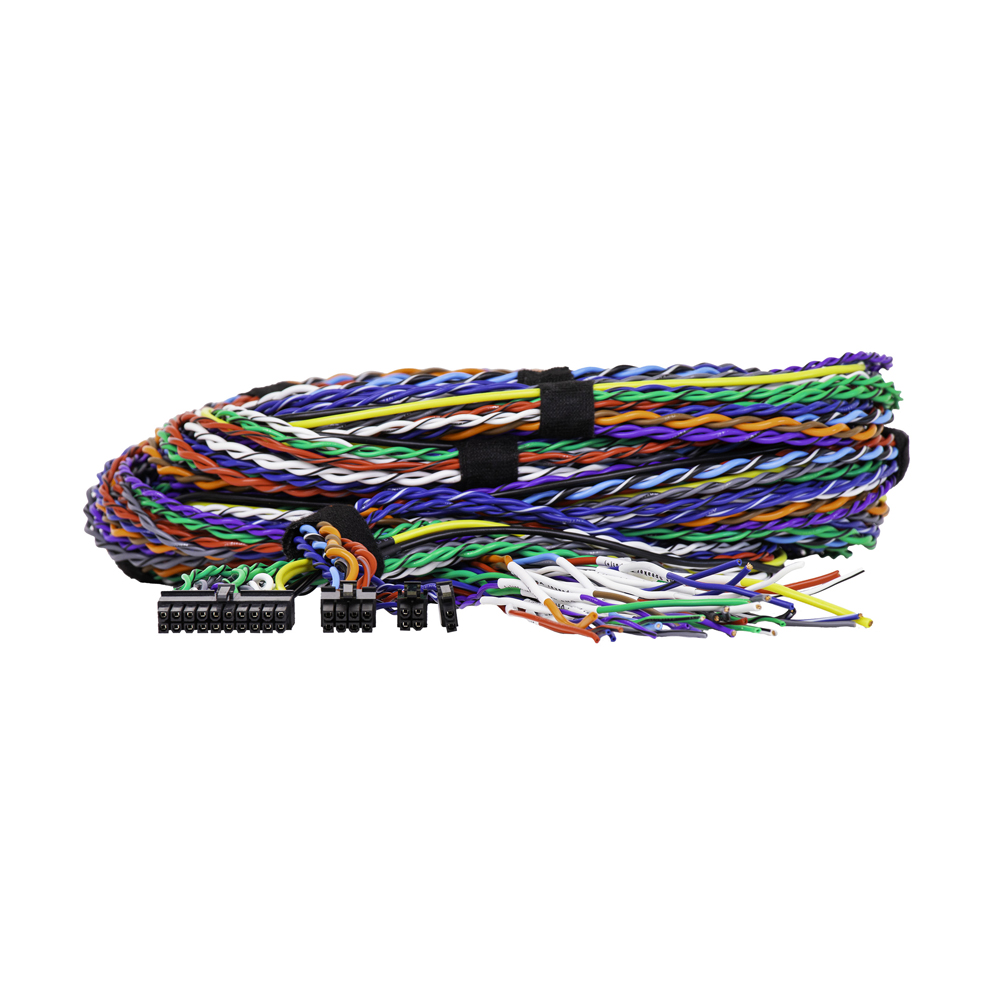

Harness Key Features

• Universal Compatibility: Perfect for any vehicle

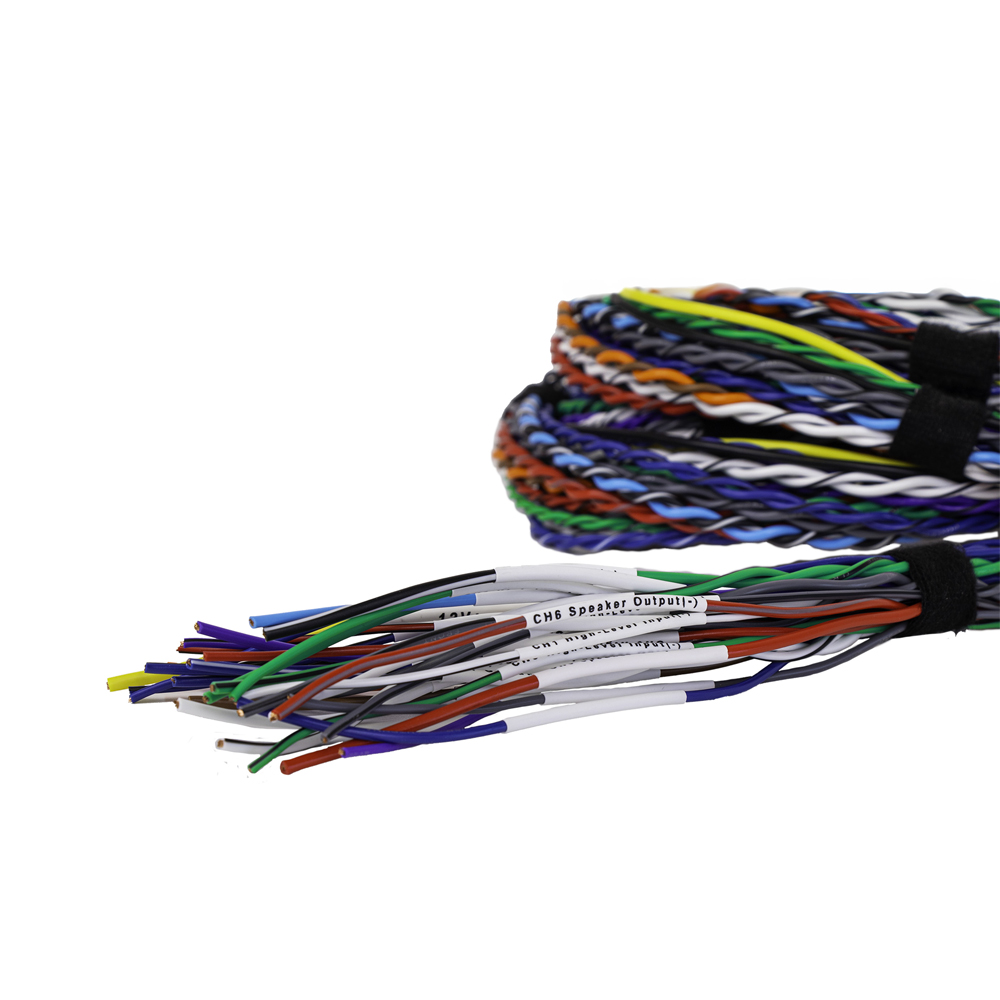

• Flexible Design: Bare ends allow for complete customization to suit your installation needs.
• Simplified Installation: Heat-shrink tubing with clear markings ensures easy identification of each wire during setup.
• Enhanced signal transfer and noise reduction: Twisted high-level cables and speaker output cables ensure the best signal transfer while minimizing noise, giving you clear and precise audio quality

Fitment

The ZDA4.8-UNI6 is designed specifically for universal vehicle integration.

OIS – OEM Impedance Simulation

The ZDA4.8 is equipped with OEM Impedance Simulation (OIS), ensuring compatibility with modern head units and amplifiers. By simulating speaker impedance, it maintains the functionality of your vehicle’s OEM head unit, preventing potential issues with plug-and-play installations.

Input Priority

The Input Priority feature ensures effortless integration with your vehicle’s OEM head unit. You can use low-level inputs or digital sources such as Bluetooth, Optical, or Coaxial, without losing vital system sounds like parking sensors, alerts, and radio signals. For instance, if your vehicle has a high-pass filter that limits bass output, you can bypass this limitation by streaming audio directly to the DSP via Bluetooth while maintaining full OEM functionality.

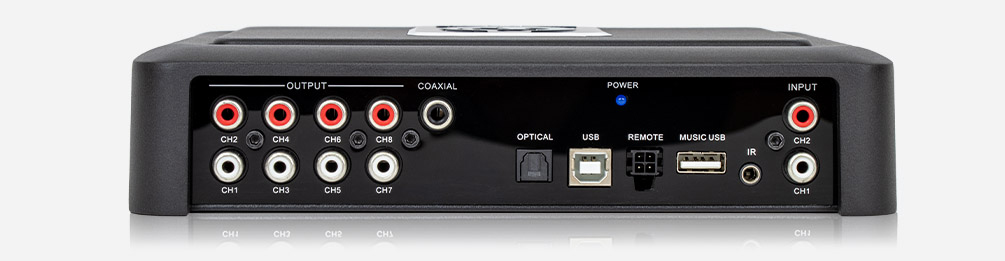

DSP Outputs

The ZDA4.8 doesn’t stop at upgrading your system—it also enables expansion. With four free DSP-configurable RCA outputs (Channels 5-8), you can connect additional amplifiers, such as a subwoofer amp, and fully optimize them using the DSP software. Delay settings, filters, and equalization options ensure top-tier performance for your additional components.

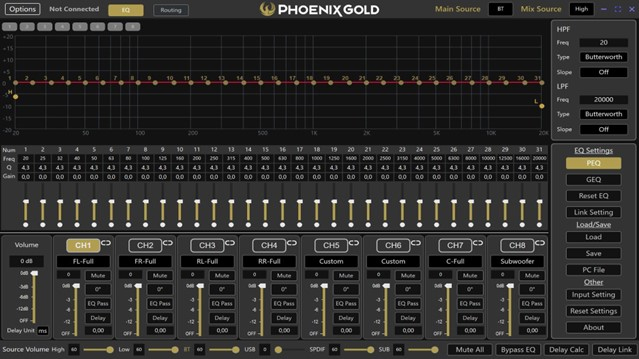

Software

Take control of your sound system with the free, user-friendly PC software (compatible with Windows 10 and 11). Connect via the included USB-B cable and unlock a suite of powerful tuning tools:

• 31-Band Parametric EQ (PEQ) for precise frequency adjustments
• Choose filter types (Bessel, Butterworth, Linkwitz-Riley) with adjustable slopes from -6dB to -48dB.
• Time alignment with a built-in delay calculator
• Fully custom channel routing
• Custom link options (Copy or Relate) With these advanced features, you can tune your sound system to your preferences.

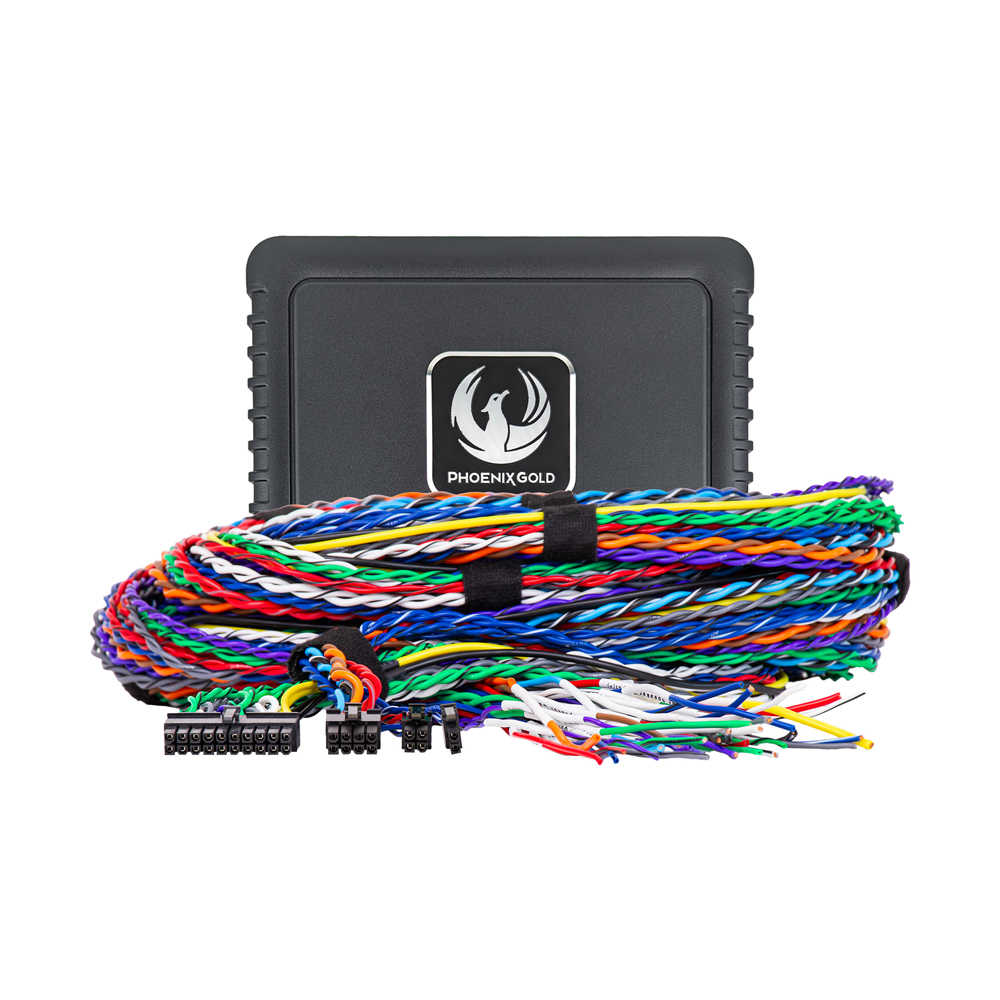

Whats's In The Kit

• ZDA4.8 DSP Amplifier
• ZDC-UNI6 Universal ISO Extension Harness
