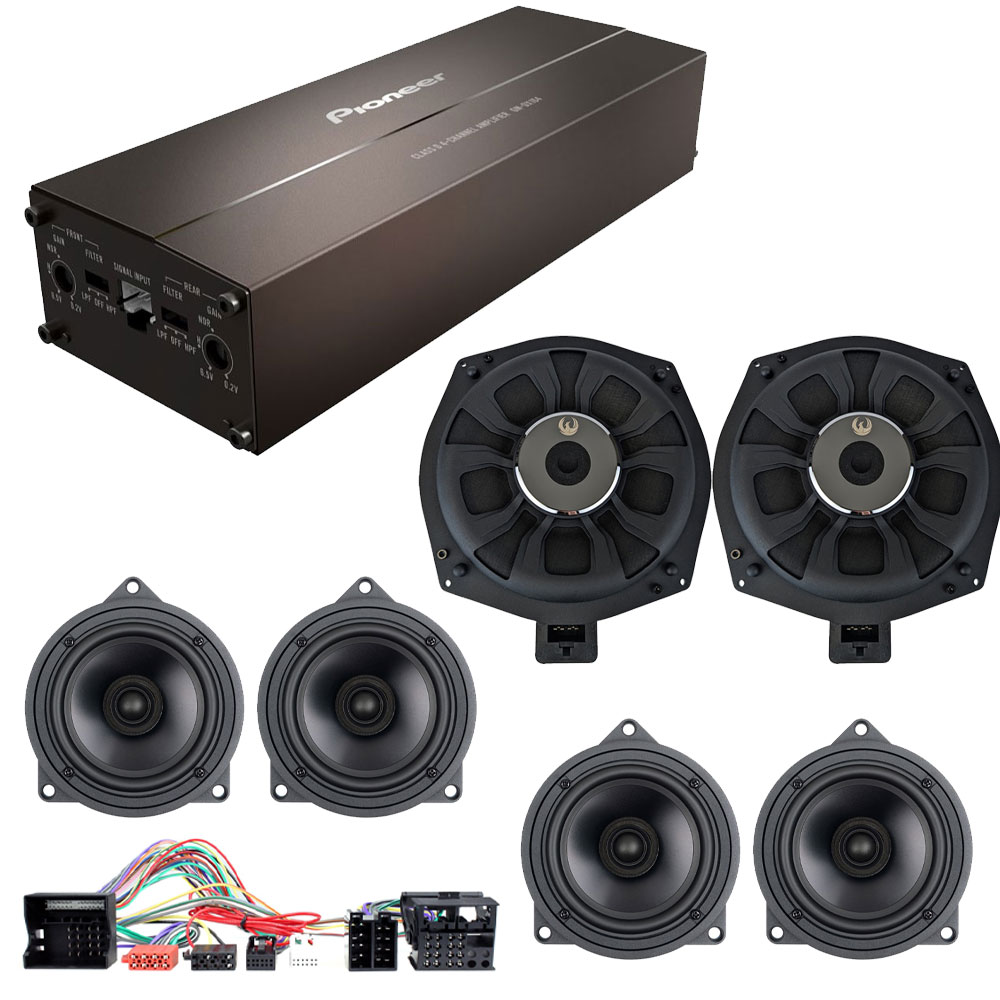

Package Includes

• Pioneer GM-DX104 4 Channel Class D Bridgeable Car Amplifier 400W
• 2 x Phoenix Gold ZDBMW4CX 4” (100mm) 2-Way Coaxial Speaker Kit
• Phoenix Gold ZDSB200S 8" 150W Subwoofer Kit
• Connects2 SOT T Harness Adaptor Lead

GM-DX104

Compact, space saving, easy to install micro 4-Channel amplifier (400 W) featuring High Resolution Audio, Class-D Technology and compatible with OEM/Original (or aftermarket) stereos systems, including Electric Vehicles! (EV).

4-Channel

4-Channels to drive multiple speakers and/or subwoofers with total control.

Class D Amplifier

Enjoy first class sound and powerful volume on a versatile system at half the size of other units.

Product Specifications

Step up Logic (Amp)

• High Resolution Audio Certified:

Key Features Amp

• Channel(s): 4-Channel
• High Resolution Audio Certified
• Continuous Output Power: 45 W x 4 (4 Ω), 45 W x 4 (2 Ω), 90 W x 2 (4 Ω)
• Class D Technology
• Frequency Response: 10 Hz - 40 kHz
• Distortion: < 0.05 % >
• S/N Ratio: > 93 dB
• Load Impedance Capability: 2-8 ohm
• High Pass Filter
• Low Pass Filter
• Size: 181 mm (W) x 38 mm (H) x 64 mm (D)

Other Specifications Amp

• Speaker Terminals: ISO-Type

Phoenix Gold ZDBMW4CX 4” (100mm) 2-Way Coaxial Speaker Kit

ZDBMW4CX

The Phoenix Gold ZDBMW4CX is a 4-inch 2-way coaxial speaker system designed specifically for BMW vehicles, featuring an aluminum cone for clear midbass and midrange, a silk dome tweeter for smooth high frequencies, and a dual aluminum mounting bracket for a secure fit across multiple BMW configurations. The speakers have a frequency response of 120Hz to 20kHz, power handling of 60W RMS (120W max), 4Ω impedance, and come with mounting brackets, speaker foam, screws.

The ZDBMW4CX is a Speaker System Engineered Specifically For BMW Vehicles.

Experience premium sound quality and seamless installation with the Phoenix Gold ZDBMW4CX, speaker system engineered specifically for BMW vehicles. Designed with sound performance and installation versatility in mind, this kit redefines what a simple upgrade can do.

Engineered for Clarity and Control

The 4” coaxial speaker features an aluminium cone for tight, punchy midbass and clear midrange tone reproduction – perfectly suited to bring vocals and instruments to life with accuracy and fun energy.

Mounted at the centre, the sild dome tweeter delivers soft, smooth high frequencies, adding refined detail and a natural top end without harshness.

Precision Engineering Meets Simplicity

The ZDBMW4CX features a dual aluminium mounting bracket system, built for maximum rigidity and zero unwanted vibrations. Its innovative design ensures a perfect fit across multiple BMW configurations, regardless of which of the two OEM brackets your vehicle uses.

Specifications

• Speaker Type: 2-Way Coaxial
• Speaker Size: 4” (100mm)
• Frequency Response: 120Hz – 20kHz
• Power Handling (RMS): 60W
• Power Handling (MAX): 120W
• Impedance: 4Ω
• Sensitivity: 86.0dB (1W/1m)
• Voice Coil: 1” (25.5mm)
• Unit: Sold as pairs

T/S Parameters

• Re: 3.2 Ohm
• Fs: 117 Hz
• Qms: 3.768
• Qes: 1.172
• Qts: 0.894
• Cms: 424.096 μM/N
• Vas: 1.68 L
• BL: 2.86 N/A
• Sd: 52.8 cm²
• Mms: 4.332 g
• No: 0.22 %

Included in the Box

• 2x 4” Speakers
• 4x BMW Mounting Brackets (2 of each)
• 6x Speaker Foam
• 8x Screws
• 1x Manual

Phoenix Gold ZDSB200S 8" 150W Subwoofer Kit

Basic, HiFi and Harman Kardon Sound System

Phoenix Gold ZDSB200S 8 Inch 150W Subwoofer Kit For BMW

Experience an Unmatched Audio Upgrade with the ZDSB200S 8 Inch 150W BMW Subwoofer Kit

Upgrade your BMW’s audio system to extraordinary levels with the ZDSB200S 8 Inch 150W BMW Subwoofer Kit. Designed to fit a variety of BMW models, this high-quality subwoofer kit combines precision engineering with cutting-edge technology to deliver a sound experience like no other.

At the heart of the ZDSB200S Subwoofer Kit is its 8-inch (200mm) subwoofer, designed to produce powerful and impactful bass that will breathe new life into your favorite music. With a power handling of 75W RMS (Root Mean Square) and a maximum power handling of 150W, this subwoofer ensures a dynamic range that is sure to impress.

The frequency response of the ZDSB200S ranges from 37Hz to 3000Hz, covering a wide range of low and mid-range frequencies with accuracy and clarity. No matter what you’re listening to, every note will be heard.

Equipped with a 2-inch (50mm) voice coil, the ZDSB200S Subwoofer Kit delivers precise and accurate sound production. The voice coil’s design allows for efficient heat dissipation, ensuring optimal performance even during prolonged listening sessions.

The ZDSB200S Subwoofer Kit features a nominal impedance of 3.6Ω, enabling seamless integration with your BMW’s audio system. This impedance level ensures compatibility and allows the subwoofer to work efficiently with your existing amplifier.

The subwoofer’s basket is constructed from a combination of aluminum and plastic, providing a sturdy and rigid structure that minimizes vibrations and distortions. This design ensures that the subwoofer operates at its full potential, delivering clean and impactful bass.

With a rubber surround, the ZDSB200S Subwoofer Kit provides superior damping properties, allowing for precise cone motion and reducing unwanted resonances. This results in tighter and more controlled bass reproduction, enhancing the overall sound quality of your BMW’s audio system.

The subwoofer’s magnet is made from N35 material, which offers excellent magnetic properties for enhanced efficiency and improved sound quality. The use of high-quality magnet materials ensures that the subwoofer delivers a powerful bass response without sacrificing clarity.

The ZDSB200S Subwoofer Kit features a sandwich composite cone, which combines lightweight materials with rigidity for optimal performance. This cone construction allows for accurate sound reproduction and minimizes distortion, ensuring that every detail of your music is reproduced faithfully.

Upgrade your BMW’s audio system with the ZDSB200S 8 Inch 150W BMW Subwoofer Kit and unlock a new dimension of sound. With its exceptional specifications, precision engineering, and advanced technology, this subwoofer kit will elevate your driving experience to unprecedented levels.

Specifications

• Speaker Size: 8” (200mm) Subwoofer
• Power Handling (RMS): 75W
• Power Handling (MAX): 150W
• Frequency Response: 37Hz – 3000Hz
• 2″ (50mm) Voice coil
• Nominal Impedance: 3.6Ω
• Basket – Aluminium / Plastic
• Surround – Rubber
• Magnet – N35
• Cone Material – Sandwich Composite Cone
