Mercedes Sprinter W906 2007> 8" Subwoofer Box Amplifier Wiring Kit
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 1
- Brand: Dynamic Sounds
- Model: SUBBOX-T5 + SWG-844 + BBX-T600 + ZXK10 + 23-005
- EAN: 7427306992366
- Warranty: 2 Years Warranty
Description

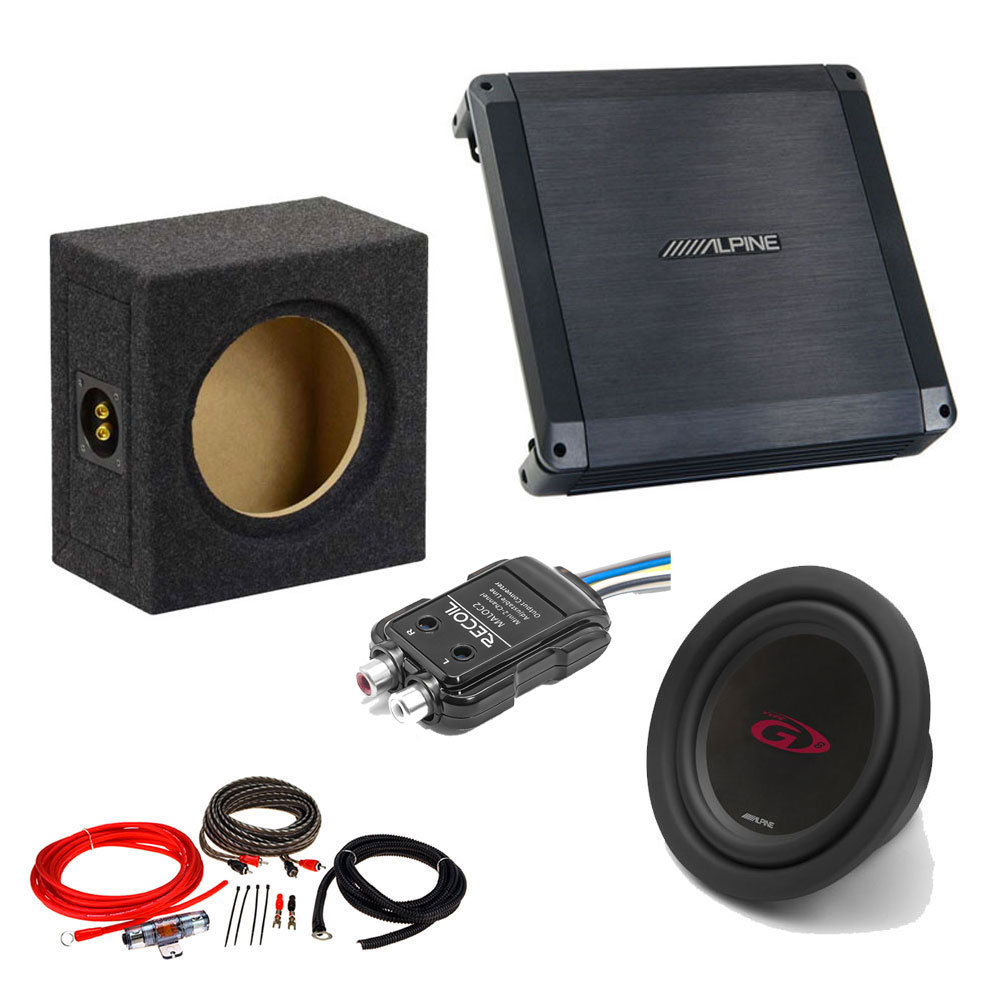

Package Includes
- Alpine BBX-T600 BBX Power Class A/B Amp 2 Channel Car Amplifier 300W
- Alpine SWG-844 Type-G 8" 20cm 400W Car Subwoofer 4 Ohm Bass Driver
- Incartec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)
- Phoenix Gold ZXK10 7AWG 600W 10mm2 CCA Power Amplifier Wiring Kit
- 23-005 2-Channel 80W high-to-low Level Line-out Converter with Built in Amp Remote Trigger
Product Compatibility Chart
| Make | Model | Years | Notes |

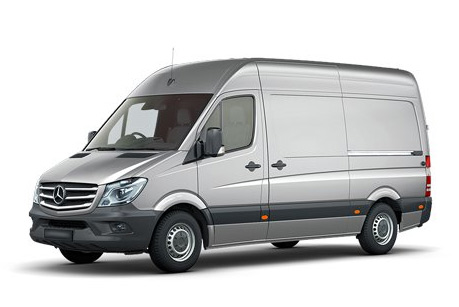

| Mercedes-Benz | Sprinter | 2007 onward |

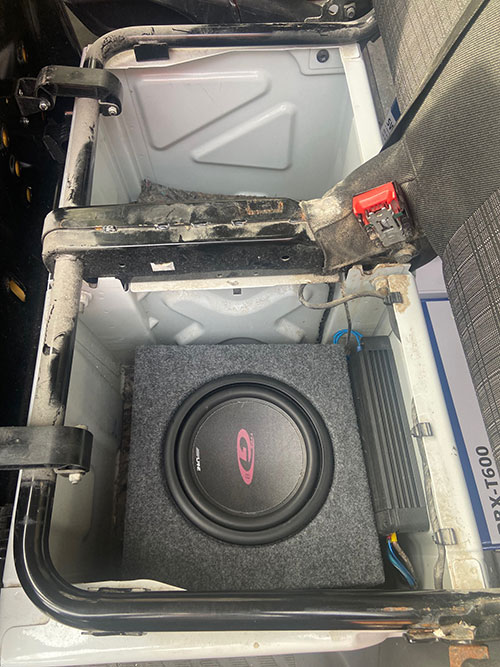

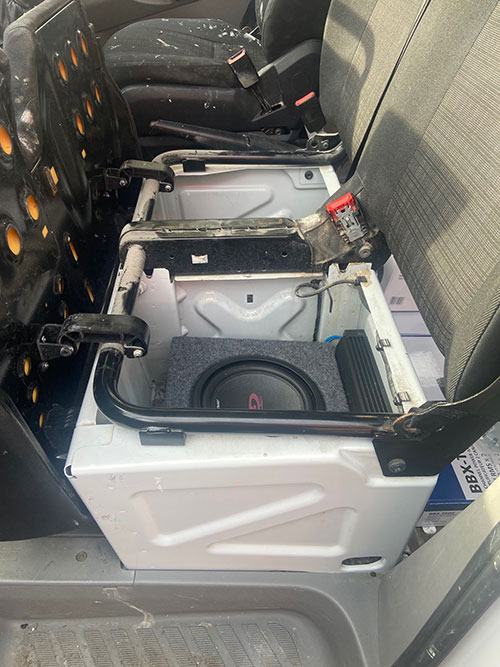

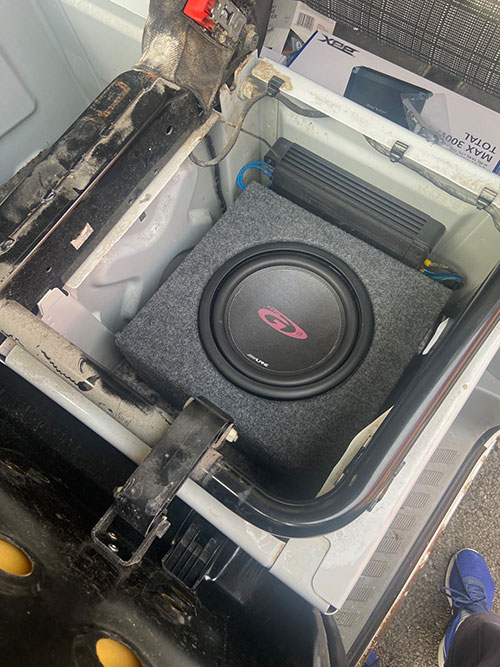

Suitable for Vehicles with Double Lift up Passenger Seat Compartments as Shown in the Photos.
This kit includes a universal High to Low converter for adding the subwoofer to an original fitted Mercedes stereo. Manual wiring is required to connect the power wiring and high level inputs.The High level input adapter when installed will create a remote turn on feed also to turn the amplifier on and off automatically.
Designed for Europe
This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.
High Power, Great Value
This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.
High Pass and Low Pass Filters
These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.
Bass EQ for Best Bass
Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.
Alpine BBX-T600 Features
Install
- Terminal Layout: Two-Sided
- Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
General
- Amplifier Type: Class-A/B
- Channel Design: 2/1 Channel
- Thermal Control: Thermal Management Control
- Power Supply: DC-DC PWM Power Supply
- Power Supply Design: MOSFET Power
- Current Protection: Over-Current, Over-Voltage and Thermal Protection
- Crossover: Variable Low-Pass / High-Pass
- Green/red Status LED
- 1 pair RCA pre-inputs
- 1 pair RCA pre-outputs
Specifications
Max Power Output Ratings
- Total Max Power: 300W
RMS Power Ratings
- Per Channel into 4ohms (≤1%THD+N): 2 x 50W
- Per Channel into 2ohms (≤1%THD+N): 2 x 70W
- Bridged into 4ohms (≤1%THD+N): 1 x 130W
Sound Tuning
- Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
- 1/2 Ch: LP: 50Hz – 250Hz HP: 80Hz – 1.2kHz
- EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB
Dimensions
- Footprint: 250 mm x 52 mm x 240 mm
General
- Power Requirements: 14.4 V DC (11 V to 16 V)
- Input Sensitivity: 0.2 - 8.0 V
- Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
- Speaker Impedance: 4 or 2 Ω
- Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
- Weight: 1.9 Kg
InCarTec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)
VW T5 8 Inch (8 Litre) Under Seat Subwoofer box (MDF)
MDF carpeted sub woofer box for a 8 inch sub woofer. 8 litre volume. Speaker wire connection port
We recommend to pair this enclosure with our 8 inch Blam subwoofer, BL-R8EL
Product Specifications
- Board MDF
- Fabric Grey Melange
- Speaker size 8"/20cm
- Mounting hole diameter (mm) 182
- Undercut diameter (mm) 222
- Subwoofer depth (mm) 32
- MAX magnet diameter (mm) 182
- Volume closed enclosure (liters) 8
- Weight (kg) 4.70
- Enclosure width (mm) 305
- Enclosure height (mm) 295
- Enclosure depth (mm) 185
SWG-844
An excellent match for the Type-G speakers, the Type-G subwoofers combine impressive bass output with high power handling and efficiency, and at a comfortable price level!
Features
- Peak Power: 400W
- RMS Power: 120W
- Frequency Response: 34Hz – 1.5kHz
- Sensitivity: 87dB/W (1m)
- Installation Diameter: 183mm
- Depth: 114mm
Phoenix Gold ZXK10 7AWG 600W 10mm2 CCA Power Amplifier Wiring Kit
Phoenix Gold now releases its own cable kits. The ZXK10 series includes CCA (Copper Clad Aluminium) cable. Paired with a twisted pair RCA cable, this ZXK10 kit will be a perfect complement to your Phoenix Gold power amplifiers or any power amplifier for that matter.
Features
- Complete set for audio systems up to 600 watts
- Premium 10mm2 CCA power and ground cable for optimal power transfer
- Nickel-plated connections for maximum corrosion resistance
- Incl. twisted RCA cable 5.2m
- Original Phoenix Gold Accessories
Contains
- 1 x 5.2m 10mm2 CCA Red Power Wire
- 1 x 0.8m 10mm2 CCA Black Ground Wire
- 1 x 5.2m Twisted RCA Cable
- 1 x 1.8m Split Loom Tubing
- 1 x Fuse Holder and Fuse

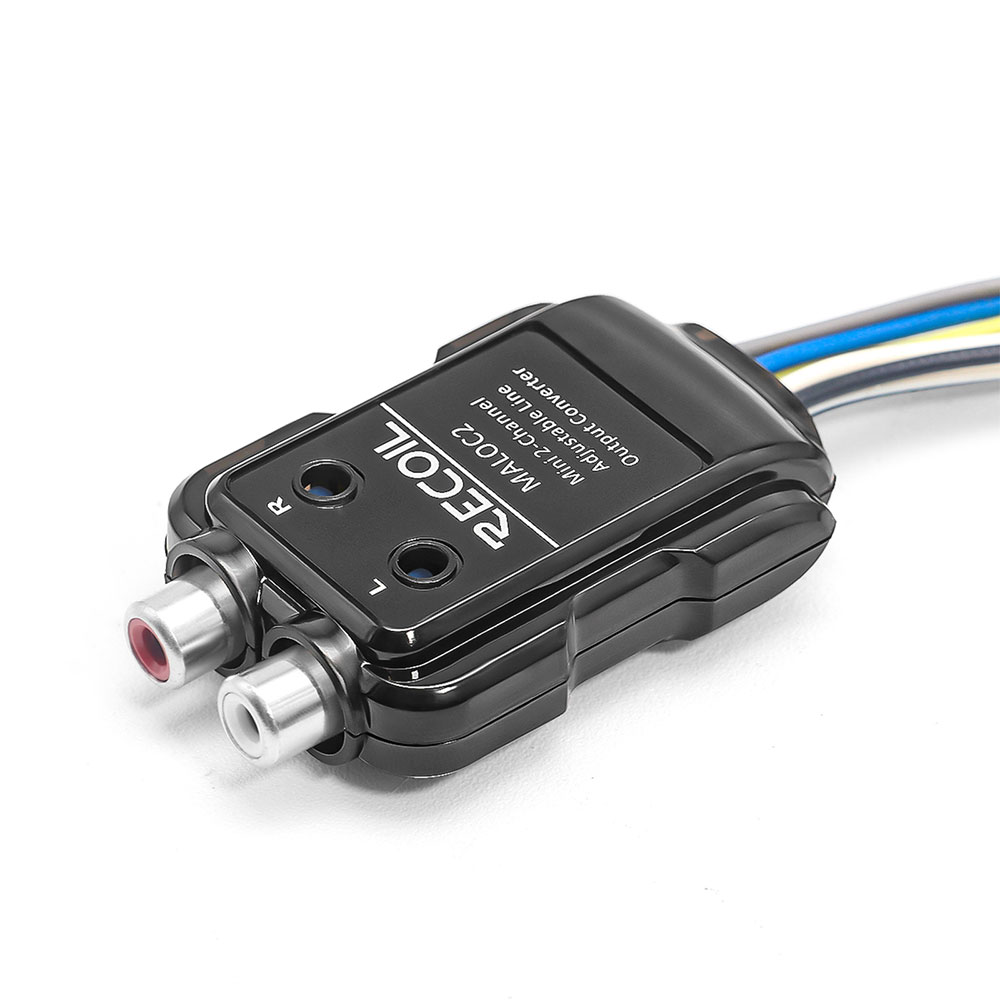

23-005 2-Channel Adjustable Micro Line Output Converter with 10V Output and Remote Turn-On Trigger
The World’s most miniature 2-channel micro adjustable speaker cable to RCA line output converter. Use MALOC2 when adding an amplifier to a factory radio to convert the radio’s speaker level output to the low amplifier (RCA) level input. It takes as much as 80 Watts of input and delivers up to 10 volts of output
Made of premium Permalloy transformer with high magnetic flux to prevent signal loss and distortion. The speaker wire is made of 99.99% oxygen-free copper for superior bass response and signal clarity.
Provides 12-volt for amplifier remote turn on. Super compact design allows for easy installation.
Recoil micro-LOC is the next level of the line output converter. These LOCs take as much as 80 watts of input per channel and deliver up to 10 volts of output. This sonically neutral converter delivers outstanding sound quality in an incredible World’s small footprint. Especially, these innovative LOCs are made of Permalloy transformers with high magnetic flux to prevent signal loss and distortion.
Weight and Dimensions
- Weight 0.2 lbs
- Dimensions 5.9 × 10.69 × 1 in
