Kenwood DMX7525DABS

6.8” HD Screen Wireless/Wired CarPlay, Android Auto, Wireless iPhone/Android Mirroring, DAB+

Key Features

• 6.8" High Definition screen with high luminance LED backlight and superior wide viewing angles.
• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.
• Wireless & Wired iPhone & Android Screen Mirroring with Car-EasyConnection app (Touch control via USB wired Android only)
• DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,
• Built-in Bluetooth® Hands-free calling & Audio Streaming.
• High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max)
• 13 Band EQ & Digital Time Alignment to optimise the sound performance
• 3 Preouts (3.0V) to customise & upgrade your audio system
• Rear View Camera Input with Parking Guidelines, compatible with HD camera
• 2DIN Short Chassis Design for more flexible installation

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

EX-DEMO
ONLY 6 MONTHS WARRANTY
Images are for reference only and not the actual picture of the unit or its contents

PLEASE NOTE
The item includes original accessories. The item is EX-DEMO (i.e. it may have a small flaw that does not affect the operation of the item such as a scratch or dent).

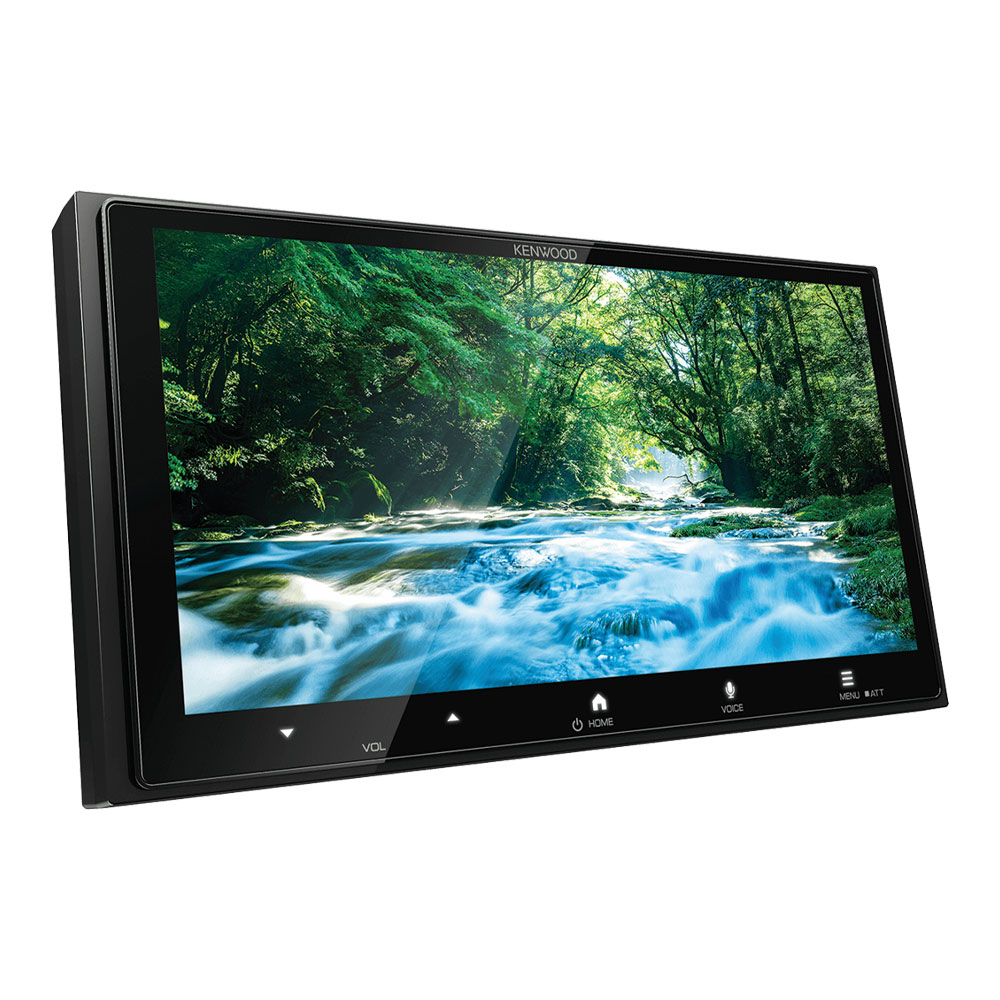

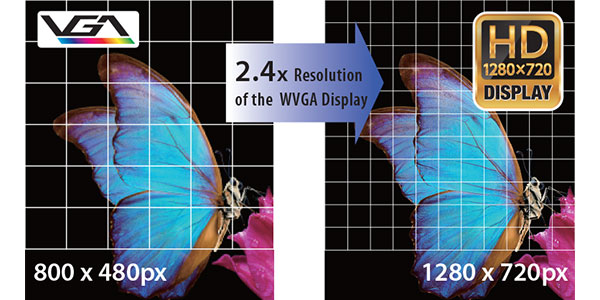

High Definition Display — Overwhelming Power of Expression —

The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

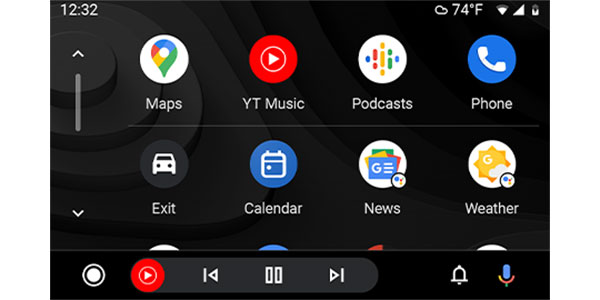

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone and compatible active data plan required.
* Some features and devices may not be available in all countries. Subject to availability.

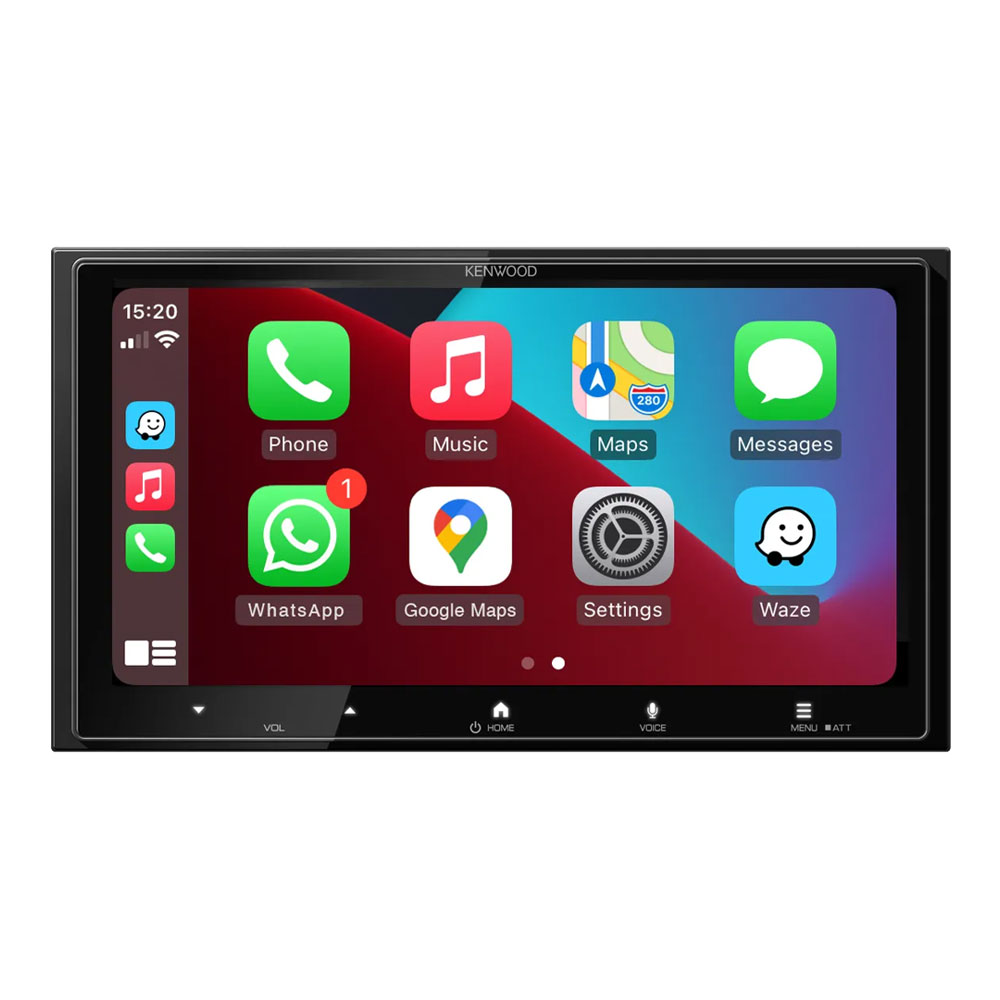

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Mirroring for Compatible Smartphones

By installing the “EasyConnection”, your mobile phone is seamlessly displayed on the receiver's large screen wired or wirelessly. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. (Touch control via USB wired Android only)

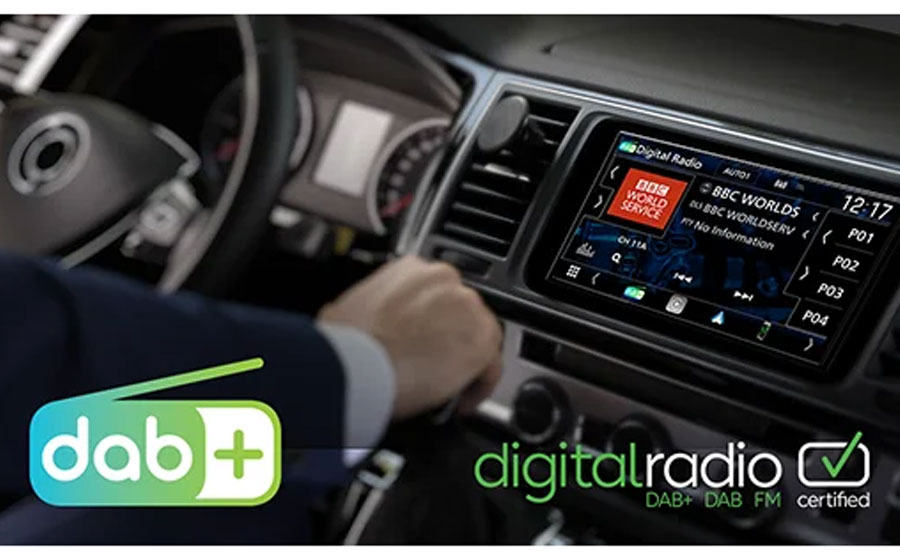

Built-in DAB+ Digital radio Tuner

DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality, crystal clear reception with low noise and no audio distortion. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

*Images are for illustrative purposes only and may differ from the actual interface.

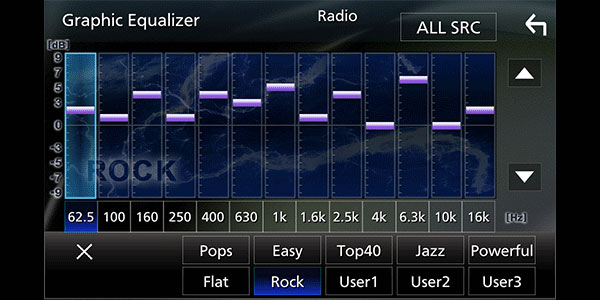

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

*Images are for illustrative purposes only and may differ from the actual interface.

Sound Adjustment Features

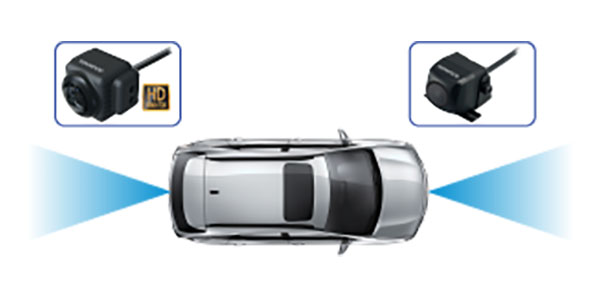

2-Camera Inputs

Enable users to add an optional rear view camera that enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness. Supports HD camera systems with 1280×720 pixel resolution, displaying the camera's footage on the High Definition Screen. Adding a front camera (sold separately), further enhances driver safety and convenience by offering a clear view of the vehicle's immediate front.

*For Best Performance, use the KENWOOD CMOS-740HD(rear only), CMOS-320 or CMOS-230.

General Features

• DIN Size 2 DIN
• Smooth GUI Yes
• Selectable GUI Background Wallpaper Yes
• Key Illumination White colour
• Attenuator with Smooth Volume Return Yes
• Touch Sensor Tone Yes
• Optional IR remote controller Yes, (KNA-RCDV331)
• Digital Clock (24H) Yes
• Built-in Bluetooth Yes
• DAB Tuner Built-in Yes
• Wifi built-in Yes
• Made for iPhone Yes
• Apple CarPlay – Connect Wirelessly or via USB Yes
• Android Auto™ – Connect Wirelessly or via USB Yes
• Wired & Wireless screen-mirroring for IOS & Android with CarbitLink-Easy Connection app
• Firmware upgreadable Yes
• Gyro Sensor Built-in Yes

Monitor Features

• Screen Type 6.92" High Definition
• Display Type Glare
• Display Panel Capacitive
• Display film Anti Fingerprint
• High Definition Display Yes
• LCD backlight White LED
• Display Mode 3 Mode (Full(default)/Auto/Normal)
• Screen Adjustments Colour / Contrast / Backlight
• Dimmer function SYNC by Illumination line
• Dimmer Level Auto/On/Off
• Visual Source Mode Mirorring / CarPlay / Android Auto.
• Mechanism type Fixed
• NTSC/PAL judge Yes (Auto)
• Display Off Mode Yes

Multimedia GUI Features

• OSDC Type Graphic
• Menu text available languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Portuguese
  • Arabic
  • Greek
  • Polish
  • Czech
  • Hungarian
• Demonstration Mode Yes
• Top Menu Customize Yes
• Opening Screen Type KENWOOD
• Wallpaper customizable Preset x4
• R-CAM interrupt Yes
• R-CAM Parking Guide Lines Yes, Built-in, customizable

Network & Wifi Features

• WiFi built-in built-in
• Frequency Range 5 GHz (5,745– 5,825 GHz)
• Output Power 5GHz / SISO: 13.78 dBm
• Wireless connection for Apple CarPlay Yes
• Wireless connection for Android Auto Yes
• Wireless connection for iPhone & Android Mirroring with CarbitLink-Easy Connection app

Tuner Features

• FM Reception Yes
• AM (MW/LW) Reception Yes
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan Yes
• Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
• Automatic Memory Entry (AME) Yes
• Radio Data System Yes
• Radio Text Plus Yes
• Traffic Information Yes
• Local search Yes
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON) Yes
• Program Type Function (PTY) Yes

CE DAB Tuner Features

• DAB+ tuner built-in Yes
• DAB/DAB+ Band Band III
• DAB-DAB/DAB-FM auto switch Yes
• Seamless DAB-FM blending  Yes
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Alphabet Search Yes
• Service list by alphabet order Yes
• Intelligent seek Yes
• Announcement Switching (ASW) Select  Yes
• DLS (Dynamic Label) Yes
• PTY (Programme Type) search Yes
• Slide Show Yes
• Soft linking Yes
• Antenna power supply on/off switch  Yes
• Digital Radio Certification Mark Yes

Bluetooth General Features

• Hands Free Profile (HPF) V1.7
• Audio Streaming (A2DP) Yes, (SBC/AAC)
• Serial Port Profile (SPP) Yes
• Simple Secure Pairing (SSP) Yes
• Phonebook Access Profile (PBAP) Yes
• PBAP call history Up to 20 entries of dialed, received and missed calls
• Audio/Video Remote Control Profile (AVRCP)    Yes, V1.5
• Wireless Music Browsing (AVRCP) Yes
• Private mode Yes
• Interrupt call request Yes
• Alphabet Search (Phonebook) Yes
• Voice Control Yes
• Noise Canceller Yes
• Echo Canceller Yes
• High-quality noise canceling microphone Included (rear wired)
• Bluetooth firmware upgradeable Yes, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• USB Type Type-A (2.0 High speed)
• Drive Change Yes
• File System  FAT16 / FAT32 / exFAT / NTFS
• Works with Android Auto Yes
• Works with Apple CarPlay Yes
• USB Screen Mirroring with CarbitLink-Easy Connection app
• Tag Information Display Yes
• Album Art Display Yes
• Repeat Play Folder/File/All
• Random play Folder
• Category search Yes
• Link Search Yes
• Last Position Memory / Resume Yes
• Time code display Yes
• USB ports maximum output current 2.1A

iPhone Features

• Connection via: USB / Bluetooth
• Plug & Play Yes
• Made for iPhone Yes
• Tag Information Display Yes
• Time Code Display Yes
• List Access Yes
• Album art support Yes
• Random Play Yes
• Repeat Play Yes
• Skip Yes
• iAP over Bluetooth Yes
• Works with Apple CarPlay Wired & Wireless

Android Phone Control

• Connection via USB / Bluetooth
• Works with Android Auto Wired & Wireless
• Android Open Accessory Protocol Yes (For Android Auto)

Audio Features

• Max. Output Power 4 x 50W
• Primary Power Output 4 x 22W
• Pre-out 3RCA: Front/Rear/Subwoofer
• Pre-out Output Level 3V
• Volume Offset Yes
• Volume Type DSP
• Built-in Amplifier Off Yes
• Balance/Fader Control Yes
• Beep On/Off Yes

Multimedia DSP Features

• Position Control Yes
• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ manual setting Yes
• G-EQ adjustable level Yes, +9db / -9dB
• Time Alignment 0 ~ 610cm
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) Yes (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• X'over Yes
• Speaker Size Control Yes
• Channel Level Control Yes
• Loudness Yes
• Tweeter volume Yes
• Bass Boost Yes
• Source Volulme Offset source independent

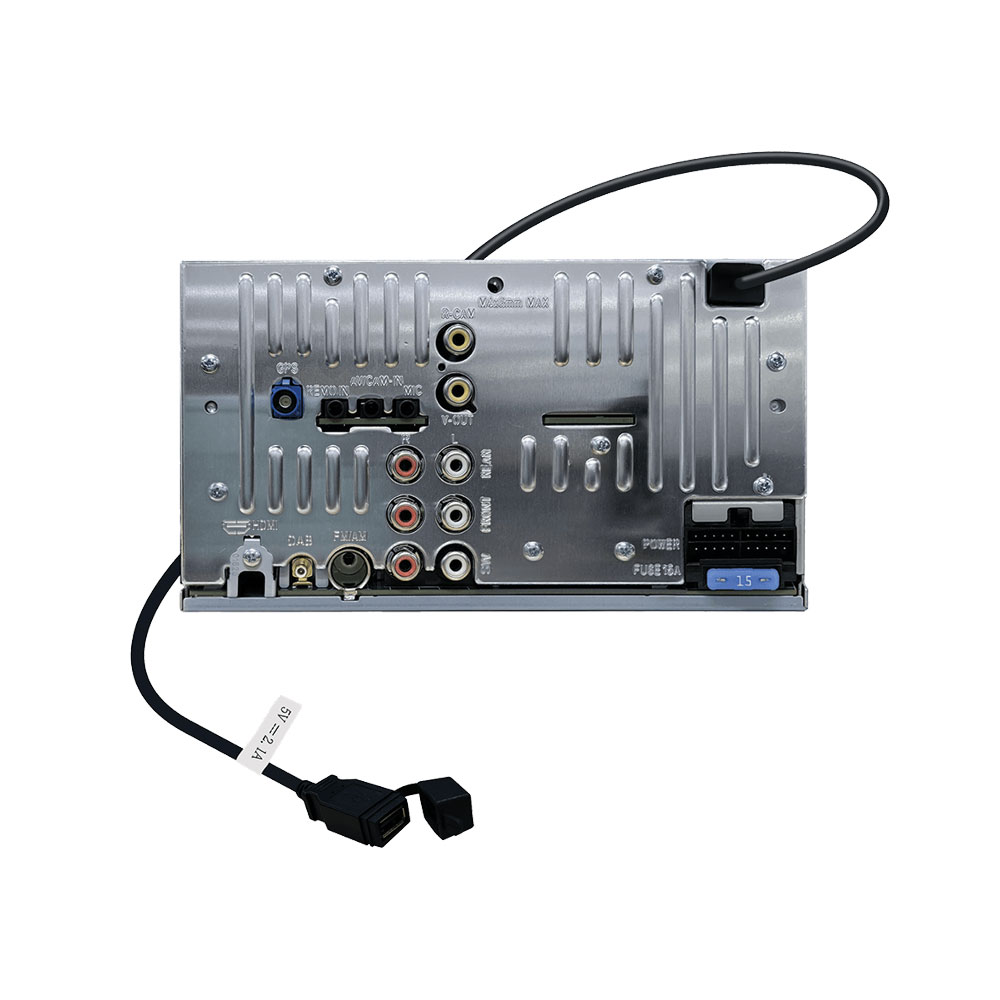

Connectivity

• DC-Cord 22pin (New Type) to ISO
• Reverse sensor wire Yes
• Parking sensor (handbrake) wire Yes
• Power Control (P.CON) wire Yes
• Dimmer control wire Yes
• Preout 2 x RCA (Front/rear) + Sub (mono)
• AV-Input (Non Switchable) (Mini-jack) audio & video
• Video Out RCA x1 (Source: USB)
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input GPS antenna included
• FM Antenna Input JASO connector
• DAB Aerial input SMB
• External microphone input 3,5mm mini-jack
• OEM Wired Remote Control ready Yes, Optional interface needed
• Learning Steering Remote Function Yes

Accessories

• DC cord ( to ISO)
• 20-pin connector to ISO, 25 cm
• Flat Head Screw (M-Type)    M5 x 8mm, 4 pieces
• GPS Antenna Ground Plane Mount (Adhesive Metal Pad)    Yes
• Handsfree Microphone    with 3 m cable
• Multi-Language Instruction Manual Included
