DMX5020DABS Digital Media AV Receiver with Enhanced Wired Smartphone Connections, Bluetooth & Digital Radio DAB+.

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

Key Features

• 6.8" WVGA Capacitive Touch screen - White Key Illumination
• Apple CarPlay® & Android Auto™ Ready
• Android USB Mirorring Ready
• Built-in DAB+ Tuner & Bluetooth module
• Bluetooth wireless music browsing ready
• 2 Preouts + subwoofer(mono) (2,0V)
• 13 Band EQ - DSP - DTA Built-in
• AV-in or Camera-in (Selectable) / AV-out
• Rear Camera input with built-in parking guide lines
• Short Chassis for easy installation

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination White color
• Back-up Memory
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller (KNA-RCDV331)
• Digital Clock (24H)
• ISO connector
• Built-in Bluetooth
• DAB Tuner Built-in
• Made for iPod
• Works with Apple CarPlay
• Works with Android Auto
• Android USB Mirroring
• Firmware upgreadable

Monitor Features

• Screen Type 6.8" Wide VGA
• Display Mode 4 Mode (Full/Zoom/Normal/Auto)
• Screen Adjustments Brightness / Tint / Color / Contrast
• Dimmer function Manual/Sync
• Dimmer Level
• Visual Source Mode Mirorring / CarPlay / Android Auto.
• Display Type Glare
• Display film Anti Fingerprint
• Display Panel Capacitive
• Mechanism type Fixed
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Menu text 14 languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Russian
  • Portuguese
  • Hebrew
  • Greek
  • Polish
  • Czech
  • Hungarian
• Software updates (SoC)
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type standard
• Background Customize 6 x presets + 2 x user set
• R-CAM interrupt
• R-CAM Parking Guide Lines

Tuner Features

• Station Select Manual / Preset (List)
• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM) 20 Presets (15FM / 15AM)
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Service list by alphabet order
• Preset list
• Alphabet Search
• DAB-RDS integrated TI
• Traffic Information
• DAB-DAB/DAB-FM auto switch
• DLS (Dynamic Label)
• PTY (Programme Type) search
• Announcement Switching (ASW) Select
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands Free Profile (HPF) V1.6
• Hands Free Profile with High Sound Quality HFP V1.6
• Audio Streaming (A2DP) (SBC/AAC)
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• Generic Access Profile (GAP)
• Service Discovery Profile (SDP)
• Audio/Video Remote Control Profile (AVRCP) V1.5
• Catchphone / Call Waiting
• Private mode
• Alphabet Search (Phonebook)
• Voice Control
• Noise Canceller
• Echo Canceller
• Signal strength display
• Remaining battery display
• Bluetooth Paring Indicator
• High-quality noise canceling microphone included
• Bluetooth firmware upgradeable Included in system updates

CE_Playable Audio File

• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB
• JPEG files are playable USB

USB Features

• USB terminal rear side / 1m cable / fix
• USB Type 2.0 High speed
• Works with Android Auto
• Works with Apple CarPlay
• USB Mirroring for Android install "Mirroring OA for KENWOOD" from Playstore
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

Audio Features

• Max. Output Power (MOSFET Power IC) 4 x 45W
• Pre-out 2 RCA : FRONT/REAR + SUB(mono)
• Pre-out Output Level 2V
• Volume Offset
• Balance/Fader Control
• Att.(-20dB) with smooth Volume Return
• Digital Sound Processor (DSP)
• Beep On/Off

Multimedia DSP Features

• Car type control
  • Off
  • Compact
  • Sedan
  • Wagon
  • Minivan
  • SUV
  • Passenger Van
• Speaker Size & Location Control
• X'over network    2-way X'over / HPF / LPF
• Listening postion control / Time Alignment
• Equalizer type Graphical
• Equalizer 13-Bands
• Equalizer presets / User set 7 presets / 4 User set
• Balance & Fader Control
• Source Volulme Offset  Source independent
  • Sound Effects
  • Bass Boost
  • Supreme
  • Loudness
  • Drive Equalizer
  • Stage EQ
  • Space Enhancer
• Audio Setup Memory

Video Features

• Audio Video Output Video only (RCA)
• Audio/Video Input AV-input or Camera input (Selectable)
• Video-In for Rear-view Camera 1 dedicated video input (RCA)
• Detection Mode Rear View Camera Reverse sensor wire
• Parking Guide Line

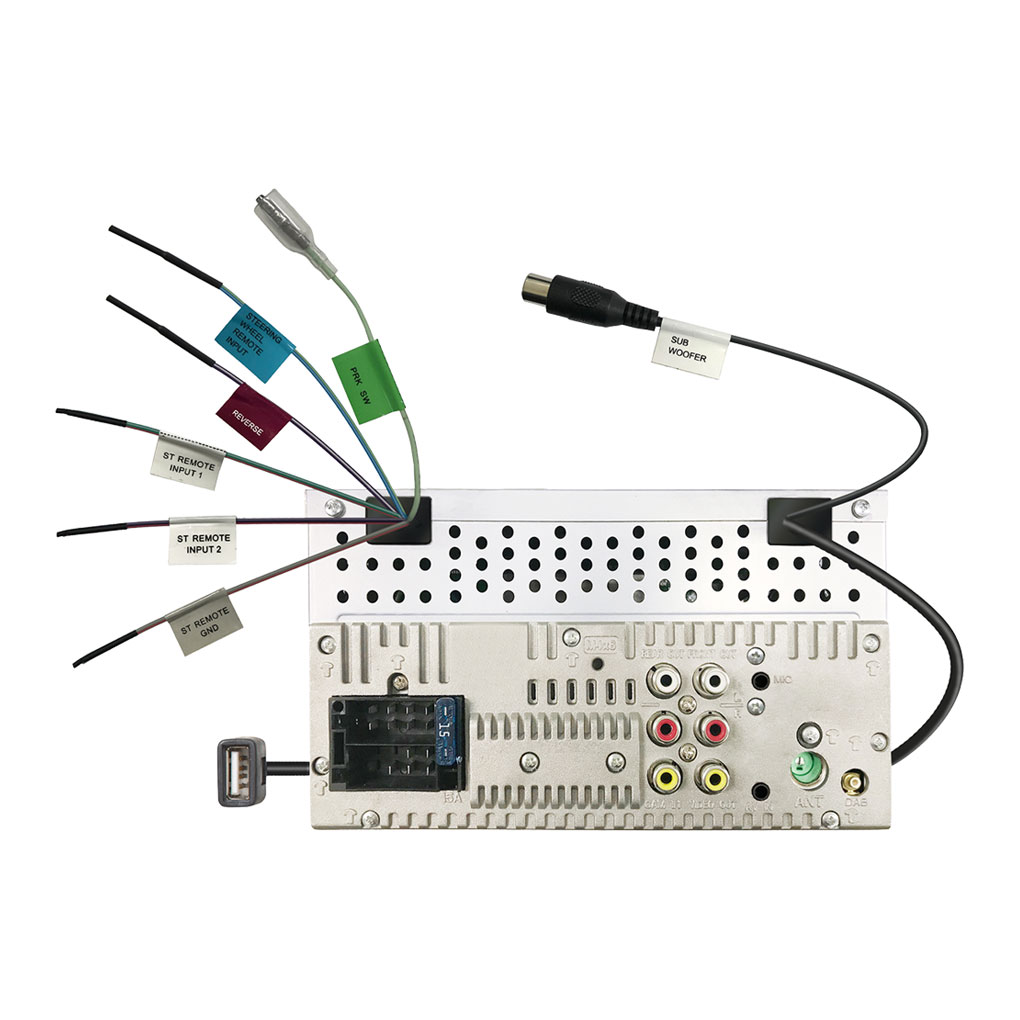

Connectivity

• OEM Wired Remote Control ready Optional interface needed
• Programmable OEM Steeringwheel Remote Function
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 2 x RCA (Front/rear) + Sub (mono)
• AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
• Video Out RCA x1
• Reverse sensor wire
• Rear View Camera Input Dedicated RCA Video-in
• FM Antenna Input JASO connector
• DAB Aerial input SMB
• External microphone input 3,5mm mini-jack
