KW-M875DBW

Digital Media Receiver featuring 6.8" Clear Resistive Touch Monitor / Wifi built-in / Wireless Apple CarPlay, Android Auto & Android Mirroring / DAB+ tuner / Hi-Res Audio / Bluetooth® / 13-band EQ / 4-Cam Input / Shallow Chassis.

Features

• 6.8" WVGA Clear Resistive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
• Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
• Supports Android Auto & Apple Car Play wirelessly and with a USB cable.
• Bluetooth(R) Wireless Technology (*Available functions depend on cell phone).
• Use your smartphone as a wireless remote control with the ‘JVC Remote S’ app
• Rear High Speed USB type-C port. Up to 3.0A Max Charge
• MP3 / WMA / AAC / WAV / FLAC music file playback.
• MPEG1 / MPEG2 / MPEG4 / H.264 / MKV video file playback
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 3 RCA line outs (5.0V) to upgrade your system with power amplifiers to create a more immersive audio experience.
• DAB/DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Supports Wireless Mirroring for Android including 2-way touch control capability.
• 1x AV input / 1x Video output / 3x Camera input.
• Short body (85mm) for easy installation
• Steering wheel remote control adapter input (Optional, car specific, interface required).
• Wireless IR remote controller ready

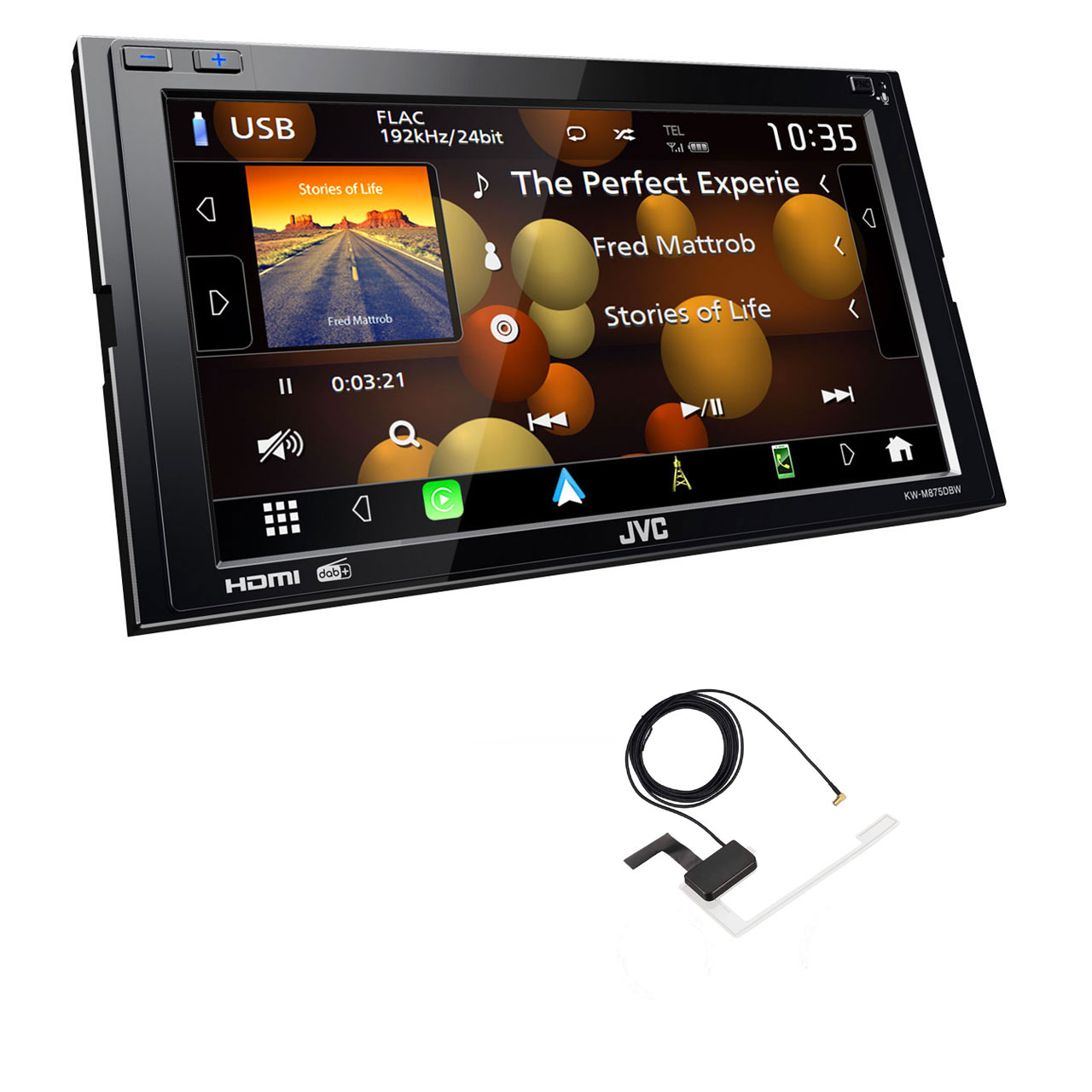

DAB AERIAL INCLUDED

Monitor

• Screen Size 6.8 inches (diagonal) wide
• Touch Control
• Panel Type Clear Resistive
• Number of Pixels 1,152,000 (800 x 480 x RGB)
• Key Illumination Colour Blue
• Dimmer Manual/Sync (Auto/On/Off)
• Customizable GUI
• Multilingual Display
• Live Wallpaper

Radio Tuner

• DAB+ Tuner
• DAB+ Frequency Band III 174928MHz to 239200MHz
• DAB-DAB / DAB-FM Auto Switch
• Seamless DAB-FM Blending
• FM Tuner
  • Radio Data System (RDS)
  • FM Frequency Range 87.5-108.0MHz
  • FM Usable Sensitivity 16,2 dBf
  • FM Stereo Separation 35 dB (1 kHz)
• AM Tuner
  • AM Frequency Range (MW)531-1,611kHz
  • AM Sensitivity (MW) 25uV, (LW) 45uV)
  • Preset Stations 30 (6ch x 5band)
  • Automatic Preset / SSM
  • Digital Processing Tuner

Media Playback

• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• AAC Compatible with Tag USB
• FLAC Compatible with Tag USB
• MPEG-1 / MPEG-2 Compatible USB
• MPEG-4 Compatible USB
• H.264 Compatible USB
• AVI/MKV Compatible USB
• JPEG File Playback USB
• BMP File Playback USB
• PNG File Playback USB

USB

• USB Port(s) x 1
• Location Rear
• USB Standard Type C
• 3.0A Max. Power Supply Current

Bluetooth®

• Built-In Bluetooth
• Bluetooth® Version 4.2
• Voice Dialing
• Hands Free Call (HFP) (HFP1.7 Wideband Speech)
• Advanced Audio Distribution Profile (A2DP)
• Phone Book Access Profile (PBAP)
• Alphabetical Search for Phone Book
• 2 Phones Full-Time Connection
• JVC Streaming DJ (Streaming DJ)
• Auto Pairing
• Wired Microphone included

Wi-Fi Control

• Built-in Wi-Fi
• IEEE Standard 802.11 a/b/g/n/ac
• Frequency Range Dual Band (2.4GHz/5GHz)

Android Control

• Android Auto
• *Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. The service may not be available in certain countries.
• Android Auto wired (via USB)
• Android Auto wireless
• Mirroring for Android
• Wireless mirroring
• Spotify Control (Android Auto / Mirroring)
• Android Music Playback (via Bluetooth(R))

iPod/iPhone Control

• CarPlay
• CarPlay wired
• CarPlay wireless
• iPod/iPhone Music Playback (via USB or Bluetooth(R))
• iPod/iPhone Mode (2-Way Control Mode)

App(s)

• JVC Portal APP
• App Store (Apple) https://apps.apple.com/us/app/jvc-portal-app/id1491902065
• Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.car_multimedia_app.jvc
• JVC Remote Control App
• App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
• Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink
• Spotify Smooth Control (via CarPlay)

Audio

• Maximum Power Output (Front & Rear) 45Wx4
• Full Bandwidth Power (at less than 1%THD) 16W x 4
• Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
• Output Frequency Band 20 - 20,000Hz
• High-Resolution Audio
• Equalizer Built-in
• 13-Band Graphic EQ
• Preset EQ (7Preset + 3user)
• Easy EQ Setting
• Volume Link EQ
• 3-Way X'over
• High-Pass Filter/Low-Pass Filter
• Time Alignment
• Space Enhancement
• Sound Response
• Sound Lift
• Bass Boost (Hyper Bass System)

Inputs and Outputs

• Auxiliary Input Level/Impedance 1.5V / 25k ohms
• Auxiliary (AUX) Max input level (mini jack) 1.0Vp-p / 75 ohms
• Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
• Pre-Output Level 5.0V / 10k ohms
• Pre-Out Level/Impedance 5.0V / 10k ohms
• Subwoofer Output with Level/Frequency Control
• Video Input Level/Impedance 1.0Vp-p/75 ohms
• AV Input RCA x 1
• Video Out RCA
• Colour System NTSC/PAL
• Video Output Level/Impedance 1.0Vp-p / 75 ohms
• HDMI Terminal (Rear)
• Rear view camera Input
• Front view camera Input
• 3rd Camera Input
• Convert AV-input to camera input

General

• Back Up Memory
• Installer Memory
• Speedpuls input
• GPS Antenna Input
• DAB Antenna Input
• Wireless Remote Control Ready (RM-RK258 required)
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote
• ISO Connector Cable
• Short Chassis
• Operation Voltage 12 VDC
• Installation Size (W x H x D) 178 x 100 x 85 mm
• Weight, inlcuding sleeve and escutcheon 1.5kg

Display

• Face Type Fixed
