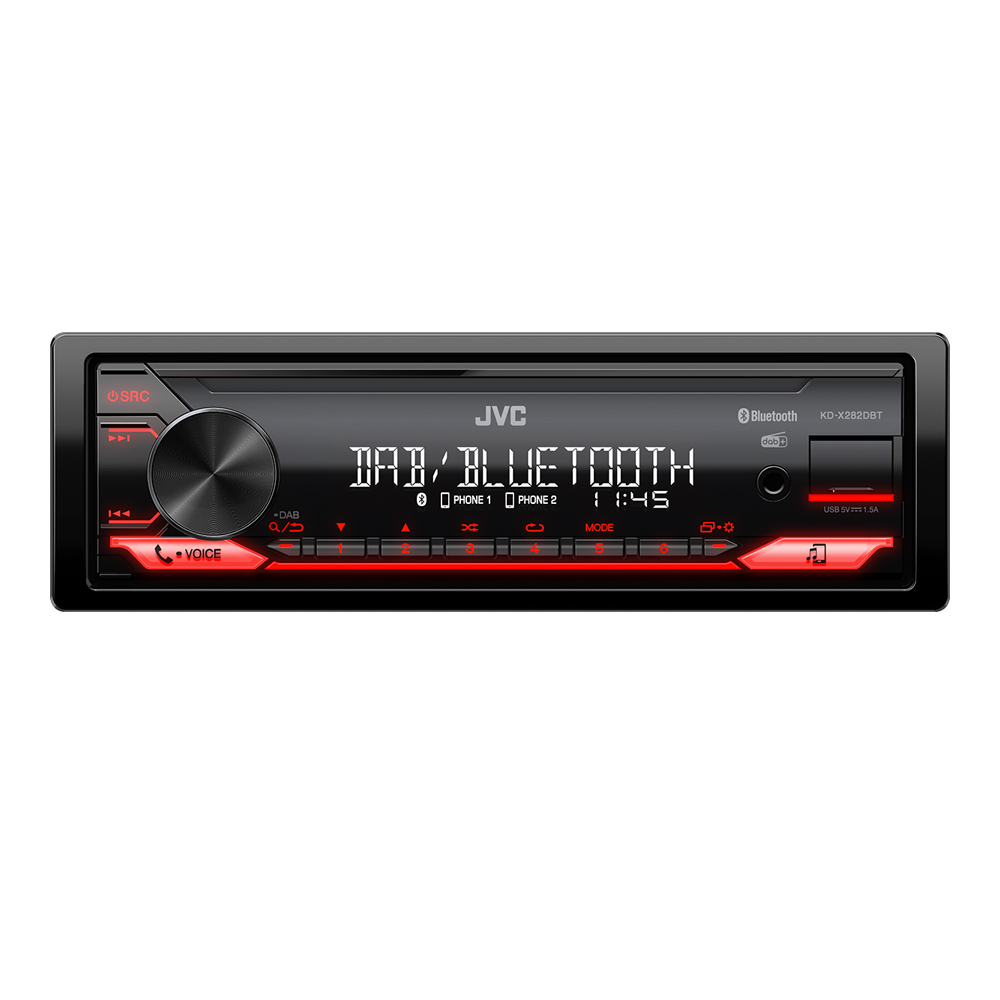

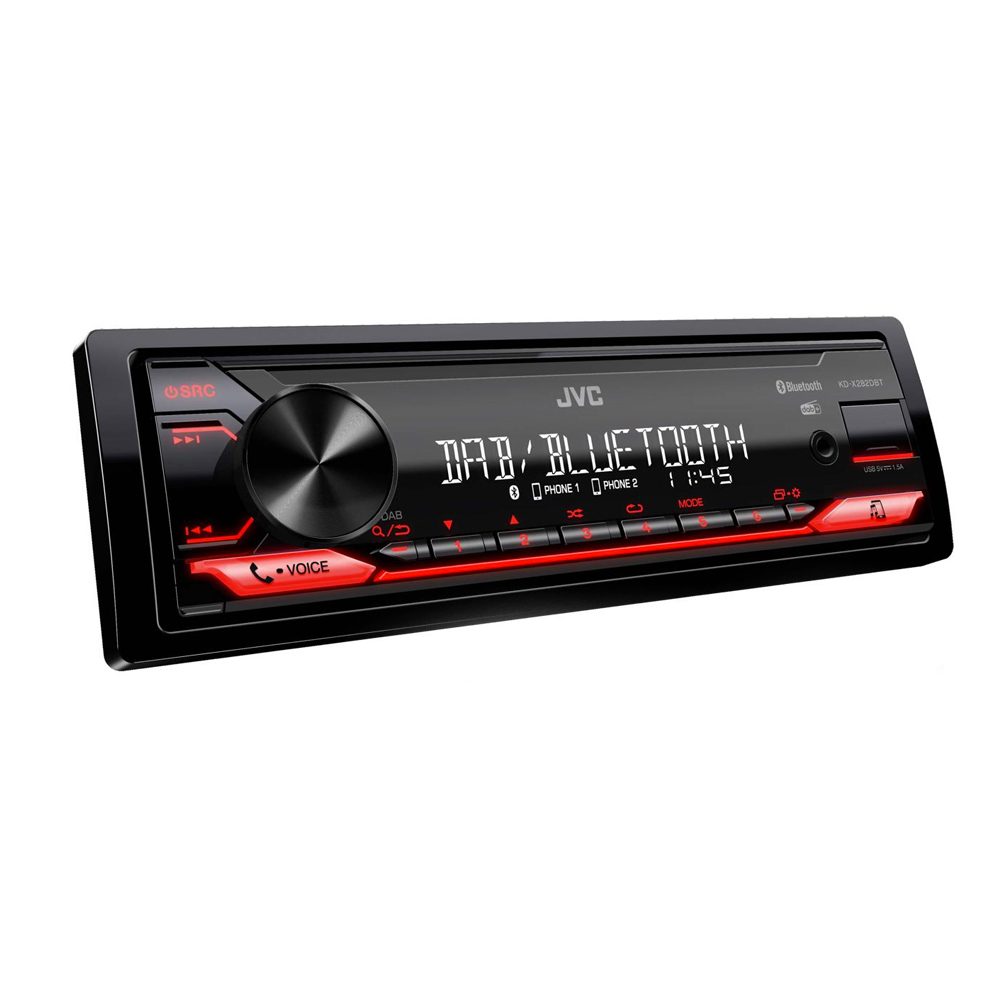

KD-X282DBT

Digital Media Receiver featuring Digital Radio DAB+ / Bluetooth® / DSP with DTA & 13-band EQ / JVC Remote App Compatibility.

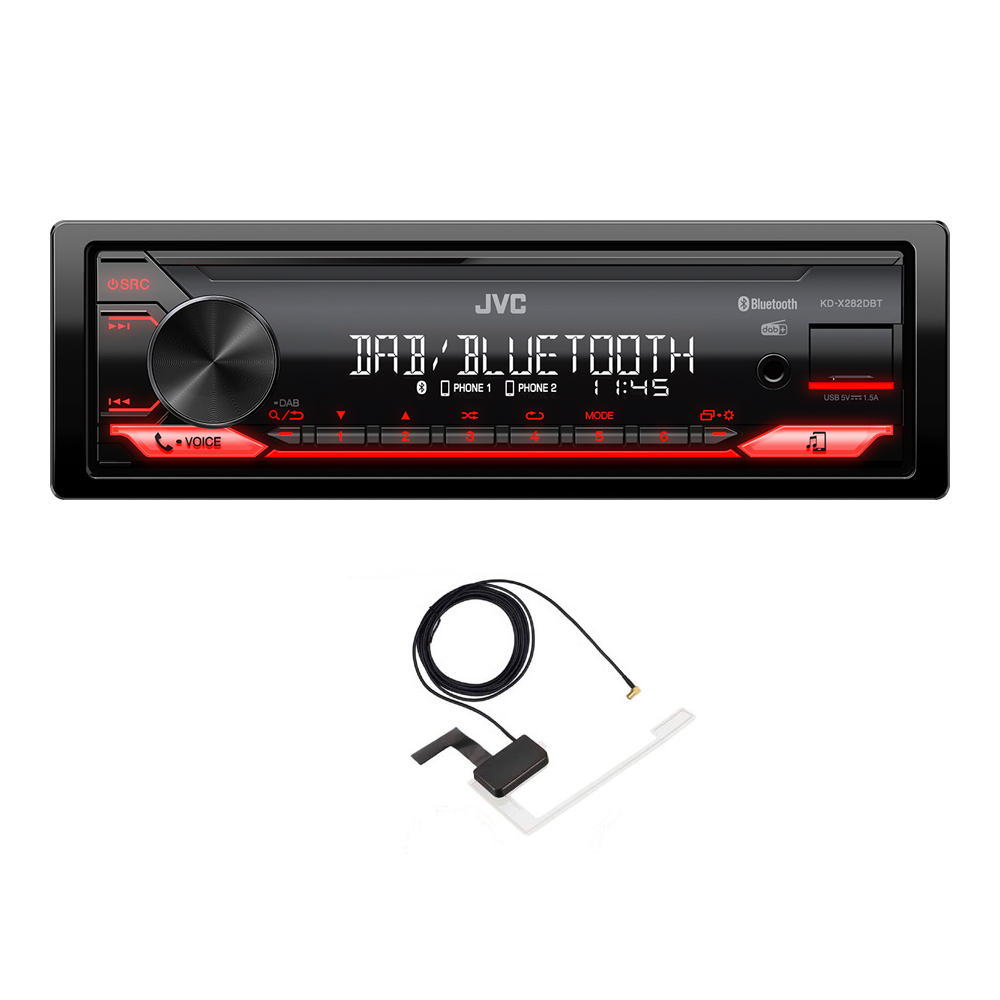

DAB AERIAL INCLUDED

Features

• Short body (100mm) for easy installation.
• DAB+ Digital radio, analog FM radio with RDS functionality and AM radio.
• Bluetooth technology for hands-free calls and music streaming.
• Bluetooth Phone Book Access Profile (PBAP)
• Bluetooth Voice Dialing (voice recognition compatible mobile phone required)
• Low Battery Information
• USB High Current 1.5A Charging
• Front AUX input & Illuminated USB with dust cover
• Use your smartphone like a wireless remote control with the JVC Remote app (IOS & Android).
• Enjoy audio streaming just by switching among 5 connected BT devices with JVC Streaming DJ.
• MP3 / WMA / WAV / FLAC music file playback.
• Wide 1 line LCD display with high contrast, wide viewing angle & white backlight
• Red key Illumination
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 1 RCA Line Output (Rear/Subwoofer Selectable)
• Menu language in English(default), Russian, Spanish or French.

DAB+ Tuner

DAB (Digital Audio Broadcasting) delivers crystal clear audio from your favourite FM stations as well as a broad range of digital-only stations ranging from news and talk, to classical and rock. Normally, DAB+ is delayed by a few seconds compared to the FM broadcast.

Enjoy both better quality and richer content with DAB+.

Bluetooth Wireless Technology

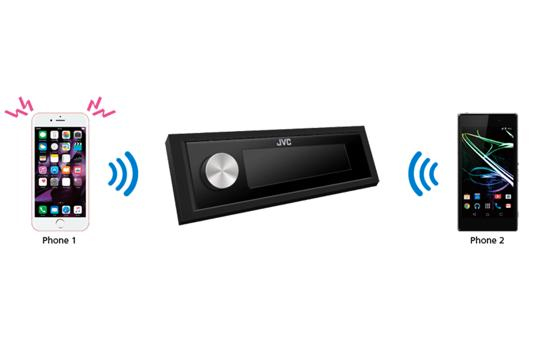

2 Phone Full-Time Connection:
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the head unit.

Bluetooth AVRCP for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose songs you want to hear from the folder name and song name lists.

Bluetooth Hands-Free Profile
HPF Wideband Speech is supported, so you can now enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.

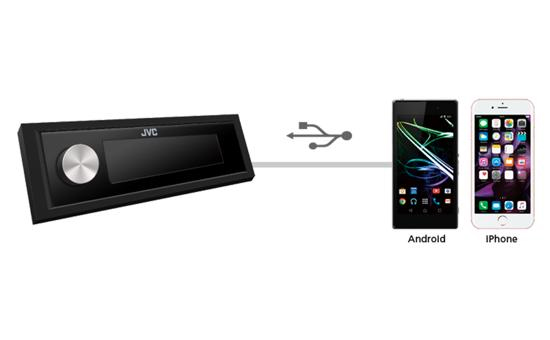

iPhone® / Android™ Bluetooth Automatic Pairing:
Just connect your iPhone or Android device* via USB and the automatic Bluetooth pairing function will work. No complicated manual procedure to worry about. (*JVC Music Play application is required)

Sound Optimization

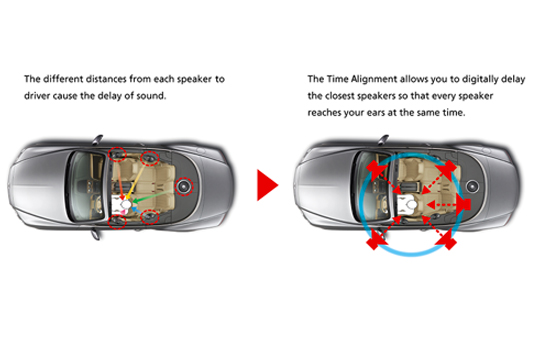

Time Alignment:
By selecting the speaker type and the distance to the centre of the listening position, the head unit will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

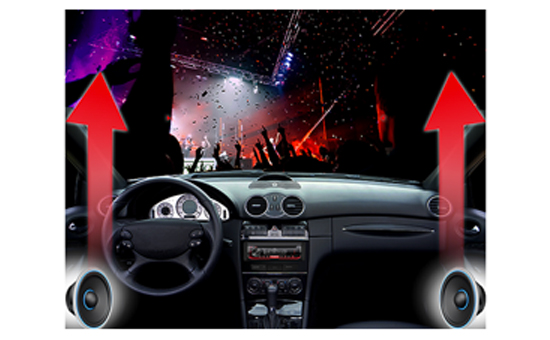

Sound Lift:
Virtually manipulate the height of the speakers by adjusting the sound frequencies.

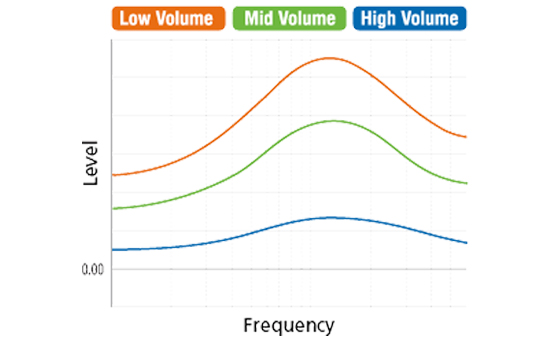

Volume Link EQ:
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Display

• Detachable Face Panel
• Display Type 1-Line VA LCD Display
• LCD Colour White
• Key Color Red
• Music Sync. Effect
• Auto Dimmer
• Brightness Control
• Russian Text Compatible
• Spanish Text Compatible
• French Text Compatible

Radio Tuner

• DAB+ Tuner
  • DAB+ Frequency Band III    174928MHz to 239200MHz
• FM Tuner
  • Radio Data System (RDS)
  • FM Frequency Range 87.5 - 108.0MHz
  • FM Usable Sensitivity 6.2dBf (0.56V/75 ohms)
  • FM Quieting Sensitivity (46dB) 1.58uV / 75 ohms
  • FM Stereo Separation 40dB
• LW Tuner
  • LW Frequency Range 153 - 279kHz
  • LW Sensitivity 45uV
• MW Tuner
  • MW Frequency Range
  • MW Sensitivity 28,5uV
• Preset Stations 18FM + 6AM + 18DAB
• Tuner Preset Memory
• Automatic Preset / SSM (FM only)
• Digital Processing Tuner

Media Playback

• Audio Decoder
  • MP3 Compatible with Tag USB
  • WMA Compatible with Tag USB
  • WAV Compatible with Tag USB
  • FLAC Compatible with Tag USB ( Up to 96kHz/24bit )

USB

• Position Front
• Drive Change Mode for Mass Storage Class
• Random / Repeat Play
• 1.5A Max. Power Supply Current

Bluetooth

• Built-In Bluetooth (Ver 4.2)
• Voice Dialing
• Remote Control Application JVC Remote App (IOS & Android)
• Hands Free Call (HFP 1.7 wideband speech)
• Advanced Audio Distribution Profile (A2DP)
• Audio/Video Remote Control Profile (AVRCP 1.6.1)
• Phone Book Access Profile (PBAP)
• Serial Port Profile (SPP)
• 2 Phones Full-Time Connection
• Audio Codec AAC / SBC
• JVC Streaming DJ with up to 5 Bluetooth devices
• Noise Canceller
• Echo Canceller
• Wired Microphone included
• Low Battery Information

App(s)

• JVC Remote Control App
• App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
• Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink

Audio

• Maximum Power Output (Front & Rear)
• Full Bandwidth Power (at less than 1%THD) 30W x 4 (PWR DIN45324, +B=14.4V)
• MOS-FET Amplifier
• Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
• K2 Technology
• 13-Band Graphic EQ
• Preset EQ (8-preset)
• Easy EQ Setting
• Volume Link EQ
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
• Time Alignment
• Space Enhancement
• Sound Response
• Sound Lift
• Digital Track Expander
• Loudness Control (Off/Low/High)
• Bass Boost (Hyper Bass System)

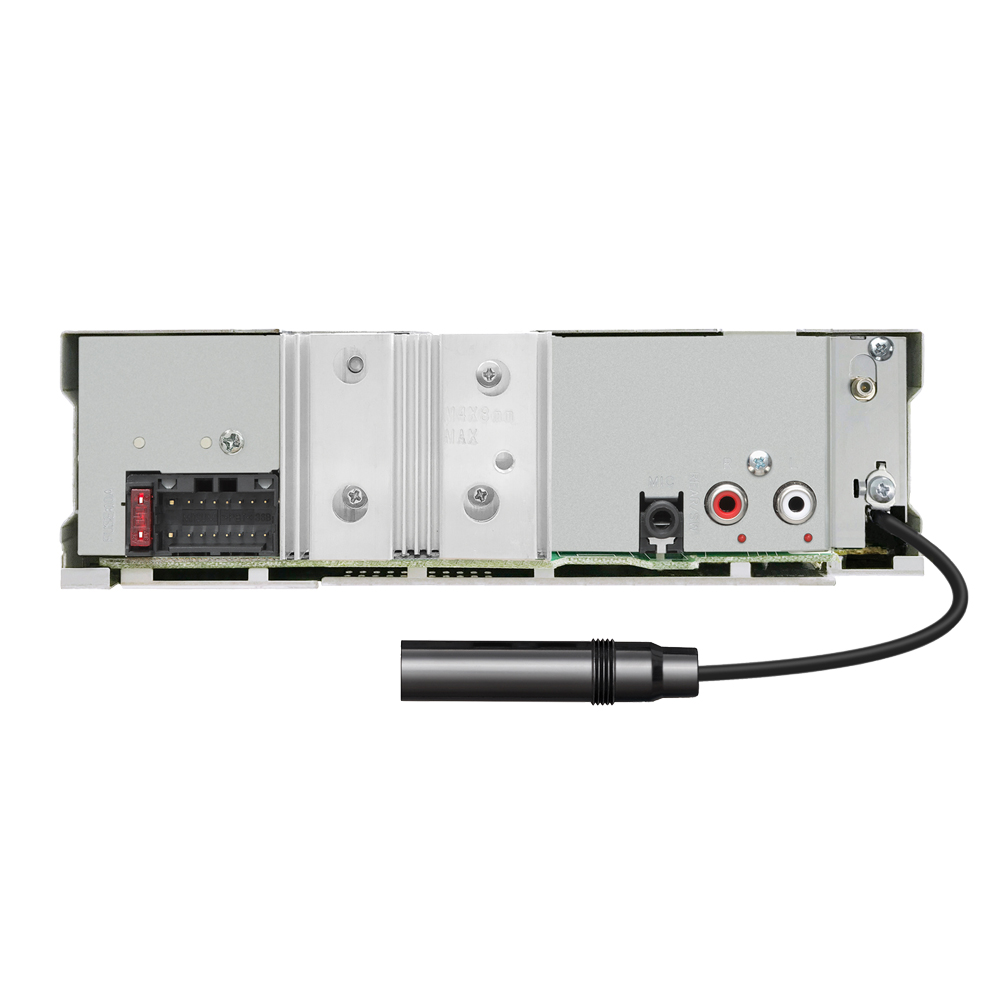

Inputs and Outputs

• Auxiliary (AUX) Input
• Pre-Out Terminals 1 Pair (Rear/Subwoofer Selectable)
• Pre-Output Level 2.5V
• Pre-Out Impedance Less than 600 ohms
• Subwoofer Output with Level/Frequency Control (Level -8 - +8)
• Subwoofer Output Level 2.5V

General

• Rotary Encoder
• Beep Tone Support (From Speakers)
• Back Up Memory
• Wired Steering Remote Control Ready
• ISO Connector Cable
• Short Chassis
• Dimensions (W x H x D) 182 x 53 x 100mm
• Weight 0.60kg

[1] Available functions depend on mobile phone.
[2] Voice recognition compatible mobile phone required
