XD200/2v2 2 2 Channel Car Amplifier

2-Channel Class D Full-Range Amplifier, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω - 14.4V

This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

The XD200/2v2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.

The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

General Specifications

• Frequency Response 12 Hz - 22 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω >150 / 50 Hz
• Damping Factor @ 2 Ω >75 / 50 Hz
• THD+N @ Rated Power <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min.Copper Power / Ground Wire Gauge 8 AWG wire
• Fuse Rating 20 A (AFS, AGU or MaxiFuse™)

Signal Processing

• Filter Mode(s) Low-Pass or High-Pass
• Filter Slope(s) 12 dB/octave
• Filter Frequency Range 50 Hz - 500 Hz
• Detented, Calibrated Filter Freq. Potentiometer
• Filter Defeat Function
• Remote Level Control Optional (HD-RLC)
• Security Cover for Controls
• Pass-Through Preamp Output Buffered

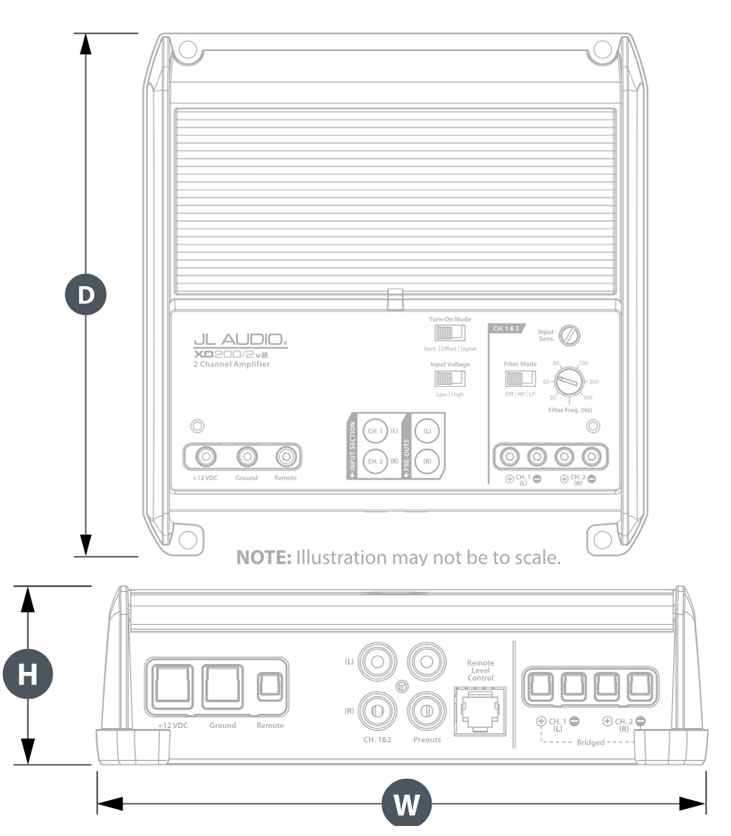

Physical Specifications

• Height (H) 2.05 in / 52 mm
• Width (W) 6.85 in / 174 mm
• Depth (D) 7.09 in / 180 mm
• Net Weight 3.75 lb / 1.70 kg

Rated Continuous (RMS) Power @ 14.4 V

• @ 4 Ω 75 W RMS x 2
• @ 2 Ω 100 W RMS x 2
• Bridged @ 4Ω 200 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

• @ 4 Ω 60 W RMS x 2
• @ 2 Ω 90 W RMS x 2
• Bridged @ 4Ω 180 W RMS x 1
