Complete stereo upgrade fitting kit to install a Double DIN head unit into various 2005 onwards Volkswagen car models.
This kit is suitable for VW car models with a single Fakra antenna connection on the back of the original radio

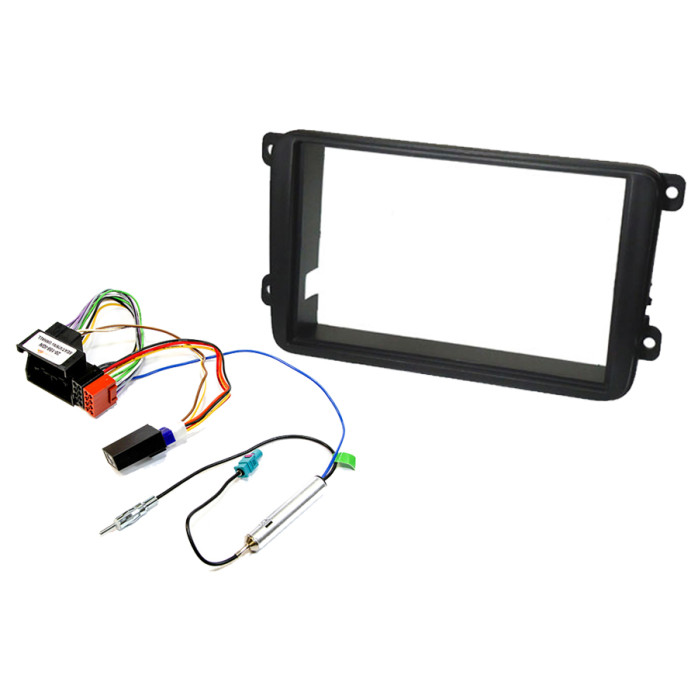

Package Includes

• Double DIN Facia Adaptor Panel
• Quadlock to ISO Cable with Built in CANBUS Interface
• Fakra Antenna adapter

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

The Fascia adapter panel takes a 113mm high cage, this is the size of cages supplied with all the major brand head unit manufactures. If a cage is needed, we sell a matching cage

Quadlock to ISO Radio Adaptor Harness, with CANBus Ignition

This interface generates a key present ignition supply so no extra ignition feed needs to be provided. The key present ignition feature will continue to give an ignition supply until the key is removed from the ignition barrel.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Phantom powered Fakra to DIN antenna adapter, this is prewired into the quadlock to ISO harness.

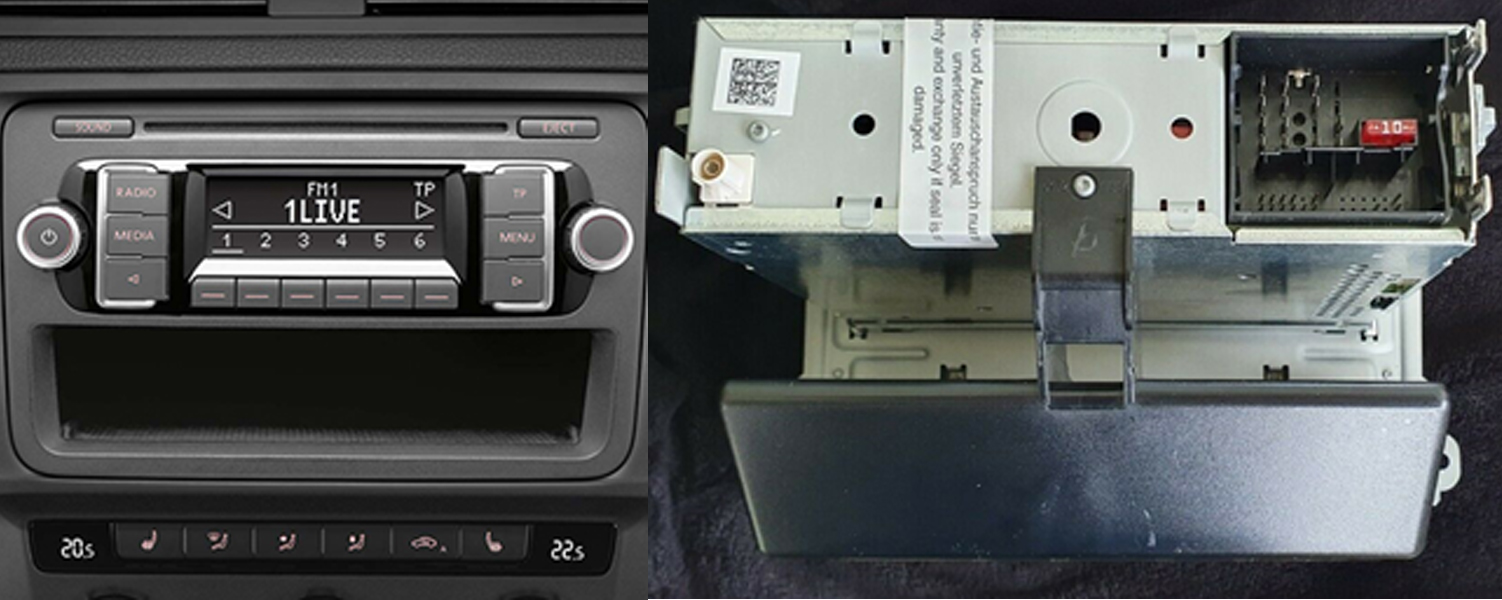

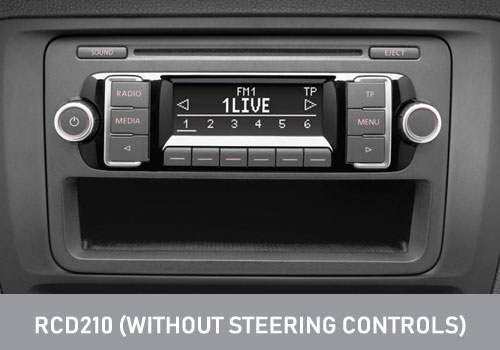

This fitting kit is compatible with Volkswagen vehicles fitting with OEM factory fitted RCD210 head units. These units were fitted in various VW car models and only have a single Fakra connection on the back. Please see pictures below.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.
• Branded units come with a mounting cage and in most cases fit depending on the car.
• If the one supplied with the stereo does not fit the fascia then you must purchase a universal version slightly smaller part number.
• China units in general never come with a mounting cage.  Click here for CT23UN01 UNIVERSAL Mounting Cage

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
