Complete stereo upgrade kit to install a Single/Double DIN aftermarket radio and retain the use of the steering wheel controls in Mazda MX-5 (2006-2009) car models.

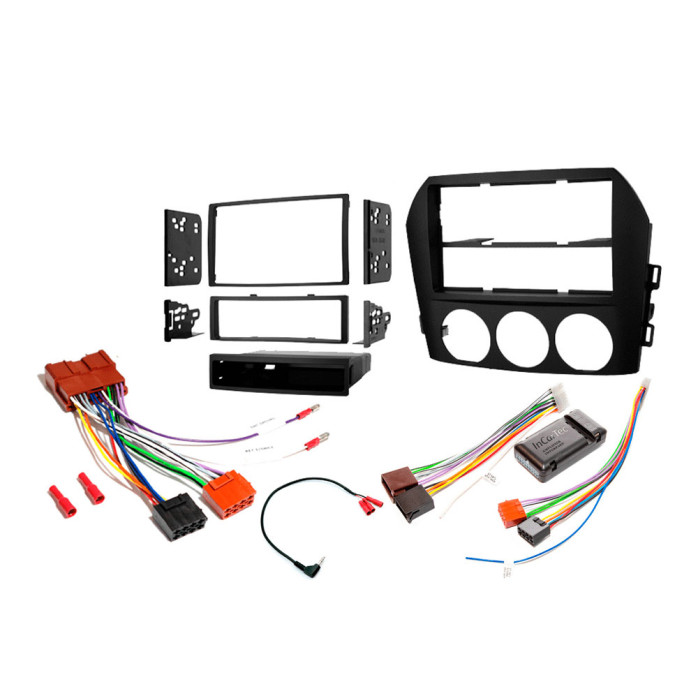

Package Includes

• Single/Double DIN Fascia
• Steering Control for Resistive Programmable Head-units
• ISO to ISO Amplifier Integration Interface
• 3.5mm Jack Resistive Programable Patch Lead (Included)

This kit is only suitable for aftermarket head-units with resistive programmable steering controls (KEY1, KEY2 or SWC1, SWC2) and 3.5mm jack.

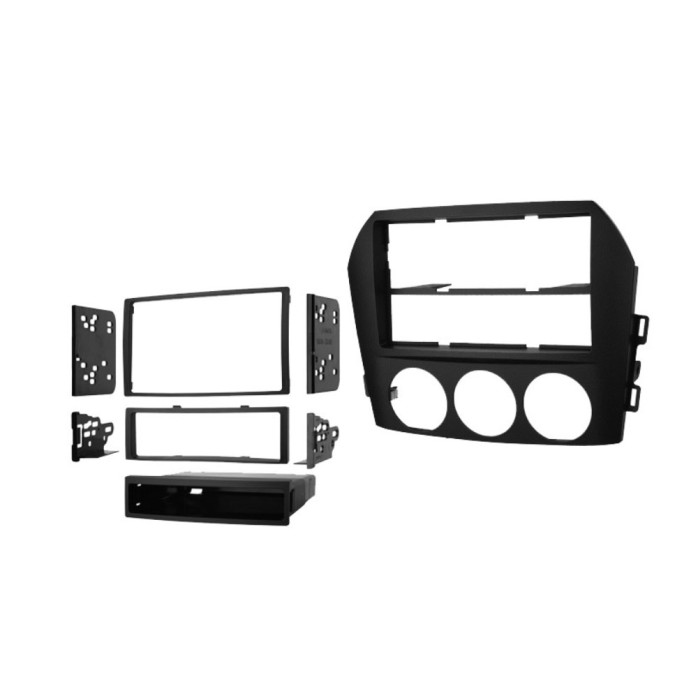

Fascia Adaptor

Car radio fascia adapter panel to allow the fitting of an aftermarket single or double din car radio upgrade.

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. Use the supplied pocket to fit a single din radio, or discard the pocket to fit a double din stereo.

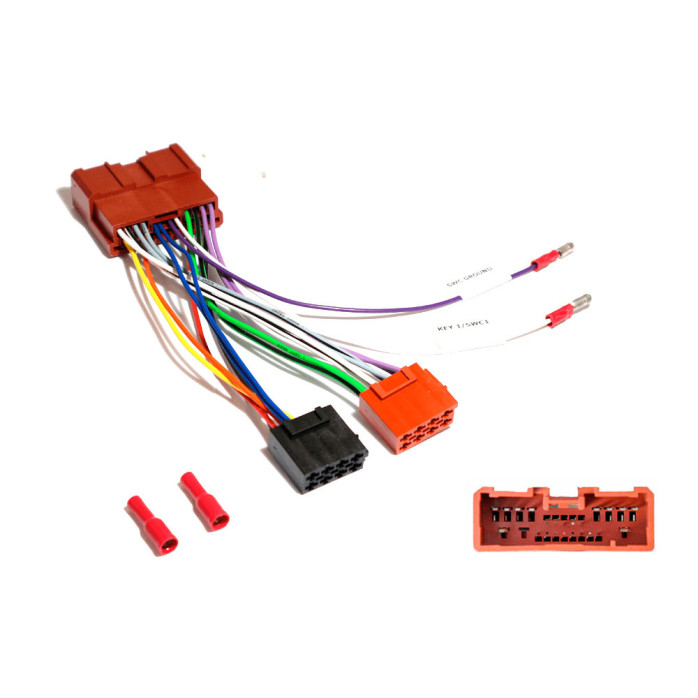

Steering Control for Resistive Programmable Head-units

This cable will retain the use of the steering wheel controls when fitting an aftermarket head-units with resistive programmable steering controls (KEY1, KEY2 or SWC1, SWC2) and 3.5mm jack.

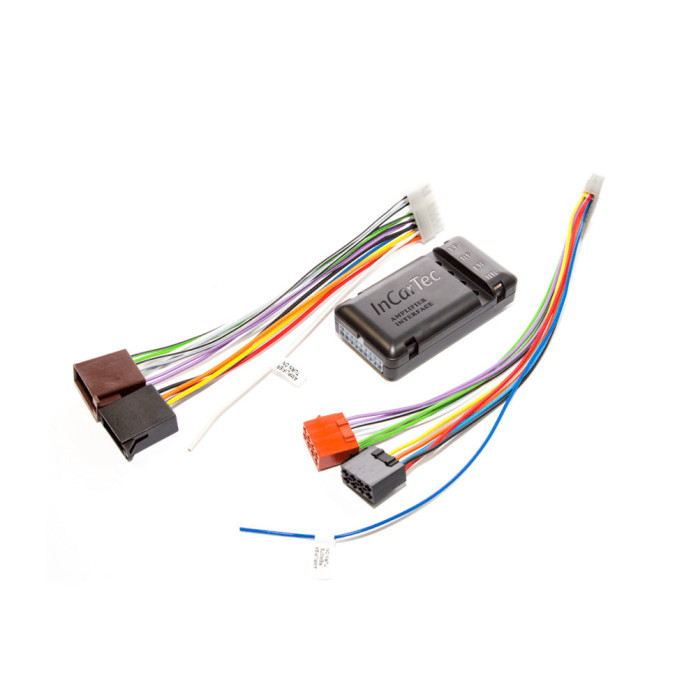

ISO to ISO Amplifier Integration Interface

This interface converts the high level audio output of a new head unit to a low level pre amplified signal which will work with an amplifier. 4 adjustable channels for optimum audio quality, it has a built in ground loop isolator and filters to get the best sound from the amplifier.

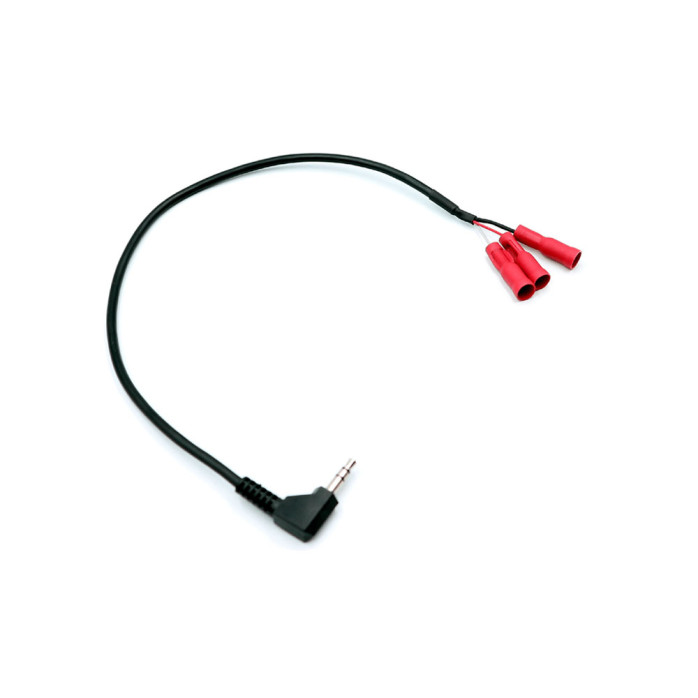

3.5mm Jack Resistive Programable Patch Lead

Patch lead for use with 20-XXX-SWC ISO steering wheel control cables to convert from 2 wire learning to 3.5mm jack.

Use with resistive programmable aftermarket units like Blaupunkt, Grundig or Road Angle. Also for some Kenwood, JVC and Sony units using their "CUSTOM" setting for steering control input by resistive programming.
This patch lead plugs into the 2 or 3 wire resistive programmable fly leads of the 20-XXX-SWC cable converts into the 3.5mm socket to then be plugged into the back of any head-unit that has self learning voltage steering control input.

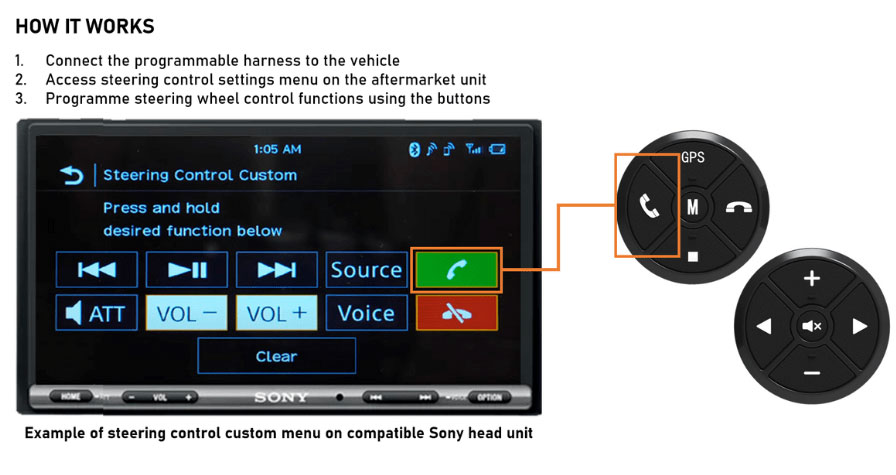

Is my aftermarket head unit capable of resistive programming?

Many Unbranded, Chinese and other aftermarket head units have the capability of being able to retain the vehicles original steering wheel control features via resistive programming. Our steering wheel control harnesses eradicate the need for a separate steering wheel control interface when fitting an aftermarket head unit with resistive programming features.

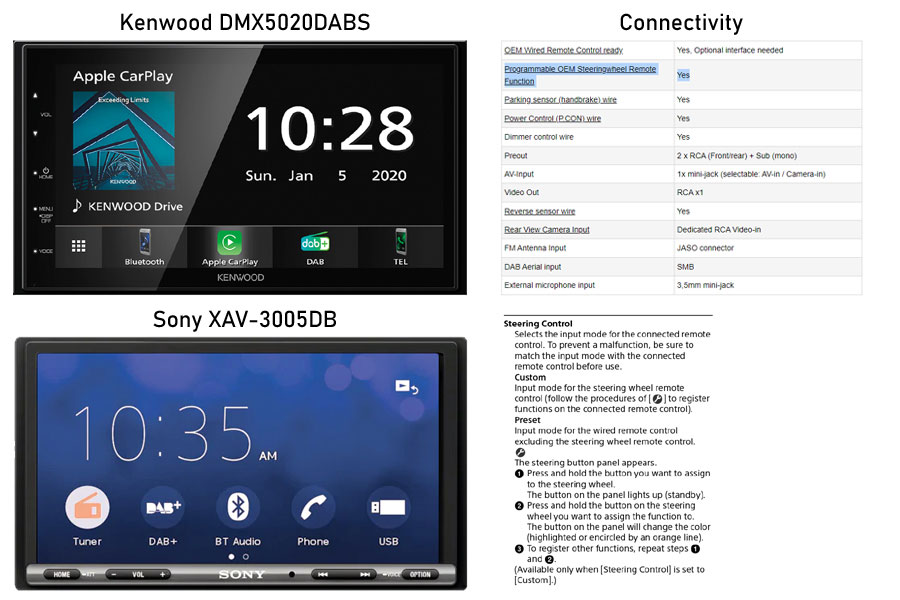

To identify whether the aftermarket head unit you are fitting has resistive programming visit the manufacturers website and look under the connectivity features for the head unit. Some manufacturers describe it differently to others. For example: Kenwood describe the DMX5020DABS model as having "Programmable OEM Steering wheel Remote Function"

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
