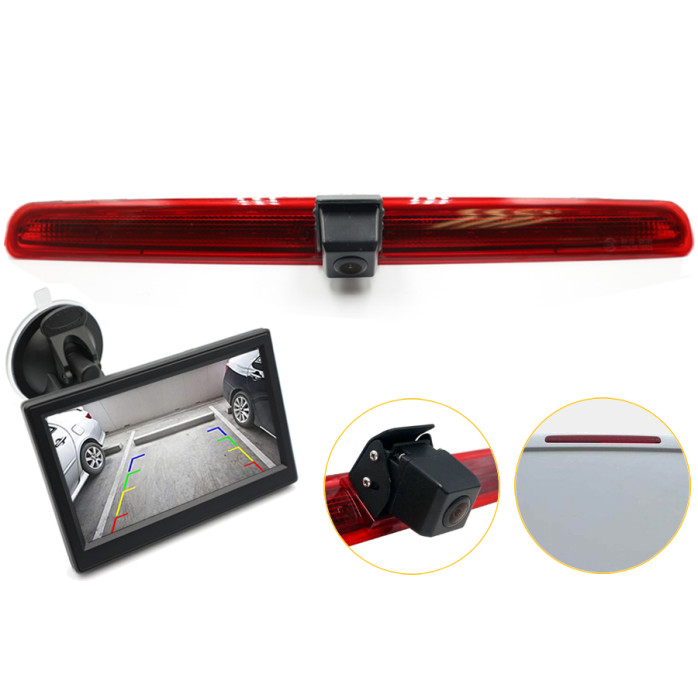

Reverse view high level brake light camera and video monitor kit specially designed for Volkswagen Transporter T5 (2003-2015) vehicle models with Tail Lift doors.

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

This kit comes complete with a 5 inch standalone windscreen video monitor, great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.

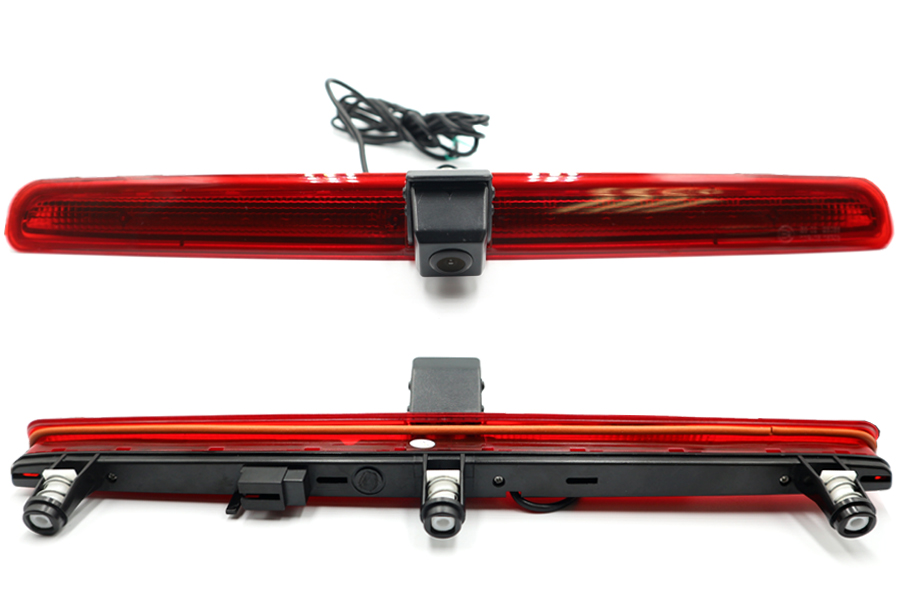

High level brake light camera (CVC-VW-004)

Special rear view camera specially designed for Volkswagen Transporter T5 (2003-2015) vehicle models with Tail Lift doors.

This camera secures into the third (high level) brake light housing on the back of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it’s original appearance.

Product Features

• 12v power.
• Colour Sony lens, NTSC version suitable for connecting to Mercedes original screen
• 150° Viewing Angle
• IP68 Waterproof

Camera includes a power cable and 10 meter video cable

This camera only fits vehicles with tailgates, for vehicles with barn doors please use part CVC-VW-003

PLEASE NOTE

• Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Different vehicle shapes may require different cameras. Please check that the image of the camera matches the existing brake light on the vehicle.

5 inch video monitor (M-S5.0)

• 5 inch standalone windscreen video monitor with suction mount bracket.
• These monitors are great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.
• Comes with a 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets.

Main Features

• High brightness/resolution digital 5" wide-screen LCD panel applied.
• Super slim design, easy to mount on top of dashboard or window glass.
• Dual video input, standard RCA connectors. Shielding cables used to avoid signal interference when both channels are connected to cameras or video.
• Adjustable suction mount bracket.
• Adjustable brightness and colour intensity.

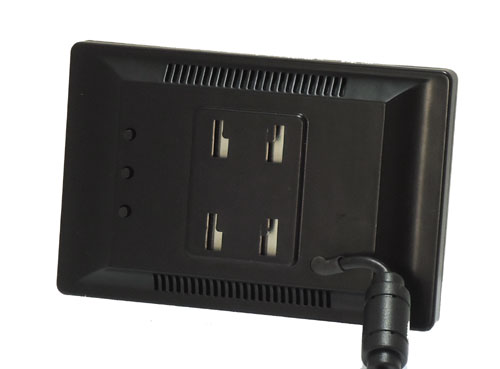

• Rear 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets. (see below picture)
• Guidelines only available when used with a camera with guidelines.

Specifications

• Screen type: TFT LCD
• Screen size: 5" color
• Resolution:480*RGB*272
• Brightness:400cd/m2
• Display format: 16:9
• Video input: 2-channel
• Voltage: 12V

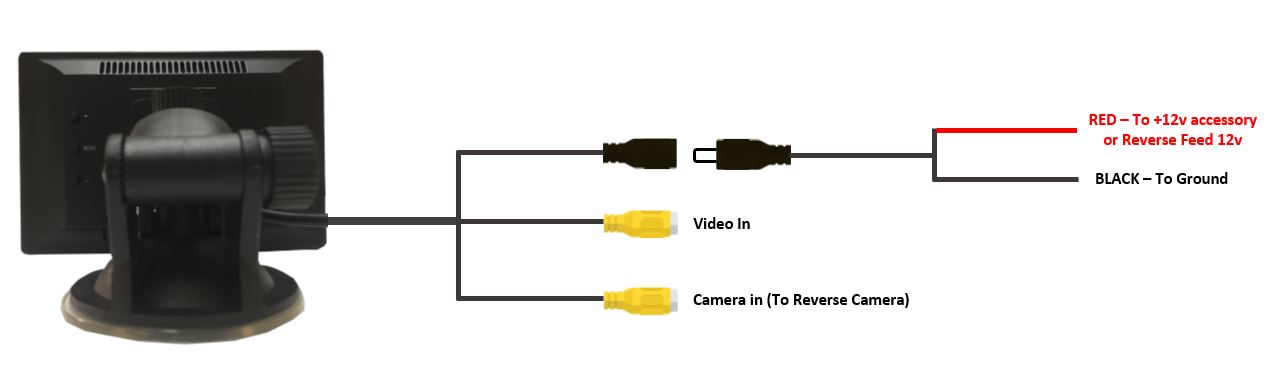

Installation

• Can be powered from a 12v ignition or reverse feed.
• Sometimes the reverse power feed from the reversing lights may not be strong enough to power the monitor. A separate power feed relay (10-641) may be required to give a better 12v power feed.
