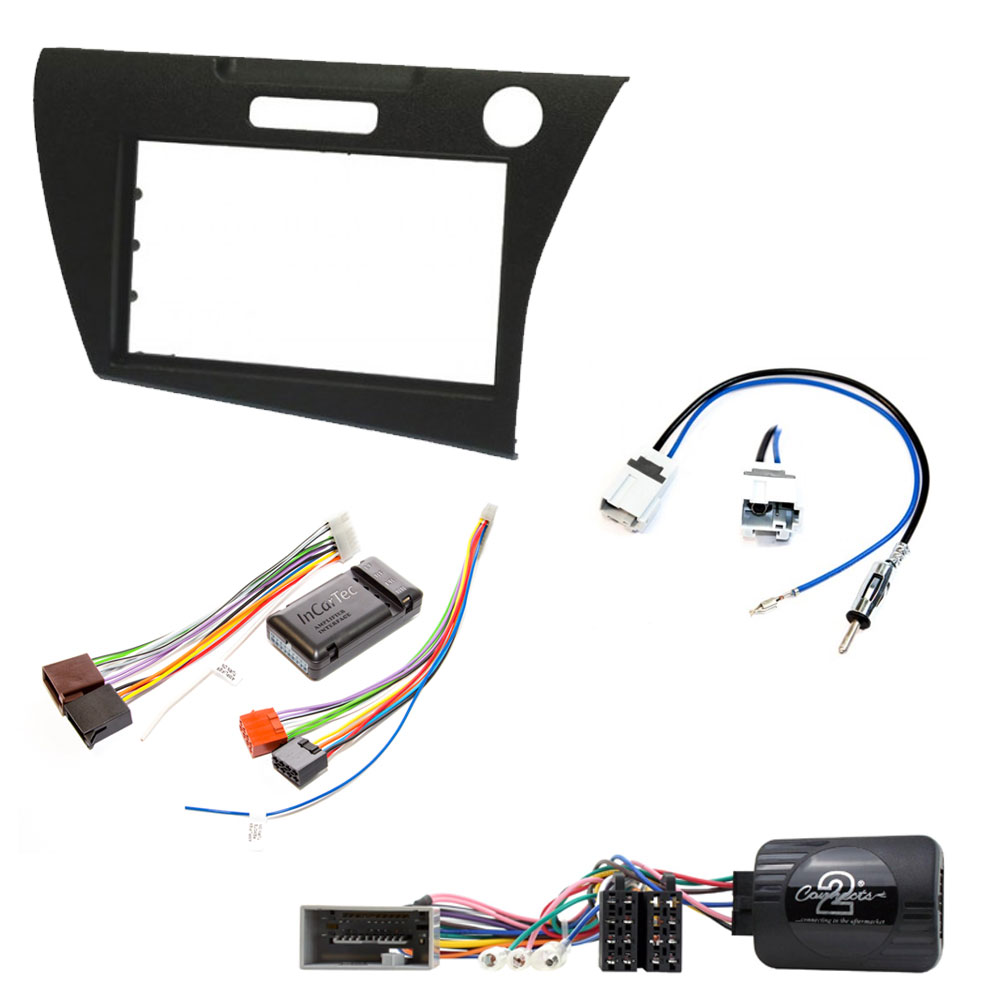

Car Audio Stereo Installation kit for installing a new after market Double Din headunit into your Honda. This is complete kit including Double Din Fascia , Steering Wheel Control Stalk Adaptor, Amplifier Integration Interface and Antenna Adaptor

Package Includes

• Double Din Fascia (Matt Black)
• Steering Wheel Control Stalk Adaptor
• Amplifier Integration Interface
• Antenna Adaptor
• Stereo Patch Lead (Free CTMULTILEAD.2 Included)

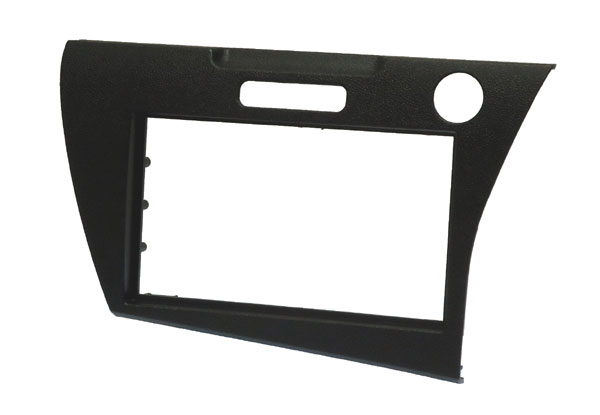

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

172mm x 98mm.size facia for  Honda CR-Z RIGHT HAND DRIVE enable you to change the original radio in the car to a double din aftermarket version

DIFFICULT TO FIT AS BRACKETS NEED TO BE MADE UP TO MOUNT HAZARD AND AIRBAG SWITCHES

Fascia comes with mounting brackets, no cage kit is required. use pocket 50-053  if you want to fit a single din in this car

The fascia has relocating holes for the hazard switch and CRZ logo. the fixings for these  need to be modified to allow fitting to the fascia.

cars with original premium sound amplifier not possible to do unless original radio is kept powered and hidden away.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit. Antenna Adaptors are available in both ISO and DIN versions. Antenna Aerial Adaptor, converts car specific antenna connector to a universal aftermarket connector.

This cable converts the cars existing aerial plug to an aftermarket DIN type used by most car radio manufacturers. car radio antenna adapter 12v power supply cable.

ISO to ISO Amplifier Integration Interface

4 channel adjustable ISO to ISO amplifier interface. Use to install a new radio in a car that has an original fit amplifier that takes a pre amplified audio feed.

This interface converts the high level audio output of a new head unit to a low level pre amplified signal which will work with an amplifier. 4 adjustable channels for optimum audio quality, it has a built in ground loop isolator and filters to get the best sound from the amplifier.

This lead has 8 way ISO connectors at both ends so if it is used on a car with different connectors then you need to use the car specific lead as well. This might be a steering control or a standard ISO audio cable.

Can be used with car specific ISO leads with OEM low level pre-amplifier signals from the original radio Active speakers 4 channel adjustable.

Always ensure that you connect the remote turn on wire from the new aftermarket radio to the Blue / white wire on this interface.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

CTMULTILEAD.2 Universal Patch Lead

Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

Compatible Aftermarket Headunits

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• Other Chinese SWC learning head units
• EONON
• JOYING
• XTRONS
• PUMPKIN

Important Patch Lead Notes

• You can simply cut the loops / wires to select which brand you are fitting. Supplied with instruction sheet
• This patch lead CANNOT be used for Blaupunkt / Parrot / Becker / JVC KW-AVX head units / Older Kenwood units with the DIN plug. For those models you need to purchase the lead from the add-on options.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
