Ford Transit Custom 2012-2021 Focal Component Front Door Speaker With Compact Under Seat Subwoofer Pack
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 10+ in stock
- Brand: Dynamic Sounds
- Model: 165AS + CT25FD14 + CT55-FD02 + BASSLINK MINI
- EAN: 7427307014050
- Warranty: 2 Years Warranty
Available Options
Description

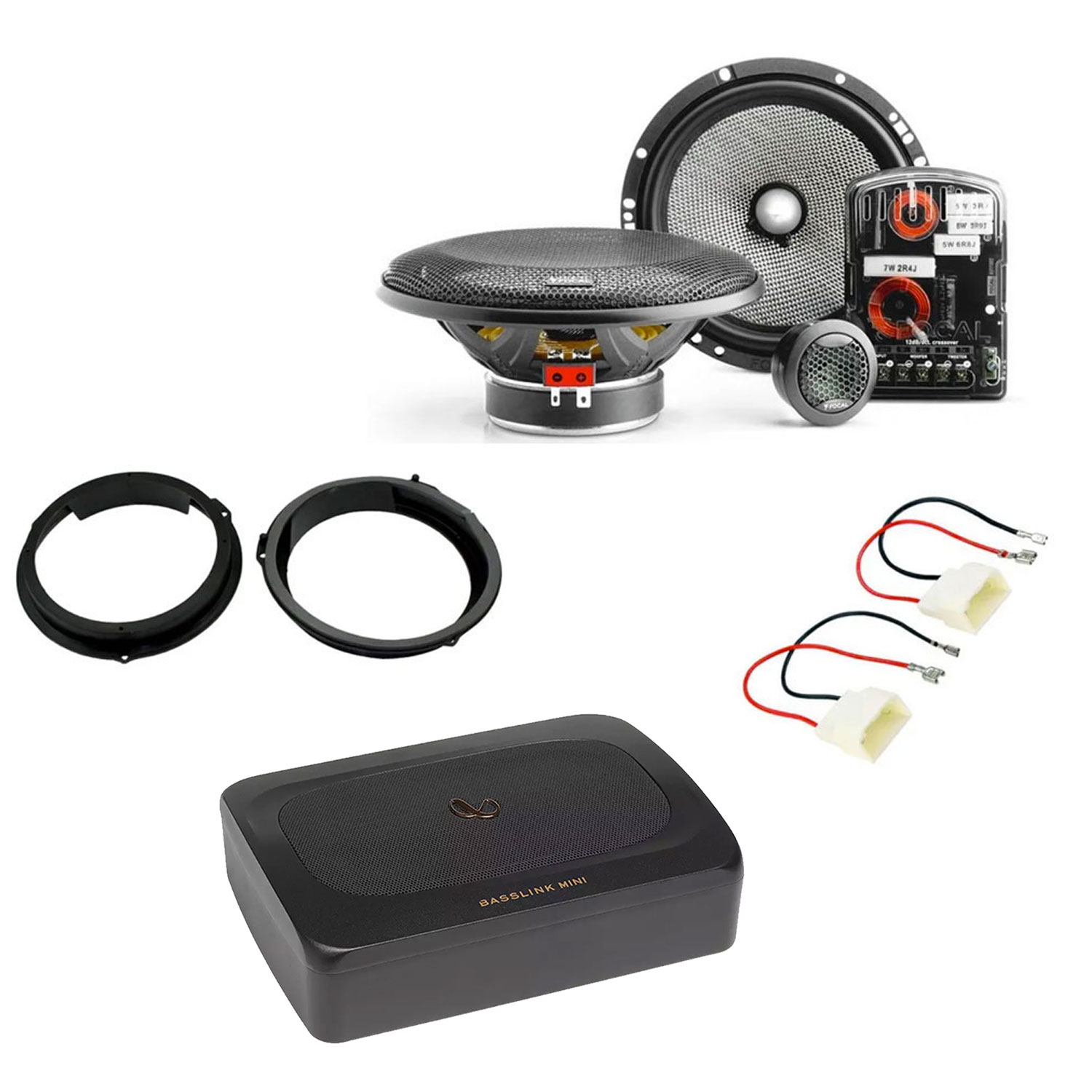

Package Includes
- Focal Access Series 2-Way 16.5cm 6.5" Component Car Speakers
- Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
| Ford | Transit Custom | 2012 - 2021 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
Discover New Musical Sensations
With Focal's Access 165 AS, you can discover new musical sensations. Become part of the world of performance with a kit that offers multiple configuration possibilities to enhance your audio installation. This range's reference model is a best-seller with a worldwide reputation.
Cutting-Edge Technologies and Innovative Materials
DFS ® cone, aluminium inverted dome tweeter; Focal's engineers have paid special attention to every detail to bring you a truly satisfying listening experience without breaking the bank. By using cutting-edge technologies and innovative materials, Focal has reached its objective... Listen to the result!
What Makes It Special
- DFS® cone (Dual Fiberglass Structure)
- High sensitivity (direct connection to car stereo)
- High power handling, great bass
Accessories
- Grilles included
Techinal Specifications
- Woofer: 61/2" (165mm)
- Voice-coil diameter: 1" (25mm)
- Voice-coil height: 07/16" (11mm)
- Magnet: 31/3" (85mm)
- Tweeter: Aluminum inverted dome
- Ajustable Tweeter level: 3 positions (-3/0/+3dB)
- Crossover: 12dB/oct
- Max. power: 120 Watts
- Nom. power: 60 Watts RMS
- Sensitivity (2.83V/1m): 91.3dB
- Frequency response: 60Hz – 20kHz
- Accessories: Supplied grilles
BASSLINK MINI Compact Under Seat Powered Subwoofer System
Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.
Features
Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.
Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.
Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.
General Specifications
- Driver Complement 6"x8"(152mmx203mm) Subwoofer
- Amplifier Power 100Wrms; 200W Max
- Frequency Response 30Hz – 150Hz
- Fuse 15A
- Maximum Current Draw 13 A
- Quiescent Current Draw <600 mA
- Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
- Crossover Frequency 50 Hz – 150 Hz
- Crossover Slope 12 dB/octave
- Bass Boost 0dB to + 12dB @ 50Hz
- Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
- Weight 8.22 lbs (3.73kg)
In The Box
- 1 x Under seat subwoofer
- 4 x Screws
- 4 x Small metal plate
- 1 x Wiring harness
- 1 x Bass volume remote control (with cable)
- 1 x 15A Fuse
