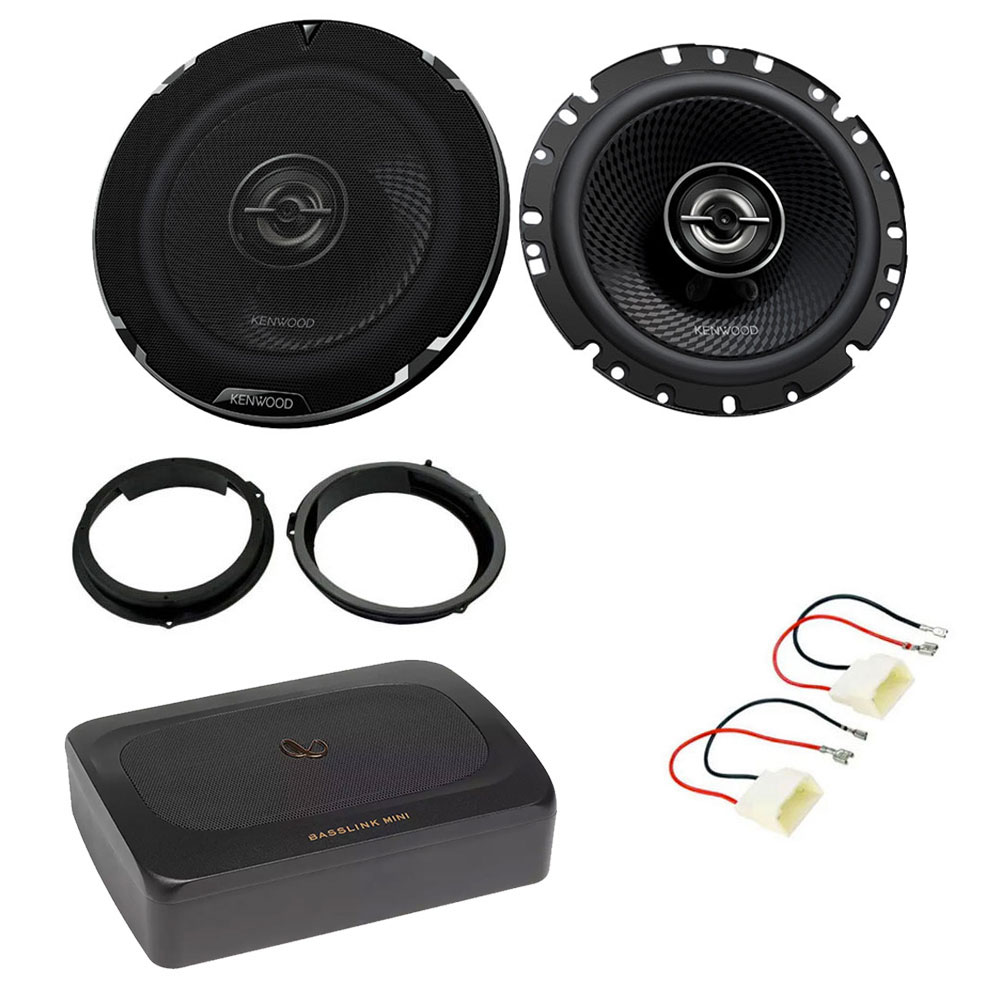

Package Includes

• Kenwood KFC-PS1797 PS Series 6.5" (17cm) 2-Way Coaxial Car Speakers
• Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
• 165mm Front Door Speaker Adaptor
• Speaker Adaptor Plugs

Kenwood KFC-PS1797 Performance Standard Series Speaker System

17cm, 2-Way Performance Standard Speaker System. Features 350W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.

Key Features

• 17cm 2-Way Performance Standard Speaker System
• Woofer cone with Diamond Array Pattern Sound Tune Up Technology
• Black Coloured Elegant Design with Silver Accents
• Acoustic Sound Harmonizer Technology
• Sound Field Enhancer Technology
• 30mm Balanced Dome Tweeter with Neodymium Magnet
• 350W Peak Input Power / 100W RMS Input Power
• Low Tweeter Height Design for Shallow Install Space
• Grille assembly included

Speaker Features

• Speaker System 2-way 2-speaker
• Speaker Type Coaxial
• Diamond Array Pattern Woofer Cone
• Sound Field Enhancer
• Acoustic Sound Harmonizer
• Black-painted Woofer Yoke Plate
• Factory Location Fit

Speaker/woofer Specifications

• Peak Input Power 350W
• Rated Input Power 100W
• Woofer Cone material Black Polypropylene (PP) Cone
• Woofer cone dimensions 170mm Ø
• Speaker Basket Steel (Black painted)
• Magnet type Ferrit (Ø85 x t12)
• Speaker Surround Rubber
• Sensitivity 88dB/W/m
• Frequency Response 73Hz ~ 18000Hz
• Speaker Impedance  4Ω
• Dimensions with Grill (WxHxD) 179 x 179 x 66.2mm
• Dimensions w/o Grill (WxHxD) 165 x 165 x 54mm
• Mouting Hole Diameter Ø 139.6mm
• Mounting Depth 48mm
• Tweeter Height 6mm

Tweeter Specifications

• Cone Size 30mm
• Cone Material Silver Balanced Dome
• Magnet Type Neodymium

Accessories

• Screws (Parker-type) Ø 4 x 25mm, 8 pieces
• Speed nut φ 4, 8 pieces
• Adhesive tape pad 1 piece(s)
• Grille assembly included
• Speaker cable 0.5m

BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Features

Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
• Weight 8.22 lbs (3.73kg)

In The Box

• 1 x Under seat subwoofer
• 4 x Screws
• 4 x Small metal plate
• 1 x Wiring harness
• 1 x Bass volume remote control (with cable)
• 1 x 15A Fuse
