Ford KA 2009 - 2016 Pioneer Front and Rear Door Speaker Upgrade Kit
- Stock Status: Out Of Stock
- Item Condition : New
- Available QTY : 0
- Brand: Pioneer
- Model: TS-G1720F + TS-G1020F + CT25FD12 + CT25FD13 + CT55-VX01 x 2
- EAN: 7427282730594
- Warranty: 2 Years Warranty
Description
Product Compatibility Chart
Make | Model | Years | Notes |
Ford | Ka | 2009 - 2016 |
This Kits Fits Front Door & Rear Door
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.

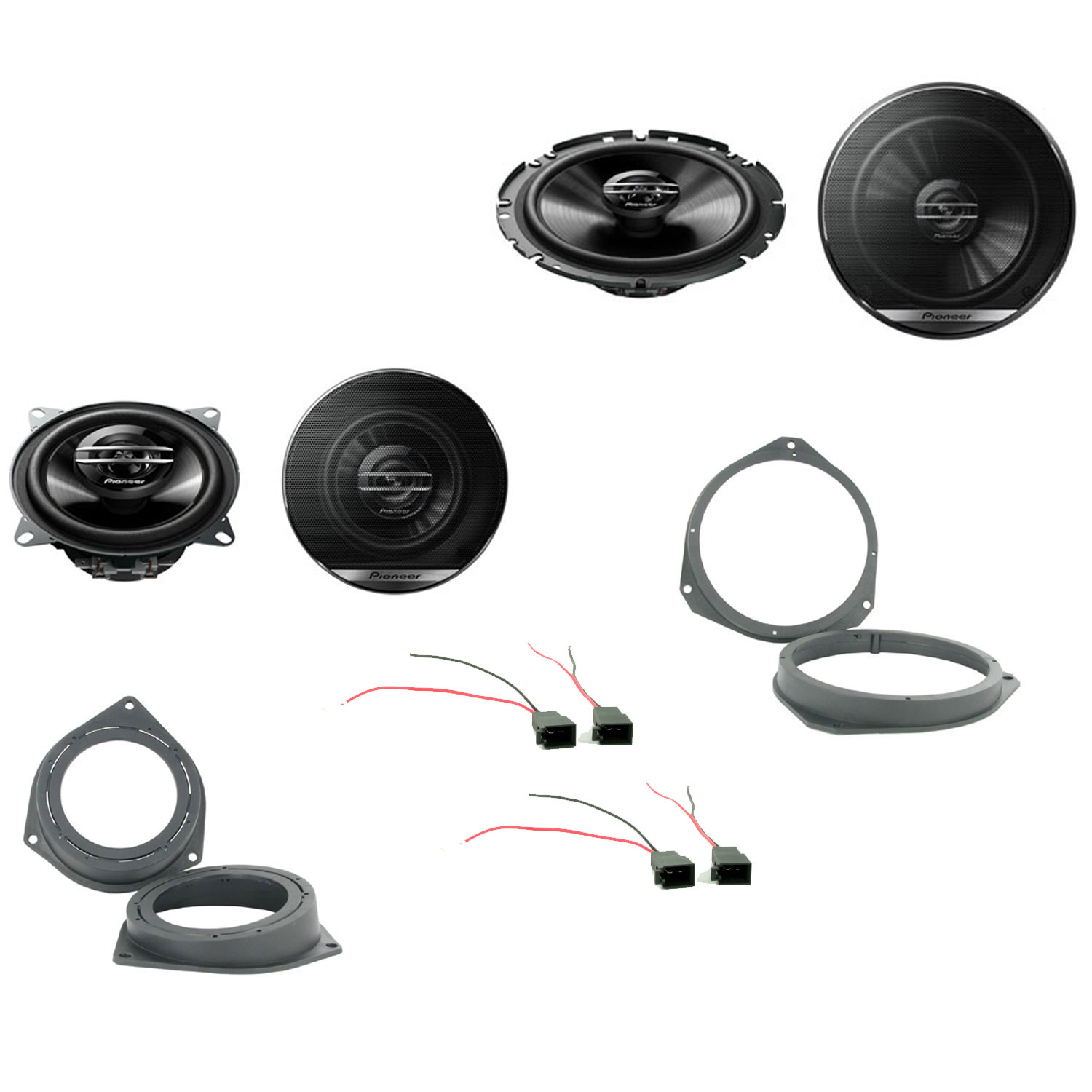

Package Includes
- Pioneer 6.3/4 inch 17cm 2-Way Coaxial Speaker
- Pioneer 10cm 4" 2-Way Coaxial Car Speakers
- 165mm 17cm Front Door Speaker Adaptor
- 100mm and 130mm Round Rear Door Speaker Adaptor
- 2 x Speaker Adaptor Plugs
Pioneer G-series 17cm 6.3/4 inch 2-Way 300W Coaxial Car Speakers
For better-sounding drives.
Discover the renewed G-series
The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.
Upgrade your in-car sound in a smart and affordable way with the TS-G1720F. This 17cm 2-way coaxial speaker delivers up to 40 Watts of nominal power and has a maximum power output of 300 Watts. It also features:
IMPP Cone
Enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Main Features
- Weight 0.59 kg
- Coaxial Speakers
- Cut-out Hole 144 mm
- Size 17 cm
- Mounting Depth 49.7 mm
- Impedance 4 Ω
- Frequency response 36 - 18 000 Hz
- 2 Way
- Sensitivity 90 dB
- Lowest resonance frequency 81 Hz
- Maximum power input 300 W
- Nominal input power 40 W
- Woofer material IMPP Composite Cone
- Midrange size 30 mm
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Magnets Y35
For better-sounding drives.
Discover the renewed G-series
The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.

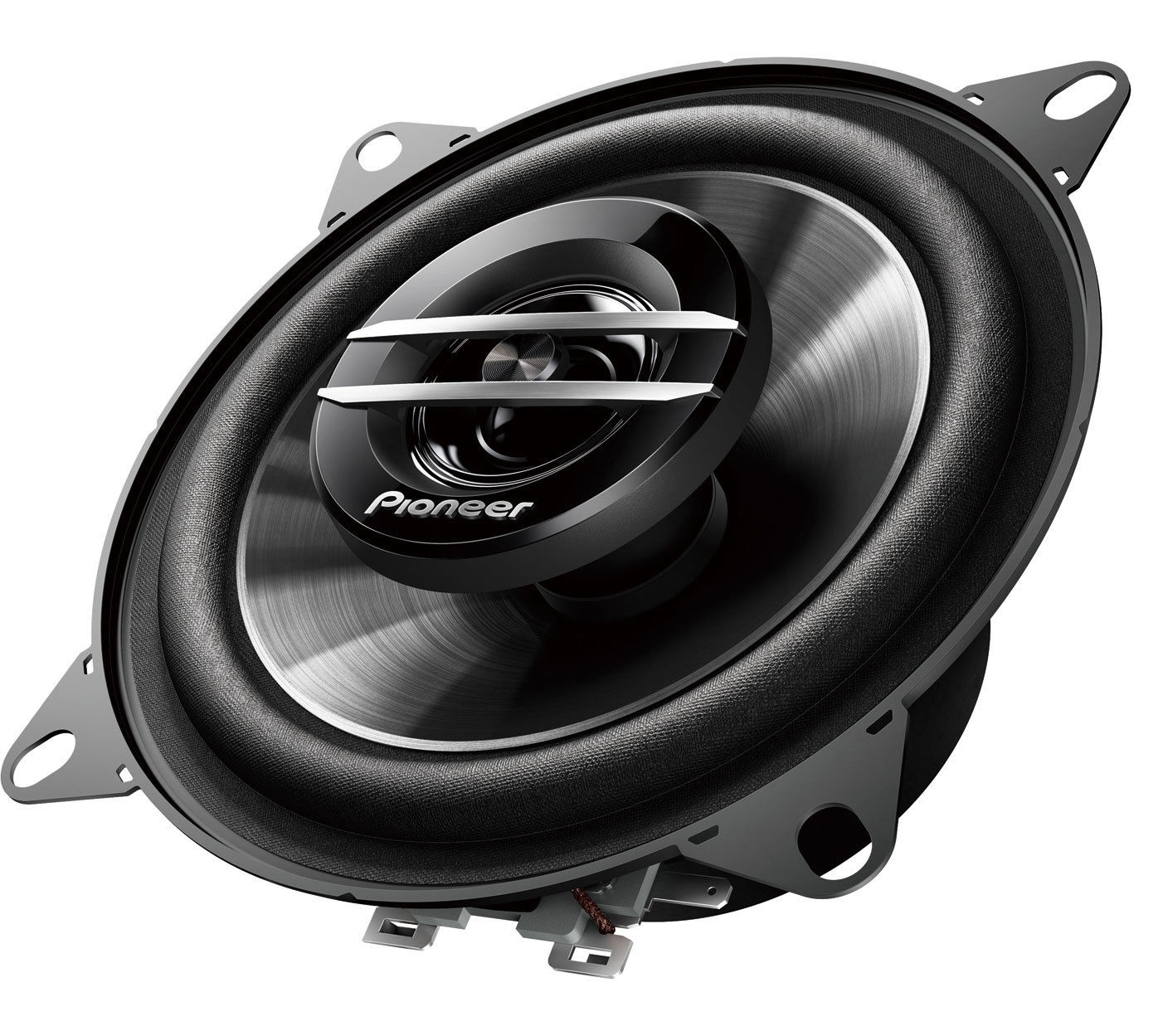

TS-G1020F
Upgrade your in-car sound in a smart and affordable way with the TS-G1020F. This 10cm 2-way coaxial speaker delivers up to 30 Watts of nominal power and has a maximum power output of 210 Watts. It also features:
IMPP Cone
Enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Main Features
- Sensitivity 87 dB
- Lowest resonance frequency 113 Hz
- 2 Way
- Maximum power input 210 W
- Nominal input power 30 W
- Woofer material IMPP Composite Cone
- Tweeter size 30 mm
- Tweeter material PET
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Magnets Y35
- Coaxial Speakers
- Size 10 cm
- Weight 0.35 kg
- Impedance 4 Ω
- Cut-out Hole 106 mm
- Frequency response 35 - 27,000 Hz
- Mounting Depth 43 mm
