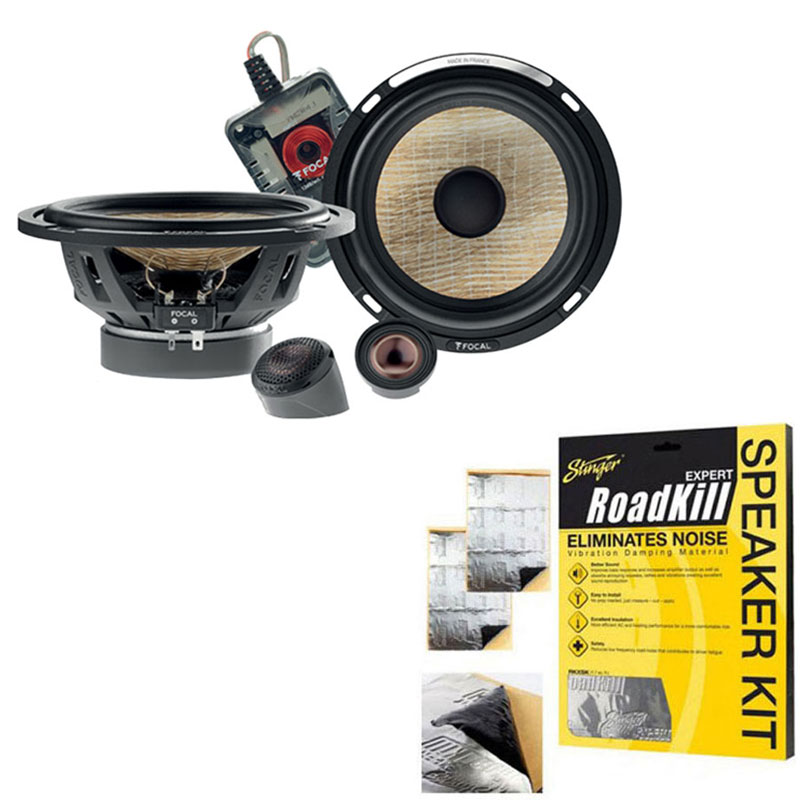

Package Inlcudes

• Focal PS165FE 6.5" 16.5cm 2-Way Component Car Speakers Kit
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

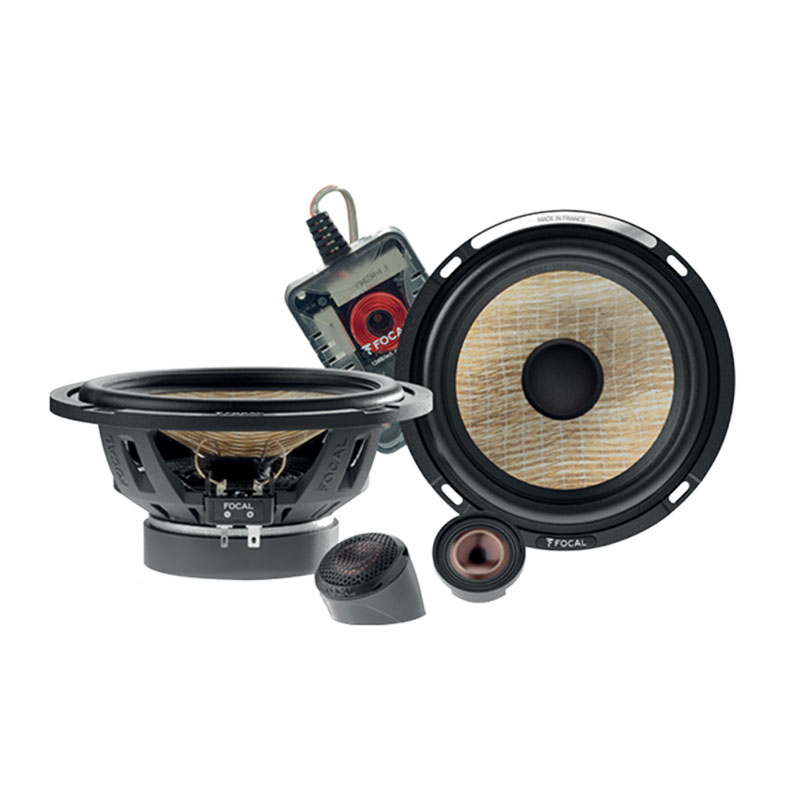

16.5CM (6½“) 2-WAY COMPONENT KIT

Equipped with the Flax cone, the woofers from the PS 165 FE kit deliver a powerful (140-watt) natural sound without colouration. In addition, the TMD (Tuned Mass Damper) surround they incorporate stabilises the surround to achieve better control, and even greater neutrality and linearity.

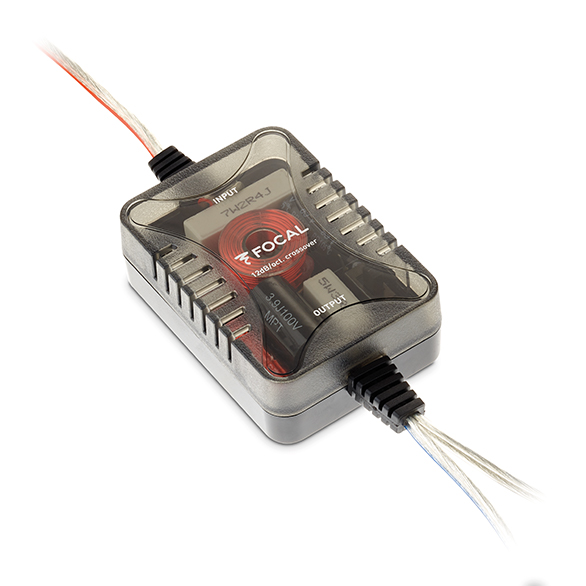

The ‘M’-profile inverted dome TAM tweeters included in the kit offer a wider diffusion angle and greater sound definition, without directionality. Thanks to their tilted mounting, they are easy to install in the vehicle. A compact, pre-cabled audiophile crossover completes this kit. Finally, with its engraved aluminium basket and meticulous finishes, PS 165 FE combines style, discretion and modernity for a premium system.

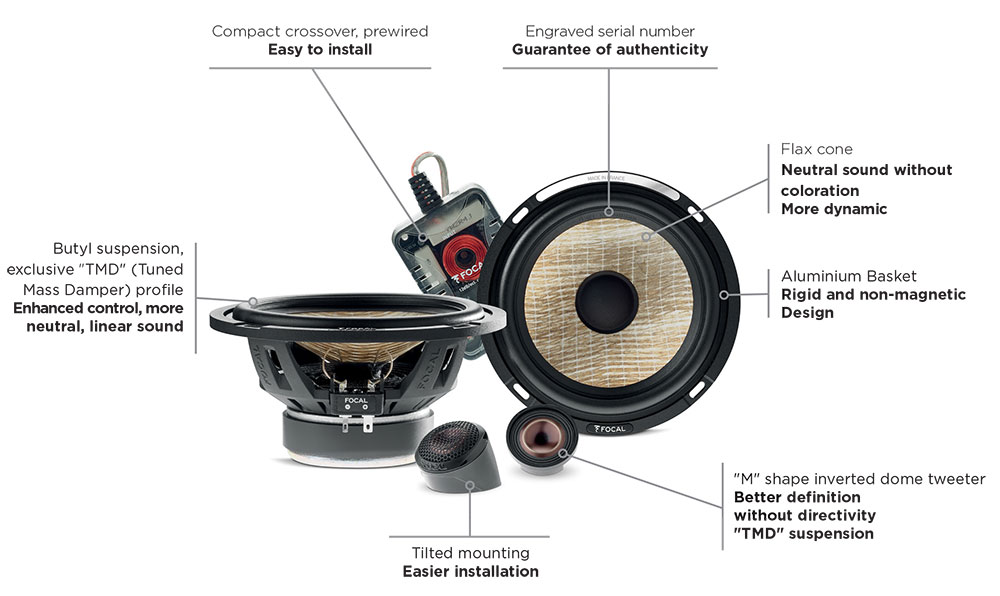

KEY POINTS

• Unique, patented Flax cone
• Butyl surround with exclusive 'TMD’ profile
• Al/Mg ‘M’-profile inverted dome TAM tweeter
• Made in France in the Focal workshops
• High sensitivity
• Wider diffusion angle
• Natural, precise sound
• Easy installation

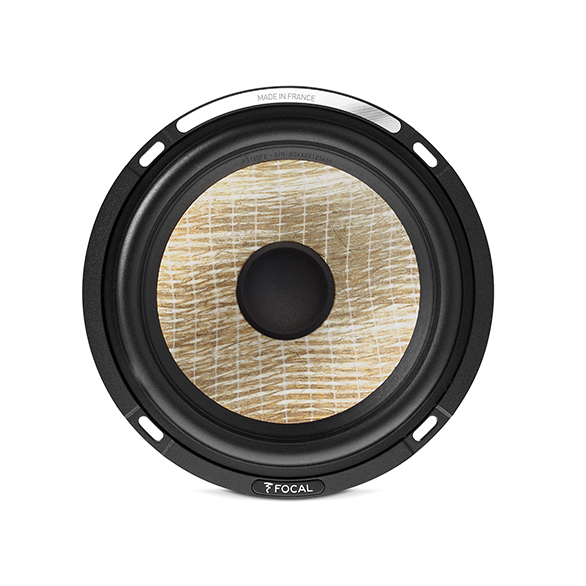

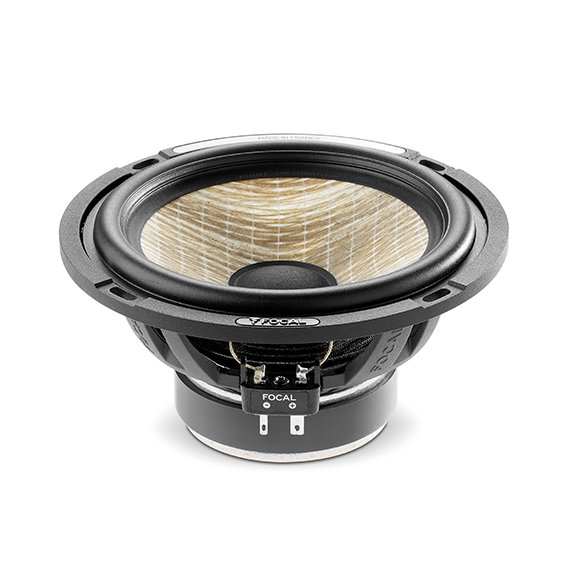

THE FLAX CONE, EXPRESSIVE AND NATURAL

This flax cone has been exclusively made in France by Focal since 2013. With its original design, it is 100% geared towards acoustic performance. This sandwich cone is formed of a flax fibre core placed between two thin sheets of glass fibre. Flax is a fibre with the unique ability to reproduce a very natural sound without colouration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, while its rigidity sustains the bass and provides good damping to deliver a faithful listening experience. Flax fibre is twice as light as glass fibre as it is hollow. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.

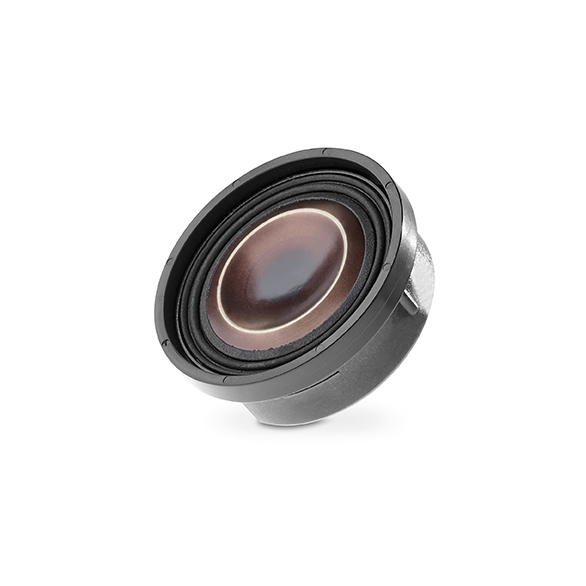

THE TAM TWEETER

Made in France in the Focal workshops, the TAM tweeter stands out for its many qualities, particularly in terms of wide-angle diffusion, beneficial for in-car environments characterised by “off-axis” listening. Comprising a cone that is an aluminium/magnesium ‘M’-profile inverted dome, this tweeter unites an impressive array of cutting-edge Focal technologies to reproduce a faultless harmonic balance and highly-detailed treble.

THE TMD SURROUND

A patented Focal technology, the TMD surround makes an appearance on all speaker drivers in the Flax Evo line, playing a key role in the reproduction and purity of the midranges as well as in the elimination of acoustic distortion, particularly when listening at high volumes.

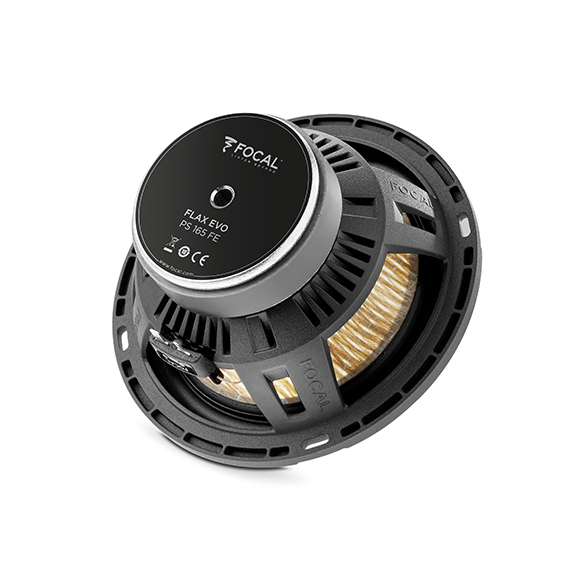

FLAX EVO:
THE NEW LINE OF CAR AUDIO KITS!

The Flax kit series from Focal won the hearts of music lovers all over the world when it was unveiled in 2013. On a constant quest for innovation, Focal has revamped its line and this year presents Flax Evo.

Features

• Type 2-way component kit
• Woofer 61/2” (165mm)

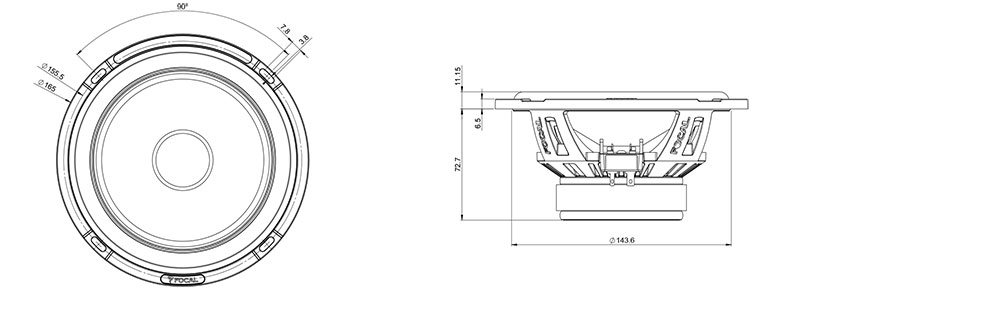

• Woofer depth 27/8” (72.7mm)
• Cone Flax sandwich
• Tweeter TAM tweeter (Aluminium/Magnesium
• ‘M’-profile inverted dome tweeter)
• Max. power 140W
• Nom. power 70W RMS
• Sensitivity (2,83 V/1 m) 91.5dB
• Frequency response 60Hz-28kHz
• Voice coil diameter 1” (25mm)
• Magnet Ferrite
• Surround TMD
• Impedance 4Ω
• Crossover 12dB/oct @3kHz

Specifications

• Nominal power 70W
• Maximum power 140W
• Sensitivity 91.5dB
• Nom. impedance 4Ω
• Cone Flax
• Surround TMD - Rubber
• DC resistance 3.3Ω
• VC diameter 25mm 1"
• Former Kapton
• Layers 2
• Wire Copper
• Net weight 1,050g 2.32lbs
• Frequency response 60-28kHz
• Crossover 12 dB/Oct @3kHz

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
