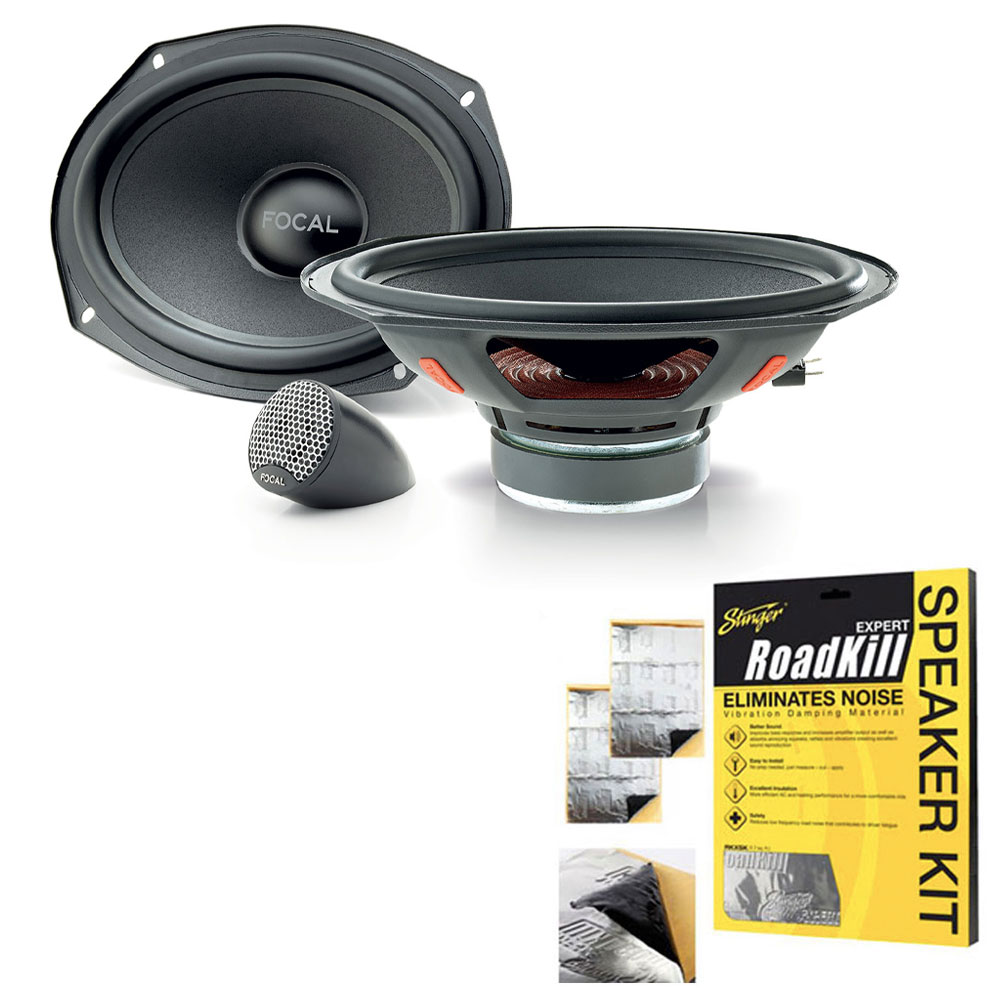

Package Included

• Focal ISU690 Integration Series 6" x 9" 2 Way Component speakers
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

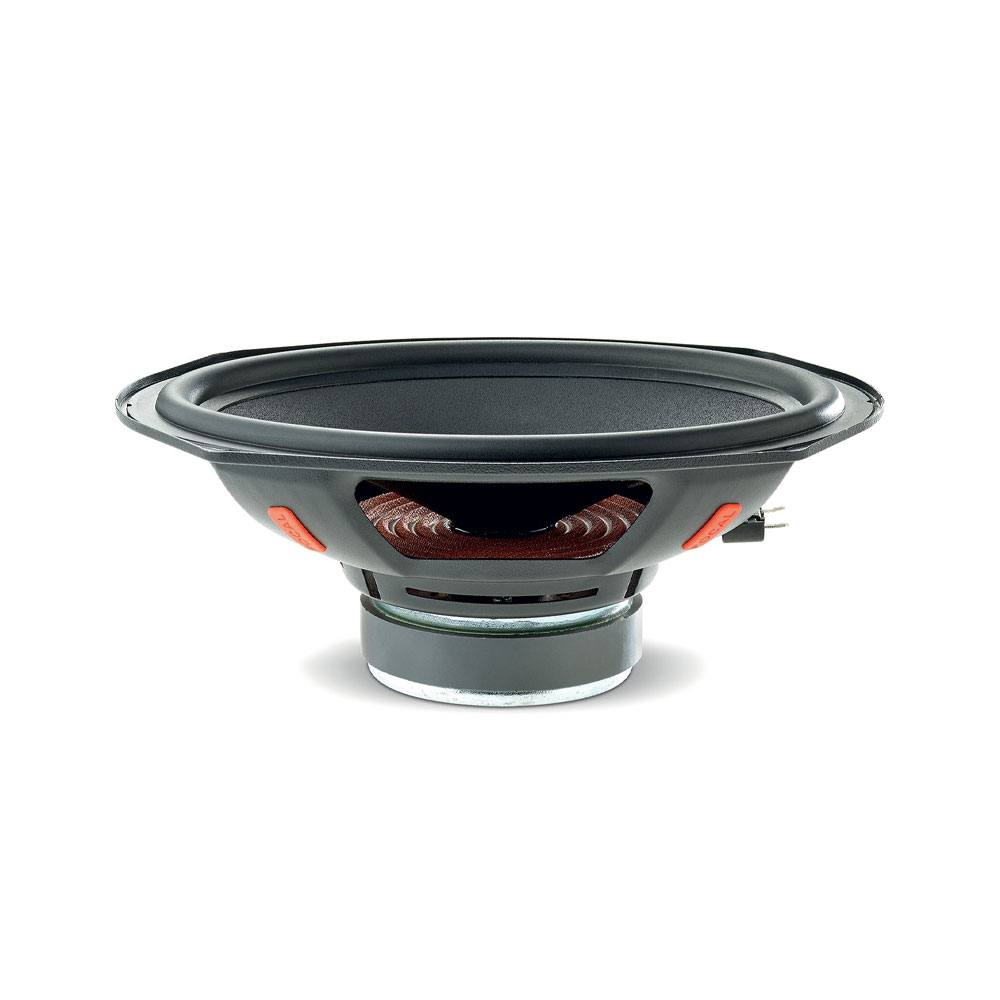

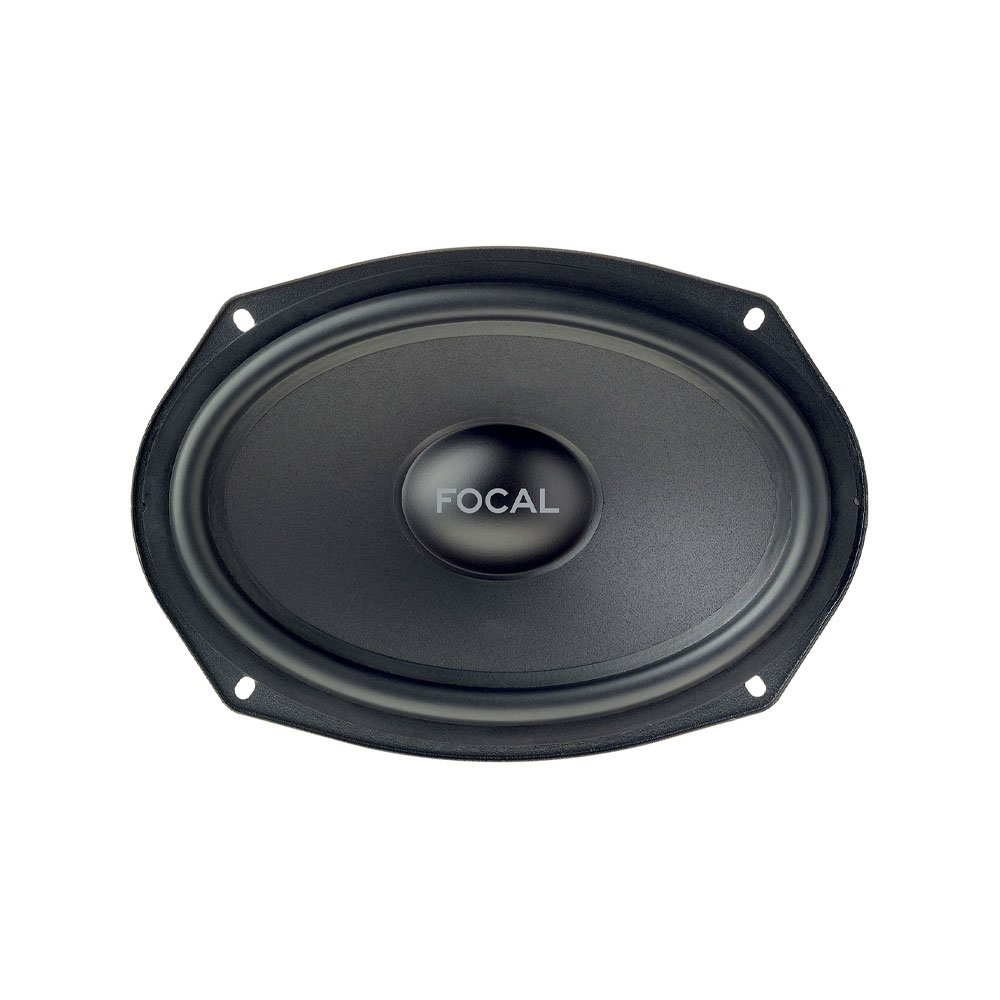

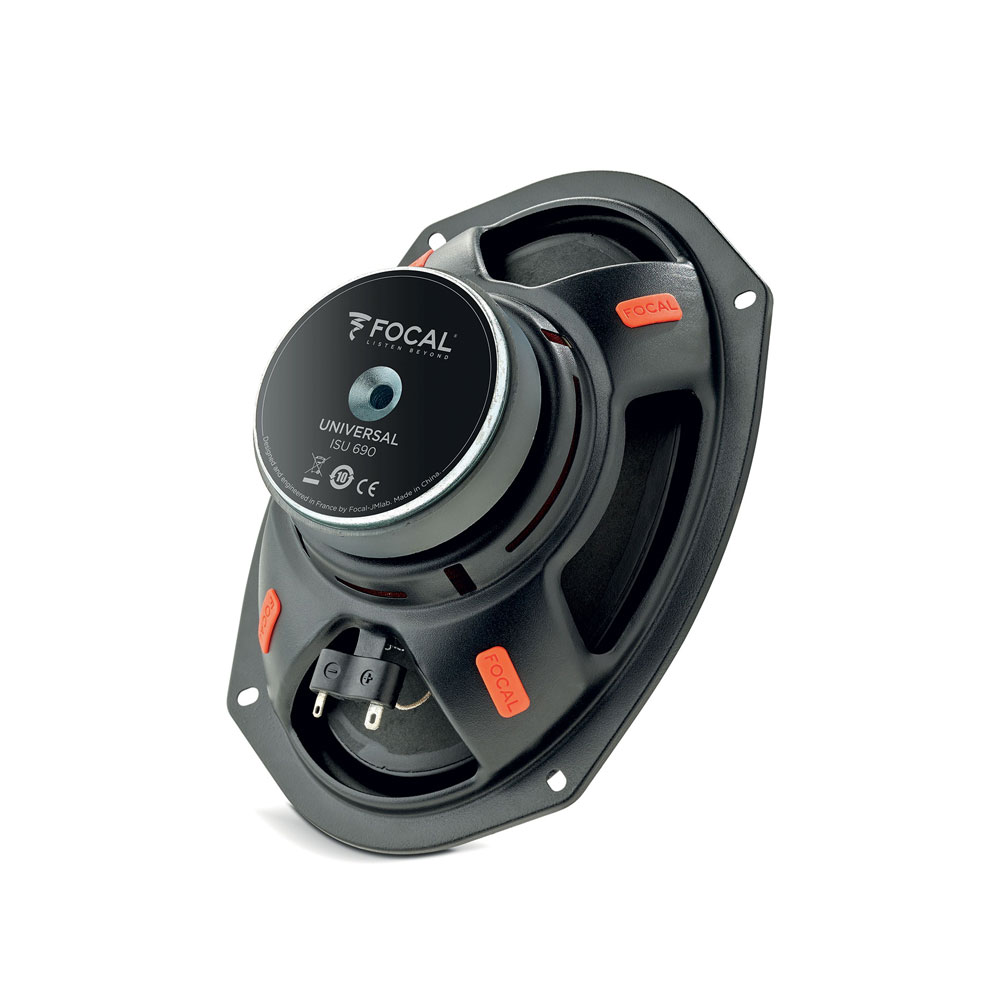

2 Way Separate Kit – 69cm woofer

With the ISU690 2-way separate kit, take advantage of the perfect Focal sound compromise - easy installation to improve your in-car audio installation. With its large emissive surface and its Focal innovations, it ensures a good descent into the bass and very significant power handling. It is also equipped with separate filters to facilitate door mounting.

Slim Profile

ISU690 has a very low mounting depth (just 8.35 cm) compared with its large emissive surface, making it a compact, high-performance kit.

Optimal Integration

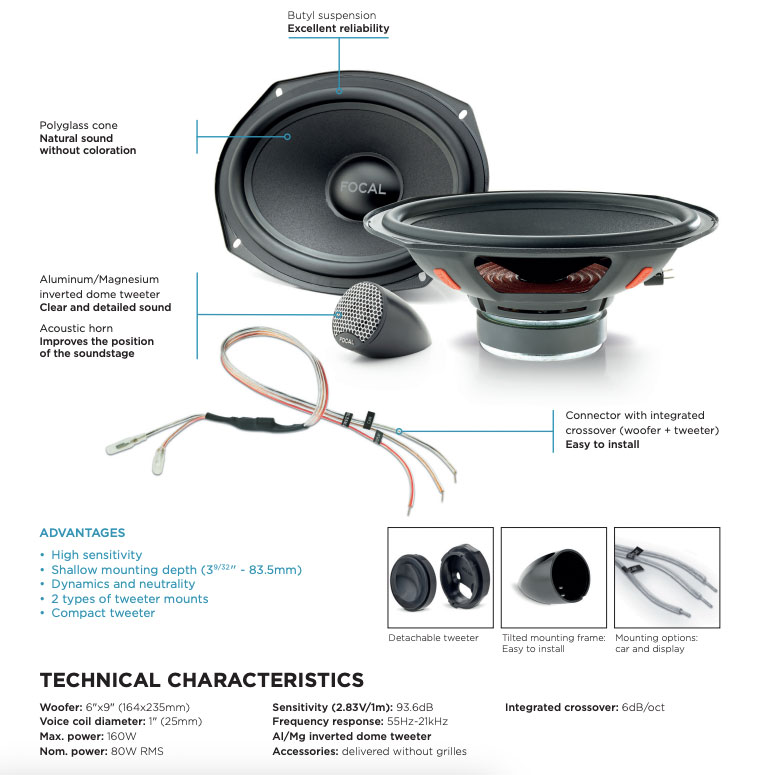

Thanks to a connector with integrated crossovers and a basket designed for optimum integration, mounting the loudspeakers is a breeze. They can be easily installed in a variety of vehicles, and are ideal for certain Ford® and Toyota® models.

Complementarity

The aluminum/magnesium tweeter delivers clear, detailed treble. It is also perfectly compatible in timbre with loudspeakers with Polyglass diaphragm loudspeakers, which deliver natural, uncolored sound.

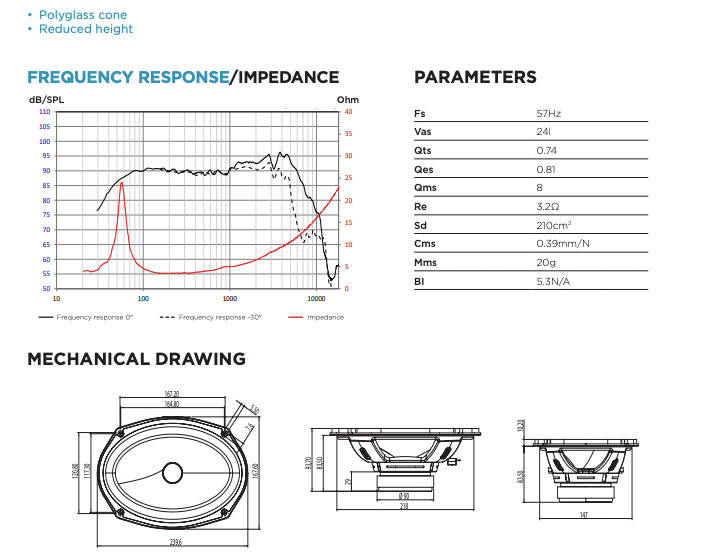

Woofer Specifications

• Nominal power 80W RMS
• Maximum power 160W
• Sensitivity (2,83V/1m) 93.6dB
• Frequency response 55Hz-21kHz
• Cone type Polyglass
• Surround type Butyl
• Nom. impedance 4Ω
• VC diameter 25mm 1"
• Net weight 1.25kg 2.7lbs

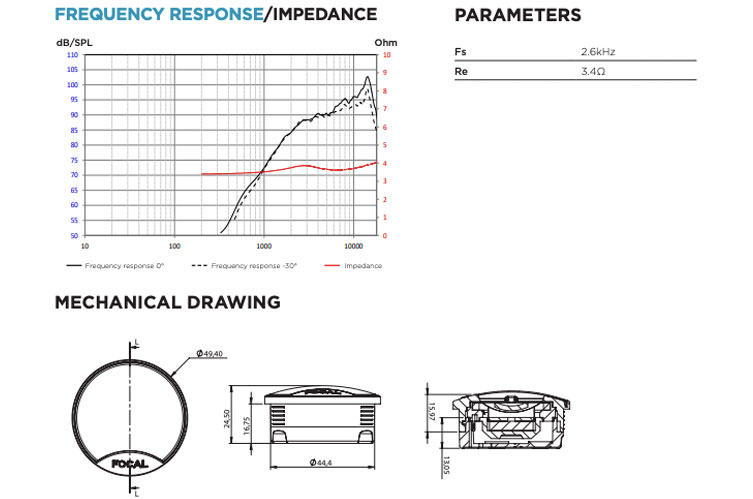

Tweeter Specifications

• Nominal power 15W RMS
• Maximum power 100W
• Sensitivity (2,83V/1m) 94dB
• Frequency response 4kHz-21kHz
• Surround type Poron®
• Nom. impedance 4Ω
• VC diameter 20mm 0.8"
• Net weight 40g 0.09lbs
• Dome Al/Mg

Design

• Weight : 1.25 g / 2.7 lb
• Cut-Out diameter : 143 mm / 5.1 in
• Depth behind surface (Mounting depth) : 49 mm / 1.9 in

Sound Acoustics

• Product type : 2-way separate kit
• Membrane :
• Polyglass
• Coil diameter : 8"
• Tweeter :
• 164x235mm
• Filter : Integrated
• Frequency response (+/- 3dB) :
• 55Hz -21kHz
• Maximum power : 160 watts
• Motor : Ferrite
• Nominal Impedance : 4 Ω
• Nominal power : 80 W RMS
• Sensitivity : 93.6 dB
• Surround material : Butyl

What's In The Box

• Two woofers
• Two inverted dome tweeters (each with 5" length of speaker wire attached)
• 2 Bottom mount woofer adapters
• 2 Flush mount tweeter housings (with tweeters installed)
• 2 Angled surface mount tweeter housings
• Two 18" Lengths of speaker wire with in-line tweeter crossovers
• Two 7" Lengths of speaker wire with in-line woofer crossovers
• 2 Woofer mounting gaskets
• 8 Speed clips
• Four 1" Flathead screws
• Eight 1" Pan head screws
• User manual (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Russian/ Polish/ Arabic)
• Focal window sticker

Note: This item/pack is sold as a pair and contains 2 speakers.

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
