Package Inlcudes

• Focal ES165K2E 6.5” (16.5cm) 2-Way Component Car Speaker Kit
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

Unbelievable Dynamics

6 1/2" (165 Mm) 2-Way Component Kit

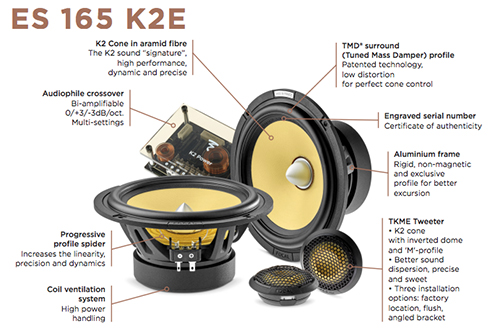

The ES 165 K2E system consists of two 6 1/2” (165mm) woofers with a K2 sandwich cone made of aramid fibre, a Focal innovation of renowned performance. Their high sensitivity allows them to produce an enveloping, powerful and dynamic sound. The central ogive ensures better sound dispersion within the vehicle, to significantly enhance the in-car listening experience.

The fourth generation of K2 Power kits, with their emblematic aramid fibre cone, remain true to the precious and distinctive K2 DNA. The speaker drivers combine performance, power and style, whilst including patented innovations to deliver the very best. Designed, developed and manufactured in our workshops in France, the 2-way component kit ES 165 K2E takes in-car listening to another level.

The two TKME tweeters with the ‘M’-shaped inverted dome, also made of aramid fibre, are linked with bi-amplifiable audiophile crossovers. They ensure optimal control of the high frequencies, producing a smooth and perfectly defined treble. Hi-fi sound has arrived on board.

For optimal, flexible installation options, the tweeters can be mounted in one of three ways: in the factory location, flush-fitted or on angled brackets.

The kit also includes aluminium grilles.

Performance K2 Excellence

K2 Sandwich Cone

The aramid fibre cone inherits all of Focal’s unique know-how. Composed of an ultralight foam core, sandwiched between a thin layer of aramid fibre and a layer of fibreglass, it combines 3 key factors when it comes to acoustics: rigidity, lightness and damping, for sound that is as precise and dynamic as it can get.

TMD Surround

The speaker drivers benefit from TMD(Tuned Mass Damper) technology, a patented innovation. This surround has a special profile, designed to better control the effect of resonance and reduce the distortion associated with deformations of the cone. The midranges are perfectly defined and very realistic.

TKME Tweeter

The ‘M’-profile TKME tweeter extends the frequency response to 22 kHz with an even greater reduction of distortion, for smooth and precise diffusion in the high treble. Coupled with a ‘push-pull’ motor, based on IAL2 technology, it achieves very low resonance frequencies for perfect harmonic balance.

FRAK Tweeter

The ES 165 KX2E and ES 165 KX3E kits are equipped with Focal's ‘M’-shaped FRAK tweeter. A revolution in Car Audio, it combines aluminium and magnesium for good frequency lowering and superb damping. Its lightness helps it shine in the high treble

Power And Reliability Pushing The Boundaries

More Linearity And Precision

The progressive spider on the K2 Power speaker drivers is built around a progressive section to reproduce all the impact of the bass and increase the linearity, precision and dynamics of the sound.

Increased SPL

The Radial VC cooling system for the speaker driver coil expels hot air from the coil towards the bottom of the motor through 6 holes. This improves control over the coil temperature, limiting the effects of heat compression and improving reliability. This improves the dynamics of the speaker driver and generates a powerful sound.

Optimised Crossovers

All the components used for the K2 Power crossovers have been specially selected and optimised to better control the effects of heat dissipation. These components are essential for managing the various channels and the soundstage reliably and efficiently.

Slim Profile

The ES 165 K2S and SUB 25 KXS kits have a shallow depth. This slim profile takes up minimal space whilst maintaining exceptional power handling.

Key points

• Made in France in the Focal workshops
• K2 Cone
• Robust design and high quality materials
• Exceptional power handling
• Aluminium grilles included

Specifications

• Type 2-way component kit
• Maximum power 200W
• Nominal power 100W RMS
• Sensitivity (2.83V/1m) 93dB
• Frequency response 60Hz – 22kHz
• Impedance 2Ω
• Cone K2 Sandwich
• Woofer 61/2" (165mm)
• Voice coil diameter 11/4" (32mm)
• Depth 27/8" (74mm)
• Magnet Ferrite
• Surround TMD®
• Tweeter 'M'-profile
• Crossover 6-12/12dB (3.5kHz)

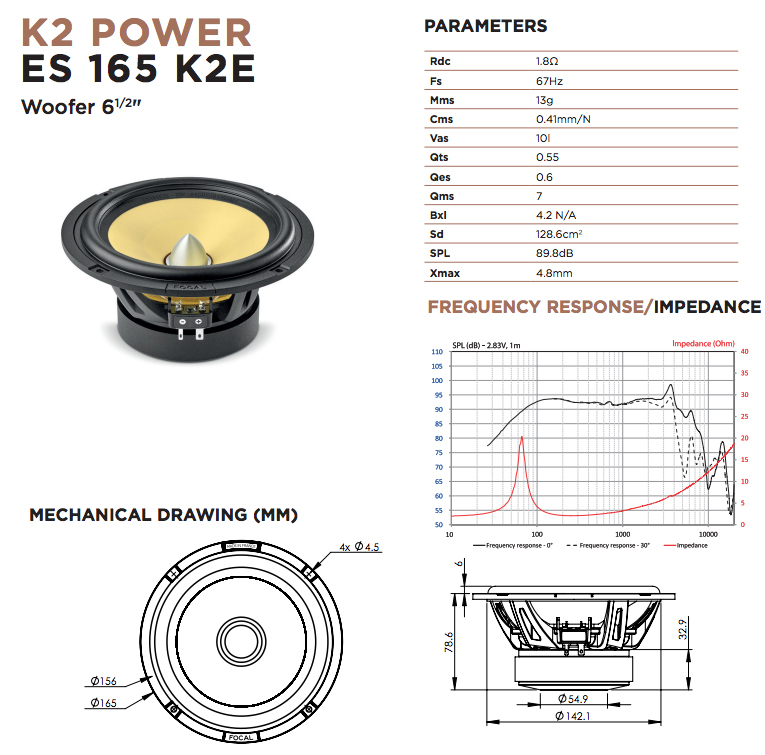

Woofer Specifications

• Nominal power 100W
• Maximum power 200W
• Sensitivity
• (2.83V/1m) 92.8dB
• Cone K2 Sandwich
• Nom. impedance 2Ω
• Surround Butyl
• DC resistance 1.8Ω
• VC diameter 32mm 11/4"
• Former Kapton
• Layers 2
• Wire CCAW
• Magnet (dxh) 95x20mm 33/4 x3/4"
• Net weight 1450g 3.20lbs

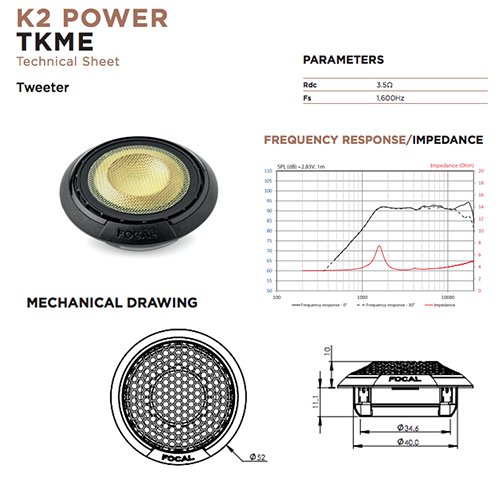

Tweeter Specifications

• Nominal power 15W
• Maximum power 100W
• Sensitivity
• (2.83V/1m) 92dB
• Cone K2 Sandwich
• Nom. impedance 4Ω
• Surround Butyl
• DC resistance 3.5Ω
• VC diameter 20mm 3/4"
• Former Kapton
• Layers 2
• Wire Alu
• Net weight 60g 0.13lbs

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
