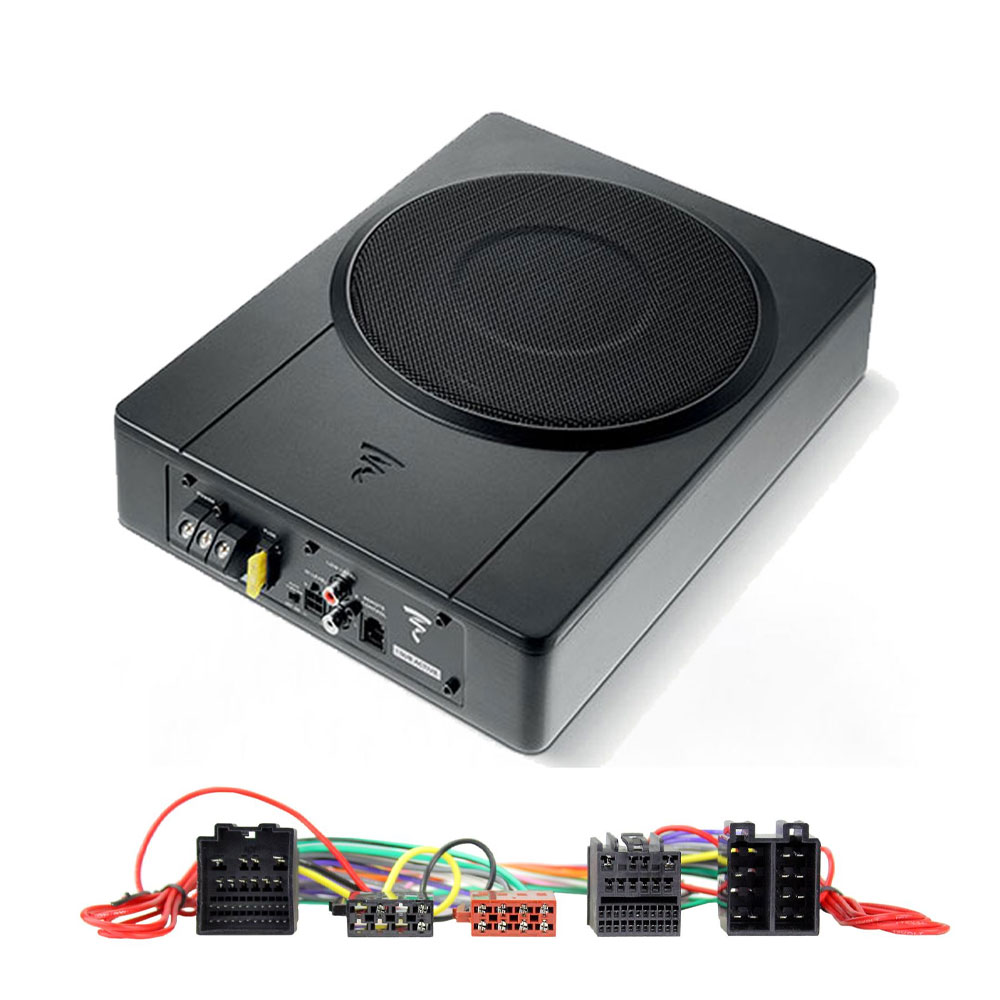

Package Includes

• Focal INSIDE ISUB ACTIVE Flat Active Subwoofer Enclosure Amplified Under Seat Bass
• Phoenix Gold ZDT-FORD1 T-Harness Adaptor Cable For Ford

Amplified Subwoofer Powerful Bass

Self-powered subwoofer ISUB ACTIVE is the perfect way to complete any factory audio system by adding powerful (260W) and dynamic bass. It connects to the HP outputs of the car radio through the cable supplied to genuinely enhance the sound experience without taking up any space in the cabin or boot.

Measuring 21/2” (6.3cm) high, it slides easily underneath a seat, even a tight-fitting one. Thanks to the available settings, you can customise the sound reproduction. A wired remote control is also included for users to adjust the bass level as desired.

Key Points

• Focal expertise
• Ready to use (ISO cable supplied)
• Compact product, discreet integration
• Easy to use
• Various settings options (adjustable incoming signal, adjustable amplifier crossover, volume boost, etc.)
• Robust design

Specifications

• Type 8" ultra-compact amplified subwoofer
• Max. power 260W
• Nom. power 130W RMS
• Frequency response 45Hz - 150Hz
• Impedance 4Ω
• Fuse rating 20A
• Subwoofer phase 0 or 180°
• SNR > 80dBA
• Dimensions (L x W x H) 127/8 x 91/16 x 21/2" (328 x 230 x 63 mm)
• Weight 9.6lbs (4.25kg)

Phoenix Gold ZDT-FORD1 T-Harness

Upgrade your vehicle’s audio with our T-Harness for Ford. it easy to upgrade your audio by integrating seamlessly with our amplifiers. Built for a hassle-free installation, with everything you need included, no cutting or splicing required.

The Phoenix Gold ZDT-FORD1 harness simplifies audio integration when paired with our ZDC-ISO, ZDC-ISOH or ZDC-ISOX harnesses. Designed for seamless compatibility, it allows you to match the ZDT- cable to your specific vehicle and combine it with our ZDA or ZXM amplifiers.

Installation Made Simple:

• 1. Disconnect the OEM harness from your head unit.
• 2. Connect the ZDT- cable to the OEM harness, then plug the other end into your head unit.
• 3. Integrate the ZDT- cable with one of our ZDC-ISO, ZDC-ISOH, or ZDC-ISOX harnesses to establish power, signal, and speaker connections.
• 4. Link the setup to your amplifier, and the installation is complete!

The Phoenix Gold ZDT-FORD1 is crafted for audio integration and is designed with superior features to ensure the best performance and easiest installation.

Why choose the ZDT- harness?

• Maximum power and ground capacity: Designed with the largest possible power and ground wires to deliver consistent, reliable performance for your amplifier.
• Enhanced signal transfer and noise reduction: Twisted high-level cables and larger speaker output cables ensure the best signal transfer while minimizing noise, giving you clear and precise audio quality.
• Easier installation: Extended high-level cables prevent clutter behind the OEM head unit, making the installation process more straightforward.
• Protected and streamlined design: All wires are wrapped in tape for added protection and easier handling, with no loose or unnecessary wires or connectors to complicate the setup.

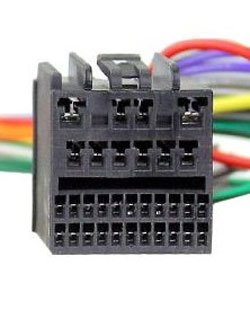

Connectors

• 1x 32-Pin Female Connector
• 1x 32-Pin Male Connector
• 1x ISO Female Connector (Black)
• 1x ISO Female Connector (Brown)
• 1x ISO Male Connector (Brown)
