Car Audio Stereo Installation kit for installing a new after market Double Din headunit into your Fiat. This is complete kit including Fascia Trim Panel, Steering Wheel Audio Control Interface and Aerial Adaptor.

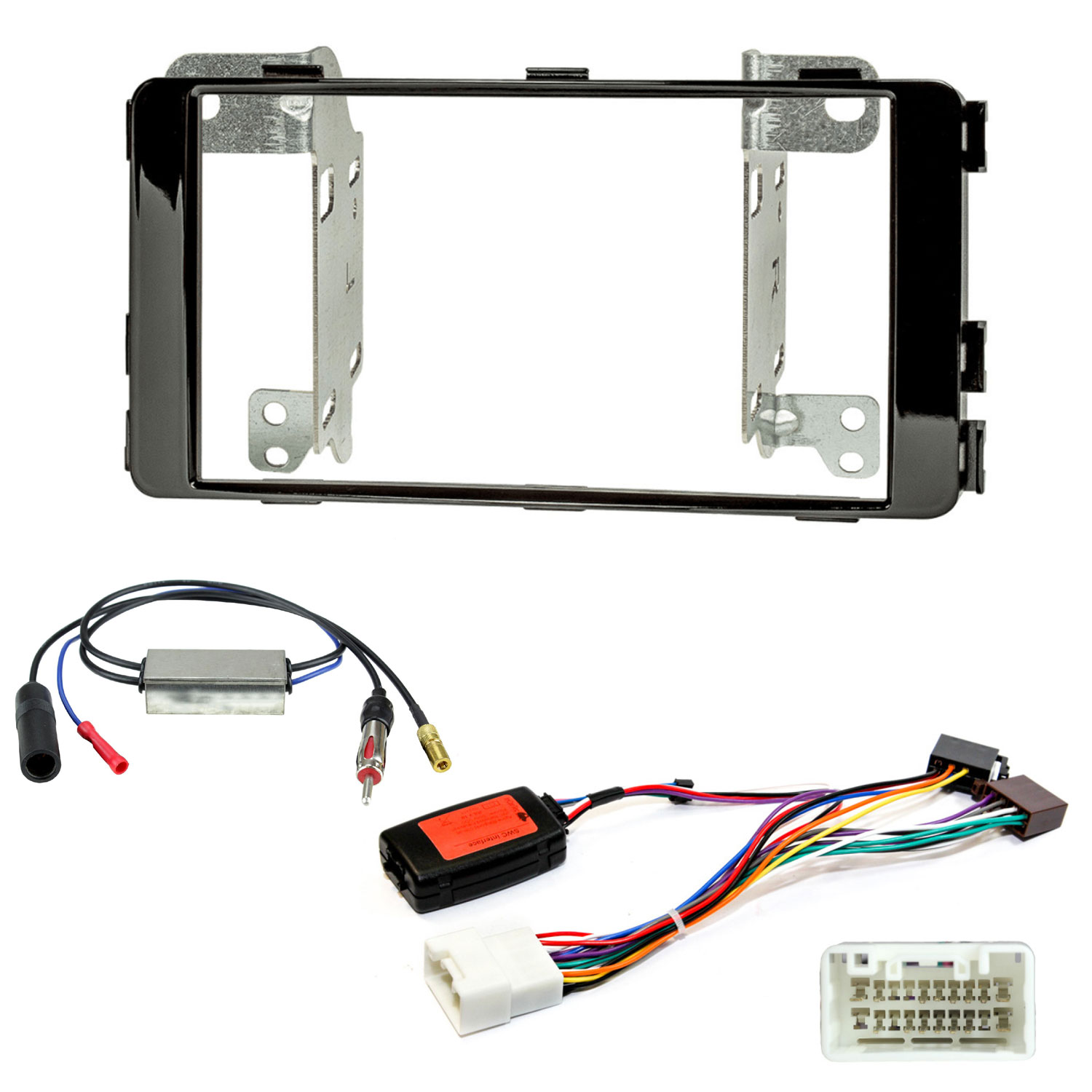

Package Includes

• Double Din Fascia Adaptor (GLOSS BLACK)
• Steering Wheel Audio Control Interface
• DAB Splitter (Uses Vehicle Antenna For Both DAB And FM Signal)
• Stereo Patch Lead (Free CTMULTILEAD.2 Included)

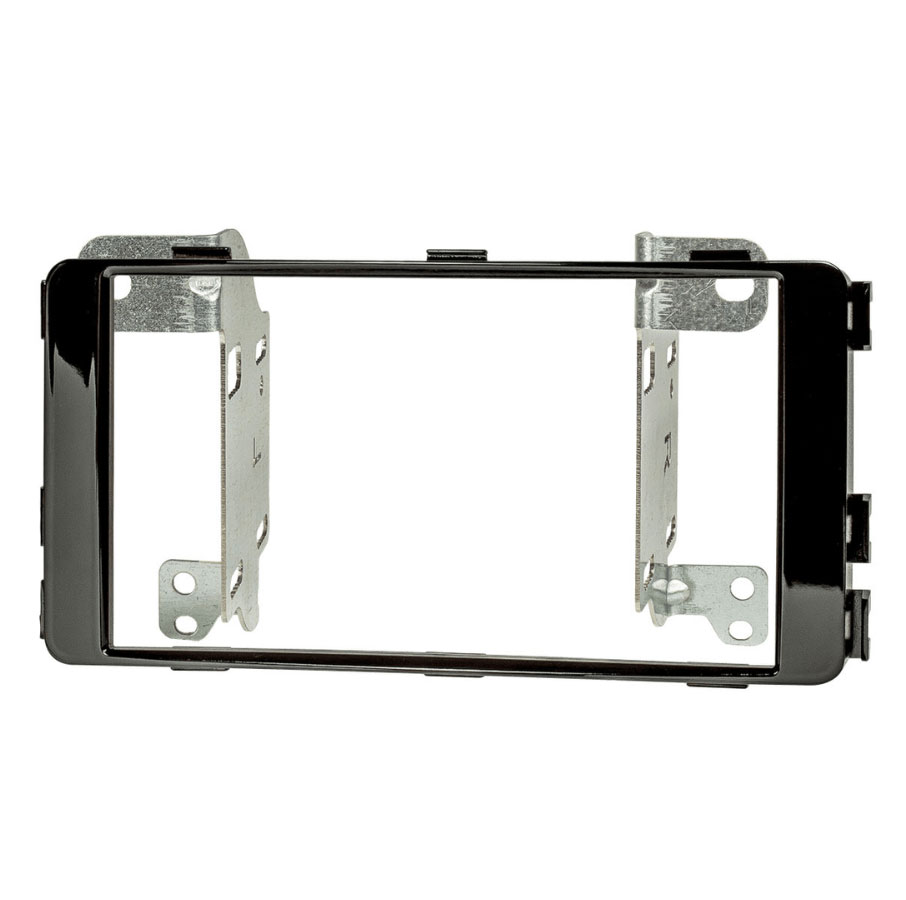

Fascia Adaptor

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version This fascia adapter allows the fitting of an aftermarket radio into the cars dashboard by matching the shape, style, size and colour of the original OEM factory fitted radio.

Fascia gap size: 172mm x 98mm

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel.

COLOUR: GLOSS BLACK

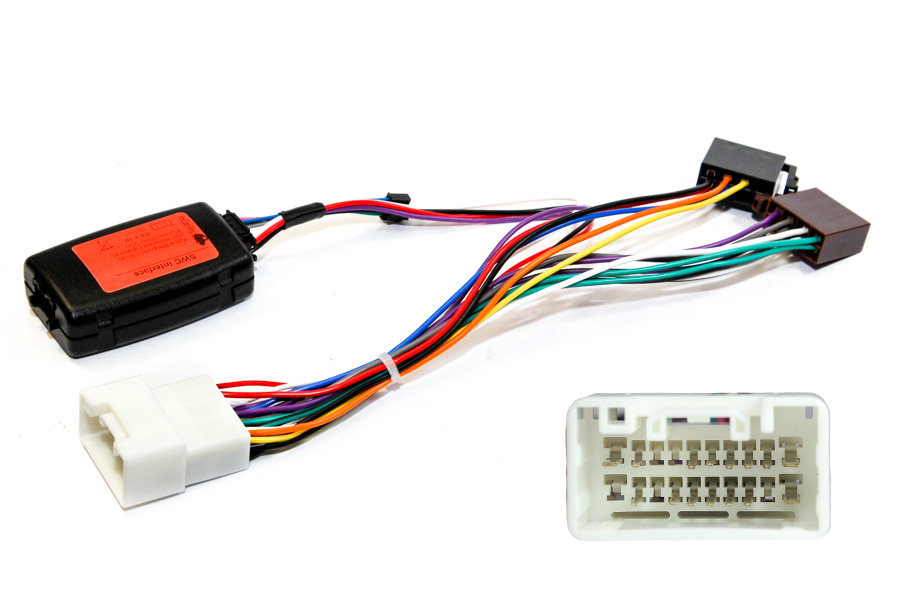

Steering Wheel Interface

Car Audio Steering wheel interface and ISO cables allowing use of original buttons with a new aftermarket head-unit.

This interface will retain the use of the steering wheel audio controls with an aftermarket head unit. Includes PHONE commands for compatible head-units.

Not suitable for cars with original factory SAT NAV

Aerial Adaptor

Connects2 DAB DAB+ antenna splitter does away with the need to install an additional dedicated Glass / Roof mount DAB antenna when installing an aftermarket DAB tuner i.e. Alpine, Pioneer, Kenwood, JVC, Sony etc.

DAB Splitter - DIN Female to DIN Male. With SMB Connector. Allows DAB installation while using the existing vehicle antenna. For non amplified antenna only

Features & Benefits

• Compatible with a wide range of vehicles

This antenna is compatible with all non-amplified FM aerials only and will NOT work with amplified booster aerial systems. Simply plug in line with your head unit aerial connection and then plug the DAB plug into the DAB socket on the back of the head unit.

• Connect the blue wire to the aerial power lead that is 12 volts with the radio switched on.
• No need to install an additional DAB Antenna when installing an aftermarket DAB Tuner.

CTMULTILEAD.2 Universal Patch Lead

Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

Compatible aftermarket headunits:

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• EONON
• JOYING
• XTRONS
• PUMPKIN
• Other Chinese SWC learning head units

Important Patch lead:

• You can simply cut the loops / wires to select which brand you are fitting.
• Supplied with instruction sheet
• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
