Car Audio Stereo Installation kit for installing a new after market Double Din headunit into your Fiat. This is complete kit including Fascia Adaptor, Infodapter & Aerial Adaptors.

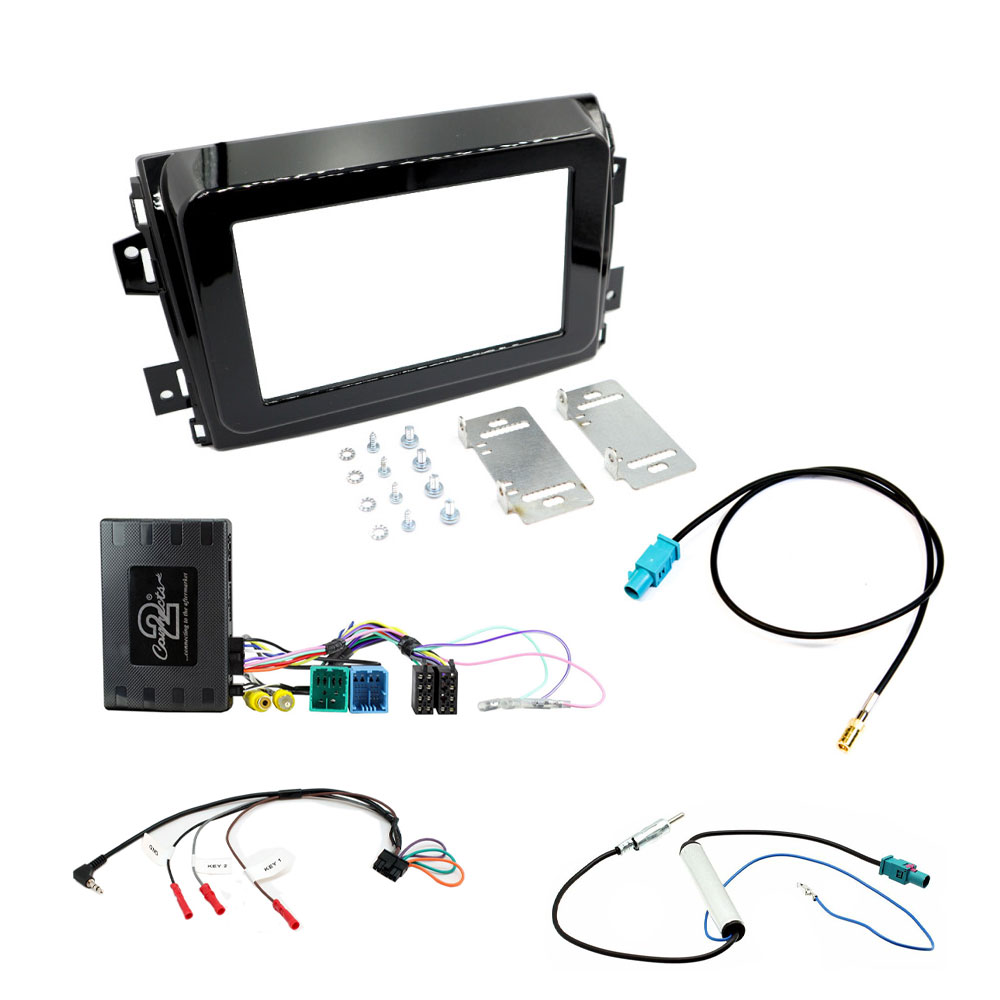

Package Includes

• Double Din Fascia Adaptor (GLOSS BLACK)
• Infodapter Steering Control Bespoke Interface Stalk Adaptor
• Aerial Adaptor
• Fakra DAB Male to DAB SMB Female Antenna Adaptor
• Stereo Patch Lead (Free CTMULTILEAD.2 Included)

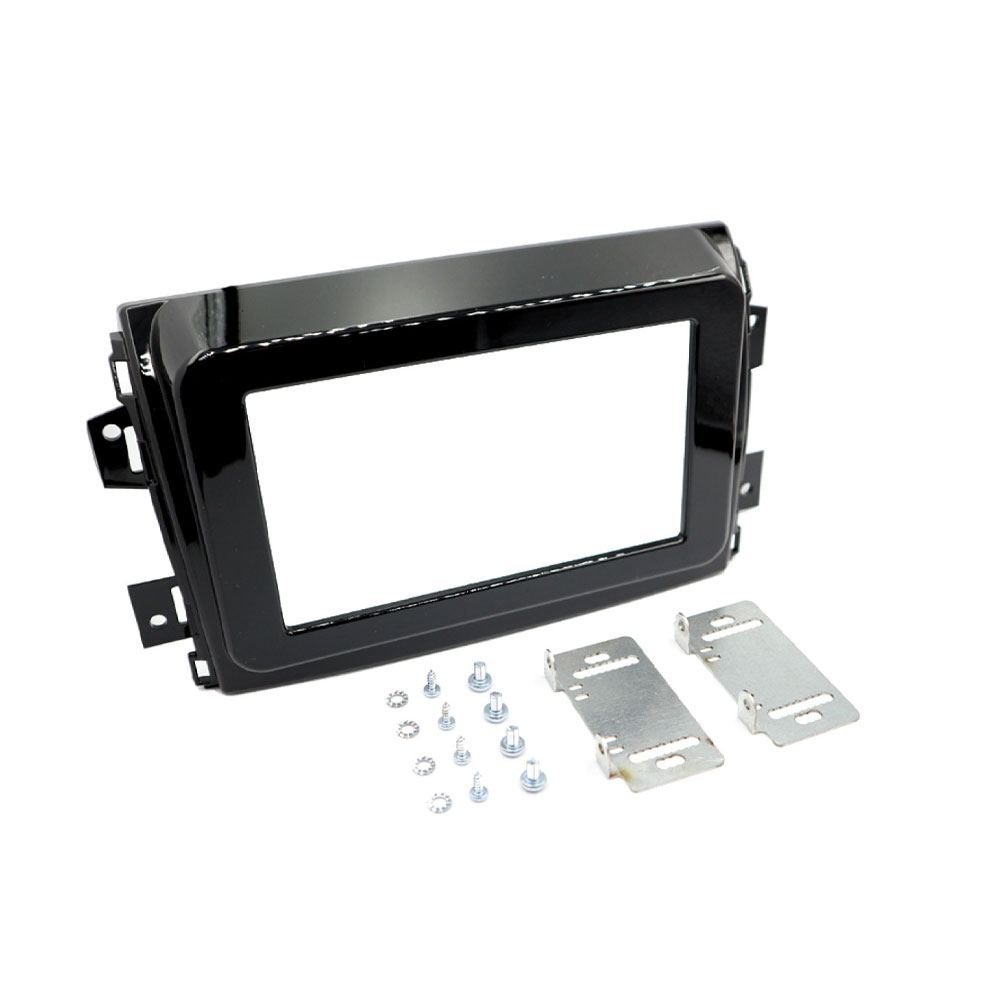

Fascia Adaptor

Replacement car audio facia to enable you to change the original radio in the car to a Double DIN aftermarket version

This fascia adapter allows the fitting of an aftermarket radio into the cars dashboard by matching the shape, style, size and colour of the original OEM factory fitted radio.

The facia is flush fit, making it easier to adjust the fascia to the new aftermarket radio, making for a more professional finish

This facia includes metal side fixing brackets so no fitting cage is required

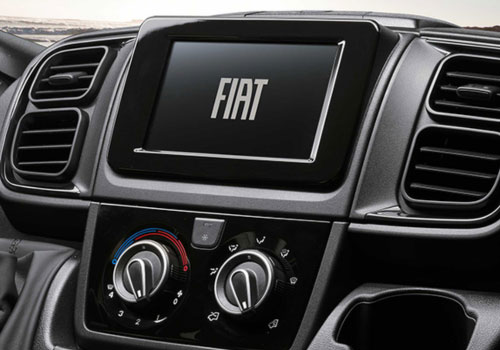

Fits Fiat Ducato (2021 >) car models car models with the updated dashboard for 2021. The earlier dashboard has 1 large vent on each side of the radio. The updated dashboard has 2 smaller vents on either side of the radio:

Multiple radios, including touch screen, basic, open dash and DIN pockets are available as standard. All require this fascia to replace them with a new aftermarket radio.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

The Fiat Ducato 8 Series interface retains key vehicle features and functions when installing an aftermarket stereo into the OEM dashboard.

The bespoke interface allows the retention of select vehicle features and functions that would have been lost upon removal of the original system, in addition it also retains the use of your multifunctional steering wheel controls and phone button functionality.

Features & Benefits

• Retains steering wheel control functionality
• Retains phone button functionality
• Provides outputs for speed pulse, park brake and reverse gear
• Retains vehicle settings and generates settings menus

Aerial Adaptor

Fakra to Din Antenna Adaptor with Phantom Power Supply. This adapter converts car specific antenna connecter to a DIN aftermarket connector.

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit. Antenna Adaptors are available in both ISO and DIN versions. Antenna Aerial Adaptor, converts car specific antenna connector to a universal aftermarket connector.

Blue wire requires connection to stereo remote control wire normally Blue or Blue with White stripe as shown in the image above.

Fakra DAB Male to DAB SMB Female Antenna Adaptor cable (50cm)

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

CTMULTILEAD.2 Universal Patch Lead

Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

Compatible aftermarket headunits:

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• EONON
• JOYING
• XTRONS
• PUMPKIN
• Other Chinese SWC learning head units

Important Patch lead:

• You can simply cut the loops / wires to select which brand you are fitting.
• Supplied with instruction sheet
• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
