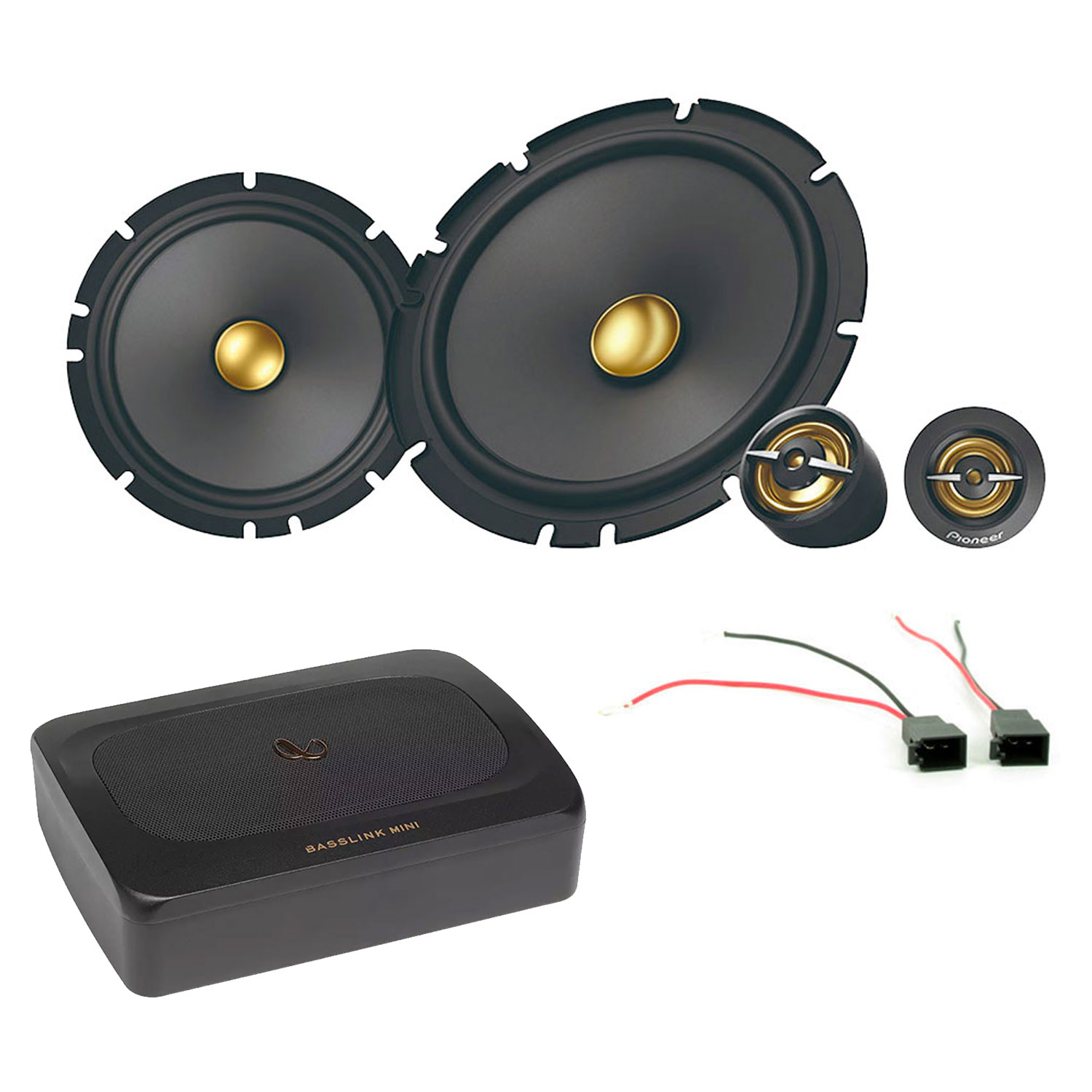

Package Includes

• Pioneer 16.5cm 6.5" 2-Way Component Car Audio Speaker System 350W
• Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
• Speaker Adaptor Plugs

Kit consists of 2 Mids / 2 Tweeters Speaker brackets and wiring harness for main door speaker. Tweeter wiring will need manual connection to existing wiring by using suitable connectors. Please be sure to use the provided tweeter protection as damage to tweeter will arise if no protection is used.

Suitable for below door and tweeter layout

Speaker brackets supplied are universal so break off tabs not required so it fits comfortably inside. 3 new screw mount holes will need to be drilled in to secure the bracket as in photo.

It Just Got Easier to Upgrade your Genuine OEM Sound.

Upgrade the original sound system of your car. Our A series line up can give you the easy to install sound upgrade solution that you have been looking for.

The A series line up has carefully selected materials to improve bass response and high frequencies, whilst delivering Pioneer's famous Open & Smooth™ sound concept, all in an easy to install package.

For an even greater experience, please download Pioneer's free CarSoundFit application, to hear what your car could sound like before and after it has been upgraded with Pioneer.

This product includes Pioneer's unique Multi-Fit installation adaptor, (designed by Pioneer), to greatly expand installtion flexibility and improve acoustic performances.

Car Sound Fit App

Car sound simulator application for an improved in-car sound experience.

Open & Smooth

Open & Smooth delivers smooth frequency response and an expansive soundstage.

IMPP

Enjoy outstanding midbass response with the Injection Molded Polypropylene Cone.

Main Features

• Speaker Size 16.5 cm
• Type  2-Way Component System
• Max Power 350 Watt
• Continuous Power Output 80 W
• Frequency response 33 Hz - 58 kHz
• Sensitivity 90 dB
• Impedance 4 Ω
• Woofer material IMPP™ Composite Cone
• Voice Coil type Copper
• Voice Coil bobbin type GLASS IMIDE
• Cut-out Hole 144 mm
• Tweeter Type DOME
• 2-Way Component

BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Features

Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
• Weight 8.22 lbs (3.73kg)

In The Box

• 1 x Under seat subwoofer
• 4 x Screws
• 4 x Small metal plate
• 1 x Wiring harness
• 1 x Bass volume remote control (with cable)
• 1 x 15A Fuse
